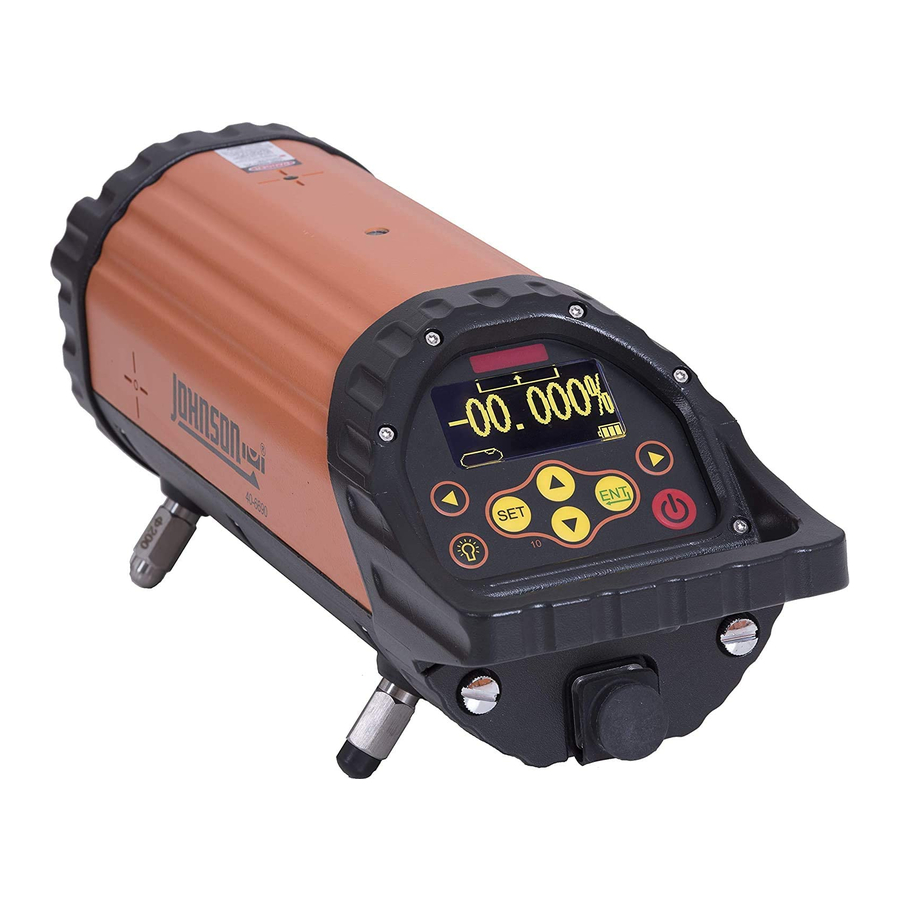

Pipe Laser
Model No. 40-6690
Instruction Manual
Congratulations on your choice of this Pipe Laser. We suggest you read this instruction
manual thoroughly before using the pipe laser. Save this instruction manual for future use.
The 40-6690 pipe laser is an easy-to-use laser that provides underground contractors line,
elevation, and grade control for installing storm, sanitary, or other gravity-flow drainage pipe.
This system can also be used for tunneling, boring, pipe alignment, or any other application
requiring line, elevation, and grade control.
The pipe laser emits a highly visible red beam of laser light in a direction at a predetermined
(grade) for the alignment of gravity-flow pipe. The laser light is intercepted at the opposite end
of the pipe by the pipe laser target. To align the pipe, position it so that the pipe laser's beam is
centered in the target.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040.10 and
1040.11 as well as international safety rule IEC 285.
©2012 Johnson Level & Tool - Rev. 1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson 40-6690
Summary of Contents for Johnson 40-6690
-
Page 1: Pipe Laser
Save this instruction manual for future use. The 40-6690 pipe laser is an easy-to-use laser that provides underground contractors line, elevation, and grade control for installing storm, sanitary, or other gravity-flow drainage pipe. -
Page 2: Table Of Contents
• Quickly reset the line to the center position • Stand by mode to conserve battery • Operates with remote control • Various leg sets and targets for different size pipe • Waterproof ©2012 Johnson Level & Tool - Rev. 1... -
Page 3: Safety Instructions
•Use only original Johnson ® parts and accessories purchased from your Johnson ® authorized dealer. Use of non-Johnson ® parts and accessories will void warranty. ©2012 Johnson Level & Tool - Rev. 1... -
Page 4: Location/Content Of Warning Labels
4. Location/Content of Warning Labels ©2012 Johnson Level & Tool - Rev. 1... -
Page 5: Location Of Parts/Components
Battery pack marker Back leg 5/8 x 11 thread Optional Adjustable Trivet Stand 40-6391 Laser mounting Elevating lock knob TILT lock knob Adjusting knobs Accessories Included Small and large targets Various leg sets ©2012 Johnson Level & Tool - Rev. 1... -
Page 6: Operating Instructions
Additional External Power Cables included 1) 12V adapter 2) Car adapter Note: Recharge the battery when the battery indication shows low or no power. ©2012 Johnson Level & Tool - Rev. 1... - Page 7 Screw the silver adapter to the hole under the handle of the pipe laser. Attach one leg to the adapter and two legs to the front of the pipe laser as shown in picture. ©2012 Johnson Level & Tool - Rev. 1...
-
Page 8: Using The Product
The line-axis pivot marker and LED identifies the pivot point for the pipe lasers line system. The LED also allows you to align a transit over the top of the pipe laser. ©2012 Johnson Level & Tool - Rev. 1... - Page 9 Press the up button to increase the value of the digit. Press the down button to decrease the value of the digit. Holding the button in will change the value quickly. Holding the together will set the grade value to “0”. ©2012 Johnson Level & Tool - Rev. 1...
- Page 10 If the LCD symbol does not flash, it means the ride side of laser is high but still in the allowed range. If the LCD symbol flashes, it means the right side of laser is beyond the allowed range and the right side needs to be lowered. ©2012 Johnson Level & Tool - Rev. 1...
- Page 11 If the laser is in the sleep mode for more than 30 minutes, it will power off automatically. • Remote range: front (laser output window end) 165’ or 50m, back (handle end) 35’ or 10m. ©2012 Johnson Level & Tool - Rev. 1...
-
Page 12: Self-Check & Fine Calibration
If the value of A2-A1 is smaller than the value of B2- B1, the laser beam is too low, and the user needs to adjust the laser line to be leveled. ©2012 Johnson Level & Tool - Rev. 1... -
Page 13: Technical Specifications
• Hold the “left arrow” and “right arrow” keys until “mem clear” shows on the screen. • Recalibrate the laser until |(A2-A1) - (B2-B1)| is equal or less than 3mm. • When |(A2-A1)-(B2-B1)| is greater than 6mm, you need to contact a Johnson ®... -
Page 14: Care And Handling
11. Product Warranty Johnson Level & Tool offers a three year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com. -
Page 15: Warranty Registration
NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682. - Page 16 ©2012 Johnson Level & Tool - Rev. 1...
