4069H_Manuals 11/5/10 8:49 AM Page 1

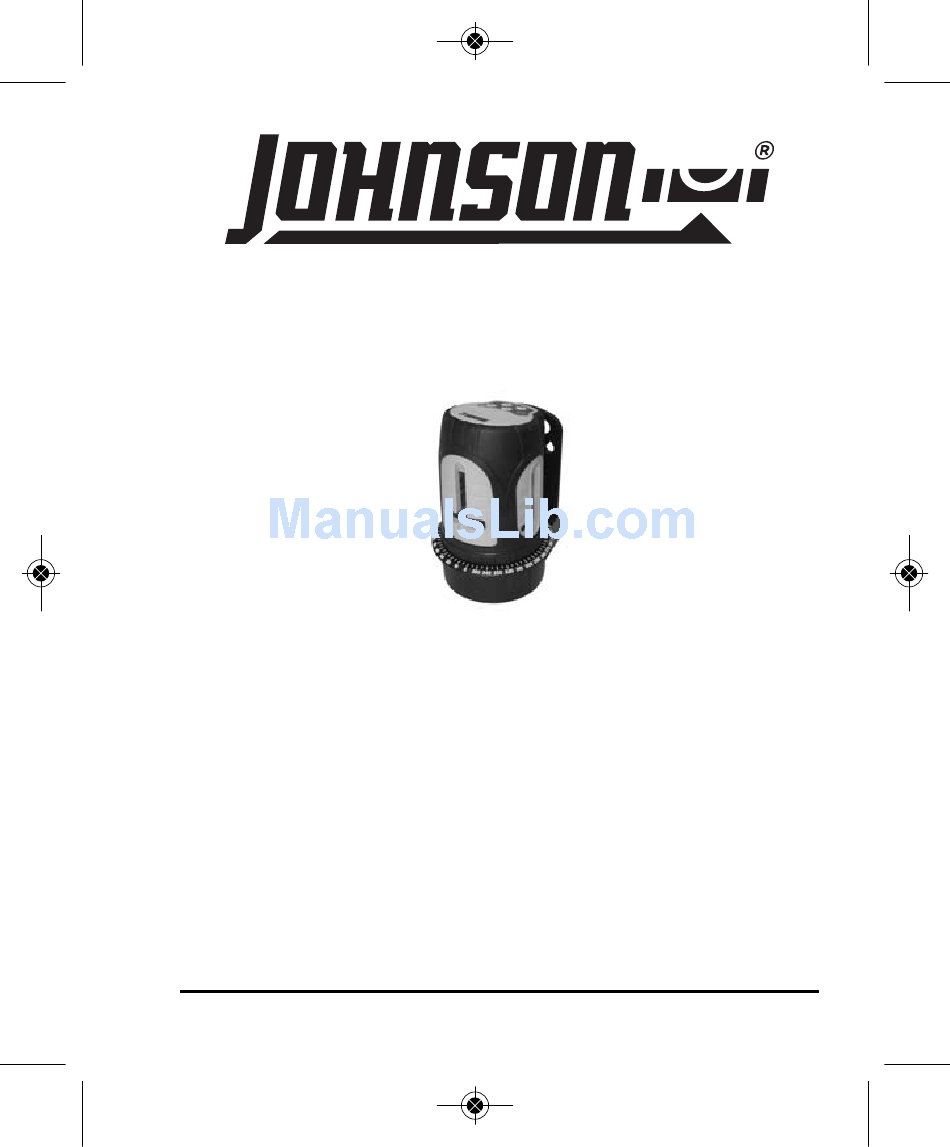

Self-Leveling Cross-Line Laser Level
with 3 Vertical Lines
Model No. 40-6602
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross-Line Laser
Level with 3 vertical lines. We suggest you read this instruction
manual thoroughly before using the instrument. Save this instruction
manual for future use.
This laser emits one laser beam cross and two vertical lines at 90º.
The laser features quick damping, visual and audible out of range
indication, and a pendulum-locking design. Beam visibility depends
upon lighting conditions in the work area.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.
©2010 Johnson Level & Tool - Rev. 1
1

Advertisement

Table of Contents
loading

Related Manuals for Johnson 40-6602

Summary of Contents for Johnson 40-6602

  • Page 1 This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285. ©2010 Johnson Level & Tool - Rev. 1...

  • Page 2: Table Of Contents

    • Self-leveling with visual and audible alarms when beyond leveling range. • Emits continuously both a solid and pulse beam (pulse beam for use with detector). • Manual mode allows unit to tilt to extreme angles. ©2010 Johnson Level & Tool - Rev. 1...

  • Page 3: Safety Instructions

    • Use only original Johnson ® parts and accessories purchased from your Johnson ® ® authorized dealer. Use of non-Johnson parts and accessories will void warranty. ©2010 Johnson Level & Tool - Rev. 1...

  • Page 4: Location/Content

    4069H_Manuals 11/5/10 8:49 AM Page 4 4. Location/Content of Warning Labels ©2010 Johnson Level & Tool - Rev. 1...

  • Page 5: Location Of Parts/Components

    5. Location of Part/Components Keypad Battery Door Laser Screw Emitting Battery Door Laser Window Emitting Window 6V Plug (adapter not included) Wall Mount Screw Hole Bench Mark Locator Insert 5/8” thread Graduated Circle ©2010 Johnson Level & Tool - Rev. 1...

  • Page 6: Operating Instructions

    Then put the cover back on and tighten the battery door screw. Note: • Pay attention to the polarity of the batteries. • Used (discharged) batteries are hazardous waste and should be disposed of properly. ©2010 Johnson Level & Tool - Rev. 1...
  • Page 7 Put the center Put the bench of the bench- mark locator mark locator into 5/8” screw on the mark thread hole. on the floor, then put in the Benchmark locator insert usage instrument. ©2010 Johnson Level & Tool - Rev. 1...

  • Page 8: Using The Product

    Light On: Manual mode is on and laser can be turned on with compensator locked Light Off: Manual mode is off Note: When manual mode is on, the laser does not self-level and no out-of-level alarm is indicated. ©2010 Johnson Level & Tool - Rev. 1...
  • Page 9 LED will turn off. The laser line now can not be located with a detector. Manual Mode: Press the manual mode button with the transportation lock knob in the “Locked” position. The power LED will light and the manual ©2010 Johnson Level & Tool - Rev. 1...
  • Page 10 Press button to form the two Press all buttons to form the laser vertical laser lines shown above lines shown above ©2010 Johnson Level & Tool - Rev. 1...

  • Page 11: Self-Check & Fine Calibration

    9. Mark the laser line at Point A as point C. 10.If the distance between point B and point C is greater then 1/16” the unit needs to be recalibrated. (See calibration information) ©2010 Johnson Level & Tool - Rev. 1...
  • Page 12 4 rotations. 6. If the vertical lines can not be brought into plumb after 4 rotations of each screw, the unit will need to be serviced by Johnson Level & Tool. ©2010 Johnson Level & Tool - Rev. 1...

  • Page 13: Technical Specifications

    Do not rotate the screw more then 4 rotations. 6. If the laser lines can not be brought into calibration after 4 rotations the unit will need to be serviced by Johnson Level & Tool. 9. Technical Specifications Laser Wavelength 635nm±10nm...

  • Page 14: Application Demonstrations

    4069H_Manuals 11/5/10 8:49 AM Page 14 10. Application Demonstrations ©2010 Johnson Level & Tool - Rev. 1...

  • Page 15: Care And Handling

    12. Product Warranty Johnson Level & Tool offers a three year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com.

  • Page 16: Warranty Registration

    For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Dept. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.

  • Page 17: Accessories

    NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
  • Page 18 4069H_Manuals 11/5/10 8:49 AM Page 18 ©2010 Johnson Level & Tool - Rev. 1...
