4429H-English_Manuals 2/18/11 9:40 AM Page 1

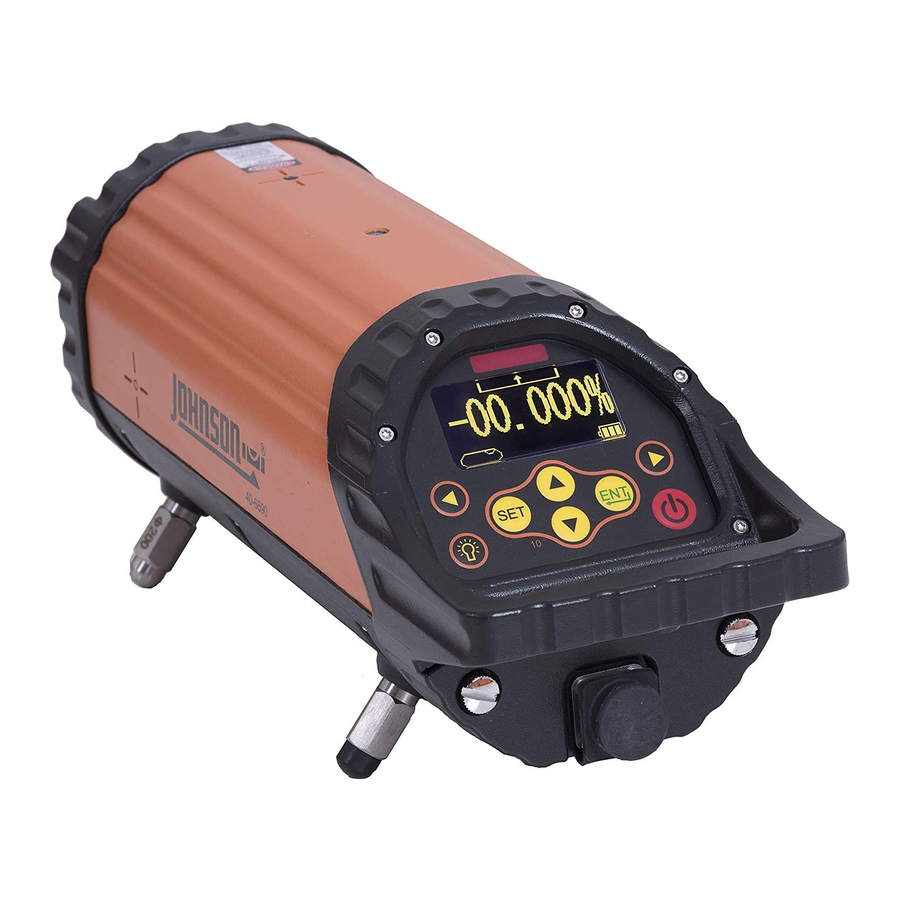

Pipe Laser

Model No. 40-6690
Instruction Manual
Congratulations on your choice of this Pipe Laser. We suggest you read
this instruction manual thoroughly before using the pipe laser. Save this
instruction manual for future use.
The 40-6690 pipe laser is an easy-to-use laser that provides underground
contractors line, elevation, and grade control for installing storm, sanitary, or
other gravity-flow drainage pipe. This system can also be used for tunneling,
boring, pipe alignment, or any other application requiring line, elevation, and
grade control.
The pipe laser emits a highly visible red beam of laser light in a direction at a
predetermined (grade) for the alignment of gravity-flow pipe. The laser light is
intercepted at the opposite end of the pipe by the pipe laser target. To align
the pipe, position it so that the pipe laser's beam is centered in the target.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
©2011 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6690 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson 40-6690

Summary of Contents for Johnson 40-6690

  • Page 1: Pipe Laser

    Save this instruction manual for future use. The 40-6690 pipe laser is an easy-to-use laser that provides underground contractors line, elevation, and grade control for installing storm, sanitary, or other gravity-flow drainage pipe. This system can also be used for tunneling, boring, pipe alignment, or any other application requiring line, elevation, and grade control.

  • Page 2: Table Of Contents

    11. Product Warranty 5. Location of Parts/Components 12. Warranty Registration 6. Operating Instructions 13. Accessories 1. Kit Contents Description for Model 40-6690 Qty. Pipe Laser Rechargeable Battery pack Alkaline Battery Pack (batteries not included) 6.4V Charger Adapter 12V Car Charger...

  • Page 3: Features And Functions

    Failure to do so, may void the warranty. DANGER! Class IIIa Laser Product Max. Power Output: Wavelength: 625-645nm THIS TOOL EMITS LASER RADIATION. DO NOT STARE INTO BEAM. AVOID DIRECT EYE EXPOSURE. ©2011 Johnson Level & Tool...
  • Page 4 • Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void. • Use only original Johnson ® parts and accessories purchased from your Johnson ® authorized dealer. Use of non-Johnson ®...

  • Page 5: Location/Content

    4429H-English_Manuals 2/18/11 9:40 AM Page 5 4. Location/Content of Warning Labels ©2011 Johnson Level & Tool...

  • Page 6: Location Of Parts/Components

    1/4” Thread Mount Front marker & LED remote receiving Back remote window receiving window Laser Exit LCD window Window Keypad Handle Grade - Axis External pivot marker power Front leg receptacle Back leg Battery pack ©2011 Johnson Level & Tool...
  • Page 7 4429H-English_Manuals 2/18/11 9:40 AM Page 7 Optional Adjustable Trivet Stand 40-6391 Elevating lock Laser mounting knob TILT lock knob Adjusting knobs Accessories Included Small and large targets Various leg sets ©2011 Johnson Level & Tool...

  • Page 8: Operating Instructions

    The adapter box charging LED is red during the charging process, and it will turn to green when the battery is fully charged. Charging the battery pack Charging the battery pack Charging LED on adapter box outside the laser with rechargeable battery pack in laser ©2011 Johnson Level & Tool...
  • Page 9 Laser Placement with leg sets: Choose the different size leg sets for different size pipe. (6” or 150mm (no legs), 8” or 200mm, 10” or 250mm, 12” or 300mm, 15” or 400mm, 21” or 500mm). ©2011 Johnson Level & Tool...

  • Page 10: Pipe Laser

    For 3 feet support of the pipe laser: Screw the silver adapter to the hole under the handle of the pipe laser. Attach one leg to the adapter and two legs to the front of the pipe laser as shown in picture. ©2011 Johnson Level & Tool...

  • Page 11: Using The Product

    Grade setting Power button position button LCD backlight & Grade enter button LED button Liquid Crystal Display (LCD) Grade setting Plus or minus Percent symbol Leveling status Line position battery warning ©2011 Johnson Level & Tool...

  • Page 12: Pipe Laser

    A --*-- symbol means the laser dot is centered A ---*- symbol means the laser dot is on the right A ----* symbol flashing means the laser dot is as far to the right as it can go. ©2011 Johnson Level & Tool...
  • Page 13 Press the down button to decrease the value of the digit. Holding the button in will change the value quickly. Holding the together will set the grade value to “0”. ©2011 Johnson Level & Tool...
  • Page 14 If the LCD symbol flashes, it means the left side of laser is beyond the allowed range and the left side needs to be lowered. If the LCD symbol does not flash, it means the left side of laser is high but still in the allowed range. ©2011 Johnson Level & Tool...
  • Page 15 • Press the power button on the remote when pipe laser is turned on and the pipe laser will enter the sleep mode. The pipe laser saves the current data and powers down. ©2011 Johnson Level & Tool...
  • Page 16 If the laser is in the sleep mode for more than 30 minutes, it will power off automatically. • Remote range: front (laser output window end) 165’ or 50m, back (handle end) 35’ or 10m. ©2011 Johnson Level & Tool...

  • Page 17: Self-Check & Fine Calibration

    A and point B, note it as A1 and B1. • Put the laser behind point B and let the laser beam go through points A and B making sure the laser is in its self-leveling range. ©2011 Johnson Level & Tool...
  • Page 18 (on the remote control) to confirm the calibration. • Recalibrate the laser until |(A2-A1) - (B2-B1)| is equal or less than 3mm • When |(A2-A1)-(B2-B1)| is greater than 6mm, you need to contact a Johnson ® authorized repair center. ©2011 Johnson Level & Tool...

  • Page 19: Technical Specifications

    Ni-MH: Approximately 64 hours continuous use Alkaline: Approximately 40 hours continuous use Dimensions 5.19” x 14.96” (132 x 380mm) Weight 13.2 lbs. (6 Kg) Working Temperature -4°F to 122°F (-20°C to +50°C) IP Protection Class 68 nitrogen purged ©2011 Johnson Level & Tool...

  • Page 20: Care And Handling

    11. Product Warranty Johnson Level & Tool offers a three year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com.

  • Page 21: Warranty Registration

    For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Dept. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.

  • Page 22: Accessories

    NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 888-9-LEVELS. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
