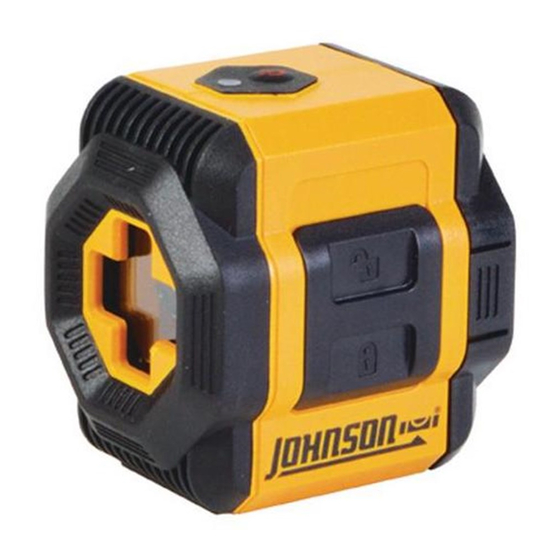

Self-leveling cross-line laser
Hide thumbs
Table of Contents

Advertisement

Quick Links

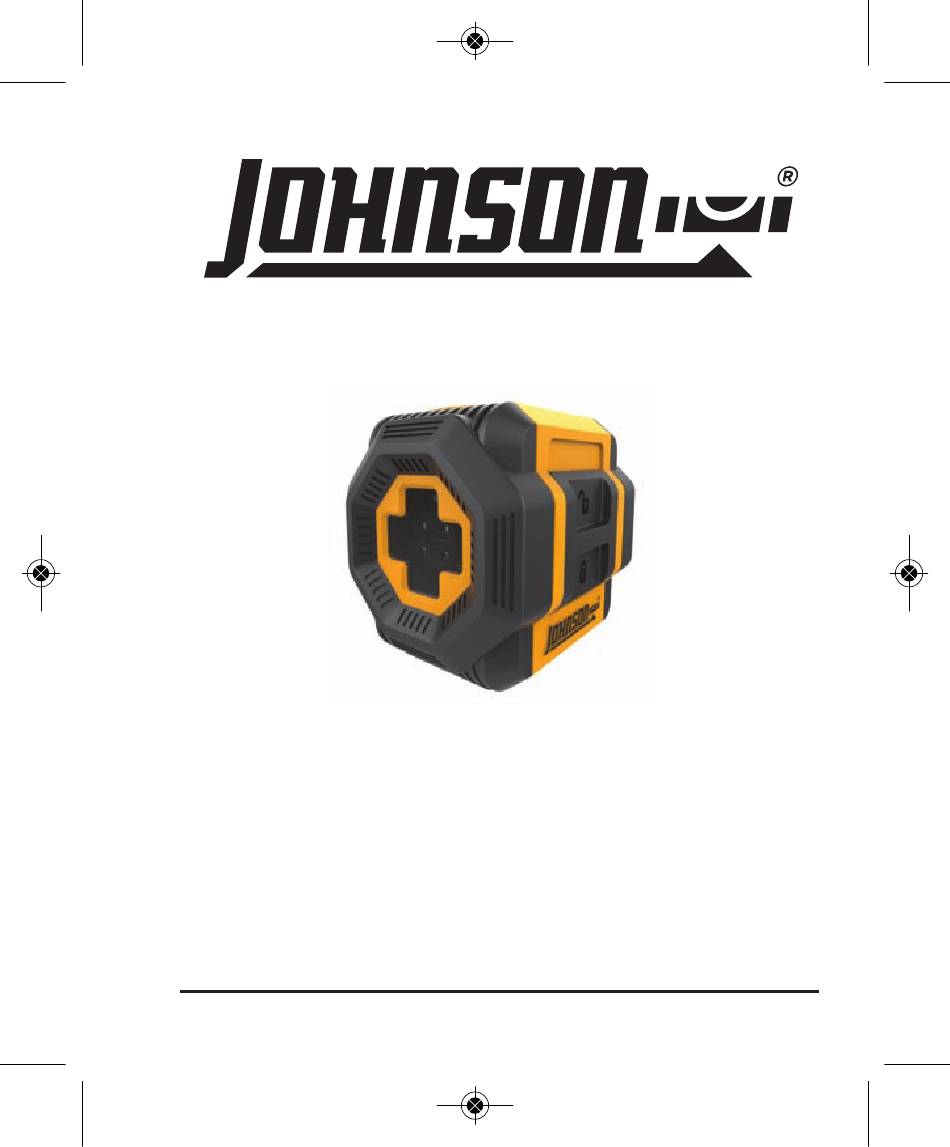

2891i-3English_Manuals 6/4/18 10:26 AM Page 1
Self-Leveling Cross-Line Laser
Model Nos. 40-6601, 40-6603, 40-6605
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross-Line Laser. We
suggest you read this instruction manual thoroughly before using the
instrument and save this instruction manual for future use.
This is a Class II laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
©2018 Johnson Level & Tool - Rev. 1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson 40-6601

Summary of Contents for Johnson 40-6601

  • Page 1 This is a Class II laser tool and is manufactured to comply with CRF 21, parts 1040.10 and 1040.11 as well as international safety rule IEC 285. ©2018 Johnson Level & Tool - Rev. 1...

  • Page 2: Table Of Contents

    Description for Model 40-6603 Qty. Self-Leveling Cross-Line Laser “AA” Alkaline Batteries Description for Model 40-6601 & 40-6605 Qty. Self-Leveling Cross-Line Laser Magnetic Bracket Tinted Glasses Magnetic Target “AA” Alkaline Batteries Hard-Shell Carrying Case ©2018 Johnson Level & Tool - Rev. 1...

  • Page 3: Features And Functions

    • Status light alerts you to when the tool is beyond its leveling range • Locking mechanism protects the pendulum during transportation • 1/4″-20 tripod thread for use with most common tripods ©2018 Johnson Level & Tool - Rev. 1...

  • Page 4: Safety Instructions

    Wavelength 520nm THIS TOOL EMITS LASER RADIATION. Class II laser product This device complies with 21 CFR chapter 1, DO NOT STARE INTO BEAM. Subchapter J, CFR1040.10 and 1040.11 AVOID DIRECT EYE EXPOSURE. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 5 • Use only original Johnson ® parts and accessories purchased from your Johnson ® authorized dealer. Use of non-Johnson ® parts and accessories will void warranty. ©2018 Johnson Level & Tool - Rev. 1...

  • Page 6: Location/Content

    INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Maximum Power < 1mW Wavelength 520nm Class II laser product This device complies with 21 CFR chapter 1, Subchapter J, CFR1040.10 and 1040.11 40-6601 40-6603 40-6605 ©2018 Johnson Level & Tool - Rev. 1...

  • Page 7: Location Of Parts/Components

    2891i-3English_Manuals 6/4/18 10:26 AM Page 7 5. Location of Parts/Components Tilt Mode Button Status Light Locking Compensator/ Power Switch Battery Cover Laser Output Release Tab Window 1/4″-20 Tripod Thread (underneath, not shown) ©2018 Johnson Level & Tool - Rev. 1...

  • Page 8: Operating Instructions

    • Use only alkaline batteries. • Remove the batteries when storing the instrument for an extended time (more than 3 months) to avoid damage to the tool should the batteries deteriorate. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 9 The lasers will be perpendicular to each other, but will not self level. Press the tilt mode button to power off the unit. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 10 • Keep the laser unit dry and clean, especially the laser output window. Remove any moisture or dirt with a soft, dry cloth. • Do not use harsh chemicals, strong detergents or cleaning solvents to clean the unit. ©2018 Johnson Level & Tool - Rev. 1...

  • Page 11: Checking Accuracy

    8. Mark on the doorway Point E. 9. Measure the distance between Point D and Point E. If this distance is less than 1/8″ for a 10′ high doorway, then the tool is properly calibrated. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 12 15 ft (5m) 8 ft (2.5m) 7. Measure the distance ‘e’ from Point M to the laser line, as per the figure. If ‘e’ < 3/16″, then the tool is properly calibrated. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 13 A. Make a mark and label as A1. 4. Rotate the instrument 180° and make the cross dot project on the staff/wall B. Make a mark and label as B1. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 14 B. Make a mark and label as B2. 7. Calculate the vertical distance (A1-A2) – (B1-B2) = e 8. If e < 3/16″ at 15′, the instrument is properly calibrated. ©2018 Johnson Level & Tool - Rev. 1...

  • Page 15: Application Examples

    • Setting tile or other flooring on walls and floors • Installing partitions, windows or doorways • Fixing cabinetry • As a measuring reference for checking spacing or the angle of objects ©2018 Johnson Level & Tool - Rev. 1...

  • Page 16: Troubleshooting Guide

    Compensator is locked Unlock compensator to allow the pendulum to self-level; operating with the compensator locked is for tilt/manual level mode at unique angles ©2018 Johnson Level & Tool - Rev. 1...

  • Page 17: Technical Specifications

    Dimensions 3″ x 3″ x 2.37″ Weight 0.53 lbs Tripod Thread 1/4″ – 20 IP Rating IP 50 * Battery life reported with all beams enabled, as tested with lithium AA/Alkaline AA. ©2018 Johnson Level & Tool - Rev. 1...

  • Page 18: Product Warranty

    2891i-3English_Manuals 6/4/18 10:26 AM Page 18 11. Product Warranty Johnson Level & Tool offers a two year limited warranty on each of its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department, as provided below, or by visiting our web site at www.johnsonlevel.com.

  • Page 19: Warranty Registration

    We will never sell your information and only send you marketing information if you opt-in. To register, go to www.johnsonlevel.com/register. ©2018 Johnson Level & Tool - Rev. 1...
  • Page 20 2891i-3English_Manuals 6/4/18 10:26 AM Page 20 ©2018 Johnson Level & Tool - Rev. 1...
