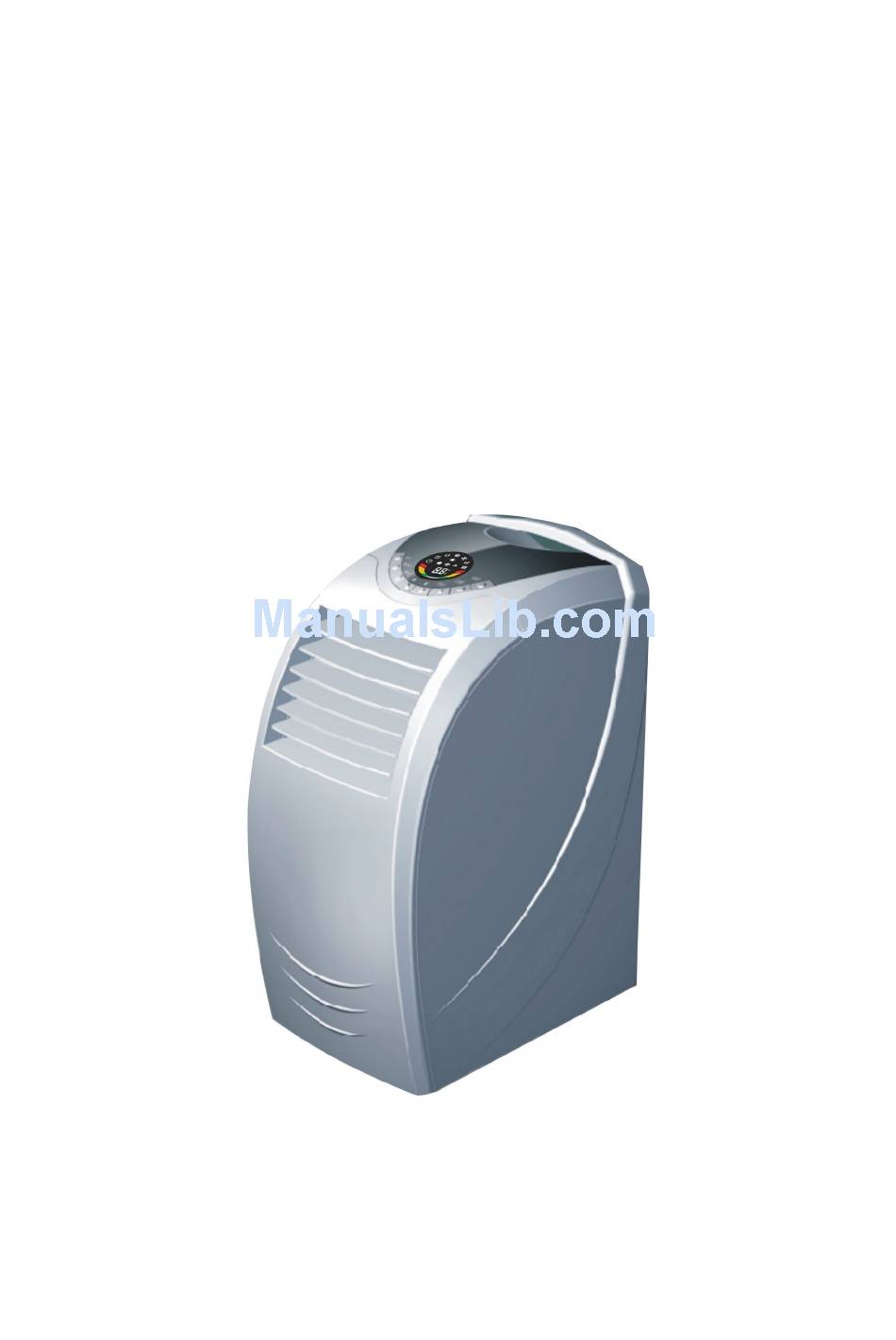

Page 1: User Manual

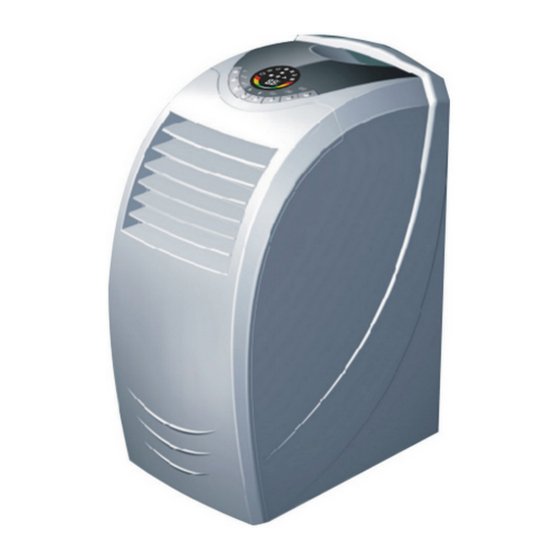

USER MANUAL KY-26 KYD-26 KY-32 KYD-32 KY-44 KYD-44 PORTABLE AIR-CONDITIONER Thank you for selecting super quality air conditioner. Please be sure to read this manual carefully before using it. Any question, please contact the professional service for help. -
Page 2: Table Of Contents
CONTENTS CONTENTS ........................IMPORTANT SAFEGUARDS ................. FEATURES AND PARTS LIST ................PANEL CONTROL ...................... REMOTE CONTROL ....................OPERATION METHODS ..................INSTALLATION ......................WATER DRAINGE METHODS ................MAINTENANCE ......................TROUBLE SHOOTING ................... INSTALLATION ACCESSORIES ................ APPENDIX ........................ -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Important Safeguards. •Read all instructions. •Disconnect the power plug before dismantling, assembling or before cleaning. •Avoid touching mobile parts of the appliance. •Never insert fingers, pencils or any other objects though the guards whenever the power plug is connected, especially while running. •The appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the unit safely. -
Page 4: Energy Saving Tips
Energy Saving Tips. • Do not cover or restrict the airflow from the Outlet or Inlet grills. • The minimum distance from furniture and wall should be 50cm. • Keep blinds and /or draperies, on any windows, closed during the sunniest part of the day. -
Page 5: Features And Parts List
FEATURES AND PARTS LIST Features: ·No installation is required. ·Easily moved . The handle makes moving more convenient. ·Streamline colorful screen display . ·LED colorful screen display. ·Water-cooled mode is most energy saving and environment protect. ·Low noise and strong wind . ·Unique economic function. -
Page 6: Panel Control
PANEL CONTROL CAUTIONS: If the unit is turned off in cool /dry/ heat mode and restarted immediately , then it will wait at least 3minutes before running again. 1. Buttons Timer: press this button to set the timer Swing: press this button to make the vertical louver swing automatically. Press once again, the swing will stop. -
Page 7: Remote Control
REMOTE CONTROL Power Press this button to turn/off the unit. Timer Press this button to set the timer. Swing Press this button to make the vertical louver swing automatically Vary from Celsius degree to Fahrenheit degree. Cool Press this button to choose Cool mode. Heat Press this button to choose Heat mode. -
Page 8: Operation Methods
OPERATION METHODS Timer set 1.Set timer-off Press the Timer button when the unit is on. The LED will flash_ _five Times. During this period press Up or Down button to adjust set time from 0.5h to 24h. It will vary 0.5h each time in 3h and 1h each time hereafter. The set time will flash 5 times after adjusting. -
Page 9: Installation
INSTALLATION 1.Selection of Installation Place Install the unit on a flat and dry place. Leave at least 50cm space around the unit(when the hose is not connected). (Fig.5) 2.AIR Exhaust Duct Mounting Method 1) Fix the square end of the exhaust dust to the exhaust terminal of the unit. - Page 10 4.Mounting illustrations 1.mounting in the wall 2.correct bending 3.wrong bending...
-
Page 11: Water Drainge Methods
WATER DRAINGE METHODS This product has a self-evaporative system. The condensing water will recycle to cool the condenser. This water-cooled mode can not only improve cooling efficiency and decrease noise, but also save energy for you. * When in cooling mode, the water from the evaporator will flow into a inside pan. -
Page 12: Maintenance
MAINTENANCE Cleaning Turn off the unit and pull the plug out of the socket before any cleaning. 1.Clean the surface Clean the surface of the unit with a duster or a half-wet soft cloth. Do not use chemical solvent like benzene, alcohol, gasoline and etc, Or the surface may be damaged or even deformed. -
Page 13: Trouble Shooting
TROUBLE SHOOTING Before contacting professional service, please firstly check it yourself referring to the followings. Trouble Check Solution Is power fail? It is normal. Is plug out? Insert the plug into the The unit doesn’t socket steadily. operate at all. Is power fuse or switch off? Change the fuse or switch Is the set time suitable? -
Page 14: Installation Accessories
INSTALLATION ACCESSORIES Description Flexible exhaust hose with adapters ……3/set Stretch from 7000BTU/8000BTU/9000BTU:14” (36cm) up to 59” (150cm) 12000BTU/14000BTU/15000BTU:15” (38cm) up to 59” (150cm) Window exhaust adapter (flat mouth)……1pc Adjustable window slider kit ………………2/set From 35 3/8” (90cm) up to 51 1/8” (130cm) Screw (the length is 3/8”)………………………1pc Drain pipe ………………………………………1pc Plug (square)……………………………………1pc... -
Page 15: Appendix
APPENDIX 1.Fuse Parameter Type: FSD Voltage: 250V Current: 3.15A 2.Wiring Diagram Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
