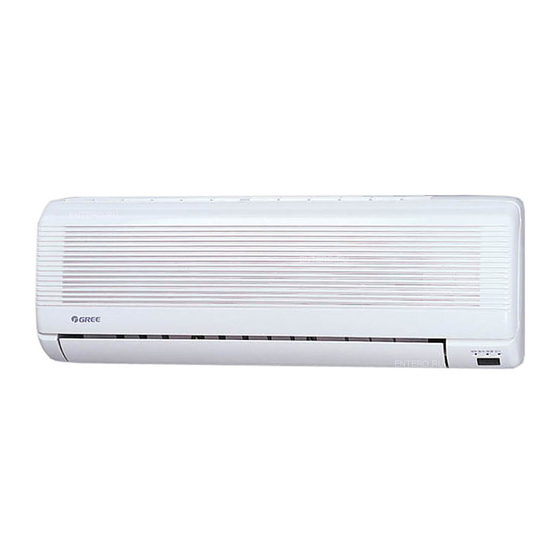

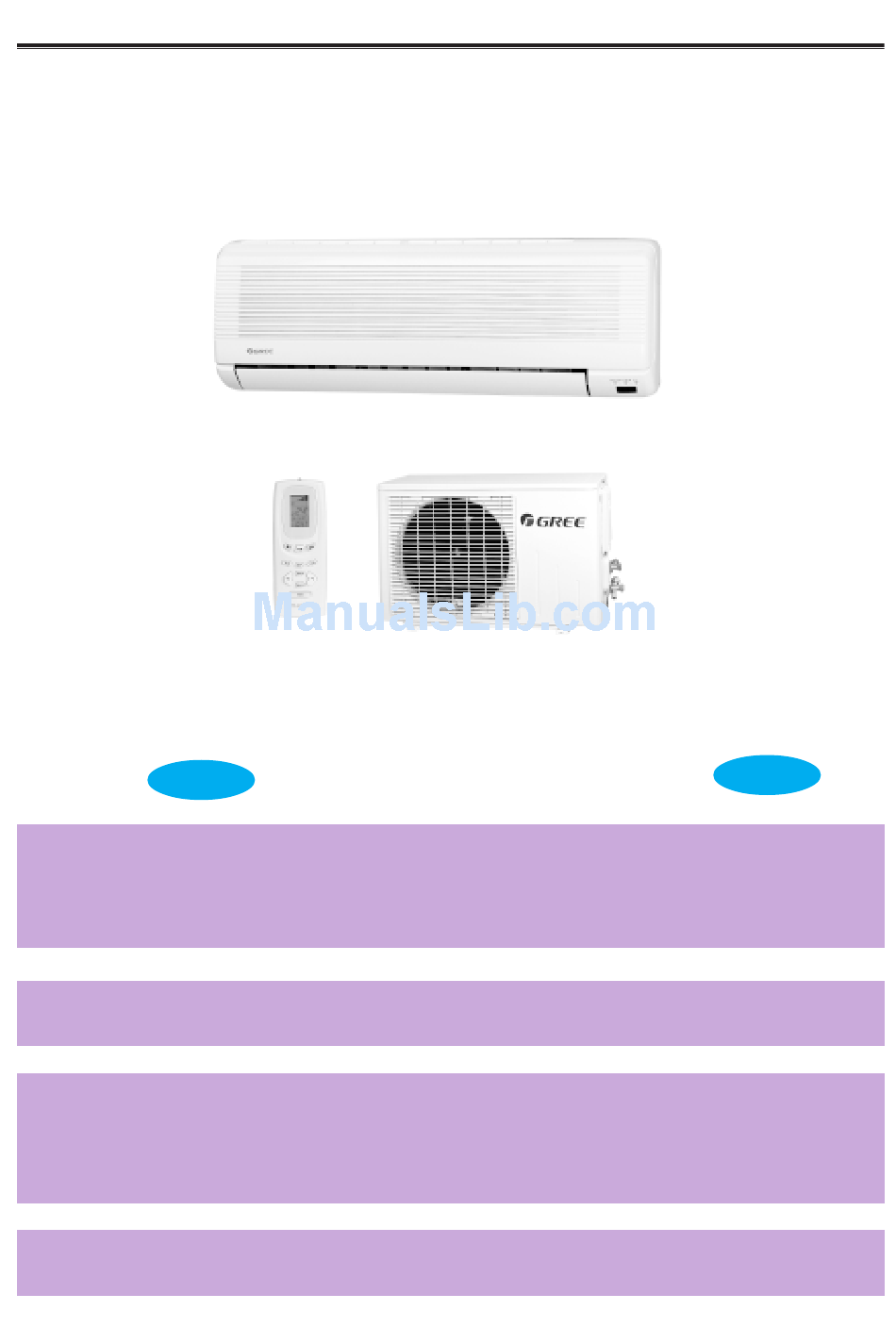

Butterfly Series Butterfly Series 1. Summary Fig. 1 NOTE MODEL KF-23GW/A13 CE STANDARD KFR-23GW/A13 1Ph 220-230V 50Hz KF-26GW/A13 KFR-26GW/A13 1Ph 240V 50Hz KFR-23GW/A13-12405 KF-20GW/NA13 CE STANDARD KFR-20GW/NA13 1Ph 220-230V 50Hz KF-25GW/NA13 R407C KFR-25GW/NA13 KF-23GW/A13-12206 1Ph 220V 60Hz KF-26GW/A13-12206... -
Page 2: Kf-23Gw/A13
Butterfly Series 2. Technical specifications Table 1 KF-23GW/A13 KFR-23GW/A13 Model Cooling Cooling/Heating Function 1Ph 220-230V 50Hz Power supply 2300 2300/2400 Capacity (W) 800/850 Rated input (W) 3.5/3.7 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.87/2.82 2.87 C.O.P (W/W) -
Page 3: Kf-26Gw/A13
Butterfly Series Table 2 KF-26GW/A13 KFR-26GW/A13 Model Cooling Cooling/Heating Function 1Ph 220-230V 50Hz Power supply 2600 2600/3000 Capacity (W) 1000/1050 1000 Rated input (W) 4.4/4.6 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.60/2.86 C.O.P (W/W) Model KF-23G/A13 KFR-26G/A13 Motor fan speed(rpm) 1090/930 Output power(W) -
Page 4: Kfr-23Gw/A13-12405
Butterfly Series Table 3 KFR-23GW/A13-12405 Model Function Cooling/Heating Power supply 1Ph 240V 50Hz Capacity (W) 2300/2400 820/800 Rated input (W) 3.5/3.4 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.82/3.00 C.O.P (W/W) Model KFR23G/A13-12405 Motor fan speed(rpm) 1080/980/910 Output power(W) Fan type/piece Cross flow fan-1 Diameter-length(mm) -
Page 5: Kf-20Gw/Na13
Butterfly Series Table 4 KF-20GW/NA13 KFR-20GW/NA13 Model Cooling Cooling/Heating Function 1Ph 220-230V 50Hz Power supply 2000 2000/2300 Capacity (W) 850/880 Rated input (W) 3.70/3.83 3.70 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.35/2.88 2.35 C.O.P (W/W) Model KF-20G/NA13 KFR-20G/NA13 Motor fan speed(rpm) 1090/930... -
Page 6: Kf-25Gw/Na13
Butterfly Series Table 5 KF-25GW/NA13 KFR-25GW/NA13 Model Cooling Cooling/Heating Function 1Ph 220-230V 50Hz Power supply 2500 2500/2800 Capacity (W) 980/1030 Rated input (W) 4.3/4.5 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.55 2.55/2.72 C.O.P (W/W) Model KF-25G/NA13 KFR-25G/NA13 Motor fan speed(rpm) 1090/930 Output power(W) - Page 7 Butterfly Series Table 6 KF-23GW/A13-12206 KF-26GW/A13-12206 Model Cooling Function 1Ph 220V 60Hz Power supply 2600 Capacity (W) 2300 Rated input (W) 3.44 3.82 Rated current (A) Air flow (m Dehumidifying volume (L/h) 3.05 C.O.P (W/W) Model KF-26G/A13-12206 KF-23G/A13-12206 Motor fan speed(rpm)
-
Page 8: Performance Curves
Butterfly Series 3. Performance curves Fig. 2... - Page 9 Heating capacity change ratio (%)
- Page 10 Butterfly Series Fig. 4 -11-...
-
Page 11: Outlines And Dimensions Of Indoor Unit
Butterfly Series 4. Outlines and dimensions of indoor unit Back view Unit:mm Ceiling Above 4cm Above 7cm Above 5cm Wall-mounted frame Fig. 5 -12-... -
Page 12: Outlines And Dimensions Of Outdoor Unit
Butterfly Series 5. Outlines and dimensions of outdoor unit Hand lift Fig. 6 -13-... -
Page 13: Explosive View And Spare Parts List Of Indoor Unit
Butterfly Series 6. Explosive view and spare parts list of indoor unit Model: KF(R)-23G/A13 KF(R)-20G/NA13 KF(R)-26G/A13 KF(R)-25G/NA13 KFR-23G/A13-12405 Fig. 7 -14-... - Page 14 Butterfly Series Table 7 Part No KFR- Description KFR- KFR- 23G/A13 23G/A13 23G/A13 26G/A13 26G/A13 -12405 Wall-Mounting Frame 01252206 01252206 01252206 01252206 01252206 Rear Case 22202004 22202004 22202004 22202004 22202004 Screw Cover 24252001 24252001 24252001 24252001 24252001 Cross Flow Fan 10352398 10352398 10352398...
- Page 15 Butterfly Series Table 8 Part No. KFR- KFR- Description 20G/NA13 20G/NA13 25G/NA13 25G/NA13 Wall-Mounting Frame 01252209 01252209 01252209 01252209 Rear Case 22202004 22202004 22202004 22202004 Screw Cover 24252001 24252001 24252001 24252001 Cross Flow Fan 10352398 10352398 10352398 10352398 Bearing 76512210 76512210 76512210 76512210...
- Page 16 Butterfly Series (Blank) -17-...
- Page 17 Butterfly Series Model: KF-23G/A13-12206 KF-26G/A13-12206 Fig. 8 -18-...
- Page 18 Butterfly Series Table 9 Part No. Description 23G/A13-12206 26G/A13-12206 Wall-Mounting Frame 01252206 01252206 Rear Case 22202004 22202004 Cross Flow Fan 10352398 10352398 Fan Bearing 76512203 76512203 Swing Louver 10512002 10512002 Water Tray 20182004 20182004 Evaporator Assy 01002137 01002137 Self Tapping Screw ST4.2X13 70140553 70140553...
-
Page 19: Explosive View And Spare Parts List Of Outdoor Unit
Butterfly Series 7. Explosive view and spare parts list of outdoor unit Model: KF(R)-23W/A13 KF(R)-20W/NA13 KF(R)-26W/A13 KF(R)-25W/NA13 KFR-23W/A13-12405 Fig. 9 -20-... - Page 20 Butterfly Series Table 10 Part No KFR- Description KFR- KFR- 23W/A13 23W/A13 23W/A13 26W/A13 26W/A13 -12405 Front Grill 22263002 22263002 22263002 22263002 22263002 Front Plate 20003100 20003100 20003100 20003100 20003100 Axial Flow Fan 10333002 10333002 10333002 10333002 10333002 Motor FW20B FW20B 15013045 15013045...
- Page 21 Butterfly Series Table 11 Part No. Description KFR- KFR- 20W/NA13 20W/NA13 25W/NA13 25W/NA13 Front Grill 22263002 22263002 22263002 22263002 Front Plate 20003100 20003100 20003100 20003100 Axial Flow Fan 10333002 10333002 10333002 10333002 Motor FW20B FW20B 15013045 15013045 15013045 15013045 Motor Support 01703200 01703200 01703035...
- Page 22 Butterfly Series (Blank) -23-...
- Page 23 Butterfly Series Model: KF-23W/A13-12206 KF-26W/A13-12206 Fig. 10 -24-...
- Page 24 Butterfly Series Table 12 Part No. Description 23W/A13-12206 26W/A13-12206 Front Grill 22263002 22413431 Front Plate 20003100 20002041 Little Handle 26233100 Axial Flow Fan 10333002 10333412 Motor FW20C FW20C 15013004 Motor FW25P FW25P 15013152 Motor Support 01703200 Motor Support 01703391 Condenser Assy 01103245 011032431 Rear Grill Assy...
-
Page 25: Circuit Diagram
Butterfly Series 8. Circuit diagram These circuit diagrams are subject to change. Please refer to the ones stuck on the machines. Fig. 11 -26-... - Page 26 KFR-20GW/NA13 KFR-23GW/A13 KFR-25GW/NA13 KFR-23GW/A13-12405...
- Page 27 Butterfly Series Fig. 13 -28-...
- Page 28 KF-23GW/A13-12206 KF-26GW/A13-12206...
-
Page 29: Pcb Function Manual
Butterfly Series 9. PCB function manual PCB function manual for butterfly A. running mode 1. cooling 2.dehumidifying 3.heating 4. auto B. input parameters 1.indoor ambient temp. T 2.evaporator tube temp. T 3.setting temp. T 4.condenser tube temp. T C. targets 1.indoor motor 2.stepping motor (swing motor) 3.outdoor motor... - Page 30 Butterfly Series and conditions. If it’s plugged in first time, the compressor does not have 3 minutes delay. When compressor is started, it will not stop within 5 minutes unless it is plugged out. c. overload protection If it detects the system current surpass the designed 15 A for continuous 3 minutes, the machine goes into fan mode, when 3 minutes passed and it detects the current no more than 15 A, it will back to original state.
- Page 31 Butterfly Series minutes later, if T 41 , indoor motor will run at the set speed . When the machine has run in heating mode, if it detects T 42 , indoor motor runs at low speed, if it detects T 43 , indoor motor runs at the set speed.
- Page 32 Butterfly Series press auto button, runs at low speed. If T -1 < T < T +1 , keep the previous running state. d. After auto mode running, if it detects 22 < T < 26 , keep the previous running state. Cooling &...
- Page 33 Butterfly Series b. in heating mode, if Tin Tset - 5 high speed door Tset -3 middle speed indoor Tset -1 low speed indoor c. in dehumidify mode, if T high speed indoor low speed indoor 6.SLEEP mode. a. In cooling or dehumidifying mode, 1 hour after you set the sleep timer , T will add 1 automatically, 2 hour after you set the sleep timer ,T will add 2 automatically.
- Page 34 TECHNICAL SERVICE MANUAL Butterfly Series GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Jinji West Rd. Qianshan Zhuhai Guangdong China...
- Page 35 In this technical service manual, you will find rich references to Butterfly Series products, including photos, technical specifications, explosive views, spare parts lists and circuit diagrams. Service people and engineers of Gree’s customers and distributors would find it a very handy source of technical information of our products.
- Page 36 CONTENTS 1.Summary ..........................1 2.Technical specifications ......................3 3. Performance curves ....................... 9 4. Outlines and dimensions of indoor unit ................. 12 5. Outlines and dimensions of outdoor unit................13 6. Explosive view and spare parts list of indoor unit ..............14 7.
