Gree GSW12-22L/B Technical & Service Manual

King series, 1ph 220-230v 50/60hz r22, ce standard

Hide thumbs

Table Of Contents

Quick Links

King Series

1. Summary

GSW12-22L/B

GSW12-22R/B

GSW18-22L/B

GSW18-22R/B

KF-26GW/J11

KFR-26GW/J11

KF-35GW/J11

KFR-35GW/J11

KF-45GW/J11

KFR-45GW/J11

KF-26GW/NJ11

KFR-26GW/NJ11

KF-35GW/NJ11

KFR-35GW/NJ11

KFR-26GW/J11-12405

KFR-35GW/J11-12405

KFR-45GW/J11-12405

KF-35GW/A4-12206

King Series

MODEL

figure 1

-1-

NOTE

1Ph 220-230V 60Hz

R22

CE STANDARD

1Ph 220-230V 50Hz

R22

CE STANDARD

1Ph 220-230V 50Hz

R22

1Ph 240V 50Hz

R22

1Ph 220V 60Hz

R22

Table of Contents

Need help?

Do you have a question about the GSW12-22L/B and is the answer not in the manual?

Questions and answers

Daniel Duhautbout

March 15, 2025

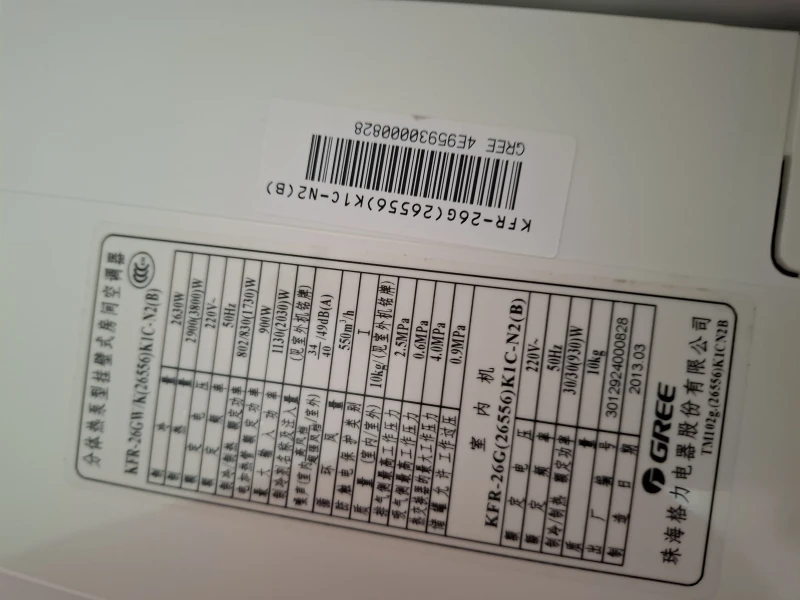

Hello, I need the remote control manual of my air conditionner . Here is the model KFR-26G(26556)K1C-N2(B)

Summary of Contents for Gree GSW12-22L/B

Page 1 King Series King Series 1. Summary figure 1 MODEL NOTE GSW12-22L/B GSW12-22R/B 1Ph 220-230V 60Hz GSW18-22L/B GSW18-22R/B KF-26GW/J11 KFR-26GW/J11 CE STANDARD KF-35GW/J11 1Ph 220-230V 50Hz KFR-35GW/J11 KF-45GW/J11 KFR-45GW/J11 KF-26GW/NJ11 CE STANDARD KFR-26GW/NJ11 1Ph 220-230V 50Hz KF-35GW/NJ11 KFR-35GW/NJ11 KFR-26GW/J11-12405 1Ph 240V 50Hz...
Page 2: Technical Specifications
King Series 2. Technical specifications Table 1 Model GSW12-22L/B GSW12-22R/B Function Cooling Cooling Heating Power supply 1Ph 220-230V 60Hz Capacity(W) 3500 3500 3800 Rated input(W) 1300 1300 1280 Rater current(A) 5.82 Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.71 GSW12-22L/B(I) GSW12-22R/B(I) Model...
Page 3 King Series Table 2 Model GSW18-22L/B GSW18-22R/B Function Cooling Cooling Heating Power supply 1Ph 220-230V 60Hz Capacity(W) 4500 4500 5000 Rated input(W) 1680 1680 1600 Rater current(A) 7.64 7.64 Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.43 2.43 GSW18-22L/B(I) GSW18-22R/B(I) Model 1250/1150/1050 Motor fan speed(rpm) Output power(W) Cross flow fan-1...
Page 4 King Series Table 3 Model KF-26GW/J11 KFR-26GW/J11 Function Cooling Cooling Heating Power supply 1Ph 220-230V 50Hz Capacity(W) 2600 2600 2800 Rated input(W) Rater current(A) Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.72 2.72 2.67 KF-26G/J11 KFR-26G/J11 Model 900/850/800 Motor fan speed(rpm) Output power(W) Cross flow fan-1 Fan type/piece 92mm-616...
Page 5 King Series Table 4 Model KF-35GW/J11 KFR-35GW/J11 Function Cooling Cooling Heating Power supply 1Ph 220-230V 50Hz Capacity(W) 3500 3500 3800 Rated input(W) 1340 1348 1380 Rater current(A) Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.57 2.57 2.66 KF-35G/J11 KFR-35G/J11 Model 1050/950/900 Motor fan speed(rpm) Output power(W) Cross flow fan-1 Fan type/piece...
Page 6 King Series Table 5 Model KF-45GW/J11 KFR-45GW/J11 Function Cooling Cooling Heating Power supply 1Ph 220-230V 50Hz Capacity(W) 4500 4500 5000 Rated input(W) 1800 1800 1900 Rater current(A) Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.43 2.43 KF-45G/J11 KFR-45G/J11 Model 1250/1150/1050 Motor fan speed(rpm) Output power(W) Cross flow fan-1 Fan type/piece...
Page 7 King Series Table 6 Model KF-26GW/NJ11 KFR-26GW/NJ11 Function Cooling Cooling Heating Power supply 1Ph 220-230V 50Hz Capacity(W) 2600 2600 2800 Rated input(W) 1000 Rater current(A) Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.72 2.72 2.67 KF-26G/NJ11 KFR-26G/NJ11 Model 910/840/760 Motor fan speed(rpm) Output power(W) Cross flow fan-1 Fan type/piece...
Page 8 King Series Table 7 Model KF-35GW/NJ11 KFR-35GW/NJ11 Function Cooling Cooling Heating Power supply 1Ph 220-230V 60Hz Capacity(W) 3500 3500 3800 Rated input(W) 1400 1460 1400 Rater current(A) 6.09 6.35 6.09 Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.71 KF-35G/NJ11 KFR-35G/NJ11 Model 1090/1010/920 Motor fan speed(rpm) Output power(W) Cross flow fan-1...
Page 9 King Series Table 8 KFR-26GW/J11-12405 KFR-35GW/J11-12405 Model Cooling/Heating Cooling/Heating Function 1Ph 240V 50Hz Power supply 2600/3000 3500/3800 Capacity (W) 1130/1170 1500/1600 Rated input (W) 6.43 4.55 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.6/2.7 2.7/2.8 C.O.P (W/W) Model KFR26G/J11-12405 KFR35G/J11-12405 Motor fan speed(rpm)
Page 10 King Series Table 9 KFR-45GW/J11-12405 Model Function Cooling/Heating Power supply 1Ph 240V 50Hz Capacity (W) 4500/4800 1900/1750 Rated input (W) 8.39 Rated current (A) Air flow (m Dehumidifying volume (L/h) 2.5/3 C.O.P (W/W) Model KFR45G/J11-12405 Motor fan speed(rpm) 1350/1200/1100 Output power(W) Fan type/piece Cross flow fan-1 Diameter-length(mm)
Page 11 King Series Table 10 KF-35GW/A4-12206 Model Function Cooling Power supply 1Ph 220V 60Hz Capacity (W) 3500 1100 Rated input (W) Rated current (A) Air flow (m Dehumidifying volume (L/h) 3.18 C.O.P (W/W) Model KF-35G/A4-12206 Motor fan speed(rpm) 1090/1010/920 Output power(W) Fan type/piece Cross flow fan-1 Diameter-length(mm)
Page 12: Performance Curves
King Series 3. Performance curves figure 2 -13-...
Page 13 King Series figure 3 -14-...
Page 14 King Series figure 4 -15-...
Page 15: Outlines And Dimensions Of Indoor Unit
King Series 4. Outlines and dimensions of indoor unit figure 5 -16-...
Page 16 King Series Model: KFR-45GW/J11-12405 figure 6 -17-...
Page 17: Outlines And Dimensions Of Outdoor Unit
King Series 5. Outlines and dimensions of outdoor unit figure 7 -18-...
Page 18 King Series (Blank) -19-...
Page 19: Explosive View And Spare Parts List Of Indoor Unit
King Series 6. Explosive view and spare parts list of indoor unit figure 8 -20-...
Page 20 King Series Table 11 Part No. Description 12-22L/B(I) 12-22R/B(I) 18-22L/B(I) 18-22R/B(I) Wall-Mounting Frame 01252381 01252381 01252381 01252381 Pipe clamp 26112425 26112425 26112425 26112425 Hook 26272421 26272421 26272421 26272421 Rear Case 22202021 22202021 22202021 22202021 Evaporator Assy 01002134 01002134 010020101 010020101 Cross Flow Fan 10352405 10352405...
Page 21 King Series Table 12 Part No Description KFR- KFR- KFR- 26G/J11 26G/J11 35G/J11 35G/J11 45G/J11 45G/J11 1 Wall-Mounting Frame 01252381 01252381 01252381 01252381 01252381 01252381 2 Pipe clamp 26112425 26112425 26112425 26112425 26112425 26112425 3 Hook 26272421 26272421 26272421 26272421 26272421 26272421 4 Rear Case 22202021...
Page 22 King Series Table 13 Part No. Description KFR- KFR- 26G/NJ 11 26G/NJ 11 35G/NJ 11 35G/NJ 11 Wall-Mounting Frame 01252381 01252381 01252381 01252381 Pipe clamp 26112425 26112425 26112425 26112425 Hook 26272421 26272421 26272421 26272421 Rear Case 22202021 22202021 22202021 22202021 Evaporator Assy 01002130 01002130...
Page 23 King Series Table 14 Part No. Description KFR- KFR- KFR- 26G/J 11-12405 35G/J 11-12405 35G/A4-12206 Wall-Mounting Frame 01252381 01252381 01252381 Pipe clamp 26112425 26112425 26112425 Hook 26272421 26272421 26272421 Rear Case 22202021 22202021 22202021 Evaporator Assy 01002135 01002134 01002119 Cross Flow Fan 10352405 10352405 10352405...
Page 24 King Series (Blank) -25-...
Page 25 King Series Model: KFR-45GW/J11-12405 figure 9 -26-...
Page 26 King Series Table 15 Part No. Description KFR-45G/J11-12405 Front Panel 20002010 Filter 11122022 Electric Box Cover 20102011 Screw Cover 24252011 Front Case Assy 20002013 Lower Guide Louver 10512012 Upper Guide Louver 10512011 Guide Louver Bearing 10542011 Right Swing Louver 10512014 Right Connecting Lever 10582015 LED Board...
Page 27: Explosive View And Spare Parts List Of Outdoor Unit
King Series 7. Explosive view and spare parts list of outdoor unit figure 10 -28-...
Page 28 King Series Table 17 Part No. Description 12-22L/B(O) 12-22R/B(O) 18-22L/B(O) 18-22R/B(O) Front Grill 22413431 22413431 22413431 22413431 Nut M6 70310132 70310132 70310132 70310132 Washer 6 70410252 70410252 70410252 70410252 Axial Flow Fan 10333412 10333412 10333412 10333412 Front Plate 01533428 01533428 01533428 01533428 Metal Base...
Page 29 King Series Table 18 Part No Description KFR- KFR- KFR- 26W/J11 26W/J11 35W/J11 35W/J11 45W/J11 45W/J11 1 Front Grill 22413431 22413431 22413431 22413431 22413431 22413431 2 Nut M6 70310132 70310132 70310132 70310132 70310132 70310132 3 Washer 6 70410252 70410252 70410252 70410252 70410252 70410252 4 Axial Flow Fan 10333412 10333412 10333412 10333412 10333412 10333412 5 Front Plate...
Page 30 King Series Table 19 Part No. Description KFR- KFR- 26W/NJ11 26W/NJ11 35W/NJ11 35W/NJ11 1 Front Grill 22413431 22413431 22413431 22413431 2 Nut M6 70310132 70310132 70310132 70310132 3 Washer 6 70410252 70410252 70410252 70410252 4 Axial Flow Fan 10333412 10333412 10333412 10333412 5 Front Plate...
Page 31 King Series Table 20 Part No. Description KFR-26W/J11- KFR-35W/J11- KFR-45W/J11- KF-35W/ 12405 12405 12405 A4-12206 Front Grill 22413431 22413431 22413431 22413431 Nut M6 70310132 70310132 70310132 70310132 Washer 6 70410252 70410252 70410252 70410252 Axial Flow Fan 10333412 10333412 10333412 10333412 Front Plate 20002041 20002041...
Page 32: Circuit Diagram
King Series 8. Circuit diagram These circuit diagrams are subject to change. Please refer to the ones stuck on the machines. figure 11 -33-...
Page 33 King Series figure 12 -34-...
Page 34 King Series figure 13 -35-...
Page 35 King Series figure 14 -36-...
Page 36 King Series figure 15 -37-...
Page 37 GSW12-22R/B KFR-35GW/NJ11 KFR-26GW/NJ11 KFR-35GW/J11 KFR-35GW/J11-12405...
Page 38 KFR-26GW/J11 KFR-26GW/J11-12405...
Page 39 King Series figure 18 -40-...
Page 40 King Series figure 19 -41-...
Page 41: Pcb Function Manual
KF-35GW/A4-12206...
Page 42 King Series 9. PCB function manual 5 IN I PCB function manual. A. running mode 1. cooling 2.dehumidifying 3.heating 4.fan 5.auto B. input parameters 1.indoor ambient temp. T 2.evaporator tube temp. T 3.setting temp. T 4.condenser tube temp. T C. targets 1.
Page 43 King Series compressor is started, it will not stop within 5 minutes unless it is plugged out. c. overload protection If it detect the system current surpass the designed 13 A for continuous 3 minutes, the machine go into fan mode, when 3 minutes passed and it detect the current no more than 13 A, it will back to original state.
Page 44 King Series before defrosting , the electric heater will stop. (4) protections a .anti cool air when the machine starts heating T 39 , 3 minutes late indoor motor runs at low speed, 41 , indoor motor runs at the set speed. if T 42 , telecontrol motor runs at low speed.
Page 45 King Series active, indoor motor runs as the blowing surplus heat condition. If T +2 < T < T +4 , indoor keeps the original state. c. If T + 3 , select cooling mode, the set temp. is 25 , If T -1 , compressor, indoor...
Page 46 King Series c. If the switch is in RUN position , the machine will run according to the remote signal. d. If the switch is in STOP position, the machine will stop. 5. SLEEP mode. a. In cooling or dehumidifying mode, 1 hour after you set the sleep timer ,T will add 1 automatically, another 1 hour, another 1 will be added.
Page 47 TECHNICAL SERVICE MANUAL King Series GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Jinji West Rd. Qianshan Zhuhai Guangdong China...
Page 48 In this technical service manual, you will find rich references to King Series products, including photos, technical specifications, explosive views, spare parts lists and circuit diagrams. Service people and engineers of Gree’s customers and distributors would find it a very handy source of technical information of our products.
Page 49: Table Of Contents
CONTENTS 1. Summary ..........................1 2. Technical specifications ......................3 3. Performance curves ......................13 4. Outlines and dimensions of indoor unit ................. 16 5. Outlines and dimensions of outdoor unit................18 6. Explosive view and spare parts list of indoor unit ..............20 7.
