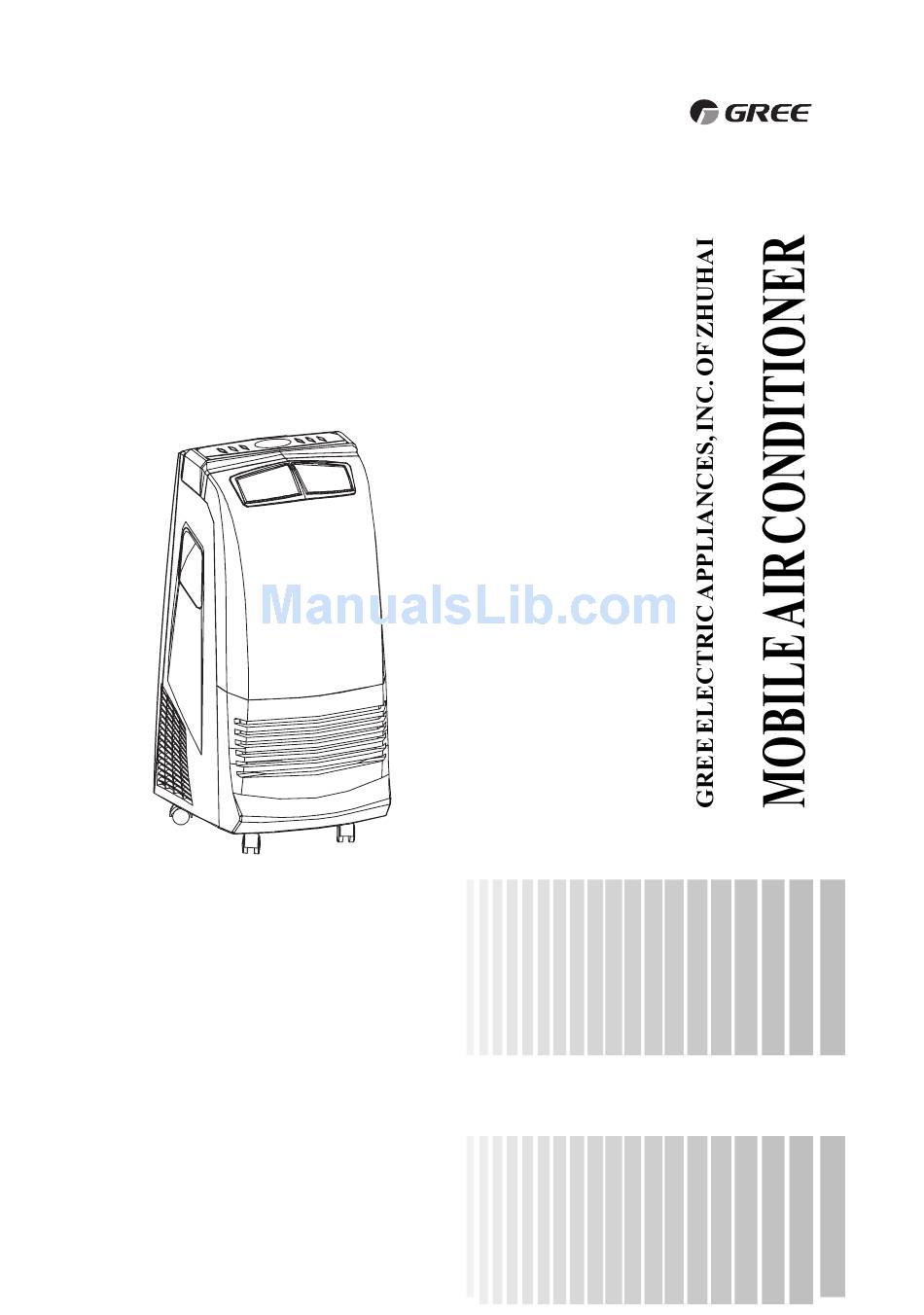

Page 1: Air Conditioner
Please read this manual carefully before operating the unit. OWNER'S MANUAL KY-32Na/D KYD-32Na/D MOBILE AIR CONDITIONER... -
Page 2: Table Of Contents
CONTENTS ..........Summary ..........Working principle ..........Models and specifications ..........Structure ......... Operating methods ....．．．．．．． ....Names and Functions of the Remote Controller 9-10 ........．．．．．．．． COOL mode operation ....．．．．．．．． HEAT mode operation (only for cooling/heating type units) ........．．．．．．．． DRY mode operation ........．．．．．．．．... -
Page 3: Summary

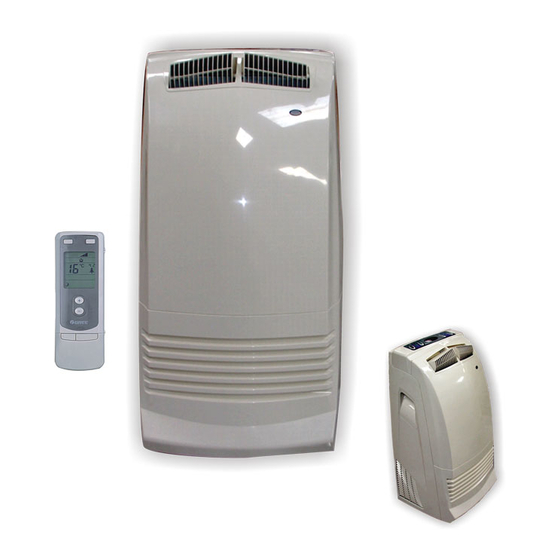

SUMMARY GREE MOBILE AIR CONDITIONER is a small, moveable air conditioner. It possess the functions of COOL, HEAT, DRY and the Separate Ventilation, and depends on different places, it can be moved at will. It is fit for home and office use, especially fit for the house with many rooms. -
Page 4: Models And Specifications
MODELS AND SPECIFICATIONS Model KY-32Na/D KYD-32Na/D Cooling/heating capacity 3200W 3200W/2000W Rated voltage 230V 50Hz Rated frequency Cooling/heating rated current 5.2A 5.2A/8.0A The max. cooling/heating input current 5.65A 5.65A/8.0A Cooling/heating rated power 1200W 1200W/2050W The max. input power 1245W/1850W 1245W Recycling air volume 330m 410A 0.58Kg... -
Page 5: Structure
STRUCTURE Front Controlling panel Air outlet Handle Lower air inlet Rear Upper air inlet grille Power cable Air exhaust outlet Lower air inlet grille －3－... -
Page 6: Operating Methods
OPERATING METHODS The working range of COOL mode and DRY mode. The working range is 16℃-30℃. Location requirement When operating, the unit should be placed on the horizontal place, more than 50cm away from the wall or other obstructions. Power supply Before the unit is power-on, please check the following: The standard working range of the voltage is 220/240V 6%, 50Hz, if the voltage is higher or lower, the air conditioner will be affected. - Page 7 OPERATING METHODS ● Can not use the steel wire or the brass wire replace the fuse, the capability of the fuse must be appropriate. In order to avoid the power cord damaged and electrical leakage, do not fix the power supply on the knife edge or the sharp object.
- Page 8 OPERATING METHODS LCD instruction (dynamic display) SET TIME DISPLAY COOL HEAT SLEEP HEAT COOL SLEEP LOW MD HIGH SET TEMP SET TIME AUTO SET TEMP AUTO SET TIMER ON/OFF FAN SPEED Names and Functions- Remote Controller SET SLEEP FAN SPEED SET TEMP ON/OFF LCD Display...
- Page 9 OPERATING METHODS Control panel and the function 1. "ON/ OFF " Press once to start and press once more to stop the unit. 2."MODE" Press this button to change the operation mode in order of: ＦＡＮ → ＣＯＯＬ →ＨＥＡＴ→ ＤＲＹ → ＡＵＴＯ → ＦＡＮ 3 "FAN " When the unit is running in the "FAN", "COOL"...
-
Page 10: Operating Methods
OPERATING METHODS COOL 1). To select a place near the door and window, install the exhaust duct put the exhaust duct out of the door, do not close the door and window tightly, leaving the space for air flow, for example to open the window or the door, to keep the good ventilation. 2). -
Page 11: Names And Functions Of The Remote Controller
NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER LCD Ddisplay It shows all set contents SEND Press this key to send the operation, the screen will show the operation. HIGH TIME SLEEP Press this to set SLEEP operation, and press the "Hr" to adjust the time of timer off (it can be choose from 1-7 h o u r s ) , w h e n r e p r e s s , t h e operation will stop. -
Page 12: Names And Functions Of The Remote Controller .................
NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER MODE Press the "MODE" step by step, the LCD will display the COOL-FAN-HEAT- AUTO mode, circularly. TEMP Press once, the SET TEMP. will decrease 1℃. Press once, the SET TEMP. will HIGH increase 1℃. The SET TEMP. can be TIME selected from 16℃-30℃, the utmost temp are 16℃and 30℃. -
Page 13: Cool Mode Operation
COOL MODE OPERATION 1. After inserting the batteries, press "ON/OFF" to start the unit. 2. Press "MODE", to choose "COOL" mode. １８ Ｃ ０ HIGH TIME 3. Press "FAN" , to set fan speed. SEND 4. Press "TEMP" , to set the desired temp. -
Page 14: Heat Mode Operation
HEAT MODE OPERATION (only for cooling/heating type units) 1. After inserting the batteries, press "ON/OFF" to start the unit. 2. Press "MODE" , to choose "HEAT" mode. HIGH TIME 3. Press "TEMP" , to set the desired temp. SEND 4. Press "FAN", to set fan speed. ON/OFF 5. -
Page 15: Dry Mode Operation
DRY MODE OPERATION 1.After inserting the batteries, press "ON/OFF" to start the unit. 2.Press "DRY" , to set "DRY" mode, １８ Ｃ ０ when repress dry, it will run in original HIGH operation. TIME 3.Press "TEMP", to set desired temp. SEND 4.Press "FAN"... -
Page 16: Sleep Mode Operation
SLEEP MODE OPERATION 1. After inserting the batteries, press "ON/OFF" to start the unit. 2. Press "MODE" , to select the operation mode. １８ Ｃ ０ HIGH TIME 3. Press "TEMP" , to set desired ＳＬＥＥＰ temp. SEND 4. Press "FAN" to set fan speed. 5. -
Page 17: Auto Mode Operation
AUTO MODE OPERATION 1. After inserting the batteries, press HIGH "ONOFF" to start the unit. TIMER 2. Press "MODE" , select "AUTO" mode, according to the room temp, the SEND microcomputer will adjust the turn on or turn off of the compressor and fan motor, automatically. -
Page 18: Timer Mode Operation
TIMER MODE OPERATION 1. When the unit is running, press "TIMER" , to set the TIMER operation. HIGH TIMER 2. Press "Hr/Min" , to set the TIMER ON, it can be selected in the range of 1-18 hours. SEND 3. Press "SEND" , send the operation to the unit. -
Page 19: Installation Guide For Castor, Drainage Pipe And Air Exhaust Accessory
INSTALLATION GUIDE FOR CASTOR, DRAINAGE PIPE AND AIR EXHAUST ACCESSORY 1. The installation method for castor: Note: It must be installed the castors before operating the unit, or it will cause the inconvenient move or even a damage. When install the castors, the gradient should be less than 5 , in order to avoid the unit damage. - Page 20 INSTALLATION GUIDE FOR CASTOR, DRAINAGE PIPE AND AIR EXHAUST ACCESSORY 3. The installation method for accessory of the exhaust duct: 1). Fix the end of the exhaust duct to the exhaust terminal of the unit. 2). Put the other end (discharge) to the nearest window. Please pay more attention to the length of the exhaust duct is 500mm- 2000mm, it is advisable to use the minimal length to install.
-
Page 21: Installation Guide For Castor, Drainage Pipe And Air Exhaust Accessory
INSTALLATION GUIDE FOR CASTOR, DRAINAGE PIPE AND AIR EXHAUST ACCESSORY If the exhaust duct requires bend, please refer to the following installation dimensions 55cm CAUTION ！ 55cm The wrong mounting diagram (if the exhaust duct bend too large, could cause malfunction easily) －19－... -
Page 22: Care And Maintenance
CARE AND MAINTENANCE The mobile air There are castors in the bottom Hook Hook conditioner of the unit, according to the demand, it can be moved in the room very expediently. Air inlet grille Before maintenance, please WARNING ！ pull out the power plug, and cut off power supply, in order to avoid the electric shock. - Page 23 CARE AND MAINTENANCE Clean the air Please use a cloth slightly moistened with water below 40℃(or the soap conditioner water or the water with cleanser),after wresting wipe the dirt. Do not use the gasoline, diesel oil or the congeneric substance to clean the unit.
-
Page 24: Troubleshooting
TROUBLE SHOOTING If the malfunction occur , please check the following before maintenance: Solutions Troubles Possible Causes The air conditioner doesn't start. The power supply is not connected well. 1. Insert the power plug tightly. The power plug is not inserted tightly. 2. -
Page 25: User Notices
USER NOTICES Location ● Do not install the unit in the confined place, and keep the well ventilation, in order to avoid malfunction occurs. ● Do not install the unit where it will be exposed to direct sunlight, in order to avoid fading and efficiency reducing. ● ... -
Page 26: After Service
● Do not incline or overturn. If the abnormal phenomenon occurred, please pull out the power plug at once, and inform the dealer to check and maintain. ● Do not use the insecticide or other sprays, it can cause deformation or crack.. DISPOSAL:Do not dispose this product as unsorted municipal waste. - Page 27 Mobile air conditioner O W N E R ' S M A N U A L GREE, Making BETTER Air Conditioners GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: No.6 Jinji West Rd, Qianshan, Zhuhai, Guangdong, China P.O. Box: 519070 Tel: (86-756) 8617555 (Customer Service Center)
