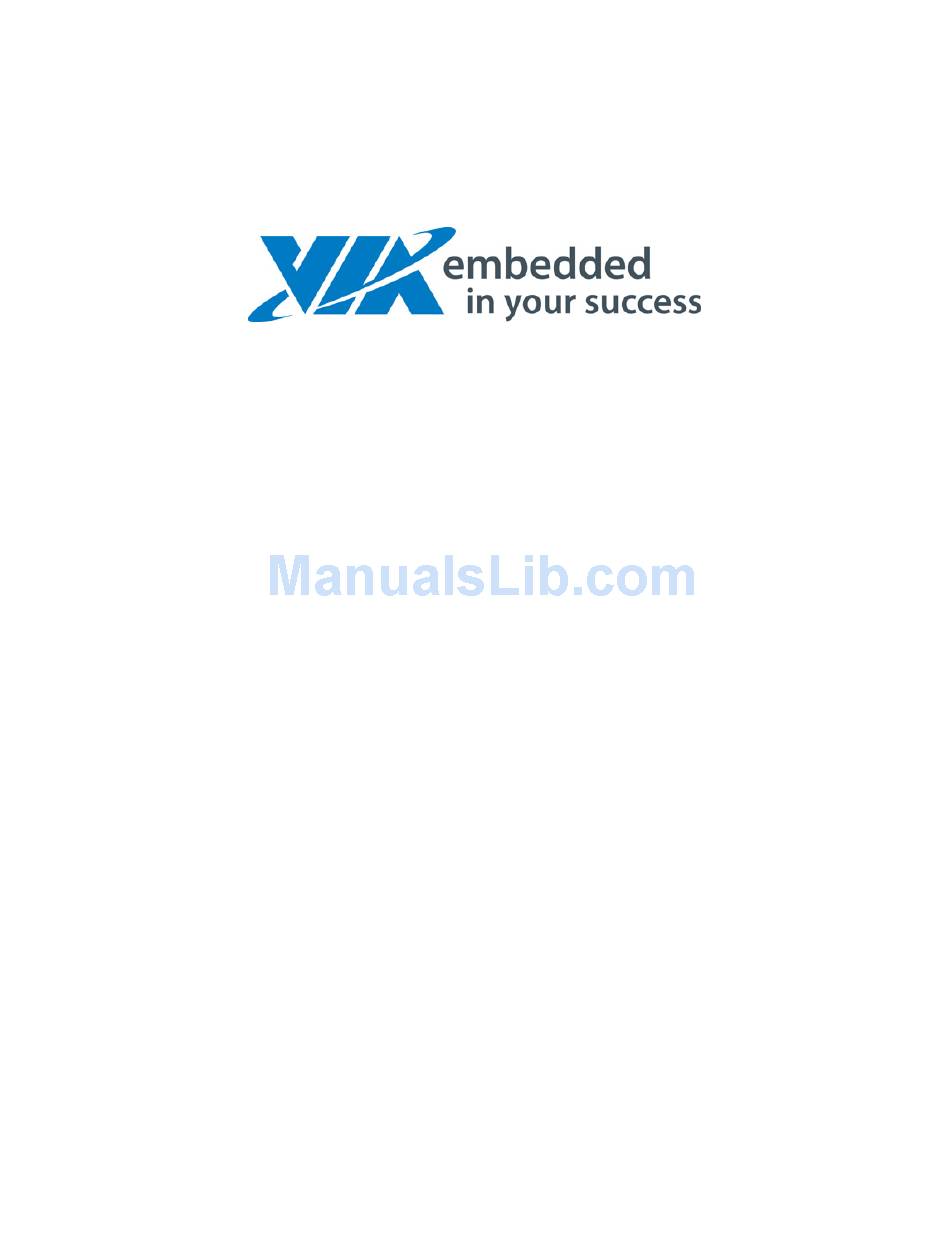

- Page 1 Operating Guide EPIA LT-Series Mini-ITX Mainboard June 15, 2007 Version 1.01...
-
Page 2: Table Of Contents
VIA EPIA LT Processor SKUs ..............................4 VIA CX700 Chipset Overview ............................... 5 VIA EPIA LT-Series I/O Back Panel Layout ..........................6 VIA EPIA LT-Series Layout Diagram & Mounting Holes ......................7 VIA EPIA LT-Series Layout Diagram & Height Distribution ....................8 Power Consumption ..................................9 VIA EPIA LT15000G ( C7) .............................. -
Page 3: Via Epia Lt-Series Overview
COM port and has two 10/100 Fast Ethernet ports for extended broadband connectivity. The VIA EPIA LT-Series also has one PCI slot for expandability options. The VIA EPIA LT- Series is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX enclosures and power supplies. -
Page 4: Via Epia Lt-Series Layout
EPIA LT-Series Operating Guide VIA EPIA LT-Series Layout June 15, 2007 - 2 - Version 1.01... -
Page 5: Via Epia Lt-Series Specifications
EPIA LT-Series Operating Guide VIA EPIA LT-Series Specifications Model Name - EPIA - LT15000G - EPIA LT10000EG Processor - VIA C7 ® 1.5GHz NanoBGA2 - VIA C7 ® 1.0GHz NanoBGA2 processor processor Chipset - VIA CX700 Advanced All-in-One system processor... -
Page 6: Via Epia Lt Processor Skus
EPIA LT-Series Operating Guide VIA EPIA LT Processor SKUs The VIA EPIA LT-Series is available in two speed grades as follows: ® • 1.5 GHz VIA C7 NanoBGA2 Processor ® • 1.0 GHz VIA C7 NanoBGA2 Processor June 15, 2007 - 4 - Version 1.01... -
Page 7: Via Cx700 Chipset Overview
EPIA LT-Series Operating Guide VIA CX700 Chipset Overview The VIA CX700 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The CX700 features the embedded VIA UniChrome™ Pro 2D / 3D MPEG-2 acceleration, DDR2 533 / 400MHz support, motion compensation and duo-view support to ensure a rich overall entertainment experience. -
Page 8: Via Epia Lt-Series I/O Back Panel Layout
EPIA LT-Series Operating Guide VIA EPIA LT-Series I/O Back Panel Layout The EPIA LT’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as PS/2 Mouse port, PS/2 Keyboard port, COM port, VGA port, RJ45 LAN ports, USB 2.0 ports, and audio jacks. -
Page 9: Via Epia Lt-Series Layout Diagram & Mounting Holes
EPIA LT-Series Operating Guide VIA EPIA LT-Series Layout Diagram & Mounting Holes June 15, 2007 - 7 - Version 1.01... -
Page 10: Via Epia Lt-Series Layout Diagram & Height Distribution
EPIA LT-Series Operating Guide VIA EPIA LT-Series Layout Diagram & Height Distribution June 15, 2007 - 8 - Version 1.01... -
Page 11: Power Consumption
EPIA LT-Series Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA EPIA LT15000G (running with ® ® the VIA 1.5GHz C7 / C7 -D V4 Bus NanoBGA2 processor). The following tables are a comprehensive breakdown of the EPIA platform’s voltage, amp and wattage values while running common system applications. - Page 12 EPIA LT-Series Operating Guide E. Running Network Application – Files Copy (VT6107-2) Measured Voltage Measured Amp. Watts Main Board +3.3V 3.317 1.389 4.607 Main Board +5V 5.004 1.532 7.666 Main Board 5VSB 5.007 0.111 0.556 Main Board +12V 12.138 0.246 2.986...
-
Page 13: Via Epia Lt15000G (With C7-D)
EPIA LT-Series Operating Guide VIA EPIA LT15000G (with C7-D) A. IDEL Status Measured Voltage Measured Amp. Watts Main Board +3.3V 3.299 1.392 4.592 Main Board +5V 4.993 1.020 5.093 Main Board 5VSB 4.987 0.104 0.519 Main Board +12V 12.090 0.256 3.095... - Page 14 EPIA LT-Series Operating Guide E. Running Network Application – Files Copy (VT6107-2) Measured Voltage Measured Amp. Watts Main Board +3.3V 3.214 1.430 4.596 Main Board +5V 4.900 1.338 6.556 Main Board 5VSB 4.901 0.120 0.588 Main Board +12V 12.021 0.259 3.113...
-
Page 15: Power Specifications
EPIA LT-Series Operating Guide Power Specifications The EPIA LT utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the EPIA LT platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 16: Via Epia Lt-Series Microsoft And Linux Driver Support
EPIA LT-Series Operating Guide VIA EPIA LT-Series Microsoft and Linux Driver Support Microsoft Driver Support VIA EPIA LT series offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 98/Me/2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 17: Contact
EPIA LT-Series Operating Guide Contact For more information on the VIA EPIA LT-Series Mini ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan 440 Mission Court, Suite 220 1F, No. 531, Chung Cheng Road Fremont, CA 94539...
