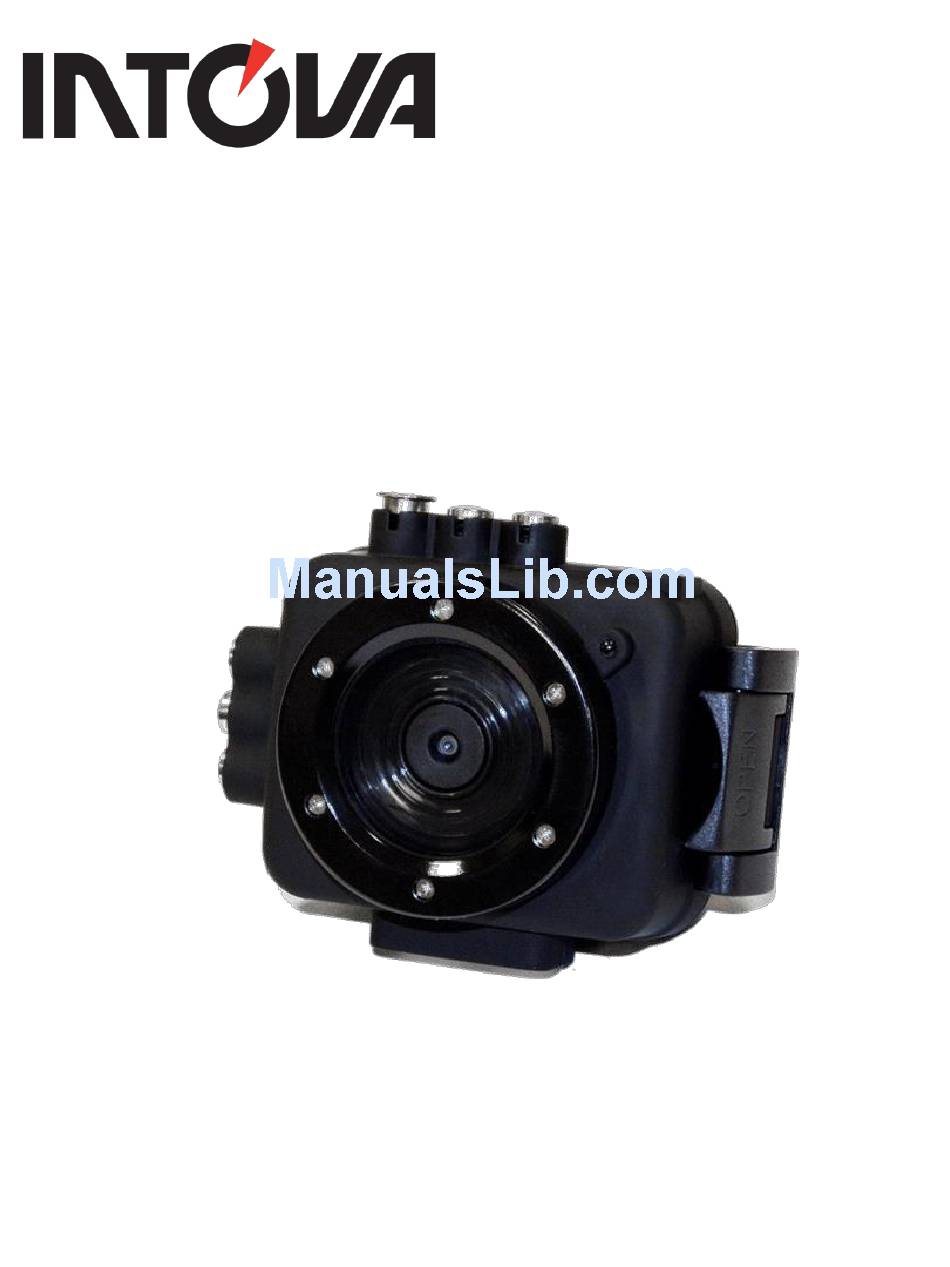

- Page 1 Born in Hawaii – Built for the World EDGE X Waterproof HD Video Camera with WiFi User’s Manual...
-
Page 2: Table Of Contents
U s i n g E D G E X … … … … … … … … … … … … … … … … … … … … . 7 Basic Operations of EDGE X camera………………………….8 C a m e r a S e t t i n g s … … … … … … … … … … … … … … … … … … … . 9 V i d e o M e n u …... -
Page 3: Preface
PREFACE Thank you for purchasing the Intova EDGE X waterproof sports camera! The rugged, durable and waterproof EDGE X will help you capture high quality video and photos in many different venues and environments. Visit www.intova.net to view the wide range of mount and system options available. -
Page 4: System Requirements For 1080P Hd Video
Important notice: Do not attempt to take apart the camera as there are high voltage parts and dangerous electric shock can occur. If the camera is dropped or smashed and internal parts are exposed, do not touch as there is a danger of electric shock. -
Page 5: Getting To Know Your Camera
GETTING TO KNOW YOUR CAMERA ITEM FUNCTION ITEM FUNCTION POWER ON/OFF, MODE, MENU Float strap attachment point SCROLLING button Slave strobe sync light Tripod mount Video recording in progress light Removable anti-glare LCD hood Lock latch O-ring Thumb press backdoor opening system Water repellant glass lens port in case of vacuum;... -
Page 6: Getting Started
To remove, press down on inserted card to click and then release. EDGE X uses Micro SD card up to 64 GB. For HD video, speed class 10 is required. 1. The camera cannot record video or take photos without a properly inserted memory card. - Page 7 OK button to confirm. If no choice is selected, the camera will remain on the initial screen. MSDC: When this choice is selected, the screen shown below will appear and EDGE X will be detected by the computer and files can be transferred by dragging and dropping.
-
Page 8: Camera Default Settings
USING EDGE X Insert Micro SD memory card (class 10 required for HD video) before turning on. EDGE X cannot be used if a properly inserted Micro SD card is not present. To turn camera on, press and hold power ON/OFF button for 2 seconds and then release (if camera is in... -
Page 9: Basic Operations Of Edge X Camera
Time stamp icon Micro SD card inserted Digital Zoom Microphone ON/Off icon indicator bar Basic Operations of EDGE X camera BUTTON BASIC OPERATION PROCEDURES POWER, 1) Press and hold for 2 seconds and release button to turn on or turn off VIDEO/PHOTO/ camera. -
Page 10: Camera Settings
CAMERA SETTINGS To access camera settings, press the MENU button and press UP or DOWN button to scroll through main menu selections and press OK button to enter sub-menu selections. Shown below are the five main menu selections screens. VIDEO MENU: With VIDEO menu icon highlighted, press OK button to enter video settings sub-menu. - Page 11 960P60 60/50 High resolution 4:3 video @ 1280x960 pixels produces largest vertical viewing area. 60/50 frames per second rate for action shooting and better slow motion effect*. 960P30 30/25 High resolution 4:3 video @ 1280x960 pixels produces largest vertical viewing area. 30/25 frames per second rate for action shooting, when mounted on stable object and for lower light conditions.
- Page 12 VGA FULL 60/50 Standard resolution 4:3 video @ 640x480 pixels produces small file size. 60/50 frames per second rate for hand held, action shooting and for slow motion effect*. 30/25 Standard resolution 4:3 video @ 640x480 pixels produces small file size.
-
Page 13: P H O T O M E N
3) PHOTO BURST: This feature allows 3, 5, 10, 20 and 30 “burst” photos per shutter button press. 4) PHOTO FLASH: This sets the slave strobe sync light to ON or OFF. EDGE X is the only “point of view” camera that allows flash photography. Optional accessories EDGE X fiber optic cable, item# PXX, and Intova compact slave strobe, item# PX21 required. -
Page 14: W I F I M E N
Follow these steps to install and use the Intova EDGE X App. 1. Go to either the Apple Store or Google Play and type “Intova EDGE X” in search to find and install the app on your smartphone or tablet. -
Page 15: S Y S T E M M E N
LOCAL_IP=192.168.42.1 # IP subnet mask LOCAL_NETMASK=255.255.255.0 # IP pool starting address of DHCP server DHCP_IP_START=192.168.42.2 # IP pool end address of DHCP server DHCP_IP_END=192.168.42.6 # Wifi channel number, set 0 to use Auto Channel Selection AP_CHANNEL=0 # Maximum number of stations allowed in station table AP_MAXSTA=5 # If you say yes here, all WPA/WEP settings will be ignored AP_PUBLIC=no... -
Page 16: I M A G E Q U A L I T Y M E N
9) FORMAT: This feature allows micro SD card to be formatted. WARNING, formatting card will erase all data! Press OK button to enter function. Press the DOWN button to highlight YES and press OK to execute format. 10) DEFAULT SETTING: This feature allows all camera settings to be reset to factory default. 11) AUTO POWER OFF: This setting allows camera to stay on (when OFF is selected) or turns camera off when 30 sec, 3 minutes or 5 minutes is selected. -
Page 17: View Photos Or Playback Videos
1. Select MANUAL and press OK button to activate, then press MENU button to go to main screen. 2. Press MENU button to go to main screen. The manual white balance icon will be blinking at the top of the LCD screen. 3. -
Page 18: D E L E T I N G F I L E
Playback using High Definition TV Output: To view HD videos on a High Definition TV, use a micro HD TV cable (not included) to connect camera to the TV. Plug the micro HDTV plug into the camera’s micro HD TV port and the other USB plug into the HDTV. -
Page 19: S P E C I F I C A T I O N
NOTE: As a result of continual improvements, the design and specifications of the product as described in this manual may change without notice. © 2014 Intova • All Rights Reserved 1100 Alakea St., 18th Floor Honolulu, Hawaii 96813 USA www.intova.net...
