Born in Hawaii – Built for the World
EDGE X
Waterproof HD Video Camera with WiFi
User's Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intova EDGE X

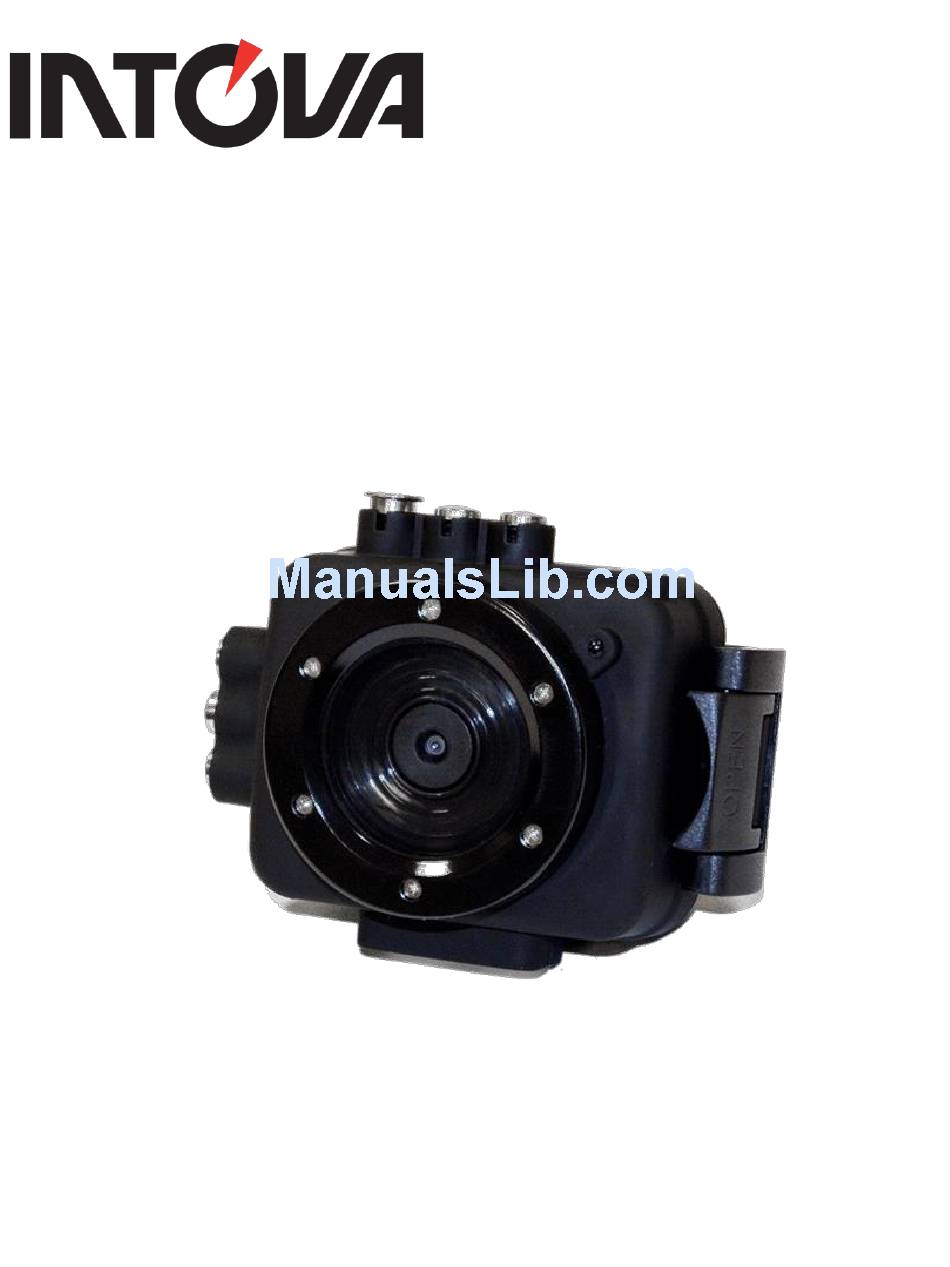

  • Page 1 Born in Hawaii – Built for the World EDGE X Waterproof HD Video Camera with WiFi User’s Manual...
  • Page 2: Table Of Contents

    Table of Contents Preface………………..………………………………………………………….2 Computer requirements for 1080P HD video .………………………………3 Getting to know your camera ……………..…………………………………..4 Getting Started……………..……………………………………………………5 Using EDGE X…………….…………………………………………………….7 Basic Operations of EDGE X camera……………..………………………….8 Camera Settings……………..………………………………………………….9 Video Menu……………..……………………………………………………….9 Photo Menu…………….………………………………………………………12 WiFi……...……………………………………………………………………...13 System Menu…………………………………………………………………..14 Image Quality Menu…………………………………………………………..16 View Photos or Playback Videos…………….………………………………17...
  • Page 3: Preface

    PREFACE Thank you for purchasing the Intova EDGE X waterproof sports camera! The rugged, durable and waterproof EDGE X will help you capture high quality video and photos in many different venues and environments. Visit www.intova.net to view the wide range of mount and system options available. Enjoy!! Main features: ...
  • Page 4: Fcc Statement

    FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5: Computer Requirements For 1080P Hd Video

    Computer requirements for 1080p HD video Minimum recommended setup for viewing and editing 1080p 30fps video. Windows® 7, 8, 10 Mac OSR X 10.6.3 or later Intel® Core 2 Duo or faster Intel® Core 2 Duo or faster DirectX 10.0 or later Minimum 2GB of system RAM Minimum 2GB of system RAM Recommended: 4GB...
  • Page 6: Getting To Know Your Camera

    GETTING TO KNOW YOUR CAMERA (8) Port for rear video (2) MENU, WiFi ON/OFF (7) Removable recording in progress LED (1) POWER, MODE, anti-glare hood (3) SHUTTER MENU scrolling (9) UP, (6) Recording ZOOM IN indicator LED (10) (11) DOWN, ZOOM OUT, (5) LOCK LCD ON/OFF...
  • Page 7 LCD screen. Push down until card clicks into place. To remove, press down on inserted card to click and then release. EDGE X uses Micro SD card up to 64 GB. For HD video, speed class 10 is required.
  • Page 8: Using Edge X

    USING EDGE X IMPORTANT: Before each use, clean and maintain O-ring by removing any dirt, sand and other debris and lightly lubricating with silicone grease as needed to prevent drying and cracking. Make sure to remove all excess grease before use - excess grease can cause leakage and failure of seal.
  • Page 9: Basic Operations Of Edge X Camera

    Quality icon Micro SD card Time stamp icon inserted Digital Zoom indicator bar Basic Operations of EDGE X camera BUTTON BASIC OPERATION PROCEDURES POWER, 1) Press and hold for 2 seconds and release button to turn on or turn off camera.
  • Page 10: Camera Settings

    CAMERA SETTINGS To access camera settings, press the MENU button and press UP or DOWN button to scroll through main menu selections and press OK button to enter sub-menu selections. Shown below are the five main menu selections screens. VIDEO MENU With VIDEO menu icon highlighted, press OK button to enter video settings sub-menu.
  • Page 11 960P60 60/50 High resolution 4:3 video @ 1280x960 pixels produces largest vertical viewing area. 60/50 frames per second rate for action shooting and better slow motion effect*. 960P30 30/25 High resolution 4:3 video @ 1280x960 pixels produces largest vertical viewing area. 30/25 frames per second rate for action shooting, when mounted on stable object and for lower light conditions.
  • Page 12 30/25 Standard resolution 4:3 video @ 640x480 pixels produces small file size. 30/25 frames per second rate for hand held, action shooting. VGAP48 48/48 Standard resolution 4:3 video @ 640x480 pixels produces small file size. 48/48 frames per second rate for hand held, action shooting and for slow motion effect*.
  • Page 13: Photo Menu

    Select ON to manually adjust camera ISO and Image Quality settings to various lighting conditions. b) Use MODE1 for auto adjustment. c) Required optional accessories are: fiber optic cable, item# PXX, and Intova compact strobe, item# PX21. 5) SELF CAPTURE (self-timer): Allows time delay in seconds between pressing of SHUTTER button and taking of photo.
  • Page 14: Wifi

    INTOVA EDGE X WiFi App 1. On an iOS or Android device, go to either the Apple Store or Google Play and type “INTOVA EDGE X” in “search” to find and install the app on your smartphone or tablet. Reboot your device after install.
  • Page 15: System Menu

    4. Open “MISC” folder on your computer desktop. 5. Open the “wifi.conf” file using either WordPad (PC) or TextEdit (Mac). 6. In the section “SoftAP configuration” find the default network name “INTOVA EDGE X” highlighted in the example below and type in a new name.
  • Page 16 3) DIGITAL ZOOM: This setting allows digital zoom feature for either video or photo mode to be activated. When digital zoom is activated, use the UP button to zoom in and the DOWN button to zoom out. The setting choices are OFF, 4X, 10X, 16X and 60X. 4) AUTO LCD OFF: This setting allows LCD to stay on or turn off after a specified time;...
  • Page 17: Image Quality Menu

    Activates an electronic red filter to add back warm colors while diving at depths between 20’-50’/ 6 M-15 M in salt water. Below 50’/15 M, it is recommended to deactivate DIVING mode and use a physical red filter such as Intova IFRED SP1. SPORTS For video/photography of fast moving subjects or during action activities.
  • Page 18: View Photos Or Playback Videos

    5) CONTRAST: This setting increases or reduces the difference between dark and light areas. The default setting is STANDARD. To make dark areas blacker and light areas brighter in videos/photos, select ENHANCE. To make dark areas less black and light areas darker, select LOW. 6) SHARPNESS: This setting increases or decreases video/photo sharpness.
  • Page 19: Deleting Files

    DELETING FILES To delete a single file: 1. Go to View Files mode by pressing MODE button twice if in Video mode or once if in Photo mode. 2. Press UP or DOWN button to select a file and then press the MENU button. 3.
  • Page 20: Specifications

    SPECIFICATIONS Effective Sensor 1/ 2.3" 12MP CMOS SENSOR Built in 1.5” TFT-LCD 480*240 resolution LCD Screen Photo Resolution & 12M 4000x3000 JPG approx. 15000 photos/64GB 10M 3648x2736 JPG approx. 18000 photos/64GB approximate number of shots using a 64GB Micro SD card 3200x2400 JPG approx.
  • Page 21 (3) damage occurring during shipment; (4) damage caused by repair or service performed by persons not authorized by Intova; (5) products on which the serial number has been altered, defaced or removed; (6) products not purchased from an Authorized Intova Dealer. To obtain warranty service, contact Intova for a Return Authorization number.
