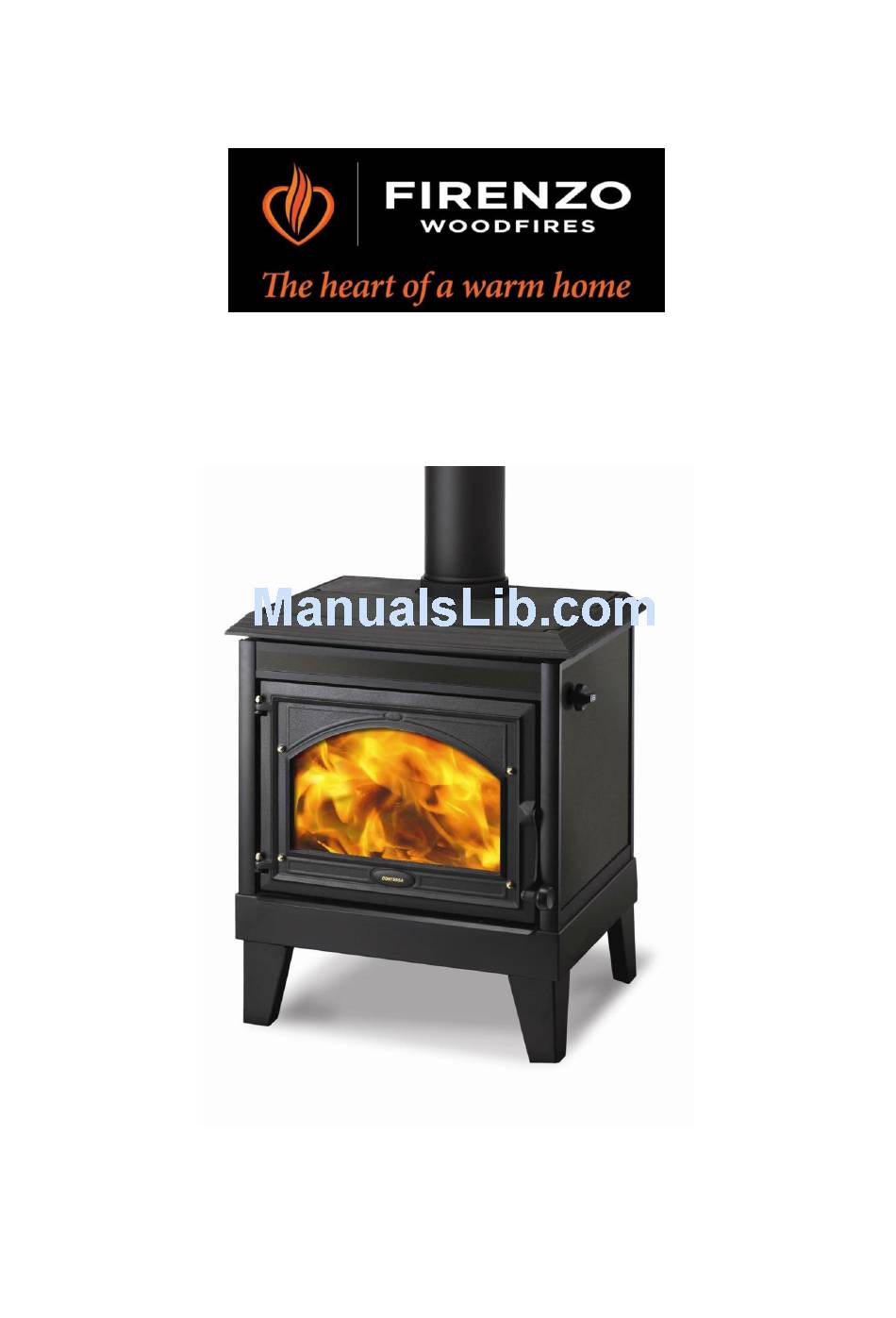

- Page 1 User Instructions Contessa Freestanding Woodburner Firenzo Woodfires UK Limited 98 Niven Street, Napier 4142, New Zealand Website: www.firenzo.co.uk CU-2013-05-14...
-
Page 2: Table Of Contents
9.2.7 General 9.3 Cleaning the stove/chimney 9.3.1 Ash Your new Firenzo stove is EN 13240 and approved for the burning of well-seasoned wood logs in UK Smoke Control Areas HETAS Ltd Approval These appliances have been approved by HETAS Ltd as an intermittent operating appliance for burning wood logs only. -
Page 3: Specification
This stove must not be installed into a chimney that serves any other heating appliance. 3. Safety information All surfaces on the Lady Kitchener will get hot and cause burning if touched by bare hands. Firenzo recommends using a fireguard. -
Page 4: Fresh Air Supply
Although you can fire your Firenzo stove with almost all kinds of wood, you should not fire with wet wood, or unseasoned wood. Wood ought to be stored under a roof for at least 1 year, and preferably 2 years, with free access to wind. -
Page 5: Lighting Instructions And Fuelling Intervals
used once the moisture is less than 20%. During the EN test, all stoves are tested with wood with a moisture content of 16 (± 4%). Never use driftwood as it usually has a high salt content, which damages both the stove and the chimney. Impregnated and painted wood and chipboard emit poisonous smoke and fumes so they should not be used as fuel either. -
Page 6: Comparison Between Firing With Wood And Oil
6.2 Comparison between firing with wood and oil: Type of wood (moisture content 20%) No. of cubic metres per 1000L oil Beech Sycamore Birch Common spruce 10.4 Silver fir 10.9 Please note that HETAS Ltd Appliance Approval only covers the use of wood logs on this appliance. HETAS Ltd Approval does not cover the use of other fuels either alone or mixed with the recommended fuels listed above, nor does it cover instructions for the use of other fuels. -
Page 7: Hetas Requirements
8. HETAS requirements 8.1 More detailed advice about existing chimney usage NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet of the stove to the top of the chimney should be satisfactory. Alternatively the calculation procedure given in EN 13384-1 may be used as the basis for deciding whether a particular chimney design will provide sufficient draught. -
Page 8: Extractor Fan
CO Alarm Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm sounds unexpectedly, follow the instructions given under “Warning Note” above. 8.4 Extractor fan There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit smoke and fumes into the room. -
Page 9: Ceramic Glass Replacement
- Too much ash in the ash pan (please see the section on Ash). Please note that no unauthorised alterations of the design may be undertaken, and that any parts that are replaced must be replaced with genuine original Firenzo parts. Failure to comply may render the warranty invalid.
