Please read this booklet and keep for future reference for the safe
Viking RU

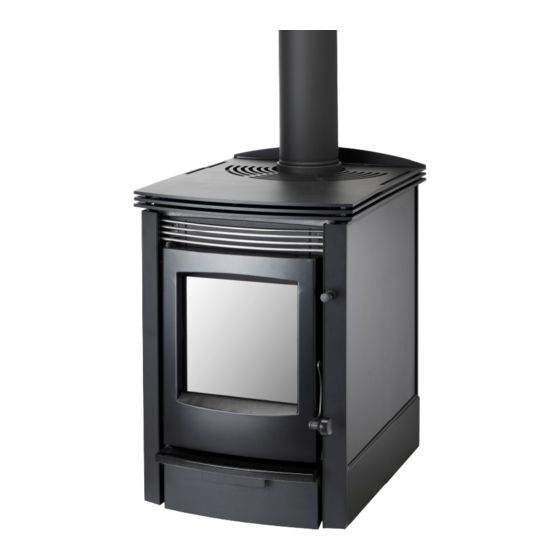

FREESTANDING WOODBURNER
This fire is for installing on a property of 2 hectares or more
All installations must be in accordance
with these instructions. Consult
with the building authority having
jurisdiction to determine the need for
a permit prior to commencing the installation.
Failure to follow these instructions may also
void your fire insurance and warranty.
installation and operation of your:
WET
WET
WET
WET
.
Advertisement
Related Manuals for Firenzo Viking RU WET
Summary of Contents for Firenzo Viking RU WET
- Page 1 Please read this booklet and keep for future reference for the safe installation and operation of your: Viking RU FREESTANDING WOODBURNER This fire is for installing on a property of 2 hectares or more All installations must be in accordance with these instructions.
- Page 2 Minimum Height of Flue System Exit Please complete for your future reference: Please Model: ___________________________________ complete and return your Serial No: _________________________________ warranty registration Date of Purchase: ___________________________ card which is enclosed. Purchased from: ____________________________ Edited 22/3/13 Viking RU Wet...
- Page 3 EFFECTS ON REFACTORY LINING IN SOLID FUEL APPLIANCES. EMISSION OF POISONOUS GASES CAN ALSO BE EXPERIENCED WITH THE BURNING OF TREATED WOOD. Driftwood with salt content will also cause rapid deterioration of the heater and should not be used. Viking RU Wet...
-
Page 4: Installation Responsibilities
All joints shall be fixed to prevent accidental separation, and shall be sealed to prevent any spilt ash or embers contacting any heat sensitive material. Viking RU Wet... -
Page 5: Installation Clearances
Firebox Size: Height 340 mm Width 320 mm Depth 500 mm Flue Size: 150mm Heating Area approx 200sqm CLEARANCES WITH FLUE 1040 1280 1060 SHIELD Clearances are shown with an ash floor protector using 6mm ceramic tiles Viking RU Wet... - Page 6 Slide in the rear infill top plate behind the flue and the curved top plate locates into the lugs onto the back edge. 10. Fit door knob with spacer as per drawing shown herewith. - Viking RU Wet...
- Page 7 6. WETBACK The Viking RU Wet is fitted with a wetback to supplement the hot water system. WARNINGS: DO NOT CONNECT TO AN UNVENTED HOT WATER SYSTEM. DO NOT USE THIS FIRE WITHOUT WATER RUNNING THROUGH THE WETBACK. INSTALL IN ACCORDANCE WITH AS 3500.4.1 OR NZS 4603 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES.
- Page 8 Where such action is considered the manufacturer should be consulted in the first instance. WARNING: The appliance and flue system shall be installed in accordance with AS/NZS 2918:2001 and the appropriate requirements of the relevant building code or codes. Viking RU Wet...
- Page 9 Viking RU Wet...
- Page 10 FIRENZO WOODFIRES Hewitsons Limited Manufacturers of: Lady Kitchener Bronte Coaster Contessa Dante Encore Zealandia Royale Athena Forte Plaza Deco Aqualux 98 Niven Street PO Box 3231 Onekawa Napier Phone: 06 8438260 Fax: 06 8430505 Email: hothouse@firenzo.co.nz Viking RU Wet...
- Page 11 Web: www.firenzo.co.nz Viking RU Wet...
