Rikon Power Tools 30-140 Manual

34” bench radial drill press rikon 30-140
Hide thumbs Also See for 30-140:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
34" Bench Radial Drill Press
Model: 30-140
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
For more information:
www.rikontools.com
info@rikontools.com
or
For Parts or Questions:
techsupport@rikontools.com
877-884-5167
or
Part # 30-140M1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30-140 and is the answer not in the manual?

Questions and answers

Related Manuals for Rikon Power Tools 30-140

Summary of Contents for Rikon Power Tools 30-140

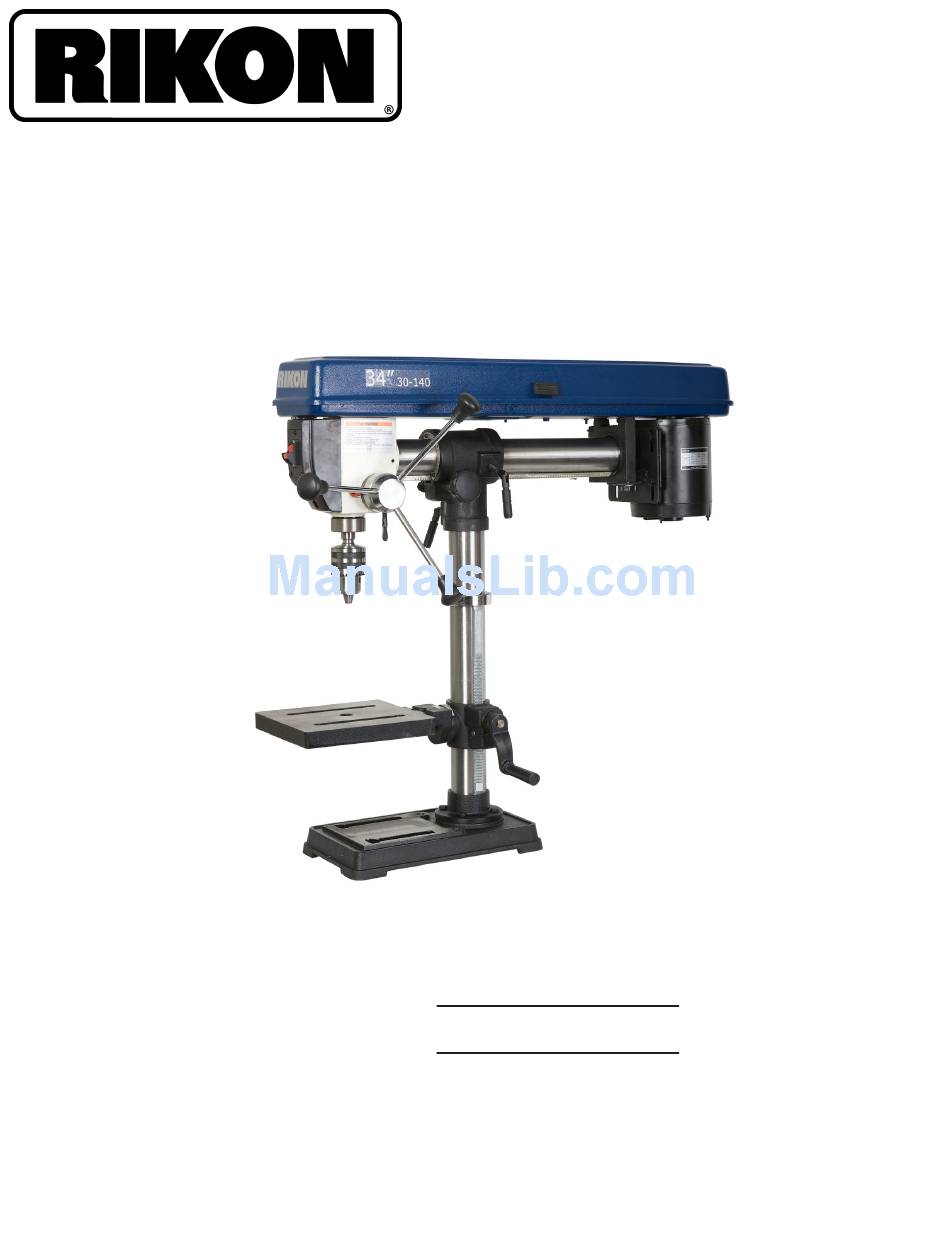

  • Page 1 34” Bench Radial Drill Press Model: 30-140 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com 877-884-5167 Part # 30-140M1...

  • Page 2: Safety Warnings

    Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/ or used for any other application other than that for which it was designed.

  • Page 3: Drill Press Safety Rules

    ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function.

  • Page 4: Table Of Contents

    Table of Contents Safety Warnings............................2 Drill Press Safety Rules ..........................3 Specifications ............................4 Contents of Package........................5 Unpacking and Cleaning the Drill Press......................5 Getting To Know Your Drill Press......................6 Assembly ..............................7 Head Assembly..........................8 Installing/Removing the Chuck and Arbor...................9-10 Installing the Table............................10 Adjustment and Operation..........................11 Head Adjustments ..........................11 Table Adjustments............................12 Changing Spindle Speeds.........................12-13...

  • Page 5: Contents Of Package

    Contents of Package Model 30-140 34” Bench Radial Drill Press is shipped complete in one box. TABLE OF LOOSE PARTS 1. Unpacking and Checking Contents Item Part Name a. Separate all “loose parts” from packaging Drill Press Head materials and check each item with “Table of Loose Parts”...

  • Page 6: Getting To Know Your Drill Press

    Getting to Know Your Drill Press Belt Cover Switch Motor Feed Han- Chuck Lock Handle Crank Handle Table Lock Handle Lock Handle Table support Column Column Sup- port Base Extension Sup- port...

  • Page 7: Assembly

    Assembly Base and Column Assembly 1. Place the base (A-Fig. 1) on a level floor where the machine will be used. 2. Attach the column (B-Fig.1) to the base (A-Fig. 1) using four M8x20 hex bolts. Tighten all four bolts. 3.

  • Page 8: Head Assembly

    Head Assembly 1. Place the locking shoe (part# 15B) in the recessed pocket of the head. (Fig. 5) Assistance is needed for this next step. 2. Place the drill press head (A-Fig. 6) onto the column (B-Fig. 6) as far as it will go. Figure 5 3.

  • Page 9: Installing/Removing The Chuck And Arbor

    INSTALLING/REMOVING CHUCK AND Open Chuck Jaws ARBOR IMPORTANT! It is important that the chuck and arbor are free of any grease or rust protection. Use ordinary household grease remover. INSTALLING THE CHUCK AND ARBOR 1. Open the chuck jaws as wide as possible to prevent any damage.

  • Page 10: Installing The Table

    REMOVING THE CHUCK 1. Open the chuck jaws as wide as possible to prevent damage. 2. Lower the spindle until the slot in the spindle is exposed. (Fig.14) 3. Position the table approximately 1/2” below Figure 14 extended chuck. 4. Turn the chuck until a through hole is exposed in the spindle.

  • Page 11: Adjustment And Operation

    Adjustment and Operation HEAD ADJUSTMENTS Tilting the Drill Press Head 45 Clockwise and Counterclockwise 1. Loosen the lock handle (A-Fig.19) on the right side of the drill press head. 2. Pull the guide pin out on the left side of the drill press head (A-Fig.20) and rotate 90 .

  • Page 12: Changing Spindle Speeds

    TABLE ADJUSTMENTS Raising and Lowering the Table 1. Loosen the column lock (A-Fig.23) on the table support bracket (B-Fig.23). 2. Turn the crank to raise or lower the table to the desired height. 3. Tighten the column lock (A-Fig.23). Figure 23 The table can rotate 360 by loosening the table lock handle and turning to the desired position.

  • Page 13: Setting The Spindle Lock

    CHANGING SPINDLE SPEEDS CONT. 6. Place the belt on the pulleys in relation to the speed chosen on the speed selection chart starting with the motor pulley first. (Fig.27) 7. Push back on the motor until there is approxi mately 1/2” deflection in the belt. (Fig.28) 8.

  • Page 14: Maintenance

    Maintenance WARNING: To avoid injury due to unexpected starting, before cleaning or carring out maintenance work, switch off and disconnect the drill press from the power source. 1. Never use water or other liquids to clean the drill press. Use a dry brush. 2.

  • Page 15: Electrical Requirements

    Eletrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 16: Troubleshooting

    Trouble Shooting...

  • Page 17: Parts Explosion

    Parts Explosion...

  • Page 18: Parts List

    Parts List Part No. Description Part No. Description 1-0405010 BELT-“V” 1-0402002-00001G GUIDE-COLUMN 1-1302025 PULLEY NUT 1-0401017 HORIZONTAL-TUBE 1-0805006-01001G SPINDLE PULLEY 1-0402003-00001G MOUNT-COVER 1-1308022 INSERT PULLEY 1-0402001-00001G MOUNT-MOTOR 1-CLP11GB894D1B RING-RETAINING 1-G7812644-00001G MOTOR 1-BRG80203GB278 BEARING-BALL 1-M8GB6170B NUT HEX 1-1302023 SPACER 1302023 1-WSH8GB97D1B WASHER 1-BRG80201GB278 BEARING-BALL...

  • Page 19: Notes

    Notes...

  • Page 20: Warranty

    Warranty 2-Year Limited Warranty RIKON Power Tools/Richen Enterprise, Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of two (2) years from the date the product was purchased at retail. This warranty may not be transferred.
  • Page 21 For more information: 110 Cummings Park Woburn, MA 01801 877-884-5167/781-933-8400 info@rikontools.com www.rikontools.com Copyright Richen Enterprise, Inc. 2006 Printed in China 5/06...
