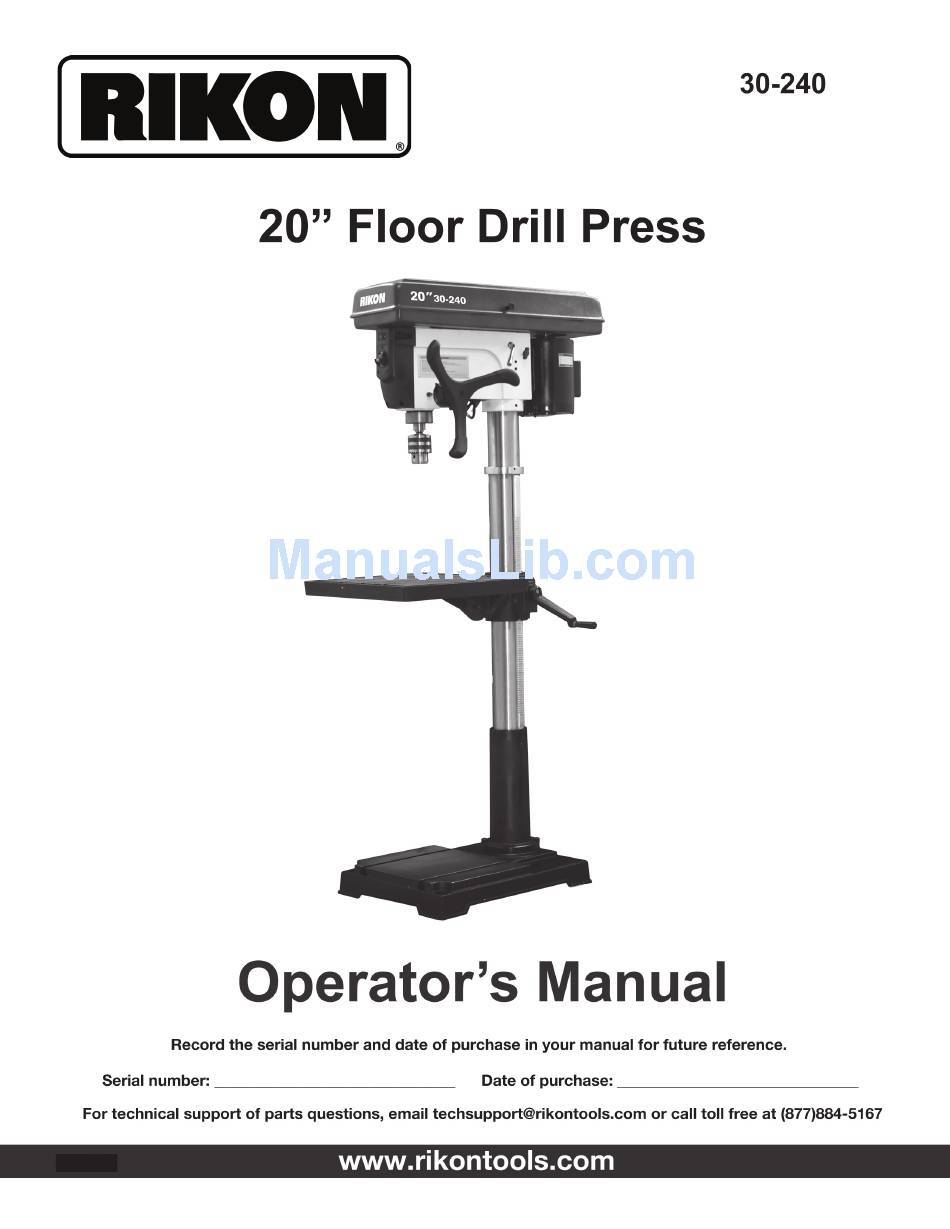

- Page 1 30-240M3...
-
Page 2: Safety Warnings
Operator Safety: Required Reading IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/ or used for any other application other than that for which it was designed. -
Page 3: Drill Press Safety Rules
ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. -
Page 4: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide... -
Page 5: Contents Of Package
Contents of Package Model 30-240 20” Floor Drill Press is shipped complete in one box. Unpacking and Checking Contents a. Separate all “loose parts” from packaging materials and check each item with “Table of Loose Parts” to make sure all items are accounted for, before discarding any packaging material. -
Page 6: Getting To Know Your Drill Press
Getting to Know Your Drill Press Belt Cover On/Off Spindle Switch Depth LocK Motor Chuck Feed Collar Handle Pulley Tension Lever & Lock Knob Rack Table Table Support Table Tilting Column Locking Locking Bolt Handle Crank Handle Table Support Column Column Support Base California Propsition 65 Warning... -
Page 7: Assembly
Assembly Base and Column Assembly 1. Place the base (A-Fig. 1) on a level floor where the machine will be used. 2. Attach the column (B-Fig.1) to the base (A-Fig. 1) using four M10x40 hex bolts. Tighten all four bolts. Figure 1 Assistance is needed for this next NOTE:... -
Page 8: Head Assembly
Assembly Continued from page 7 6. Install the locking lever onto the table support bracket and tighten the locking lever (Figure 5). NOTE: Assistance is needed for this next step. Figure 5 Head Assembly 1. Place the drill press head onto the column as far as it will go (Figure 6). - Page 9 Assembly 4. Install the idler pulley and drive belts. Simply slide the pivot post of the idler pulley into the corresponding hole in the drill press head. The A-29 small drive belt (A-27) is mounted to the motor A-27 pulley and the large drive belt (A-29) is mounted to the spindle pulley (Figure 9).
- Page 10 Assembly INSTALLING/REMOVING CHUCK It is important that the chuck IMPORTANT! and arbor are free of any grease or rust protection. Use ordinary household grease remover. INSTALLING THE CHUCK Carefully insert the chuck into arbor, making sure to align the flat part of the chuck with the arbor (Figure 12).
-
Page 11: Changing Spindle Speeds
Changing spindle speeds WARNING! Disconnect machine from the power source. 1. Turn off and disconnect the power to the Drill Press. 2. Open belt cover. 3. Release the locking knobs on the both sides of drill press head. Release the tension on the belt by swinging the tension lever from right to left (Figure 15). -
Page 12: Setting The Spindle Lock And Drill Depth
Setting the spindle lock and drill depth SETTING THE SPINDLE LOCK 1. Loosen the depth stop collar lock (A- Figure.16). 2. Lower the spindle to the desired depth. (Figure.18) 3. Turn the depth stop collar clockwise until the collar stops (B-Figure.17). Figure 23 4. -
Page 13: Maintenance
Maintenance WARNING: To avoid injury due to unexpected starting, before cleaning or carring out maintenance work, switch off and disconnect the drill press from the power source. 1. Never use water or other liquids to clean the drill press. Use a dry brush. 2. -
Page 14: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 15: Troubleshooting
Troubleshooting TROUBLE PROBABLE CAUSE REMEDY Noisy Operation 1. Incorrect belt tension. 1. Adjust tension. 2. Dry Spindle. 2. Lubricate spindle. 3. Loose spindle pulley. 3. Checking tightness of retaining nut 4. Loose motor pulley. on pulley and tighten if necessary. 4. -
Page 16: Parts Explosion
Parts Explosion... - Page 17 Parts Explosion NOTE: Please reference the Model Number and Key Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required.
- Page 18 Parts Explosion...
-
Page 19: Parts List
Parts List KEY NO. DESCRIPTION KEY NO. DESCRIPTION Collar-Rack Screw-Hex Hd M8x1.25-16 Screw-Hex soc Set M6x1.0-10 Lever-Adjusting Support-Table w/Indicator Support-Motor Bracket Crank Mount-Motor Handle crank Lock washer 12mm Rack Nut-Hex M12 Screw-Hex Soc Set M10x1.5-12 Motor Support-Column Nut-Hex M8x1.25 Screw-Hex Hd M12x1.75-40 Washer 8 Base Screw-Hex Hd M8x1.25-20... -
Page 20: Notes
