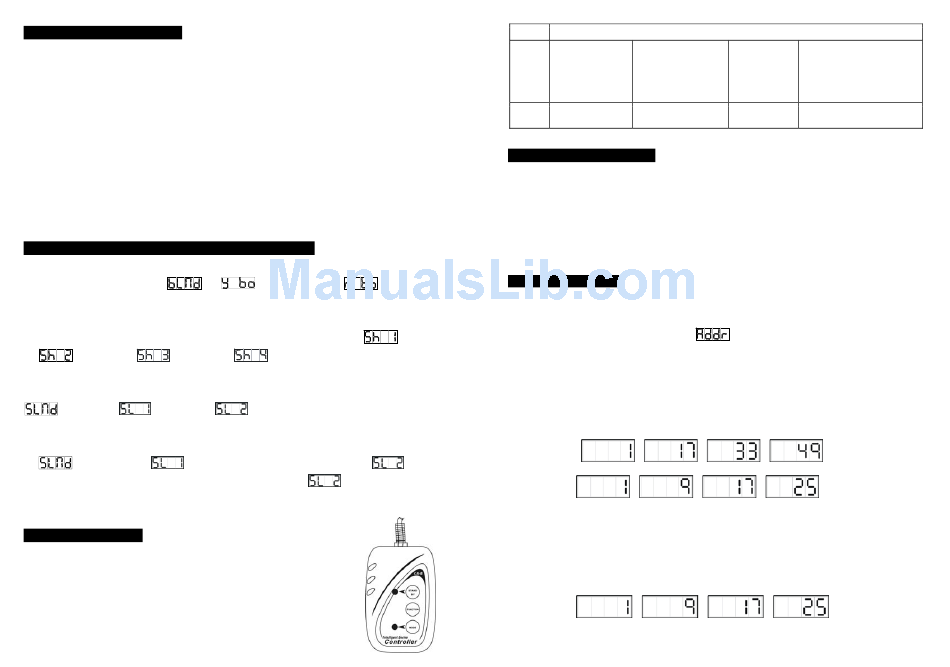

5. How To Control The Unit

You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By easy controller
3. By IL-0824 ( only for setting in 8 channel mode, please refer to the user guide of iLead
controller ) or by universal DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address
setting will be effected at once. Every time you turn the unit on, it will show 575 on the
display and move all the motors to their 'home' position and you may hear some noises for
about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in
programs.

5.1. Master/Slave Built-In Preprogrammed Function

You can select blackout mode
mode while the unit is turned on. By linking the units in master/slave connection, the first unit
will control the other units to give an automatic, sound activated, synchronized light show.
This function is good when you want an instant show. You have to select
or (show 2) or (show 3) or
DMX input jack will have nothing plugged into it, and Its master LED will be constantly on
and sound LED will flash to the music. The other units will have to set in slave mode
and select (normal) or
plugged into the DMX input jacks (daisy chain) and the slave LED lights will constantly on.
2-light show
In (slave mode), means the unit works normally and
2-light show. In order to create a great light show, you can set
get contrast movement to each other, even if you have two units only.

5.2. Easy Controller

The easy remote control is used only in master/slave mode. By
connecting to the 1/4" microphone jack of the first unit, you will find that
the remote control on the first unit will control all the other units for Stand
by, Function and Mode.
in (yes blackout) or (no blackout)
(show 4) mode by easy controller. Its
(2 light show) mode, Their DMX cables
on the second unit to
16C
Stand by Blackout the unit
Strobe
1. Color sync. strobe
2. Sync. strobe
Function
3. Two-light strobe
Sound 1
Mode
(LED off )
5.3.1 iSolution Operation
·Consistent DMX configuration enable iMove to be linked with iRock and iShow together
and controlled at the same time.
·DMX address can be set remotely by iLead controller ( please refer to the user manual of
iLead controller ). No need to calculate the DMX channels of each fixture in the chain.
·Automatic switching between DMX function and built-in stand alone programs.
5.3.2 DMX Controller
If you use a universal DMX controller to control the units, you have to set DMX address from
1 to 512 channel so that the units can receive DMX signal.
Press the MENU button up to when the
(show 1)
button and the display will blink. Use DOWN and UP button to change the DMX 512 address.
Once the address has been selected, press and keep ENTER button pressed up to when
the display stops blinking or storing automatically 8 seconds later. To go back to the
functions without any change press the MENU button again.
Please refer to the following diagram to address your DMX 512 channel for the first 4 units.
16 Channels：
means
8 Channels：
You have to set the fixture DMX address in 8 channels mode when you use IL-0824
controller. DMX address can be set remotely by IL-0824 controller. No need to calculate the
DMX channels of each fixture in the chain.
Please refer to the following diagram to address your DMX 512 channel for the first 4 units.
8 Channels：
X/Y moving show pattern Gobo/Color X/Y moving setting
selection selection 1.Pan position
( Show 1 ~ Show 4 ) 1.Hold on for gobo 2.Tilt position
Please refer to 4.2. Main selection 3.Dimmer
Functions- Show mode 2.Press for color First set Master unit, then set Slave
change units' position
Sound 2 Slow/Sound 3 Position/ Latch
(LED slow blinking) (LED on) (LED fast blinking)
is shown on the display. Pressing ENTER
