the functions without any change press the MENU button again.

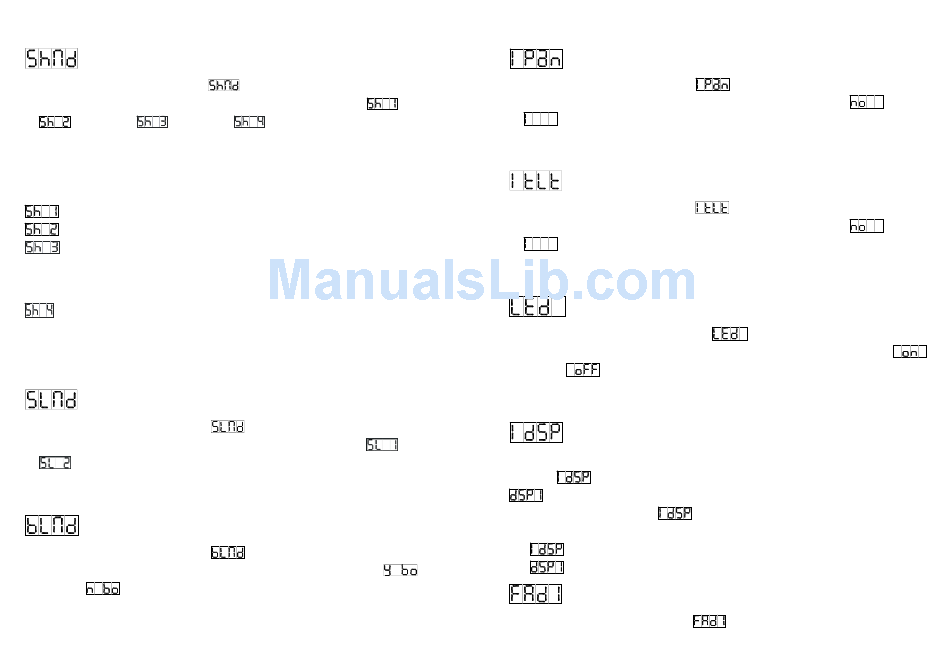

Show Mode
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to select the
or (show 2) or (show 3) or
been selected, press the ENTER button to setup or automatically return to the main
functions without any change after 8 seconds. To go back to the functions without any
change press the MENU button again.
Show 1 mode - Fixture is placed on the floor. Tilt movement angle 210°.
Show 2 mode - Fixture is fixed under ceiling. Tilt movement angle 90°.
Show 3 mode - Fixture is placed on the speaker, The spot is always projecting
to the audience's direction; i.e in front of the stage. Pan movement angle ( left to
right to left ): 160°. Tilt movement angle: 90° ( 60° above horizon; 30° below horizon).
Show 4 mode - Fixture is fixed under ceiling. The spot is mainly projecting in front of
the stage. Pan movement angle ( left to right to left ) :160°. Tilt movement angle:
90° ( vertically, front 75°; back 15° ) .
Slave Mode
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to select the
or (2 light show) mode. Once the mode has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after 8
seconds. To go back to the functions without any change press the MENU button again.
Blackout Mode
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to select the
blackout) or (no blackout) mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change
after 8 seconds. To go back to the functions without any change press the MENU button
is showing on the display. Pressing ENTER
(show 1)
(show 4) mode. Once the mode has
is shown on the display. Pressing ENTER
is shown on the display. Pressing ENTER
10C
again.
Pan Inversion
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to select the
or (pan inversion) mode. Once the mode has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after 8
seconds. To go back to the functions without any change press the MENU button again.
Tilt Inversion
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to select the
or (tilt inversion) mode. Once the mode has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after 8
seconds. To go back to the functions without any change press the MENU button again.
Led Display
Press the MENU button up to when the
ENTER button and the display will blink. Use DOWN and UP button to select the
(Led on) or
button to setup or automatically return to the main functions without any change after 8
seconds. To go back to the functions without any change press the MENU button again.
Display Inversion
(normal)
It is good for you to install the unit on the floor or under ceiling. Press the MENU button up to
when the
(display inversion), It will automatically store after 8 seconds. Or press the ENTER
button again return to the mode
the MENU button.
Display normal mode for the fixture putting on the floor.
Display inversion mode for the fixture fixing under ceiling.
(yes
Gobo1 focus Adjust
Press the MENU button up to when the
is shown on the display. Pressing ENTER
is shown on the display. Pressing ENTER
is showing on the display. Pressing
(Led off) mode. Once the mode has been selected, press the ENTER
is blinking on the display. Use the ENTER button to change to the mode
(display normal). To go back to the functions press
is blinking on the display. Pressing ENTER
11C
(normal)
(normal)
