iSolution DMX512 575W Plus User Manual page 8

functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.

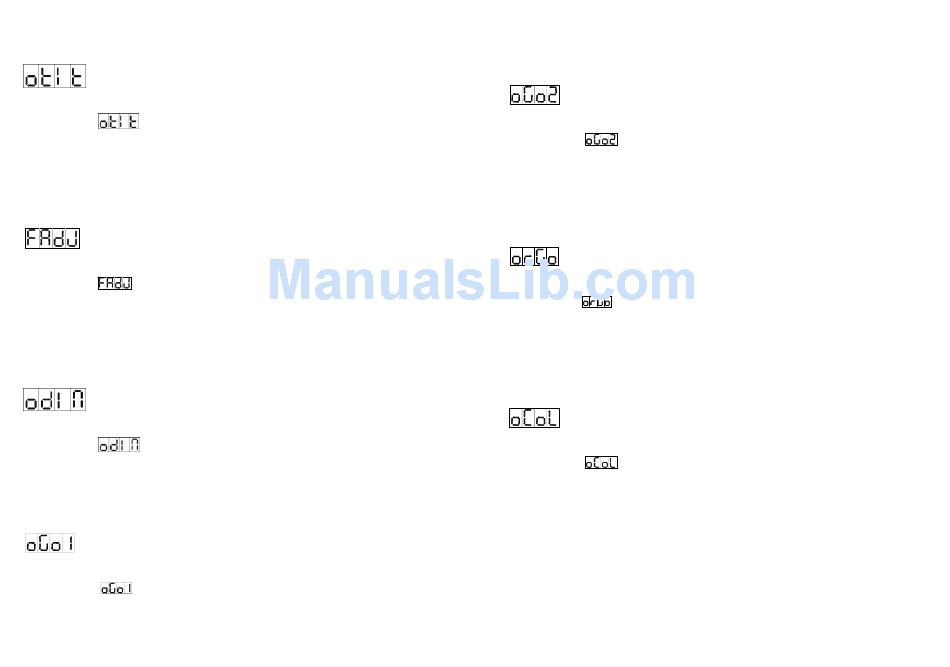

Tilt offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display
will blink. Use DOWN and UP button to adjust the tilt home position. Once the position has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
Focus Adjust
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button, the unit will focus
on tilt 135°, and then the unit will first focus on tilt 45°, pan 0°, pan 90°, pan 180°, pan 270°
each time your press ENTER button. Use DOWN and UP button to adjust focus, this
settings only for offset mode to adjust home position. To go back to the main functions
without any change after 8 seconds .
Dimmer offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display
will blink. Use DOWN and UP button to adjust the dimmer home position(0~255). Once the
mode has been selected, press the ENTER button to setup or automatically return to the
offset functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
Gobo 1 offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display
will blink. Use DOWN and UP button to adjust the gobo home position. Once the gobo 1 has
been selected, press the ENTER button to setup or automatically return to the offset
14C
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
Gobo 2 offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display
will blink. Use DOWN and UP button to adjust the gobo home position. Once the gobo 2 has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
R-gobo offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display will
blink. Use DOWN and UP button to adjust the R-gobo home position. Once the R-gobo has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
Color offset
Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button
up to when the is shown on the display. Pressing ENTER button and the display
will blink. Use DOWN and UP button to adjust the color home position. Once the color has
been selected, press the ENTER button to setup or automatically return to the offset
functions without any change press the MENU button again, To go back to the main
functions without any change after 8 seconds.
15C
