Do you have a question about the iMove 200SR and is the answer not in the manual?

Questions and answers

Summary of Contents for iSolution iMove 200SR

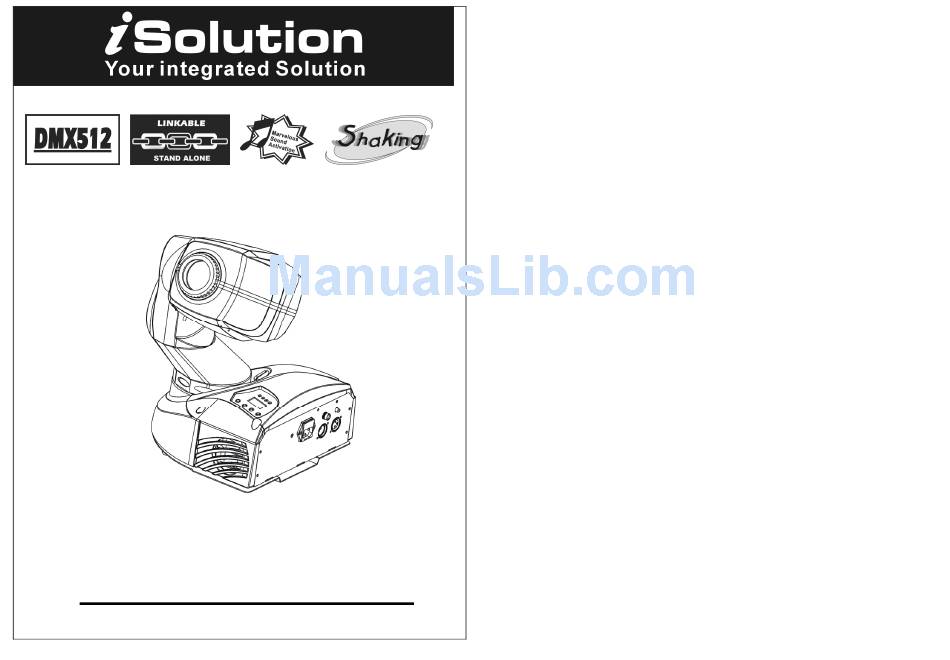

  • Page 1: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. Lamp 4. How To Set The Unit 5. How To Control The Unit 6. DMX512 Configuration 7. DMX512 Connection 8. Troubleshooting 9. Fixture Cleaning User Guide Широкий ассортимент оборудования ACME на...
  • Page 2: Safety Instruction

    1. Safety Instruction Warning To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Please read carefully the instruction, which includes important information Never touch bulb with bare fingers as it is very hot after using. about the installation, usage and maintenance.
  • Page 3: Lamp

    2.1 Beam Angle 3.1 HID 150W Lamp Installation Or Replacement • Always switch power off before installing or replacing the lamp. Never try to replace the IM-200SR-ELC IM-200SR-HID lamp when it is hot. • Do not touch the bulb with bare hands. Cleaning the lamp with denatured alcohol and wipe with a lint free cloth when lamp is dirty.
  • Page 4: How To Set The Unit

    4. How To Set The Unit 4.2 Main Function To select any of the given functions, press the MENU button up to when the required one is 4.1 Control Panel showing on the display. Select the function by ENTER button and the display will blink. Use DOWN and UP button to change the mode.
  • Page 5 Channel Mode Blackout Mode Press the MENU button up to when the is shown on the display. Pressing ENTER Press the MENU button up to when the is showing on the display. Pressing button and the display will blink. Use DOWN and UP button to select the (8 Channel) or (13 ENTER button and the display will blink.
  • Page 6: How To Control The Unit

    5. How To Control The Unit test by program. Back to the functions press MENU button again. You can operate the unit in three ways: Master Mode 1. By master/slave built-in preprogram function 2. By easy controller Press the MENU button up to when the is showing on the display.
  • Page 7: Dmx512 Configuration

    5.3 iSolution Operation 6. DMX 512 Configuration Consistent DMX configuration enable iMove to be linked together with iRock and iShow and controlled at the same time. DMX address can be set remotely by iLead controller ( please refer to the user manual of iLead controller ).
  • Page 8: Dmx512 Connection

    7. DMX512 Connection The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
  • Page 9: Troubleshooting

    8. Troubleshooting G. If The pan belt is broken Turn off the main power. Following are a few common problems that may occur during operation. Here are Unscrew all the screws and open the base-housing cover. some suggestions for easy troubleshooting: Unplug all the connect wires that from the arm.
  • Page 10: Fixture Cleaning

    9. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
