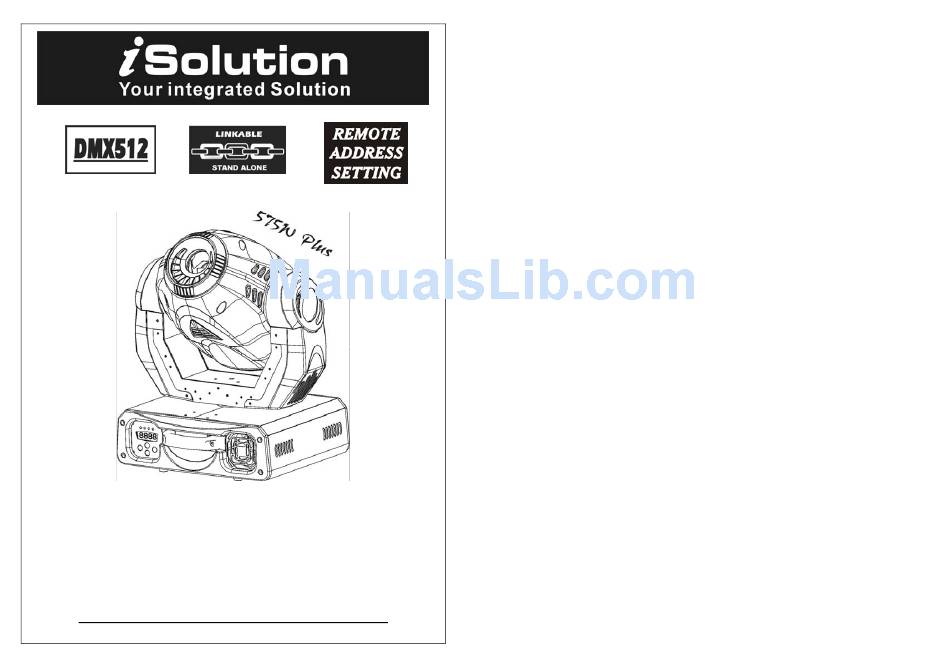

iSolution DMX512 575W Plus User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

TABLE OF CONTENTS

User Guide
Please read these instructions carefully before use
1C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX512 575W Plus and is the answer not in the manual?

Questions and answers

Related Manuals for iSolution DMX512 575W Plus

Summary of Contents for iSolution DMX512 575W Plus

  • Page 1: Table Of Contents

    4.2 Main Function 4.3 Home Position Adjust 5. How To Control The Unit 5.1 Master/Slave Built-In Preprogrammed Function 5.2 Easy Controller 5.3 iSolution Operation / DMX Controller 5.4 DMX 512 Configuration 5.5 DMX 512 Connection 6. Troubleshooting 7. Maintenance and Cleaning...

  • Page 2: Safety Instruction

    1. Safety Instruction Warning To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or Please read carefully the instruction, which includes important moisture. information about the installation, usage and maintenance. Never touch bulb with bare fingers, as it is very hot after using. WARNING Hot lamp explosion hazard.

  • Page 3: Technical Specification

    8 Channels: Luminous intensity: 2. Technical Specification Power supply Channel 1 = Pan - AC 120V~60Hz or AC 230/240/250V~50/60Hz Channel 2 = Tilt Lamp - HMI 575W / HMQ 575/2 lamp base:SFc10-4 Channel 3 = Shutter Optical system Channel 4 = Gobo - High efficiency optical system Channel 5 = Color - High quality optical lens and dichroic colors...

  • Page 4: How To Set The Unit

    CAUTION! Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! 3. Lamp In case of replacement of the lamp or maintenance, do not open the fixture within 15 minutes until the unit cools down after switching off. 4.

  • Page 5: Main Function

    DMX input present MASTER Master mode SLAVE Slave mode SOUND Flashing Sound activation Button MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Remote controller input By connecting to the 1/4”...
  • Page 6 the functions without any change press the MENU button again. again. Show Mode Pan Inversion Press the MENU button up to when the is shown on the display. Pressing ENTER Press the MENU button up to when the is showing on the display. Pressing ENTER button and the display will blink.

  • Page 7: Home Position Adjust

    button, the unit will focus on tilt 135°, and then the unit will first focus on tilt 45°, pan 0°, pan ENTER button and the display will blink. Use DOWN and UP button to select the 90°, pan 180°, pan 270° each time your press ENTER button. Use DOWN and UP button to (power on) or (power off) mode.
  • Page 8 functions without any change press the MENU button again, To go back to the main functions without any change press the MENU button again, To go back to the main functions without any change after 8 seconds. functions without any change after 8 seconds. Tilt offset Gobo 2 offset Press the MENU button for at least 5 seconds into offset mode, use DOWN and UP button...

  • Page 9: How To Control The Unit

    ) or by universal DMX controller No need to turn the unit off when you change the DMX address, as new DMX address 5.3.1 iSolution Operation setting will be effected at once. Every time you turn the unit on, it will show 575 on the ·Consistent DMX configuration enable iMove to be linked with iRock and iShow together...

  • Page 10: Dmx 512 Configuration

    5.4. DMX 512 Configuration i.) The value as below will be effected after about five seconds, For DMX reset, put DMX value of CH-16 to 200-209 For DMX lamp on, put DMX value of CH-16 to 130-139. For DMX lamp off, put DMX value of CH-16 to 230-239.

  • Page 11: Dmx 512 Connection

    5.5. DMX 512 Connection 6. Troubleshooting Following are a few common problems that may occur during operation. Here are The DMX 512 is widely used in intelligent lighting control, with a maximum of 512 channels. some suggestions for easy troubleshooting: A.
  • Page 12 1. Turn off the main power. 1. Turn off the main power. 2. Unscrew all the screws (A) and open the base-housing cover (B). 2. Unscrew all the screws (A) and open the right arm cover (B). 3. Unscrew all the screws (C) and open the arm cover (D). 3.

  • Page 13: Maintenance And Cleaning

    Pay attention to the belt tension when install the belt. 7. Maintenance and cleaning Please refer to the photos below: Maintenance: Connector Ballast Filter, Capacitor Photo 1 Ignitor, Anti-interference plate A. As the pictures shown above, if the cable or cable joints turned yellow or black, please replace the cable or cable joints immediately.
  • Page 14 EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002; EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6:1996, EN61000-4-11: 1994.
