Netstor NS750S Quick Installation Manual

Netstor NS750S/NS760S
4 / 8 bays Desktop Storage

Quick Installation Guide

1. Overview
Netstor 4/ 8 bays SAS/SATA desktop storage solution provides a best
performance and most easy way to expand external storage capacity
through the high bandwidth Multi-Lane interface architecture. With the
IPC-grade Power Supply and No-noise cooling design allows Studio usage
in long period Video/Audio Editing and close-proximity application.
NS750S & NS760S built-in SAS/SATA compatible backplane that allows
users choose on low cost SATA or high reliable SAS Hard Drives while
build-in their system.
The product line includes the following modes:
‧
NS750S 4 bays SAS/SATA Desktop Storage
‧
NS760S 8 bays SAS/SATA Desktop Storage
2. Package Checklist
Before installing the NA750B/NA760B, verify that package contains the
following items.
Second Edition, July 2007
-
1-
□ NS750S
Enclosure x 1
HDD Tray x 4
Power Cord x 1
Manual CD x 1
Hard Drive Mounting Screw x 16
Key for HDD tray x 2
Notify your sales representative if any of the above items are missing or
damaged.
3. Product Description

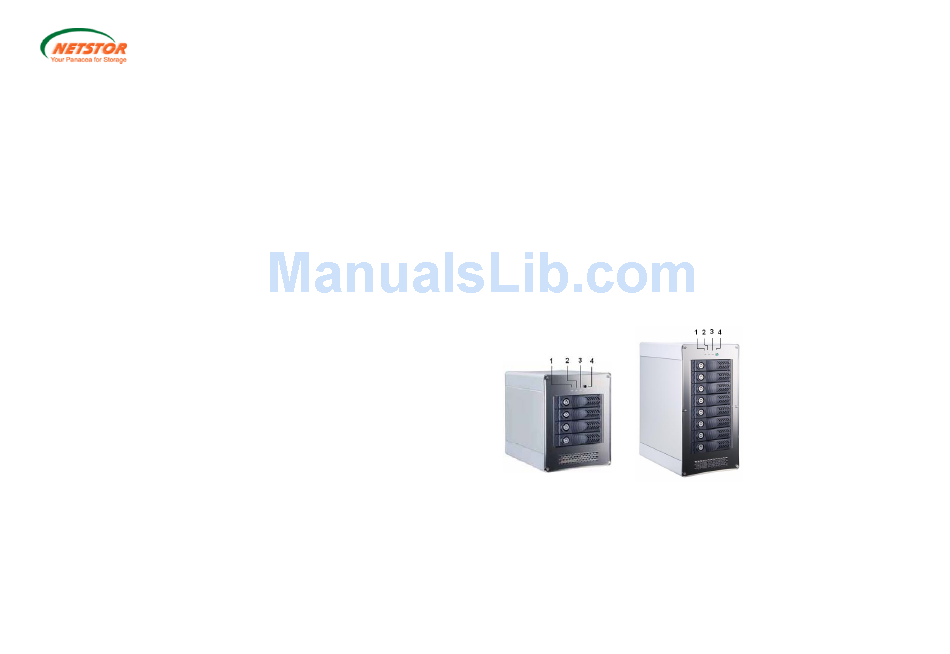

Panel Layout

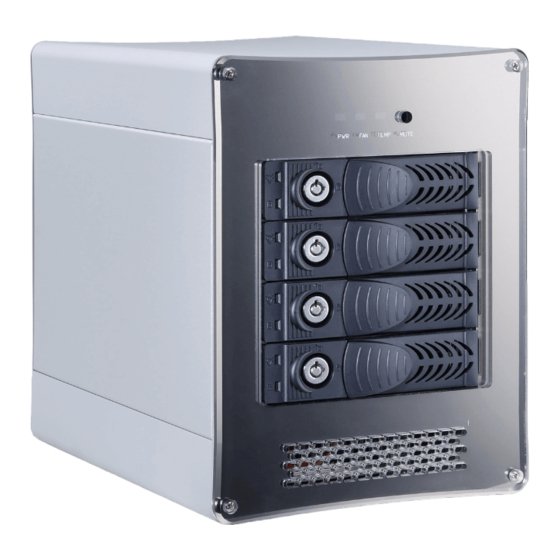

NS750S
□ NS760S
Enclosure x 1
HDD Tray x 8
Power Cord x 1
Manual CD x 1
Hard Drive Mounting Screw x 32
Key for HDD tray x 2
NS750S/NS760S:
Power LED
1.
2. Fan LED
Normal – Green;
Fail – Red (too slow rpm or
stop)
Temperature LED
3.
(normal – Green;
Over 55°C – Red
NS760S
4. Mute button for stopping Fan
stop or Temp. abnormal high
buzzer alarm
