Netstor NR701C Quick Installation Manual

NR701C
Desktop 4-bay Quad-interface SATA Raid Subsystem
Quick Installation Guide
1.

Overview

The NR701C/ NR300C series RAID subsystem is a cost effective
solution designed for Audio/Video studio, standalone DVR and SMB
backup that demands external storage with RAID level protection, high
transmission speed and easy-to-deploy features for Four(4) SATA II
disks in a very small footprint or 1U Rackmount. Simply single
connecting to the host computer by either high speed USB, FireWire
400/800 or eSATA port requiring no extra drivers, the NR701C/NR300C
can be easily attached to any standard PC or MAC platforms.
2.

Package Checklist

Before installing this unit, verify that package contains the following
items.
A
Enclosure x 1
B HDD tray (installed in NR701C) x4
C
Power Cord x1
D
User manual CD x1
E Hard drive mounting screw x16
F
Key for HDD tray x2
G
eSATA cable x 1
H Firewire B cable x 1
I
USB cable x 1
A B
E F G
Page. 1
First Edition, Jun. 2009
Notify your sales representative if any of the above items are missing or
damaged.
3.

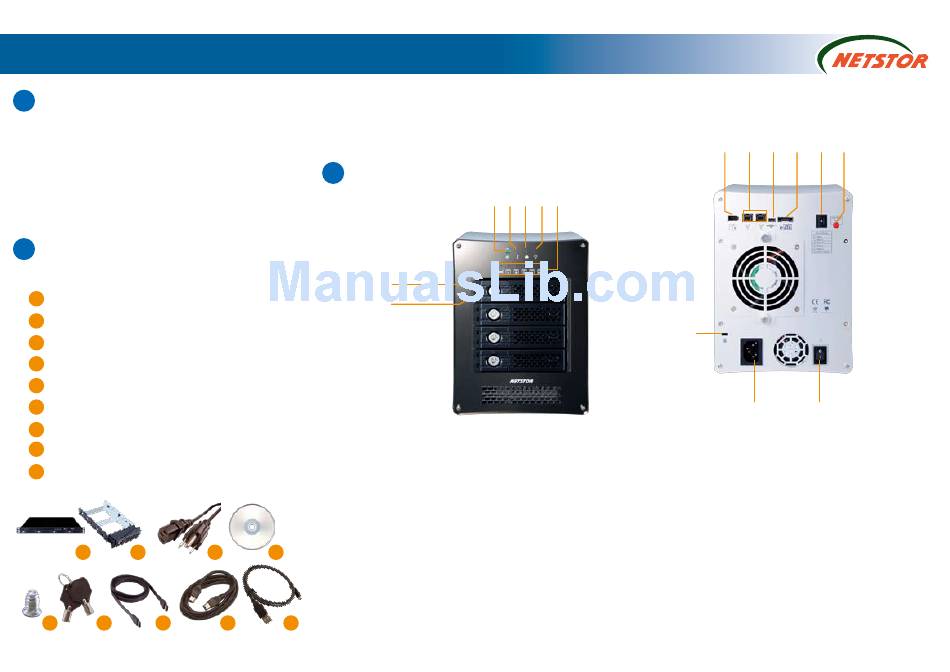

Description of Panel Layout

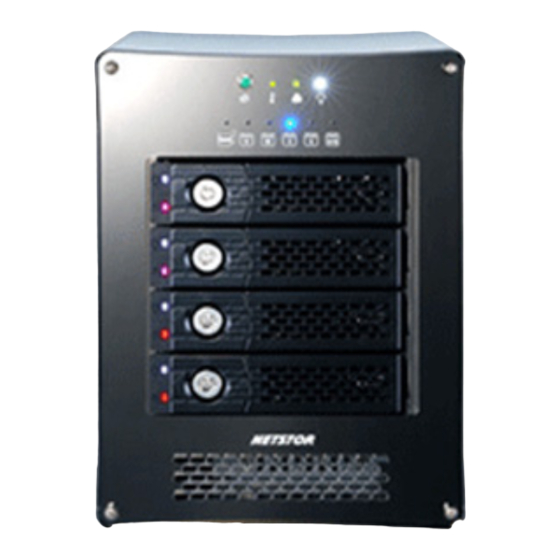

Front Panel

6
7
1. Buzzer mute button
2. Temperature Status LED
Green – Normal
Red – Overheat (Over 55°C)
3. Fan Status LED
Green – Normal
Red – Fail (too slow or not spinning)
4. Power Status LED
5. RAID Status LEDs
C D
Blue – current RAID mode
Red (flashing) – RAID mode selecting (not confirmed)
Red – RAID mode confirmed
6. HDD Power LED
7. HDD status
H I
Blue – access
Red – fail
1 2 3 4 5
Page. 2

Rear Panel

1 2 3 4 5 6
7
8 9
1. FireWire A connector
2. FireWire B connector
Either one can be connected to the computer.
The other one can be connected to another FireWire B device.
3. Mini USB connector B type
4. eSATA connector
5. RAID Mode Switch
6. RAID Mode Confirm Button
7. Kensington Security Slot
8. Power Cord Receptacle
9. Power On/Off Switch
Page. 3
