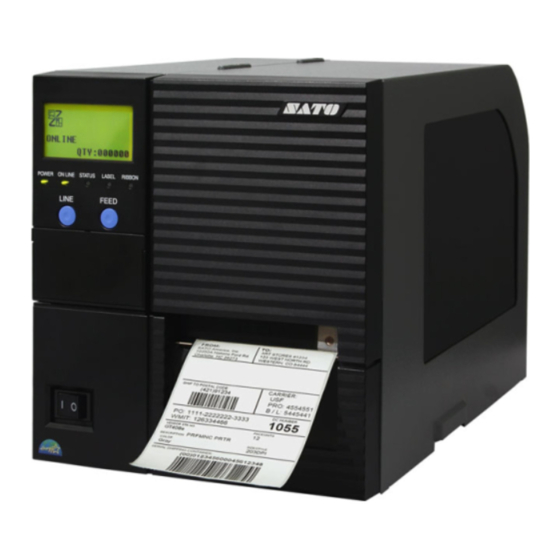

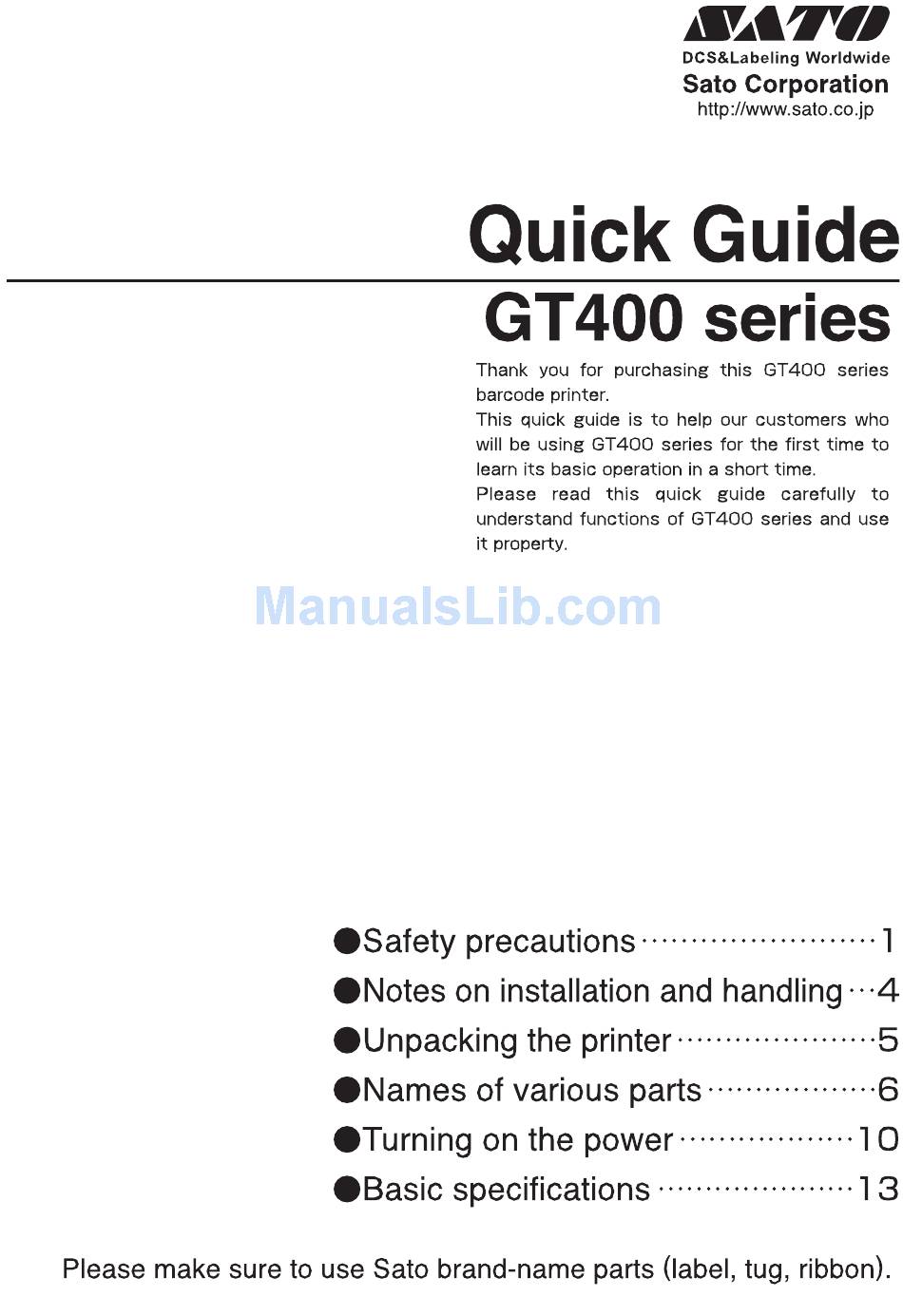

SATO GT400 series Quick Manual
Hide thumbs Also See for GT400 series:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT400 series and is the answer not in the manual?

Questions and answers

Summary of Contents for SATO GT400 series

  • Page 2: Safety Precautions

    In this case, specified power voltage (AC240V). continued use of the printer may cause a Otherwise, it may cause a fire or electric fire or electric shocks.. shocks. First edition: November 15, 2004 Q00940000 2004 Sato Corporation...
  • Page 3 Warning Be sure to ground Do not use the printer when it is in trouble • Be sure to connect the ground cable to the • If abnormality such as smoke or peculiar ground of the printer. If the ground cable smell from the printer should occur, is not connected, the printer may cause continued use of the printer may cause a...
  • Page 4 Caution Avoid humid storage areas Printer head • After printing, the printer head is hot. • Do not put the printer in a humid or When replacing paper or cleaning condensing place. If condensation forms, immediately after printing, be careful not immediately turn off the power, and do to burn yourself.
  • Page 5: Installation Tips

    Notes on installation and handling When installing and handling the printer, note the following points. Installation Tips Do not place it near cranes or When installing this product, note the following points. compressors Equipment using large capacity of electricity, such Place the printer in a level place as cranes and pressing machines, may cause If installed in a rough...
  • Page 6: Unpacking The Printer

    Unpacking the printer This section describes the contents of the product. First, unpack the printer and check the contents. Printer Cushion * The shape of cushioning material (cushion holding the printer) may be different.
  • Page 7: Names Of Various Parts

    Names of various parts Printer main body Operation panel Main cover There are a display to show messages, two buttons for operation, and five LEDs Operation panel cover showing the condition of There are various operation the printer. buttons, adjusting volumes, etc.
  • Page 8 Mini LAN interface card (optional) Interface card (optional) Select one from IEEE 1284, fast RS-232C, USB, LAN, and wireless LAN. EXT connector (optional) External signal interface AC input power terminal Power cable hook (Power supply connector) A groove for hooking the power cable.
  • Page 9 Memory cartridge Tilt the knob of the memory cartridge cover inside and remove the memory cartridge cover. Label damper stopper Paper sensor Label guide handle Label damper Head open lever Fanfold cover Maintenance Stopper screw Label guide screw Head close lever Printer head (consumable) The component that transfers heat to the ribbon or media for...
  • Page 10: Operation Panel

    Operation panel Icons, operation messages, and error messages are displayed. Display Icons, operation messages, and error messages are displayed. FEED button For feeding of paper. When it is pressed once, equivalent of a sheet of paper is sent out. *There are times when the paper is not aligned to the proper position, such as when the power is turned on or the paper is set.
  • Page 11: Turning On The Power

    Turning on the power The setting procedure of the power cable and interface cable will be described. Setting the power supply and interface cable After installing the printer, set the power supply and interface cable as shown below. Power cable and interface cable Press the catch of the cable cover, slide it sideways, and remove.
  • Page 12 Power cable and outlet Insert the attached power cable first to the main body, and then to the power outlet. Power outlet To main body Power outlet side Power cable Main body side When the power outlet is 2-prong type, use Power outlet the attached 2-prong adapter, and insert into the power outlet.
  • Page 13 Turning off the power After checking that the printer operates normally, turn off the power. Do not suddenly turn it off. Check the following points to see if the power can be safely turned off. Check before turning off the power Always perform the following before turning off the power.
  • Page 14 GT400 series Basic specifications The following is an abbreviated list of the GT400 series specifications. For a complete listing, please refer to Section 1 of the Operator and Technical Reference Manual. Model: GT408e/412e/424e Print Mothod: Thermal Transfer or Direct Thermal...
