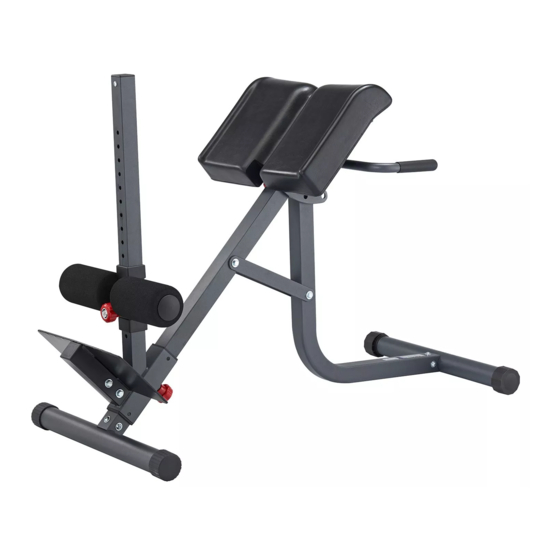

Hyper extension & roman chair

Advertisement

INSTRUCTION MANUAL

HYPER EXTENSION & ROMAN CHAIR
MODEL: F670
QUESTION?
As a quality home gym supplier we are committed to your complete satisfaction. If you have
questions, or find missing or damaged parts, we will guarantee your complete satisfaction through
our authorized dealer service centers or our home office customer service department. Please call
your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained
technicians will provide immediate assistance to you, free of charge.
Bodycraft is a division of Recreation Supply Inc.
P.O. BOX 181
Sunbury, OH 43074
70600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F670 and is the answer not in the manual?

Questions and answers

Summary of Contents for BodyCraft F670

  • Page 1: Instruction Manual

    Please call your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained technicians will provide immediate assistance to you, free of charge.
  • Page 2: Before You Begin

    Hyper Extension & Roman Chair. Keep this manual for future reference. If you have additional questions, please call your local BODYCRAFT dealer or our customer service department at 800-990-5556 Monday through Friday, 9 a.m.
  • Page 3: Parts List

    PARTS LIST NO. DESCRIPTION QTY. STABILIZER FRONT SUPPORT MAIN FRAME UPRIGHT ASSEMBLY ADJUSTABLE HEEL SUPPORT FOOT PLATE PAD HOLDER HANDLE BAR SUPPORT BRACE HIP PAD FOAM PAD HAND GRIP(assembled) 60 MM END CAP 60 MM ROUND END CAP 50 MM SQ END PLUG 45 MM SQ END PLUG 20 X 40 RECT END PLUG 1"...
  • Page 4 EXPLODED OVERVIEW 28 28...
  • Page 5 STEP ONE To ease the assembly process, do not tighten bolts until instructed. 1. Slide Upright Assembly (4) onto Main Frame (3) , then attach Main Frame (3) to Stabilizer (1), using three 5/16” X 5/8” Inner Hex Bolts (29) and three 5/16” Flat Washers (31) . Attach two 60 mm End Caps(14) to Stabilizer (1) and one 45 SQ End Cap (16) to Upright Assembly(4).
  • Page 6 STEP TWO 1. Attach Foot Plate (6) to Upright Assembly (4), using two 3/8” X 2-1/2” Hex Bolts(26), four 3/8” Flat Washers (30) and two 3/8” Nylon Nuts (34). Attach 50 mm End Cap to Foot Plate (15). 2. Slide Adjustable Heel Support (5) onto Upright Assembly (4). Moisten Foam Pads (11) with water and slide onto each round tube on Adjustable Heel Support (5).
  • Page 7 Enjoy many years of a Fit Lifestyle. Thank you for purchasing the Bodycraft Hyper Extension & Roman Chair Machine Training System. If You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
