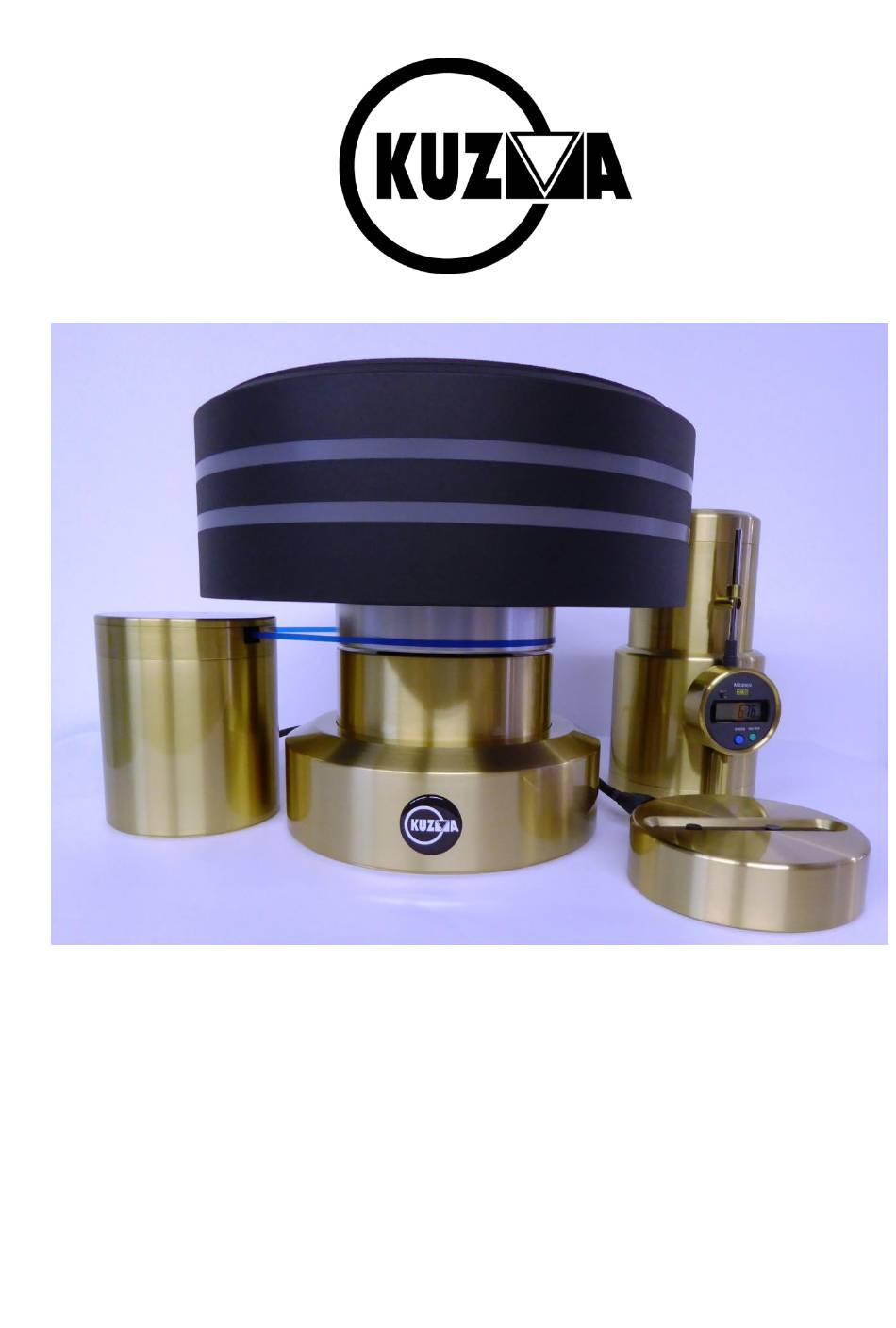

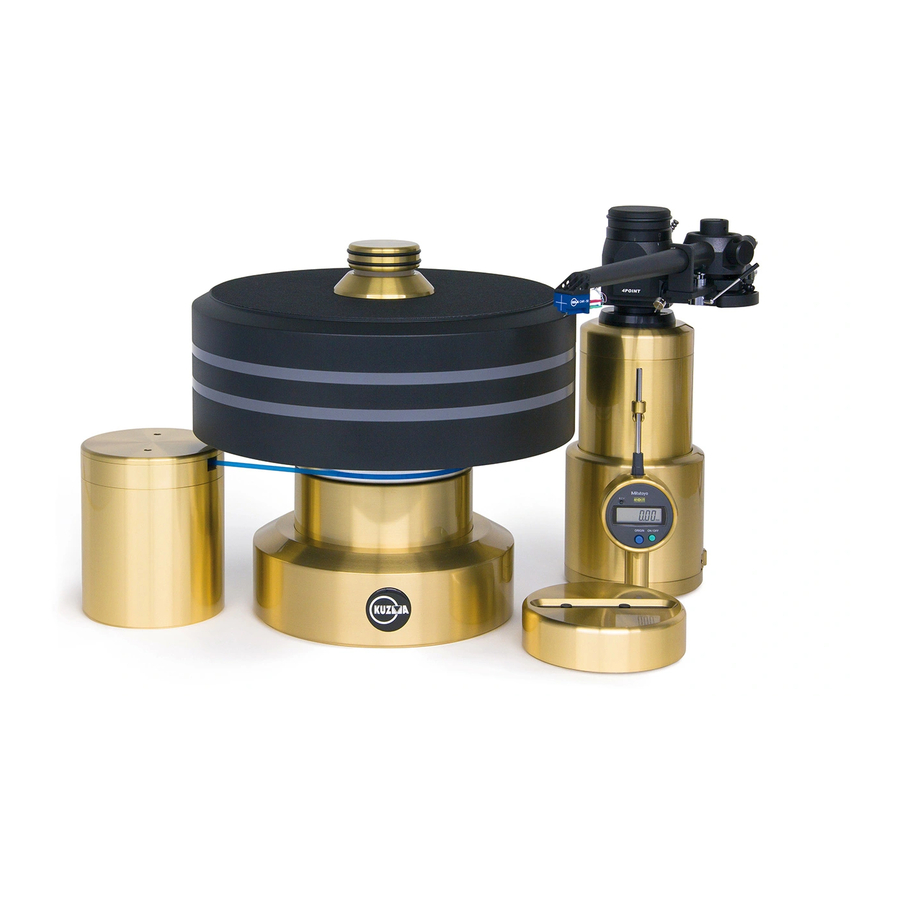

- Page 1 XL DC Turntable …… KUZMA Instruction manual 2020-11...
-
Page 2: Table Of Contents
Kuzma XL DC differs from previous Stabi XL, XL2 & XL4 turntables by using a very special DC motor, a machined plastic belt and a new power supply (PS DC), which gives a new, unique and uniformly precise drive to the platter. -
Page 3: General & Warranty
0.01mm. These adjustments are repeatable. Product registration and warranty extension Kuzma products have a non transferable 2 year limited warranty on parts and labour,which may vary in each country. To obtain the 5 years* limited warranty from us, you need to register the product on our web site within 30 days of purchase. -
Page 4: Unpacking
Unpacking: XL DC comes packed in three boxes. Be aware that the boxes are very heavy and that the centre of gravity might not be in the middle of the box. Inside are cutouts in the packaging blocks of firm foam for various parts of the turntable. - Page 5 Be careful not to scratch the platter with jewellery,buckle, etc. Check that the platter is resting on the subplatter. Fig. 2. XL DC platter drive DC motor tower: The three phase frequency controled DC motor is encapsulated inside the heavy brass tower Fig.
- Page 6 Fig. 3. DC motor tower Fig. 4. Black PVC Motor positioner Fit the motor positioner on the top of the motor tower-see Fig. 4, then slowly move the motor tower closer to the platter until the motor positioner touches the outer edge of the platter and then take off the positioner.
- Page 7 Position the tower so that the VTA toothed knob is facing away from the platter and that the parts holding the measuring guage are facing towards the front. For Kuzma tonearms the gap between platter and tower is 5mm.
- Page 8 Fig. 9. PS DC front panel Fig. 10. PS DC rear panel Connecting: Position the PS DC so that there is space above, of at least 10-20 mm, for ventilation. By using the control pad the PS does not need to be readily accessible. At the rear of the PS are two female XLR outputs: 7pin XLR for motor connection and 5pin XLR for control pad.
- Page 9 Fine speed adjustment: Observe on a strobe disc if the bars are stationary- that is the correct speed. You need to have a light which flickers with mains frequency (50Hz or 60Hz): neon or some LED bulbs. If they are slowly moving (for example if the bars move in the same direction as platter rotation) then the speed is too high.
-
Page 10: Setting Up Turntable
Setting up the turntable: Tonearm mounting: Ensure that the supporting stand is completely horizontal. Mount the chosen tonearm according to instructions. Position the tonearm tower at the correct distance from the spindle. Firmly secure the armbase onto the tonearm top brass plate with two screws, using Allen key 3mm, at the side of the tower. -
Page 11: Use And Adjustment
Raising the VTA by rotating the toothed knob, will show increased height above this reference point in mm and lowering it will show minus numbers. The precision achieved by this is 0.01mm. If the change in height of the tonearm comes outside this range of measurement, the brass weight can be repositioned. -
Page 12: Maintenance
Pressure should then be released by slightly unscrewing the clamp until the outer edge is touching the mat again. This is the position in which the record is held in firmest contact with the mat. With practise there is no need to stop spinning the platter while changing LPs or using the clamp. -
Page 13: Troubleshooting
The base with the subplatter can be transported as one, providing that it will not be tilted, as this may cause oil leakage. All parts are heavy, however, and can be easily damaged by sliding around a transport vehicle. Repacking in original cutouts and boxes is, therefore, recommended. Kuzma Ltd Hotemaze 17A SI-4205 PREDDVOR SLOVENIJA...
