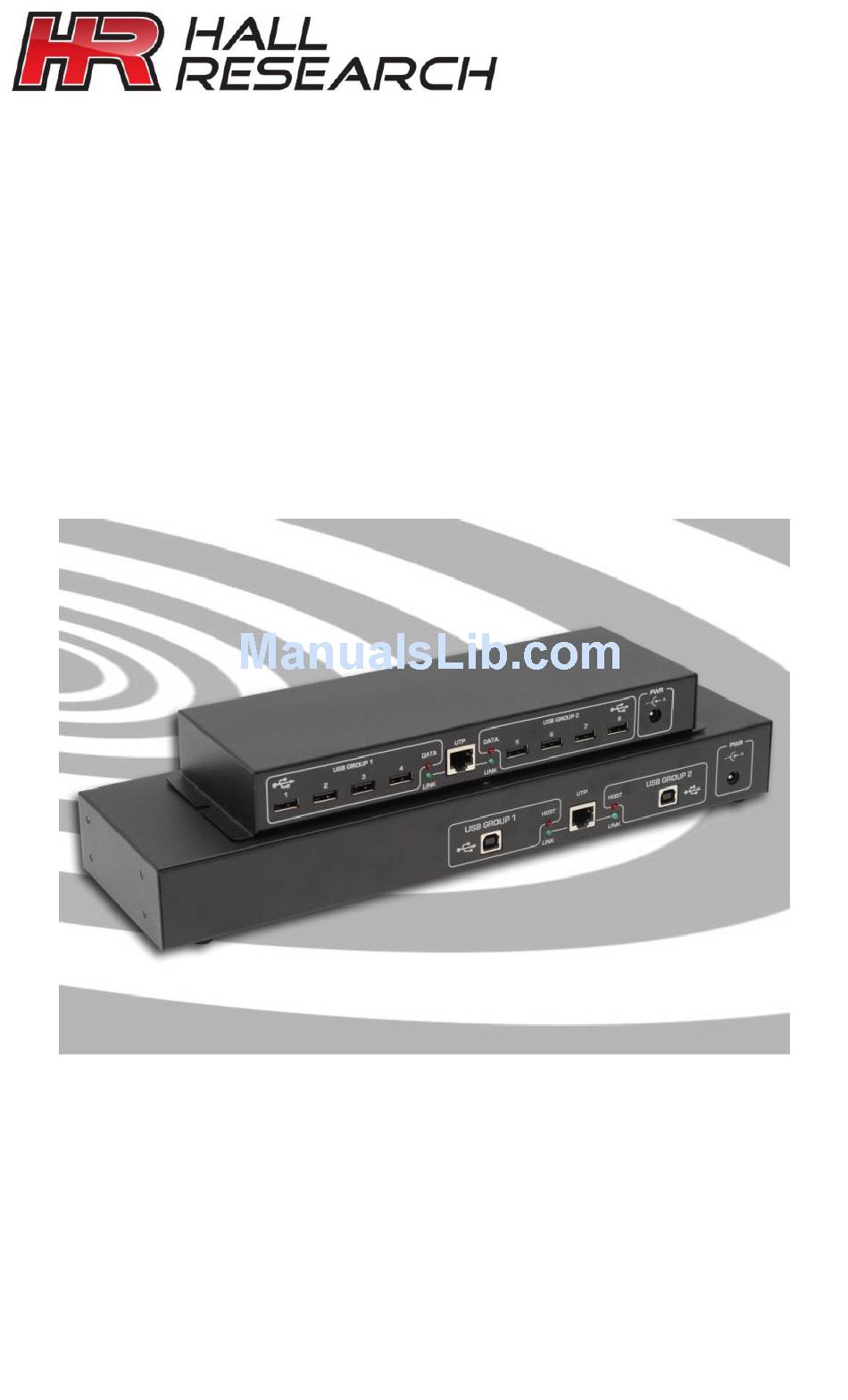

- Page 1 1163 Warner Ave. Tustin, CA 92780 Phone: (714) 641-6607 Model UU-2X4 Rev B Dual-Channel USB-over-UTP Extender With Two 4-port Remote Hubs for total of 8 Ports Extends 2 independent USB ports on a Single UTP Cable to 230 meters (750 feet)
-
Page 3: Table Of Contents
3. TROUBLESHOOTING ................... 6 3.1 C OMMON OURCES OF ROBLEMS ................6 3.2 C ONTACTING ESEARCH ..................6 3.3 S HIPPING AND ACKAGING ................... 6 4. SPECIFICATIONS ....................7 ADDENDUM: UU-2X4-P1 & UU-2X4-P2 VARIATIONS ........8 Hall Research Inc. Home of the Mini-Cat®... -
Page 4: Federal Communications Commission
Dual-Channel USB-Over-Cat5 Extender FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy. If not installed and used properly—that is, in strict accordance with the manufacturer’s instructions—it may cause interference to radio communication. It has been designed to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. -
Page 5: Introduction
1. Introduction 1.1 General The UU-2X4, uses one Category 5e or 6 UTP (or STP) cable to extend two independent USB ports (from one or two different PCs). On the remote side, each extended USB port terminates into a 4-port USB hub. This allows up to 4 USB devices to be connected to each extended USB port for a total of 8 ports. -
Page 6: Installation
Dual-Channel USB-Over-Cat5 Extender 2. Installation 2.1 Setup Power down the PC. Place the Sender (also referred to as Local or Transmitter) unit near the host computer. Plug the supplied power adapter into an AC outlet and connect it to the Sender. Plug one or both Type B connectors on the extender using the included cable into the PC. -
Page 7: Usb Cables
USB device to the Type A port on a computer or hub. Type B connector is used to attach the USB cable to a USB device. The Model UU-2X4 Sender has 2 Type B connectors on it for connection to the PC(s). -
Page 8: Troubleshooting
Dual-Channel USB-Over-Cat5 Extender 3. Troubleshooting 3.1 Common Sources of Problems Please make sure UTP cable is terminated properly (TIA/EIA-568 A or B). Do not plug this unit to LAN devices (this can damage the unit and void warranty) ... -
Page 9: Specifications
UU-2X4 4. Specifications Dimensions Sender Unit Width X Height X Depth 14" X 1-3/4" X 4-1/8‖ Single Rack Unit (1RU) construction with included rack mounting brackets Receiver Unit Width X Height X Depth 10" X 1-3/8" X 3-9/16" (not including 2 mounting flanges 3/8"... -
Page 10: Addendum: Uu-2X4-P1 & Uu-2X4-P2 Variations
(―safely remove hardware‖ the device) from your PC prior to unplugging it – this is recommended practice. The Sender unit (UU-2X4-S) is the same as standard and for –P1 or –P2 only the remote unit is different. - Page 12 © Copyright 2012. Hall Research, Inc. All rights reserved. Product Designed and Made in the USA esearch, 1163 Warner Ave. Tustin, CA 92780 Phone: (714) 641-6607 Fax :( 714) 641-6698...
