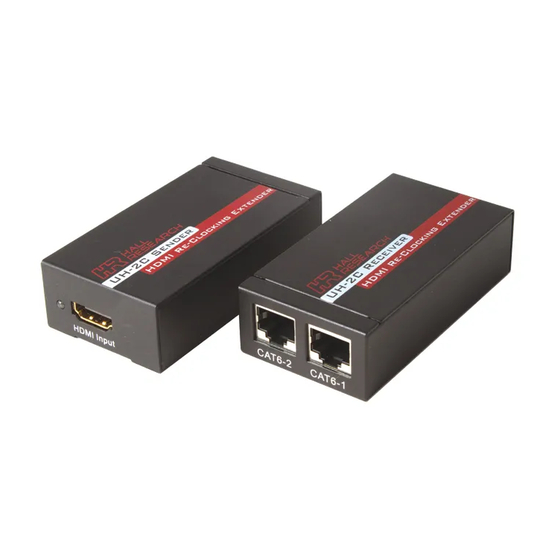

Model UH-2C
HDMI™ Re-clocking Extender
Extends HDMI™ Audio Video to 200 ft on 2 Cat6 Cables or
farther by Daisy Chaining Units Together!
UMA1155 Rev. E
For technical support, Call 714-641-6607 or fax 714-641-6698
SUPPORT &
Order by phone: toll-free in the U.S. 800-959-6439
ORDERING
Web site: www.hallresearch.com
INFORMATION
Hall Research, 1163 Warner Ave. Tustin, CA 92780
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies UH-2C
Summary of Contents for Hall Research Technologies UH-2C

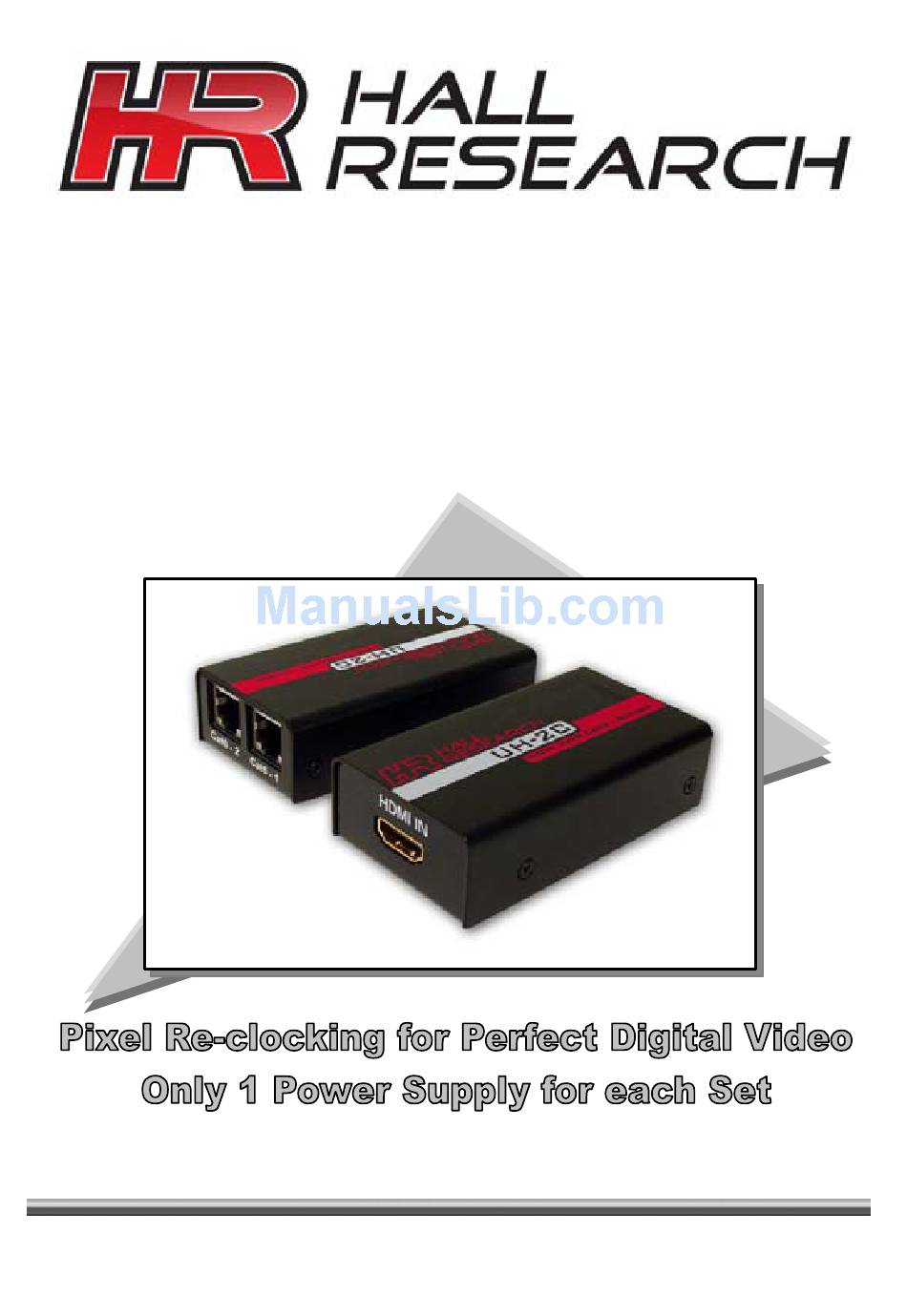

- Page 1 Model UH-2C HDMI™ Re-clocking Extender Extends HDMI™ Audio Video to 200 ft on 2 Cat6 Cables or farther by Daisy Chaining Units Together! UMA1155 Rev. E For technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT & Order by phone: toll-free in the U.S. 800-959-6439 ORDERING Web site: www.hallresearch.com...
- Page 3 The UH-2C is compatible with HDMI™ versions 1.2a and 1.3. Only one power supply is needed for each Sender/Receiver pair. The remote receiver re-aligns the pixel clock and generates a clean pixel clock for the display, thereby taking out any skew that may have been induced in the cable.
- Page 4 Re-clocking Extender HDMI™ 1.2 Features † For HDMI™ compliance, if the input has HDCP content protection, the display must also be HDCP compliant (such as a display with HDMI™ input) otherwise no image will be shown on the display. TRADEMARKS USED IN THIS MANUAL Hall Research and the Hall Research Logo ( ) are trademarks of Hall Research.
-
Page 5: Troubleshooting
Avoid using Zero-skew or low skew cables. The low skew cables work well for analog video extension over twisted pair, but since the UH-2C is a pure digital system, the cross-talk of the low skew cables will actually shorten the maximum achievable cable length 3. -
Page 6: Specifications
Re-clocking Extender HDMI™ 4. Specifications Supported video formats: Resolution DVI / HDMI™ 480i/576i 480p/576p 720p@(60/50) 1080i@(60/50) 1080p@(60/50) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) XGA@(60/70/75/85) SXGA@(60/75/85) UXGA@60 WXGA@60(1280X800) WSXGA@60(1680X1050) WUXGA@60(1920X1200) Dimensions: 3.25 x 1.75 x 0.85 inch Weight: 0.55 Pounds (250 g) Input Power: 5v DC at 2A max. (Nominal operation current = 1A) Operating Temperature: 0 to 70 degrees C... - Page 8 © Copyright 2009. Hall Research All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607, Fax: (714)641-6698...
