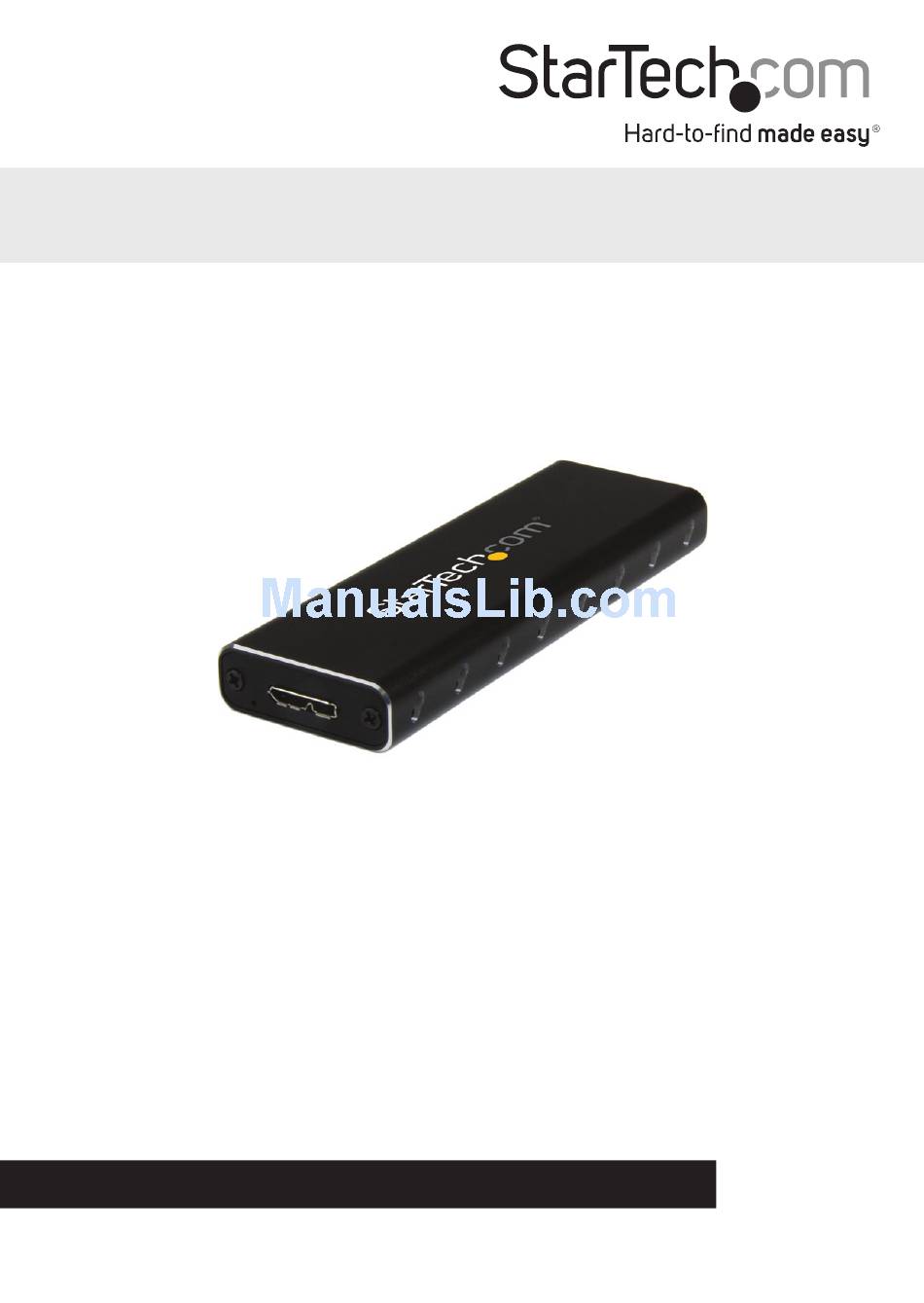

USB 3.0 to M.2 NGFF SSD Enclosure
with UASP
SM2NGFFMBU33
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/16/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SM2NGFFMBU33
Summary of Contents for StarTech.com SM2NGFFMBU33
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/16/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Enclosure ..............................1 Internal Drive Tray ............................. 1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Hardware Installation ................3 How to Use ....................8 Connecting the Hard Drive ........................8 Powering the Drive Enclosure ......................8 Disconnecting the Hard Drive ...................... -
Page 4: Product Diagram
Product Diagram Enclosure 1. Drive tray screws 2. USB 3.0 Micro-B port Internal Drive Tray 1. M.2 (NGFF) SSD Connector 2. Drive installation bracket 3. Drive length adjustment holes Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x USB 3.0 SATA HDD/SSD Enclosure • 1 x USB 3.0 Cable • 1 x SSD Mounting Screw and Standoff • 1 x Mini Screw Driver • 1 x Instruction Manual System Requirements System Requirements •... -
Page 6: Hardware Installation
Hardware Installation WARNING! SSD Drives and storage adapters require careful handling. If you are not careful with your SSD Drive, lost data may result. Always handle your drive with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 3. Install your M.2 SSD into the drive tray, by following the below steps. a. Determine if the drive installation bracket requires relocating by assessing your drive length. The board is labeled with the respective drive types for length but if your drive type is unknown, place your SSD next to the M.2 (NGFF) SSD connector, note which drive installation hole matches the height of your SSD.
- Page 8 c. (Only required if the drive installation bracket requires relocating) Reseat the drive installation standoff in the drive installation hole that matches your SSD. Replace the removed nut on the reverse side by using a small set of plyers or 5mm nut driver (not included).
- Page 9 e. Slide the M.2 connector on the SSD into the M.2 reciprocal connector on the drive tray. f. Press the drive down toward the drive mounting standoff, and drive the removed screw through the mounting hole on your SSD drive and into the drive mounting standoff using the included Philips head screw driver.
- Page 10 5. Using a Philips head screw driver (not included), replace the 2 drive tray screws on either side of the USB 3.0 Micro B port, on the front of the enclosure. 6. Using the included USB 3.0 cable, connect the SSD enclosure to your computer system.
-
Page 11: How To Use
How to Use Connecting the Hard Drive Once the enclosure has been attached to a computer, and the OS has installed the necessary software, the drive will be accessible as though it were installed within the system. Prior to using the drive, it will need to be formatted according to your operating system requirements. -
Page 12: Initializing The Hard Drive
Initializing the Hard Drive 1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8/ 8.1), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
