StarTech.com SM21BMU31CI3 Quick Start Manual

M.2 NGFF SATA Enclosure | USB-C | USB 3.1 (10Gbps)

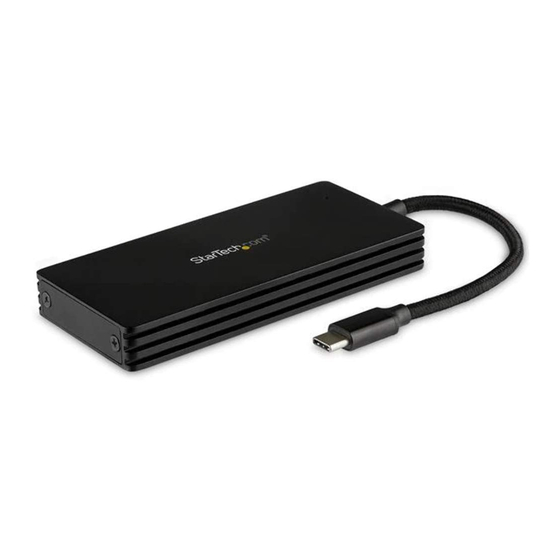

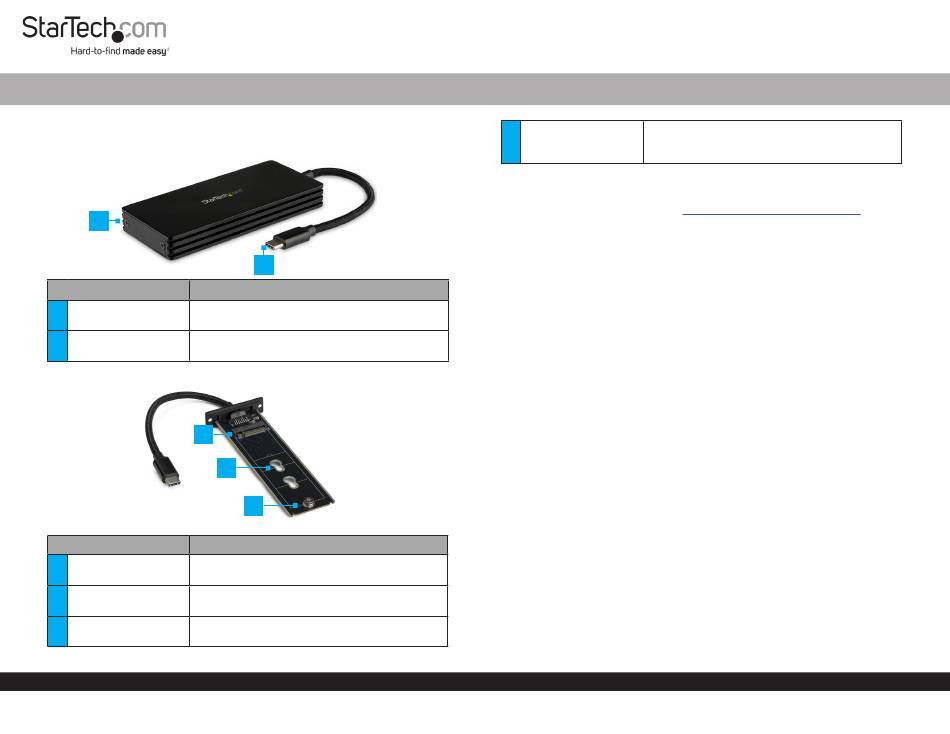

Product Diagram (SM21BMU31CI3)
Exterior
1
Component
• Used to secure the Drive Tray in the
1 Drive-Tray Screws x 2
Enclosure.
• Used to connect the Enclosure to the Host
2
USB-C Cable
Computer.
Interior
1
Component
M.2 NGFF B Key Drive
1 • Used to connect the Drive to the Enclosure.
Connector
Drive Length Holes • Used to accommodate different drive lengths
2
(x 2) (42 mm, 60 mm and 80 mm).
Drive-Mount Screw/
3 • Used to secure the Drive to the Enclosure.
Nut
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
Function
2
3
Function
• Used to secure the Drive to the Enclosure
Standoff (not
4 using either the 42 mm or 60 mm Drive
displayed)
Length Holes.
Requirements
For the latest requirements, please visit
• An available USB-C Port
• An M.2 NGFF SATA SSD
Installation
Installing a Drive
Warning! Drives should be handled carefully, especially when they're transported. If
you're not careful with your drives, you may lose data as a result.
1. Use a Phillips Head Screwdriver (included) to remove the Drive-Tray Screws (x 2)
from the Enclosure.
2. Carefully pull the Drive Tray out of the Enclosure.
3. Place the Drive beside the Drive Tray and align the screw groove on the Drive with
the Adjustable Drive Length Holes on the Drive Tray.
4. Use a Phillips Head Screwdriver to remove the Drive-Mount Screw.
Note: If the drive-mount hardware is already installed in the correct position, proceed
to step 9.
5. Align the Standoff with the correct Drive Length Hole according to the length of
the Drive.
6. Insert the Standoff into the large part of the Drive Length Hole.
Note: Make sure that the longer part of the standoff is on the same side as the M.2
NGFF B Key Drive Connector.
7. Align the notches on the Standoff with the edges of the smaller part of the Drive
Length Hole.
8. Slide the Standoff into the smaller part of the Drive Length Hole.
9. Gently slide the connector on the Drive (on a 30-degree angle) into the M.2 NGFF B
Key Drive Connector on the Enclosure.
Note: Do not force the Drive into the enclosure, the connector on your drive is keyed so
that it only fits one way.
