Heat Design TR series Operating Instructions Manual

3, 5, 6.5, 8, 14 & 25kw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operating
Please hand these instructions to the stove user when the
installation is complete. Leave the system ready for operation
and instruct the user in the correct use of the appliance and
operation of controls.
Installation – Must be installed by a qualified plumber or
suitably qualified fitter
TR STOVE
3, 5, 6.5 , 8 , 14 & 25kw
F R E E S T A N D I N G
S T O V E S
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR series and is the answer not in the manual?

Questions and answers

Related Manuals for Heat Design TR series

Summary of Contents for Heat Design TR series

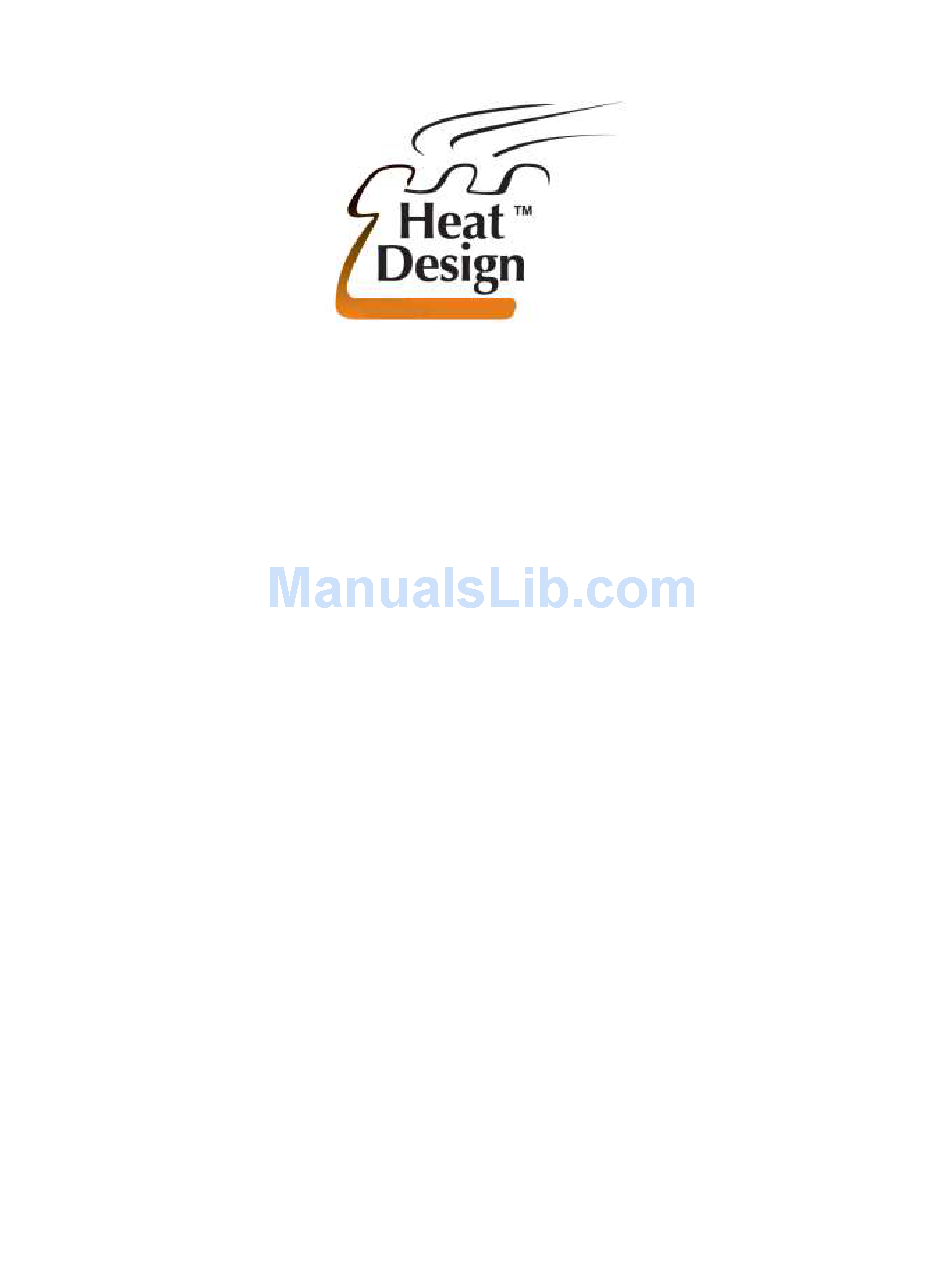

  • Page 1 TR STOVE 3, 5, 6.5 , 8 , 14 & 25kw F R E E S T A N D I N G S T O V E S Installation and Operating Instructions Please hand these instructions to the stove user when the installation is complete.

  • Page 2: Assembly Instructions

    All local regulations, including those referring to national and European standards need to be complied with when installing the appliance. Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Tripp TR Stoves cannot accept responsibility for any fault arising through incorrect installation.
  • Page 3 Remove the plastic bag, open door And remove all the contents 1. Tip the Stove onto its back and remove the 2 X M8 set screws using a 14mm spanner. 2. Sort out the legs and fixings.
  • Page 4 3. Ensure the tapped holes, on the base, is free from obstruction. Use a sharp screwdriver to remove any fire cement. 1. Fit the Flue Collar using the 4-M6 set screws and washers supplied. If the Top Flue position is required remove the Tertiary Air Baffle Plate and the fitted blanking plate and refit blanking plate on the rear opening.

  • Page 5: List Of Components

    To insert the Tertiary Air baffle, turn upside down, as shown, ensuring the locking device goes through the door as shown. Turn the baffle as you fit it, so that the edge that you are holding is placed on the ledge at the back of the combustion chamber. Slide the locking device into the bracket on the rear of the air chamber.
  • Page 6 Flue Collar Washers Flue Blanking Plate Stove Glove...

  • Page 7: Installation Instructions

    Installation Instructions READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.
  • Page 8 Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 125mm and not more than 200mm. If any of these requirements are not met, the chimney should be lined by a suitable method.
  • Page 9 Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove. All non-combustible walls closer than 400mm to the stove should be at least 75mm thick.

  • Page 10: Operating Instructions

    Operating Instructions This appliance is not suitable for use in a shaped flue. This appliance should not be operated with the doors open. This appliance should be serviced regularly (at least annually) by a competent engineer. Any unauthorised modifications to the appliance render the guarantee null and void and may represent a fire hazard.
  • Page 11 Warning! This appliance will be hot when in operation and due care should be taken When operating the controls Air Controls Primary Air Primary air is controlled via the two rotary air controls on the bottom of the door. This provides a conventional air draught to the bed of the fire. The primary air intakes can be adjusted to give the best possible results when burning different fuels.
  • Page 12 Size of Fuel Log Size up to 205mm up to 260mm TR6.5 up to 300mm up to 340mm TR14 up to 390mm Lighting the Stove We recommend that you have two or three small fires before you operate your stove to its maximum heat output.

  • Page 13: In The Event Of A Chimney Fire

    Safety Notes for your guidance FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the infirm. DO NOT OVERFIRE – it is possible to fire the stove beyond its design capacity, this could damage the stove, so watch for signs of over firing –...

  • Page 14: Frequently Asked Questions

    Frequently Asked Questions 1 Do stoves require a chimney? All of our multi fuel and wood burning stoves require a suitable chimney or professionally installed flue system. 2 How do I clean the chimney? You will require a chimney sweep to clean the chimney. It is best to provide a dedicated chimney cleaning access door when installing the flue of the stove.
  • Page 15 6 Where can I get spare parts? Your local Tripp TR Stove retailer will be pleased to supply spare parts and to provide any other information you require. 7 Can the doors be left open while burning? For safety and heat efficiency the doors should remain closed at all times. 8 Why is the stove smoking when lit? A smoking stove can be caused by a flue with back draught problems.
