Heat Design Iconic 500 Installation, Servicing And User Instructions Manual

Conventional flue gas stoves
Hide thumbs
Table of Contents

Advertisement

Quick Links

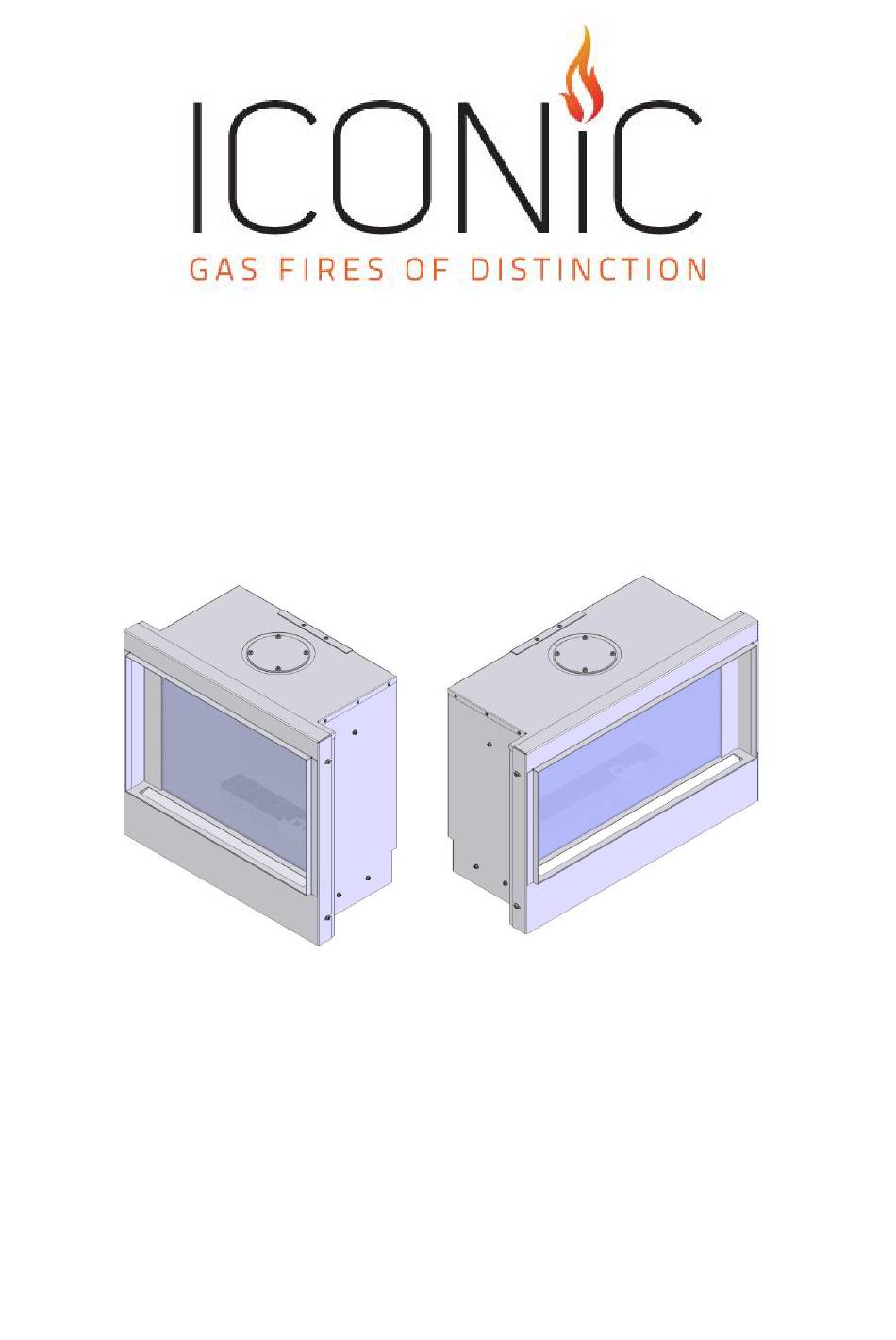

Conventional Flue Gas Stoves
Iconic 500 & Iconic 600
INSTALLATION, SERVICING
AND USER INSTRUCTIONS
For use in IE & GB (Ireland and United Kingdom)
This appliance has been tested and certified for other countries (see technical data). However to install appliance in other
countries, modification of the appliance and its method of installation may be necessaryin order to use the appliance safely and
correctly. The manual for the local language must be obtained. Contact Heat Design for further information.
IssD22ndFebruary 2018
File: Iconic-500 & 600.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Iconic 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Heat Design Iconic 500

Summary of Contents for Heat Design Iconic 500

  • Page 1 This appliance has been tested and certified for other countries (see technical data). However to install appliance in other countries, modification of the appliance and its method of installation may be necessaryin order to use the appliance safely and correctly. The manual for the local language must be obtained. Contact Heat Design for further information. IssD22ndFebruary 2018...
  • Page 2 IE & GB This Manual covers models, Iconic 500 and Iconic 600. Iconic 500 a. Please Note Flue size 100 mm b. Please Note the Adjustable Legs could be adjusted from 17 - 50mm...
  • Page 3 IE & GB Iconic 500 – Top Flue Iconic 500 – Rear Flue...
  • Page 4 IE & GB Iconic 600 a. Please Note Flue size 100 mm b. Please Note the Adjustable Legs could be adjusted from 17 - 50mm...
  • Page 5 IE & GB Iconic 600 – Top Flue Iconic 600 – Rear Flue...

  • Page 6: Table Of Contents

    IE & GB Content 1. General Notes 2. User instructions. 2.1 First Time of Operation 2.2 Remote Control Overview 2.3 Batteries 2.4 Replacing the batteries 2.5 Setting the Transmitter code To Ignite the appliance Operating the RC general Notes Setting-Up the RC general Notes Setting °C/24 hour or °F/12 hour clock Setting the Time To Turn OFF the appliance...

  • Page 7: General Notes

    IE & GB 1. General Notes This Heat Design gas appliance is a High Efficiency, Live Fuel Effect appliance. It provides radiant and convected heat using the latest burner technology. As well as having a variable heat output. Before Installation, check that the local distribution conditions, nature of the gas and pressure, and adjustment of the appliance are compatible.

  • Page 8: User Instructions

    An alternative AC Mains Adaptor may be used to power the Receiver instead of the 4 AA batteries. Only an AC Mains Adapter supplied by Heat Design may be used. The Mains Adaptor is plugged into the DC 6V socket on the end of the receiver.

  • Page 9: To Ignite The Appliance

    IE & GB...

  • Page 10: Setting-Up The Rc General Notes

    IE & GB...

  • Page 11: To Turn Off The Appliance

    IE & GB...
  • Page 12 IE & GB...

  • Page 13: Cleaning And Maintenance

    IE & GB 2.6 Cleaning and Maintenance This appliance should be inspected and serviced once a year by a qualified, competent and registered person. The inspection and maintenance must at least take place once a year to ensure that the appliance is working correctly and safely.

  • Page 14: Installation Instructions

    IE & GB 3. Installation instructions. Before commencing Installation, confirm that the details on the appliance data plate correspond to the local distribution conditions, gas type and pressure to which the appliance is to be installed. Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of gas and is in accordance with the rules in force.
  • Page 15 IE & GB 3.3.2 Built-In Fireplace Sizing (assuming a Cement Board Lining is used) Appliance A min B min C min D min E min F min Iconic 500 Iconic 600...
  • Page 16 IE & GB 3.3.3 Mantel Clearances 3.3.3 Combustible Mantel – Side view...

  • Page 17: Flue Connection

    This appliance may be installed with a roof termination with rigid or flexible pipes, or in a masonary chimney class 1 or class 2 and without lining the flue. The flue system must be constructed from the appliance upwards, with all joints being fully locked and sealed using the Heat Design specified parts. 3.4.2 Timber Frame Construction...

  • Page 18: Fuel Bed Arrangements

    Pilot Flame and smooth lighting of the effect burners from the main Burner. Log set Identification Shown above is the Log set Used for the Heat Design Iconic 500 and Iconic 600. This will include: 1 Bag of Grey Embers, 8 Logs and a Bag of Glow Strands.
  • Page 19 IE & GB 3.5.1 Iconic 500 – Log Layout Scatter the Embers over the top of the burner as shown, KEEPING THE PILOT AREA CLEAR. Position the 8 logs as shown. Lay the glow strands amongst the logs in the flames to create an enhanced Glow.
  • Page 20 IE & GB Position the Log 8, as shown in the diagram. Finaly Check the appliance for Pilot ignition and cross lighting ensuring that no material is impinging the opertion of the Pilot.
  • Page 21 IE & GB 3.5.2 Iconic 600 – Log Layout Scatter the Embers over the top of the burner as shown, KEEPING THE PILOT AREA CLEAR. Position the 8 logs as shown. Lay the glow strands (Embers) amongst the logs in the flames to create an enhanced Glow. Pilot and Cross Light left clear.
  • Page 22 IE & GB Position the Log 8, as shown in the diagram. Finaly Check the appliance for Pilot ignition and cross lighting ensuring that no material is impinging the opertion of the Pilot.

  • Page 23: Commissioning The Appliance

    IE & GB 3.6 Commissioning the Appliance 3.6.1 Pilot Ignition Check 1. Ignite the pilot light as described in the User Instructions 2. Check that the pilot flame stays alight 3. Extinguish the pilot light 3.6.2 Main Burner Check 1. Ignite the pilot light as described in the User Instructions 2.

  • Page 24: Servicing

    Turn the appliance OFF and isolate the gas supply. Ensure the appliance is fully cold before attempting to start servicing the appliance. No liability can be accepted by Heat Design for injury caused by burning or scolding by a hot appliance.

  • Page 25: Spare Parts

    IE & GB 4.3 Spare parts Item Iconic 500 Spare Parts Iconic 600 Spare Parts Front Window Panel 2B01027 2B01027.6 Ceramic Log Pack 2B01_LOGS Ember Pack 2B01_EMBR Pilot Assembly Natural G30-ZP2-312.ODS Pilot Assembly LPG G30-ZP2-271.ODS Electrode Lead G60-ZKIS1/.ODS Injector Natural EG05177.320...

  • Page 26: Technical Information

    IE & GB 5. Technical Information 5.1 Countries of Use Country Natural AT -Austria , G20 at 20 mbar ,G31 at 50 mbar;I ,G30/G31 at 50 3P(50) 3B/P(50) mbar BE -Belgium , G20/G25 at 20/25 mbar ,G31/G31 at 28/37 mbar;I ,G31 at 37 3P(37) mbar;I...

  • Page 27: Technical Data

    IE & GB 5.2 Technical Data Product Identification Number: 0359/CS/3203 5.2.1 Iconic 500 G20/G25 G20/G25 G30/G31 Gas type 2ELL 3B/P(30/50) 3P(37,50) 3P(30) Supply Pressure mbar 20/25 30/50 28-30/37 37/50 Nominal Heat Input 5.1/5 5.1/4.4 Gross (Hs) Nominal Heat Input 4.63/4.54 4.95/4...
  • Page 28 IE & GB 60 Hawthorn Road, Western Industrial Estate, Dublin 12, D12 E2WF, Ireland. Tel. : +353 1 4089192 Fax. : +353 1 4089193 Web : www.heatdesign.ie Email : technical@heatdesign.ie...
