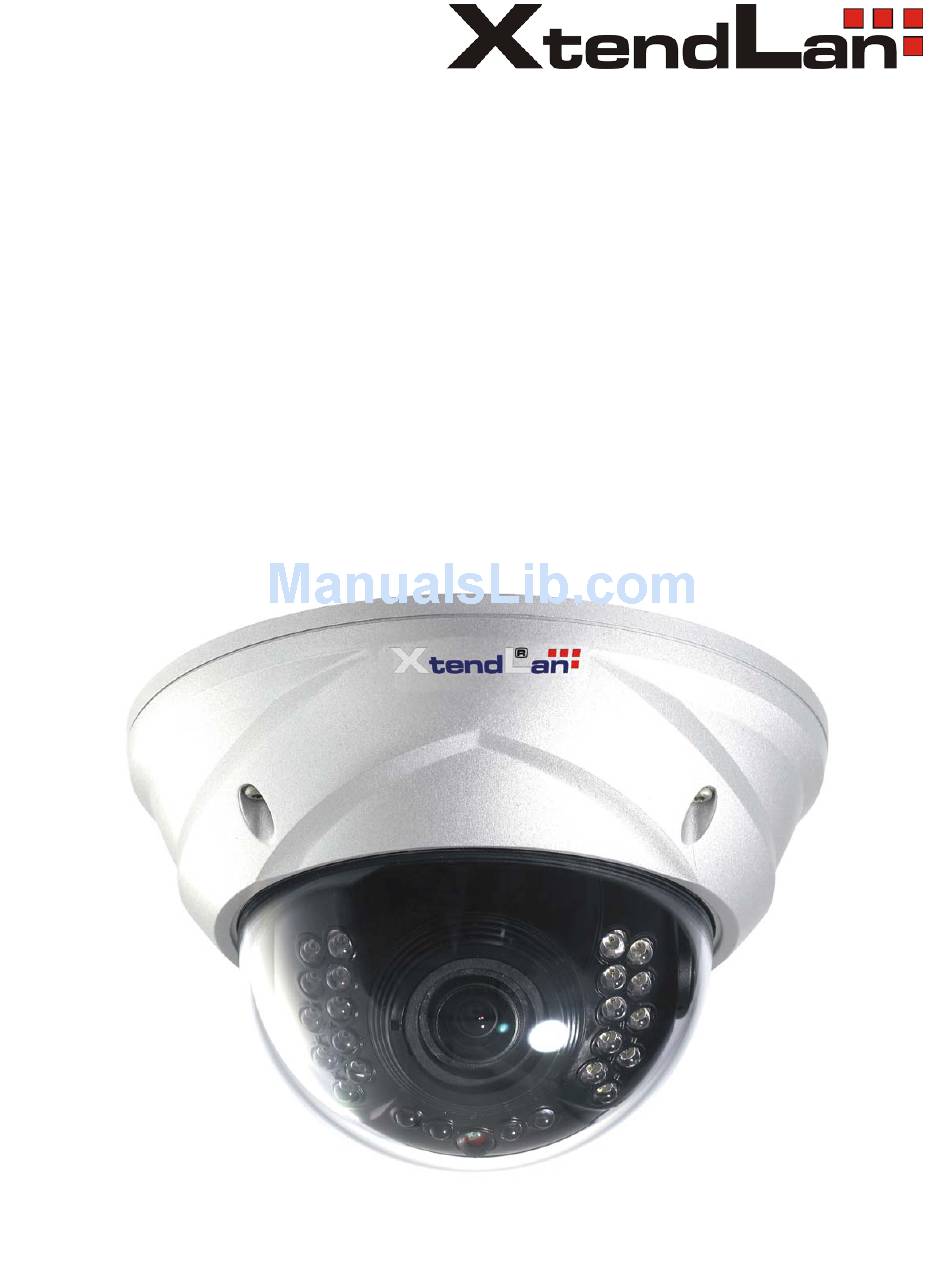

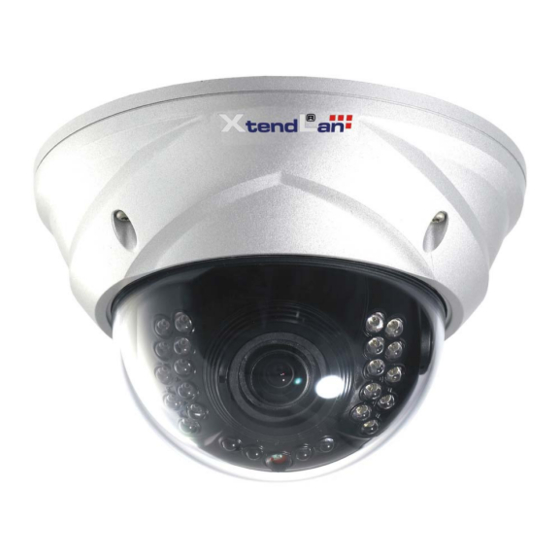

  • Page 1 XL-ICA562M1CIR Network IR dome camera User’s Guide...

  • Page 3: Table Of Contents

    Contents Introduction Safety Cautions <Chapter 1. Package> 1.1 Camera Features ·······························································································8 1.2 Package· ···········································································································8 1.3 How To Install ·······························································································································9 1.3.1 Camera installation······················································································································9 Camera angle adjustment 1.3.2 ······································································································10 Lens adjustment 1.3.3 ·····················································································································10 1.3.4 Dimension··································································································································11 1.4 Specification ··································································································11 1.4.1 Camera Specification························································································11 1.4.2 Camera Function·····························································································12 1.4.3 Network Specification························································································12 1.4.4 Electric Specification························································································13 1.4.5 Alarm Input/Output···························································································14...
  • Page 4 3.2.2 Dynamic IP Setup·····························································································29 3.3 Installation with IP sharing device(router) ··························································32 3.3.1 General Installation···························································································32 3.3.2 Port Setting change and Installation······································································33 3.4 Cautions for Network Setting ············································································35 <Chapter 4. System Setting> 4.1 General Setting ································································································37 4.1.1 Title Setting··································································································38 4.1.2 Time Setting·································································································38 4.1.3 Active-X download·························································································39 4.1.4 Select Language····························································································40 4.2 Access Setting...
  • Page 5 4.9.1 Privacy Zone Function·····················································································50 4.9.2 Privacy Zone Color·························································································50 4.9.3 Privacy Area Setting························································································50 4.10 Camera Control 1 ···························································································51 4.10.1 Day & Night filter switching······································································································51 4.10.2 Day & Night Filter Change···············································································52 4.10.3 White Balance······························································································52 4.10.4 Back Light Compensation···············································································52 4.11 Camera Control 2 ···························································································53 4.11.1 Effect 1······································································································53 4.11.2 Effect 2······································································································53...
  • Page 6 6.3 Ping test ·································································································································75 <Chapter 7. Appendix> 7.1 Basic setting table ···························································································78 7.2 Troubleshooting of cable connection ······································································· ········································································ 7.2.1 Power cable connection check ·························································· 7.2.2 Network cable(LAN Cable) connection check 7.3 Troubleshooting of Network connection······································································· ······························································· 7.3.1 Cannot connect with Network ··········································································...

  • Page 7: Introduction

    Introduction This is a megapixel network camera which uses a 1/3-inch megapixel progressive scan SONY Exview HAD CCD Built-in MPEG4, MPEG CODEC and streaming server, the advantage of this camera allow you to monitor real time image from a remote location via internet. This camera supports both static IP and dynamic IP, and can change communication port, resulting in one IP address supporting multiple servers.
  • Page 8 Chapter 1. Package 1.1 Camera Features ····························································································· 1.2 Package ·········································································································· 1.3 How To Install ·································································································· 1.4 Specification ··································································································...

  • Page 9: Camera Features

    Chapter 1. Package 1.1 Camera Features 1) Firmware upgrading and function controlling are available by network. 2) Built-in 1.3 Mega pixel 1/3" progressive Sony EXview HAD CCD. 3) This camera has a mechanical exchange of two filters with Sense up function to receive the maximum available light at night.

  • Page 10: How To Install

    1.3 HOW TO INSTALL 1.3.1 Camera installation Fix the camera set with the supplied screws on ceiling or wall mount. If you don't use supplied screws, the camera may fall off. Put a sticker on the ceiling and make holes according to the spots marked on a sticker. <Ceiling mount>...

  • Page 11: Camera Angle Adjustment

    1.3.2 Camera angle adjustment (1) Pan adjustment : Grasp the disk of camera and then adjust direction to the right or left(-160˚~ 190˚) (2) Tilt adjustment : Grasp the LED cover of camera and then adjust direction to the up or down(6˚~ 90˚) (3) Roll adjustment : Grasp the camera holder and then rotate (-178˚~ 178˚) <Caution>...

  • Page 12: Dimension

    1.3.4 Dimension 1.4 Specification 1.4.1 Camera Specification Item Specification Model No. Type 1 Type 2 Type Megapixel network vandal-proof dome camera Image Sensor 1/3” SONY Progressive Scan EXview HAD CCD (1.3 Mega Pixels) Effective pixel 1296 (H) × 966 (V) Cell size 3.75㎛(H) x 3.75㎛(V) Resolution...

  • Page 13: Camera Function

    1.4.2 Camera Function Item Configuration DAY&NIGHT Auto,Color, B/W Off, BLC1, BLC2, BLC3 Sense up Off, Auto X2 ~ X255 Brightness Adjustable Contrast Adjustable Sharpness Adjustable Auto, Indoor, Outdoor, Fluorescent, Manual Saturation Adjustable Adjustable Negative Off, On Pattern Generator Off, On Focus index Display Off, On Blemish...

  • Page 14: Electric Specification

    NTSC ( MAX :CIF/VGA 30 fps, QVGA 15 fps ) Frame Rate PAL ( MAX:CIF/VGA 25 fps, QVGA 12.5 fps) Bit Rate 64kbps ~ 8000kbps Simultaneous Access Max. 10 users(under 5 users recommended) Recording in client PC with CMS or Video Recording FTP Server upon Alarm Event Motion Detection...

  • Page 15: Alarm Input/Output

    1.4.5 Alarm Input/Output...

  • Page 16: Chapter 2. Installation And Video Check

    Chapter 2. Installation and Video Check 2.1 Installation ······················································································· 2.2 Video Check ····················································································...

  • Page 17: Installation

    Chapter 2. Installation and Video Check 2.1 Installation On the assumption that User PC and the camera are used under static IP, and the camera is to be directly connected with User PC or Local Network, The installation procedure is to be; (1) Connect the camera and PC with LAN Cable(Cross cable).

  • Page 18: Video Check

    2.2 Video Check Basic network setting value of the unit is to be; To connect the unit in user's PC, change the setting value of PC network environment. Set IP Address, Subnet Mask and Gate-way of user's PC with 192.168.1.50 / 255.255.255.0 / 192.168.1.1 as shown on [Pic.

  • Page 19: Connect The Camera With Web Browser

    2.2.2 Connect the camera with web browser [Pic. 2-2] Web Browser Address Input (1) Run web browser as shown [Pic. 2-2]. (2) Input 192.168.1.8 (default value) in URL and press "ENTER" button. (3) And then, [Pic. 2-3] is to be shown. [Pic.

  • Page 20: See The Video

    2.2.3 See the video Click button on the main page [Pic. 2-3]. 2.2.4 Input ID/Password Input ID and Password and click on to see the video feed (ID : root, Password : root) [Pic. 2-4] User Login User's Authority to see video feed is as follow [Table] User ID, Password, Authority [Caution] Please change default value of ID/Password into new ones after the installation 2.2.5 Active-X auto installation...
  • Page 21 [Pic. 2-5] ActiveX Download...

  • Page 22: Complete The Installation

    2.2.6 Complete the installation Upon installation, Web Viewer [Pic. 2-6] appears and image of camera is to be seen. [Pic. 2-6] Web Viewer Installation and check video are completed successfully. Please change ID/PASSWORD.

  • Page 23: Netviewer Description

    2.2.7 Net Viewer description The Net Viewer size fixed at 640 X 480.

  • Page 24: Chapter 3. Network Setting

    Chapter 3. Network Setting 3.1 Check Network and Installation Type·····················································24 3.2 Installation without IP sharing device(Router)···················· ······················24 · 3.3 Installation with IP sharing device(Router)···············································32 3.4 Cautions for Network Setting·······························································35...

  • Page 25: Check Network And Installation Type

    Chapter 3. Network Setting 3.1 Check Network and Installation Type This Chapter is for basic setting regarding Network. To install hardware, basic understanding of network is required. [Warning] The setting value might be different in accordance with network environment of user's PC. [Reference] Please refer to Appendix for better understanding.
  • Page 26 [Pic. 3-1] Main Page (4) Administration page log-in Click on [Pic. 3-1], then browser shows [Pic. 3-2] log-in Page.. [Pic. 3-2] Administration page login...
  • Page 27 After inputting 'admin' in ID and Password line. Click button then [Pic. 3-3] Administrator's page will be shown. [Caution] If you logged in first in administrator mode, please change the password and ID of administrator. Please refer to 4.2.1 Administrator's ID and password change. [Pic.
  • Page 28 (5) Network Setting Click 'Network Setting' on [Pic. 3-3], [Pic. 3-4] appears. [Pic. 3-4] Network Setting (6) DNS Server Setting For setting of DNS server, input DNS address to fit with network environment to set(Default address is DNS address of 'Dacom', 'Hanaro telecom'). Use DNS value normally set in PC.
  • Page 29 (7) IP address setting Click 'Static IP Address' in 'IP Setting' of [Pic. 3-4], and input IP Address, Subnet Mask, Default Gateway according to network environment. Click button to save setting value. Click 'Click Here' upon appearing of IP change window of [Pic.

  • Page 30: Dynamic Ip Setup

    (8) Remove LAN Cable(cross cable) connected between the camera and PC. (9) Connect the camera to network with LAN cable(Direct cable). (10) Connect PC to network with LAN cable(Direct cable). (11) Set up IP address, Subnet Mask and Gate way of PC according to network environment(Recommended to user to remember the value before changing user's PC setting).
  • Page 31 [Pic. 3-8] Network Setting (4) DNS server setting For setting of DNS Server, input DNS address to fit with network environment to set(Default address is DNS address of 'Dacom', 'Hanaro telecom'). Use DNS value normally set in PC. DNS address should be necessarily input. Click button to save setting value.
  • Page 32 [Pic. 3-9] Dynamic IP Setting (6) Remove LAN cable(cross cable) connected between the camera and PC. (7) Connect the camera to network with lan cable(direct cable). (8) Connect PC to Network with LAN cable(direct cable). (9) Set up IP address, Subnet Mask and Gate way of PC according to network environment. (10) Installation Check If you will connect provided internet line from ISP(Internet service provider) to unit directly : First, you connect to our DDNS server (http://www.ipcctvlink.com) and input the MAC address for...

  • Page 33: Installation With Ip Sharing Device(Router)

    3.3 Installation with IP sharing device(router) 3.3.1 General Installation (1) Connect the camera and PC with LAN cable(cross cable). (2) After checking video in '2. Installation and video check', then go to the next step. (3) Go to network setting page of Administrator's Page as per 3), 4), 5) of '3.2.1 Static IP Setup' [Pic.

  • Page 34: Port Setting Change And Installation

    (4) DNS Server Setting For setting of 'DNS server', input DNS address to fit with network environment to set. (Default address is DNS address of Dacom', 'Hanarotelecom'.) Use DNS value normally set in PC. Click button to save the setting value. (5) IP Address Setting Click 'Static IP Address' in 'IP Setting' of [Pic.
  • Page 35 (1) Connect from outside To connect from outside, you should forward port you set from IP sharing device to the unit. For more detail, please refer to the manual of IP sharing device. (2) Local check As following the above procedure, you can connect the camera via local LAN. Run web browser and input IP address in URL and click 'Enter'.

  • Page 36: Cautions For Network Setting

    3.4 Cautions for Network Setting If the firewall is used for security purpose, the unit may not work properly. In this case, open the port of the unit, then it will work properly(Refer to the manual of IP sharing device). The port being used by the unit can be checked on 'Port Setting' of 'Network Setting' of 'Administrator's Page'.

  • Page 37: System Setting

    Chapter 4. System Setting 4.1 General Setting ················································································ 4.2 Access Setting ················································································· 4.3 Network Setting ················································································ 4.4 Video Setting ···················································································· 4.5 MPEG Setting ··················································································· 4.6 MJPEG Setting ················································································· 4.7 Motion Setting ·················································································· 4.8 OSD Setting ····················································································· 4.9 Privacy Zone Setting ·········································································...

  • Page 38: General Setting

    Chapter 4. System Setting Click on main home Page, login page [Pic. 4-1] appears. Input 'admin', 'admin' in ID and Password line, click then [Pic. 4-2] Administrator's page will be shown. [Reference] ID and Password are preset as admin / admin in Administrator's Page. <Caution>...

  • Page 39: Title Setting

    4.1.1 Title Setting [Pic. 4-3] Title Setting Server title would be shown on the top of the video when you see the video by the viewer. Server title is to be English without space(Max. 10 characters). Click ' ' button to save title after inputting name. 4.1.2 Time setting There are two ways of time setting as follow.

  • Page 40: Active-X Download

    Click 'Display' to see current time set. [Pic. 4-5] Current time view If 'Automatic Setting' is not correct, click ' ' on [Pic. 4-4] again. (Clicking ' ' button, it will receive new time information.) Click 'Get PC Time' to receive time on client PC, and click ' ' button to save.

  • Page 41: Select Language

    4.1.4 Select Language This is to select language to be displayed in all web pages such as Administrator's page, web viewer and main page. [Pic. 4-7] Select Language It supports both English and Korean now. Click ' ' button to save the set value after select the language 4.2 Access Setting [Pic.

  • Page 42: User Registration

    password. In case of forgetting Administrator's ID and password, click 'Factory Set' button for 3 sec to return to initial value, and change Administrator's ID 4.2.2 User Registration This is to register an account of user who monitors and controls video. Administrator's ID and Password should be English, within 20 characters, without space.

  • Page 43: Network Setting

    4.3 Network Setting This is to set network. Set network to fit user's network environment in '3. Network Setting'. Change network information to fit environment for the unit to be installed in. 4.4 Video Setting [Pic. 4-13] Video setting 4.4.1 Video format Display the video type (NTSC/PAL).

  • Page 44: Video Mirror Function

    4.4.3 Video mirror function Make a mirror image of video.(Flip, Mirror, both) Click ' ' button to save.

  • Page 45: Mpeg Setting

    4.5 MPEG Setting [Pic. 4-14] MPEG4 Setting 4.5.1 MPEG4 stream service Select MPEG stream service 'Enable' or 'Disable'. 4.5.2 Stream Setting 1) BITRATE Set the bit rate of the video stream. In case of VBR(Variable BitRate), user can select the video quality among three options(Normal, High, Very High).
  • Page 46 2 )GOV(Group of VOP) LENGTH Set the length of VOP which is the length from I frame to next I frame when you select I/P frame. 3) GOV STYLE Select the style of VOP between 'I frame only' and 'I/P frame'. Selecting 'I frame only', the volume of data will increase and cause a heavy traffic in network.

  • Page 47: Mjpeg Setting

    4.6 MJPEG Setting [Pic. 4-15] MJPEG Setting 4.6.1 JPEG Stream Service Select whether JPEG stream service available or not. 4.6.2 Stream Setting 1) Qfactor Set the video picture quality in JPEG. There are from 1 to 99. Selecting 1, it supports the best picture quality but the volume of data will increase.

  • Page 48: Motion Setting

    3) RESTART MARKER It is to set the size of linkage in one picture of JPEG. '0' means it doesn't use the linkage and in this case, the volume of data will increase. 4) PACKET SIZE Set the packet size transmitting the video data. Click ' ' button to save.

  • Page 49: Md Function

    Motion Detection function can be affected on excessive sense-up. 4.7.1 MD Function Select Motion detecting function 'Enable' or 'Disable'. 4.7.2 Motion type setting : Area / Block It provides two kinds of motion type(Area / Block) The area type can setup the motion through the web administrator’s page only and the block type can setup the motion through the CMS.

  • Page 50: Osd Setting

    4.8 OSD Setting [Pic. 4-17] OSD Setting 4.8.1 OSD Function Select OSD function 'Enable' or 'Disable'. 4.8.2 OSD Type 1) Type 1 This is to display focus data on OSD. Higher value means clearer image. Seeing this value, a user is able to adjust the focus more correctly. 2) Type 2 This is to select contents to display on OSD.

  • Page 51: Osd Color

    4.8.4 OSD Color This is to select color for OSD. Click ' ' button to save. 4.9 Privacy Zone Setting [Pic. 4-18] Privacy Zone Setting 4.9.1 Privacy Zone Function Select privacy zone function 'Enable' or 'Disable' 4.9.2 Privacy Zone Color Select color for privacy zone.

  • Page 52: Camera Control

    4.10 Camera Control 1 [Pic. 4-19] Camera Control 1 4.10.1 Day & Night Filter switching This menu is to set IR Cut filter, IR LED On/Off, Color and B/W mode. Auto : Automatic day(Color) & night(B/W) switching by setting value. Please set the value properly according to the environment.

  • Page 53: Day & Night Filter Change

    If not checked it, IR LEDs are always off. Click 'Save' button to save. 4.10.2 Display Adjustment Brightness : Adjust the brightness of picture. Contrast : Adjust the contrast of picture. Sharpness : Adjust the sharpness of picture. [Reference] As the level of sharpness increases, the screen gets sharper and the level of noise also increases.

  • Page 54: Camera Control 2

    4.11 Camera Control 2 [Pic. 4-20] Camera Control 2 4.11.1 Effect 1 MonoChrome : Change color picture to B/W. Negative : Reverse the brightness and color. Color Bar : Display color bar picture. Click ' ' button to save. 4.11.2 Effect 2 This is relating to sense up function.

  • Page 55: Alarm In/Out Setting

    4.12 Alarm In/Out Setting [Pic. 4-21] Alarm In/Out Setting 4.12.1 Alarm In 1) Alarm Input Select alarm input 'Enable' or 'Disable'. 2) Type Select Normal Close(NC) or Normal Open(NO). Circuit of N/O type is usually open, and the activation of the sensor occurs at the time of close, and N/C type works reverse way.

  • Page 56: Alarm Out

    4.12.2 Alarm Out 1) Alarm Output Select alarm output 'Enable' or 'Disable'. 2) Linkage None : Alarm output function doesn't operate relating alarm input or motion event. Alarm input : Alarm output function operates only by alarm input event. Motion : Alarm output function operates only by motion event. Alarm input + Motion : Alarm output function operates by both alarm input and motion event 3) Duration Time...

  • Page 57: Alarm In/Out Setting

    4.13 Recording Function [Pic. 4-22] Alarm Record Setting 4.13.1 Recording Function Select recording 'Enable' or 'Disable' upon alarm events. 4.13.2 Recording Interlocking 1)Alarm Input : Record by events only upon alarm input. 2) Motion : Record by events only upon motion detection. 3) Alarm Input &...

  • Page 58: Homepage Update

    4.14 Homepage Update [Pic. 4-23] Homepage Update Homepage update function is for user to upload the main page of the unit onto user's homepage. User's homepage is composed of 3 files as like index.html, top.htm, main.htm. The file for user to use is main.htm. After making web page(main.htm) and save it as file name of main.htm, upload by the function of 'Homepage Update', then main.htm page is to be the 1st main page of the camera(Image file is not uploaded).

  • Page 59: Firmware Upgrade

    4.15 Firmware Upgrade In case firmware is upgraded in the near future, our upgrade server(http://ipcctvlink.com) will automatically upgrade firmware of the unit. Upgrade is only supported via internet. [Pic. 4-24] Firmware Update 1) Current Version Display current software and hardware version. 2) Remote Upgrade Upgrade server address is "http://ipcctvlink.com"...
  • Page 60 This will be automatically upgraded upon clicking 'Download' button after connecting to upgrade server and checking version. [Pic. 4-26] Firmware Download 'Downloading' message will be shown until completion of update(it may take time according to network situation). Upon completion of upgrade, there appears message showing upgrade result.
  • Page 61 If user found message as follow, there is an error in connection to upgrade server, re- check internet connection or DNS server address in '3. Network Setting' and try to upgrade again. If user keep finding message as follow or cannot upgrade, contact an authorized technician.

  • Page 62: Chapter 5. Ip Finder & Ddns Server Setting

    Chapter 5. IP Finder & DDNS Server Setting Use of IP finder ·································································································· Use of DDNS server ·····························································································...

  • Page 63: Use Of Ip Finder

    Chapter 5. IP Finder & DDNS Server Setting 5.1 Use of IP finder This program is the utility to find out the unit connected to local network. It is useful for the application of the unit connected by DHCP function. It can provide you the information such as IP address, MAC, web port for easy installation and use.

  • Page 64: Find Ip Address

    5.1.2 Find IP address Click button to find IP address of the unit on local network. [Pic. 5-2] IP Finding Below picture will be shown, after IP Finding complete. [Pic. 5-3] IP Finding completed You can connect easily by inputting the information of IP address and web port. In addition, you can get the information of MAC address required on registration of server.

  • Page 65: Change Ip Address

    5.1.3 Change IP address After finding IP address, if you want to change IP address, Gateway or Subnet Mask, double click IP address you want to change and [Pic. 5-4] will be shown. [Pic. 5-4] Change of IP address <Procedure> ①Double click IP address you want to change.

  • Page 66: Use Of Ddns Server

    5.2 Use of DDNS server Run web browser and input http://ipcctvlink.com in URL and click "Enter", then [Pic. 5-6] will appear as follows. [Pic. 5-6] DDNS server Click the language on [Pic. 5-6] user want to use( 5.2.1 User registration [Pic.
  • Page 67 [Pic. 5-8] Agreement Read the agreement carefully and click "Agree" in case to agree, and go to the next page. [Pic. 5-9] User registration The part marked with (*) is mandatory. User ID is to be double-checked overlapping. Then click "To register user".
  • Page 68 [Pic. 5-10] User registered If [Pic. 5-10] appears, User Registration has successfully completed. Click "Login" and input user ID and password to connect to DDNS server. [Pic. 5-11] Log-in succeeded...

  • Page 69: Camera Registration

    5.2.2 Camera registration Click "To register camera" in [Pic. 5-11] to go to Camera Registration Page. [Pic. 5-12] Camera registration...

  • Page 70: List Of Camera

    (1) Input name of the camera you want to use, which will be applied only in DDNS server. (2) Server name is to input domain name to connect to the camera. It is recommended to give the name easy to understand and remember as a domain name because it is available to connect to the unit by domain name in case not knowing IP address of the camera.

  • Page 71: Change Of User's Information

    (2) On clicking "Editing" on [Pic. 5-13], the page of "Camera Registration" to change the information of camera registered, will appear. Change the information and click "Camera Change" to save the new information. "MAC" is not changeable. To change "Server Name", double-check is required. (3) Upon clicking "Connect"...

  • Page 72: Search Camera

    5.2.5 Search camera [Pic. 5-17] Login page "Serarch Camera" of [Pic. 5-17] is the function to see information or connect directly to the camera without user registration in DDNS Server. Upon clicking "Serarch Camera", [Pic. 5-18] will appear. [Pic. 5-18] Search camera "Type"...

  • Page 73: Chapter 6. Basic Network

    Chapter 6. Basic Network 6.1 Public IP ······································································································ 6.2 Private IP ········································································································ 6.3 Ping test ········································································································...
  • Page 74 Chapter 6. Basic Network This chapter is the basic explanation for installation. 6.1 Public IP [Pic. 6-1]Internet environment All hosts connected to internet have the exclusive number called IP address. Communication among hosts is available by using it. There are two ways to allocate IP address. One is fixed by the way of static IP address whenever connected to internet.
  • Page 75 6.2 Private IP [Pic. 6-2]Internet connection by IP sharing device. The most common use of these addresses is in home networks, since most Internet Service Providers (ISPs) only allocate a single IP address to each customer, but many homes have more than one networking device (for example, several computers, or a printer).

  • Page 76: Ping Test

    6.3 Ping test Ping is the test to check response among the devices connected with network. Input "Ping IP address" to command window of PC and check response. In case of Ping failure, there is some communication problem between the devices. By firewall, this test can not be available.
  • Page 77 [Ping Failure] [Ping Success]...

  • Page 78: Chapter 7. Appendix

    Chapter 7. Appendix Basic setting table ····························································································· Troubleshooting of cable connection ······································································· Troubleshooting of network connection ····································································...

  • Page 79: Basic Setting Table

    Chapter 7. Appendix 7.1 Basic setting table Item Default(Basic setting) Remarks Network Static IP / Dynamic IP Static IP IP Server Enable IP address 192.168.1.8 192.168.1.1 Gateway 255.255.255.0 Subnet Mask Web Connection Port ㆍDo not duplicate the same Port. Authentication Control ㆍUse the number under 9999 of port.

  • Page 80: Troubleshooting Of Cable Connection

    7.2.1 Power cable connection check Check if the power cable is connected to the camera properly. Check whether the output of the adaptor is regulated 12V DC 1A(for built -in IR LED model) or ※ 500mA(for No IR LED model) 7.2.2 Network cable(LAN Cable) connection check Check whether the network cable is connected correctly.

  • Page 81: Troubleshooting Of Network Connection

    7.3 Troubleshooting of network connection 7.3.1 Cannot connect with network Check with "7.2.2 Network cable(LAN cable) and cable connection check". [PING Test] ① In case camera uses Static/Public IP : input "Ping IP address" to command window of PC and check response.

  • Page 82: Chapter 8. Troubleshooting

    Chapter 8. Troubleshooting ※If you can not solve the problem, please contact an authorized technician.

  • Page 83: Chapter9. Warranty Card

    Chapter9. Warranty Card...
