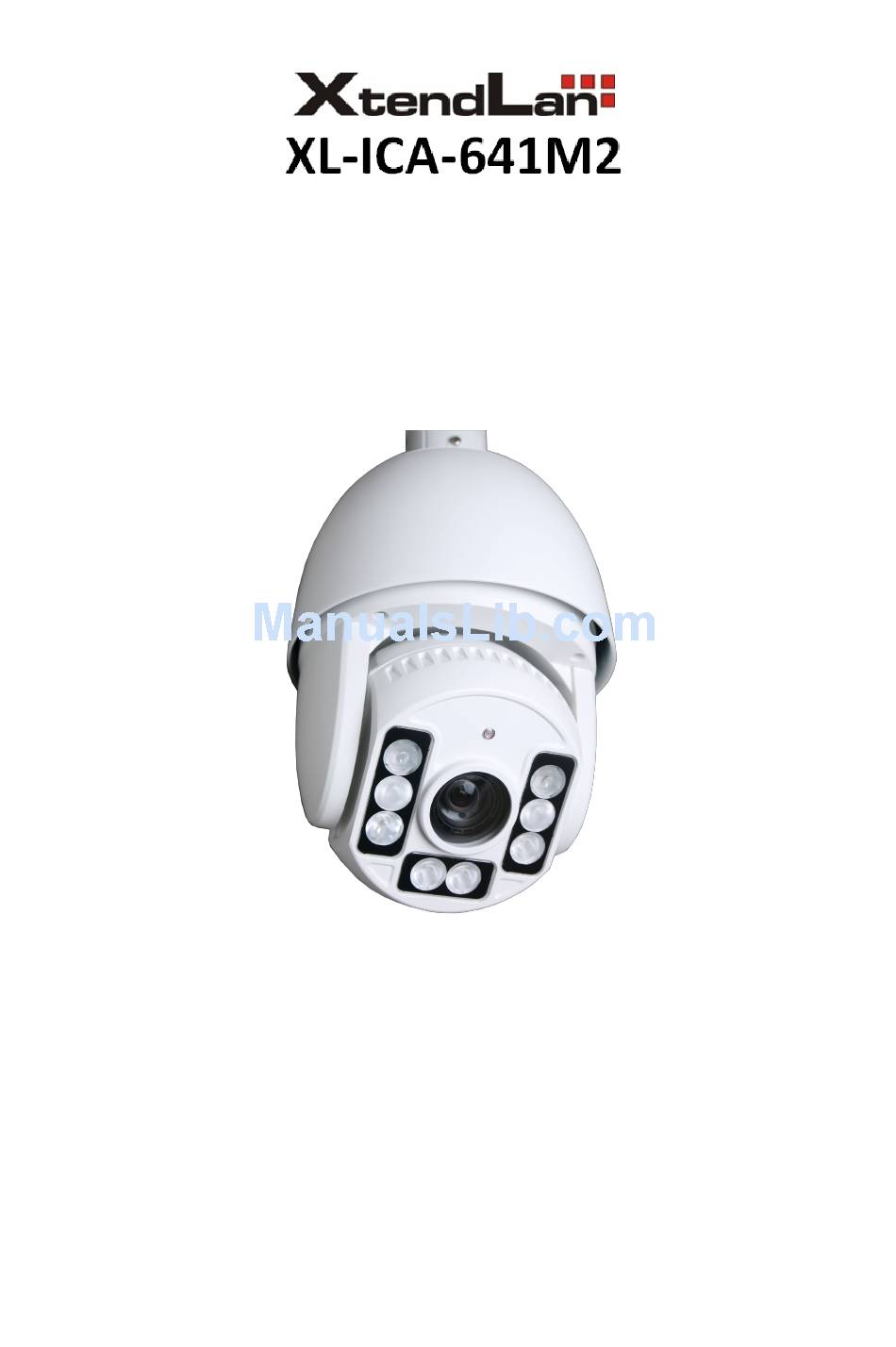

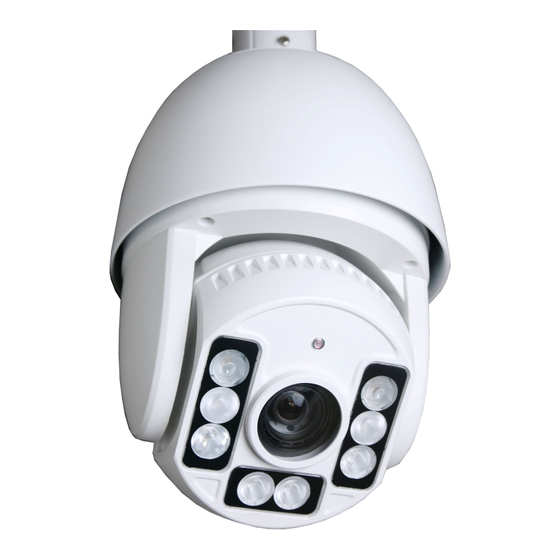

HD IP IR High-speed Dome
Camera User Manual
Read the user manual carefully before using this product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-ICA-641M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XtendLan XL-ICA-641M2

Summary of Contents for XtendLan XL-ICA-641M2

  • Page 1 HD IP IR High-speed Dome Camera User Manual Read the user manual carefully before using this product...
  • Page 2 Important Safeguards 1. During the course of transportation and storage, the product should be avoided from incorrect operations such as heavy pressing, strong vibration, soaking etc, which may cause damage to the unit. 2. The product is designed for wall-mount and pendant-mount installation, it can not be installed upside-down.
  • Page 3 camera’s CCD might be permanently damaged. 6. There are no parts inside the unit which can be repaired by the users themselves. When mechanical problems arise, do not be in a haste to do any repairing, please refer to the User’s Manual to find the trouble. If causes can not be located, please refer servicing to qualified professionals.

  • Page 4: Table Of Contents

    Table of Content 1 Product Description................- 1 - 1.1 System Requirement..............- 1 - 1.2 Product Description............... - 1 - 1.3 Product Feature..............- 2 - 1.3.1 PTZ Performance............- 2 - 1.3.2 Network Performance..........- 4 - 2 Connection Mode................- 8 - 2.1 Direct Connection..............- 8 - 2.2 Network Connection..............- 8 - 2.3 Power On................
  • Page 5 HD IP IR High-speed Dome Camera User Manual 3.3.5 Alarm setting............- 29 - 3.3.6 Title setting............... - 29 - 3.3.7 patrol setting............. - 29 - 3.3.8 Other setting............. - 31 - 3.4 Camera setting..............- 32 - 3.4.1 Auto Recovery............- 32 - 3.4.2 Lens Data..............- 34 - 3.4.3 DSS................- 36 - 3.4.4 AE Mode..............- 36 -...
  • Page 6 HD IP IR High-speed Dome Camera User Manual 4.3.2 PPPOE..............- 56 - 4.3.3 DDNS setting............- 56 - 4.3.4 Net port..............- 57 - 4.3.5 Email setting.............- 58 - 4.3.6 FTP setting..............- 58 - 4.3.7 Network setting............- 59 - 4.4 Audio and video..............- 61 - 4.4.1 Video channel............

  • Page 7: Product Description

    Product Description 1.1 System Requirement Operation System：Microsoft Windows XP/2003/Vista/WIN7.0 Browser： Microsoft Internet Explorer 8.0 above Hardware requirement： CPU：Intel Core 2 Duo E4600 / 2.4 GHz or above Internal Storage： 1GB or above Graphics card： Nvidia GeForce 8600 GT or above Network card：...

  • Page 8: Product Feature

    HD IP IR High-speed Dome Camera User Manual the real time remote image and voice. At night time, camera can give out the infrared light which cannot be seen by human eyes. The PTZ out casing has high protection level and great ability to prevent attack and destroy, it can be widely used in the field like protection &...
  • Page 9 HD IP IR High-speed Dome Camera User Manual  Built-in defogger ensures clear picture capture with no frog internally.  PTZ can flip automatically and accommodate to the control of focal length.  Preset position，Auto Pan, patrol, pattern can be set. ...

  • Page 10: Network Performance

    HD IP IR High-speed Dome Camera User Manual 1.3.2 Network Performance  H.264 video compression leads to high compression rate with good image quality; support dynamic code rate control.  Built-in Web Server makes monitor, configure, and manage on IE possible.
  • Page 11 HD IP IR High-speed Dome Camera User Manual 1.4Technical Data 1/3”,1.3Mega 1/2.9”2.43Mega Image Sensor CMOS CMOS Sensor Sensor Pixels 1.3MP 2.0MP Horizontal Resolution 720P 1080P 1280*720/25/ 1920*1080/25/30;128 Video Standard 0*720/25/30 Camera Min. Illumination 0.3LUX@F1.6 IR off,0LUX@IR on. Gain Control 0～255 adjustable step4 S/N Ratio >50dB White Balance...
  • Page 12 HD IP IR High-speed Dome Camera User Manual 1280*720(720P),720*576(D1),352* (CIF) ,176*144(QCIF) Video Resolution 1920*1080（1080P)，720*576 （D1,352*288(CIF),176*144(QCIF) 720P/D1/CIF/QCIF Code Stream Type 1080P/D1/CIF/QCIF Audio Compression Code 16Kbps～8Mbps Rate Image Delay <200 millisecond(LAN) RJ-45 10/100M network Internet Interface self-adjustable RTSP/RTP/RTCP/HTTP/HTTPS//F Internet Protocol TP/DHCP/MUDP/SMTP/CIFS/UPN P/PPPOE/NTP/DDNS TF card maximum support 16G Device End Storage （optical）...
  • Page 13 HD IP IR High-speed Dome Camera User Manual Auto Flip Function 180° when vertical PTZ speed auto-adjusting per focal PTZ control length Left &Right Scan 4 groups Speed of Left& Right Level 1～256 adjustable Scan Pattern 4 groups Preset Position patrol 4 groups Point of each patrol...

  • Page 14: Connection Mode

    HD IP IR High-speed Dome Camera User Manual 2 Connection Mode 2.1 Direct Connection Connect the camera to PC by network directly. 2.2 Network Connection Can connect the camera to internet, user can log in the device through client side software of browser. There are two ways to connect to internet: ...

  • Page 15: Power On

    HD IP IR High-speed Dome Camera User Manual Network Connection Diagram Attention: do not put the wire and network cable to places that will be easily touched by people, to avoid signal 2.3 Power On Check the polarity of plug, socket and other connection, power on after confirmation Camera will do self-checking, rotate 360º...

  • Page 16: Camera Protocol, Bit Rate, Address Setting

    HD IP IR High-speed Dome Camera User Manual 3. The continuous working time for dome camera is 18000H, please try to avoid keeping the dome camera working for long. 2.4 Camera Protocol, Bit Rate, Address Setting The setting for HD IP IR camera protocol, baud rate and address is fix and can't be changed.
  • Page 17 HD IP IR High-speed Dome Camera User Manual HD IP IR High-speed Dome Camera Hot Key List Item Hot key Function Call preset position Set left/right scan Set left/right scan1-- left limit Set left/right scan1-- right limit Set left/right scan2-- left limit Set left/right scan2-- right limit Set left/right scan3-- left limit Set left/right scan3-- right limit...
  • Page 18 HD IP IR High-speed Dome Camera User Manual Operate tour loop scan Operate tour loop scan1 Operate tour loop scan2 Operate tour loop scan3 Operate tour loop scan4 Delete tour loop scan Delete tour loop scan1 Delete tour loop scan2 Delete tour loop scan3 Delete tour loop scan4 Activate insert tour loop...

  • Page 19: Ptz And Camera Function

    HD IP IR High-speed Dome Camera User Manual 3 PTZ and Camera Function 3.1 PTZ Control 1、PTZ Control Name Illustration Remark Module& PTZ Control Zoom+/Zoom- Control the zooming times of camera manually Focus+/Focus- Adjust camera focusing manually Iris+/Iris- Control the aperture of camera open & close R-Wiper/S-Wiper Turn on &...

  • Page 20: Ptz Function

    HD IP IR High-speed Dome Camera User Manual 3.2 PTZ Function 3.2.1 Preset Position Calling Click the “Preset Position”menu, like the picture below: 1、Set preset position Adjust the direction of PTZ to the preset position that you want to set ,drop down the preset list, choose the preset position formation, click “setting”...
  • Page 21 HD IP IR High-speed Dome Camera User Manual （2）、 Input the preset position number in preset text box, then click the “call” button. 3、Clear preset position In the preset position list，choose the preset position information, then click the “clear” button. 4、Set the title of preset position In the preset position list, choose the preset position information, modify the title of preset in the title text box, and click the “set”...

  • Page 22: Patrol

    HD IP IR High-speed Dome Camera User Manual been called and the related function can be achieved. Attention：The special preset positions in PTZ can only be called, users can not delete or modify them. 3.2.2 Patrol Click :patrol” button, enter the menu below: This camera supports 4 patrols, each group can set 24 preset position max.

  • Page 23: Pattern

    HD IP IR High-speed Dome Camera User Manual preset position drop down list, click “remove” button. 2、Start patrol Drop down the patrol path list, choose the patrol information, click “start” button. 3、stop patrol Drop down the patrol path list, choose the patrol information, click “stop”...
  • Page 24 HD IP IR High-speed Dome Camera User Manual This PTZ supports 4 groups pattern. 1、Record pattern. （1） 、 drop down the pattern list, choose the number of each pattern. （ 2 ） 、 click “start record” button, the PTZ starts to remember and record the scan path, users can set the moving path with PTZ control button.

  • Page 25: Auto Pan

    HD IP IR High-speed Dome Camera User Manual 3.2.4 Auto Pan Click “left & right” button，like the picture below: This PTZ supports 4groups Auto Pan. 1、set left limit position and right limit position （1） 、 In the drop-down list of Auto Pan , choose the number of Auto Pan.

  • Page 26: Idle Setting

    HD IP IR High-speed Dome Camera User Manual 2、Start Auto Pan In the drop-down list of left & right , choose the number of left & right, click “Start” button. 3、Stop Auto Pan In the drop-down list of left & right , choose the number of left & right., click “stop”...
  • Page 27 HD IP IR High-speed Dome Camera User Manual 1、 Input the time for idle waiting in the text box of residence time, unit is second. 2、 In the drop-down list of idle function, choose the function you want to operate, this dome camera support preset position calling, patrol, Auto Pan, pattern.

  • Page 28: Area Setting

    HD IP IR High-speed Dome Camera User Manual 3.2.6 Area setting Click the menu of “Region”, like the picture below: Attention：This dome camera cannot support Region at present. 3.2.7 IR light Click the menu of “ IR ” , like the picture below: 1、...

  • Page 29: Status

    HD IP IR High-speed Dome Camera User Manual 2、Switch mode： In the drop-down list of switching mode, users can choose 2 different mode of IR switching: light sensor mode & amount of camera light through mode. 3、Bright mode: In the drop-down list, there are two modes: Indoor mode &...
  • Page 30 HD IP IR High-speed Dome Camera User Manual 1 、 Users can see the horizontal position, vertical position, zooming times of camera, Inside temperature of dome, inside voltage, outside voltage, light sensor voltage,etc. 2、 Click “manual refresh”, the dome camera will refresh the present running state.

  • Page 31: Ptz Setting

    HD IP IR High-speed Dome Camera User Manual 3.3 PTZ setting 3.3.1 PTZ function Click the “PTZ function”, and then enter the interface like the picture below: 1、Temp. Unit: There are two modes of temperature: Centigrade degree & Fahrenheit degree. - 25 -...
  • Page 32 HD IP IR High-speed Dome Camera User Manual 2、 Proportional Zoom: In the drop-down list, users can choose to turn on or turn off speed smart adjust. Switch on: the rotating speed of dome will linked to camera zooming times, the bigger the zooming times is, the slower the speed of dome is.

  • Page 33: Osd Information

    HD IP IR High-speed Dome Camera User Manual 3.3.2 OSD Information Click “OSD information” and see the interface below: Attention: This PTZ cannot support OSD information setting. 3.3.3 Data delete Click “data delete” ,and enter interface like below: - 27 -...

  • Page 34: Osd Attribute

    HD IP IR High-speed Dome Camera User Manual 1 、 Delete preset : Click the “delete preset”, users can delete the information of preset position and clear out the information from the list. 2、 Delete Auto Pan: Clicks “delete Auto Pan” and users can delete the information of Auto Pan.

  • Page 35: Alarm Setting

    HD IP IR High-speed Dome Camera User Manual 3.3.5 Alarm setting Click “alarm” and enter the interface below: Attention:This dome camera cannot support the function of alarm setting. 3.3.6 Title setting Click “title setting” and enter the interface below: Attention: This dome camera cannot support the function of title setting.
  • Page 36 HD IP IR High-speed Dome Camera User Manual the patrol information, the preset position of patrol, the dwell time of preset position. 1、 In the drop-down list of patrol path, choose the path number. This dome supports 4 paths. 2 、 In the drop-down list of preset, users can set or modify the information of preset.

  • Page 37: Other Setting

    HD IP IR High-speed Dome Camera User Manual the staying time of each preset. Each patrol can set 32 preset positions. This dome supports 24 preset positions at present. 3、 Click “save”, the patrol information will be saved. Click “start”, the dome will operate the patrol. Click “delete”, the dome will delete the patrol information.

  • Page 38: Camera Setting

    HD IP IR High-speed Dome Camera User Manual 1 、 Initialization Information: Users can see the information like: dome software vision, camera software vision, dome model, PTZ pan check, PTZ tilt check and camera module check. 2、 Set Clock: Click “set clock”, time of dome camera can match to computer.
  • Page 39 HD IP IR High-speed Dome Camera User Manual 1、Close auto rocker recovery: In the drop-down list of rocker automatic, choose “close”, the dome will close the function of auto rocker recovery. 2、Open auto rocker recovery In the drop-down list of rocker automatic, choose “full open”, dome will open the function of auto focus recovery and auto iris recovery.

  • Page 40: Lens Data

    HD IP IR High-speed Dome Camera User Manual 4、Auto iris recovery In the drop-down list of auto rocker recovery, choose the iris option, and the dome will open the function of auto iris recovery. Users can set the interval time of auto iris recovery. The range is from 3s to 16s.
  • Page 41 HD IP IR High-speed Dome Camera User Manual 2、 Automatic Gain: Click the list, users can set auto gain data. There are 16 ranges can be chosen from -3db to 28db. Users can set different levels to adjust the brightness during nighttime. 3 、...

  • Page 42: Dss

    HD IP IR High-speed Dome Camera User Manual 3.4.3 DSS Click the button “DSS” and enter the interface below: Attention: This dome cannot support DSS setting. 3.4.4 AE Mode Click “AE mode” and enter the interface below. 1、AE mode ： Choose “auto mode” in the list, camera will exposure automatically according light...

  • Page 43: Awb

    HD IP IR High-speed Dome Camera User Manual 2 、 Iris: Choose “iris”, the camera will exposure according to the information of iris. Attention: This camera can only support two modes: AE Mode & Iris. It cannot support shutter or gain mode. 3.4.5 AWB Click “AWB”...

  • Page 44: Blc

    HD IP IR High-speed Dome Camera User Manual 3.4.6 BLC Click “BLC” and enter the interface below: Attention: This dome cannot support BLC at present. 3.4.7 Image setting Click “image” and then enter the interface below: - 38 -...
  • Page 45 HD IP IR High-speed Dome Camera User Manual 1 、 Image color: Users can set the brightness/ contrast/ saturation/ sharpness to adjust the data of image. 2、 Horizontal mirror: Users can choose it to change the imaging status become horizontal mirror. 3、Vertical mirror: Users can choose it to change the imaging status become vertical mirror.

  • Page 46: Ip Function

    HD IP IR High-speed Dome Camera User Manual gamma, night gamma. 4 IP Function 4.1 Log in 4.1.1 Device log in Firstly, set the IP address segment of PC the same as the Device's. For example, the device IP address is 192.168.1.217, gateway 192.168.1.1.
  • Page 47 HD IP IR High-speed Dome Camera User Manual Original Status: Default Address 192.168.1.217 User Name admin operator user Password admin operator user Attention: use default user name to log in successfully, then the user will have authorization for all kinds of operations. It's suggested that user to modify password after first log in for security.
  • Page 48 HD IP IR High-speed Dome Camera User Manual Click “install”, and the interface is like below： - 42 -...

  • Page 49: Home Page Instruction

    HD IP IR High-speed Dome Camera User Manual After installed, the interface will show like below: Click “finish” and the web browser active has been installed. Input the user name and password, then logged into the IE interface of dome camera. 4.1.2 Home Page Instruction After log in, users will enter the IE homepage, as below: - 43 -...

  • Page 50: Home Page Instruction

    HD IP IR High-speed Dome Camera User Manual 4.1.3 Home Page Instruction 1、Tool Bar Instruction Play setting: set the video fluency and connecting type of video type. Talk back: users can talk back to controllers at real time. Local manual record: save the real time video & audio to local Local manual snap: save the image to the local PC.
  • Page 51 HD IP IR High-speed Dome Camera User Manual Amplification：Amplify the area which users chosen. Full screen: video become full screen. 3Dpositon：Show the 3 D positioning function. PTZ menu exchange: show the PTZ menu in the left or right. PTZ show/hide: show or hide the PTZ. 2、Illustration for video form HD IP high speed dome camera support dual code stream output.

  • Page 52: Video Record

    HD IP IR High-speed Dome Camera User Manual 4.2 Video record Click “video record” and enter the interface below: In this interface, users can search and replay the local and device end video, including manual recording, timing recording and alarm recording.

  • Page 53: Log Out

    HD IP IR High-speed Dome Camera User Manual 2、Play video: choose the file, click “play” or double click the file. The video will show on the right screen. Double click the screen, and it can exchange between single screen and split screen. The toolbar on the screen can support pause/stop/speed up/speed down/snap/play by order/open audio/close audio.

  • Page 54: Time Setting

    HD IP IR High-speed Dome Camera User Manual This interface shows the device name, device mode, device SN, kernel version, server version, web version, OCX version. 1 、 Device name: show the name of device. Users can modify it and click “save”, the new name will be saved.

  • Page 55: System Operation

    HD IP IR High-speed Dome Camera User Manual Users can choose time zone, adjust date and time. 1、Zone setting: choose the local time zone, and clicks” save”. 2、Date setting: date can be matched with PC, click “sync with PC” and click “save”. 3 、...

  • Page 56: System Update

    HD IP IR High-speed Dome Camera User Manual 2、Set default: Default all the setting. 3、Reboot: Auto reboot the machine. 4.2.4 System update Click “system update” and enter the interface below. Users can update the network program. System update: click “浏览” and choose the path of target file, and click “...

  • Page 57: Users Manage

    HD IP IR High-speed Dome Camera User Manual 4.2.5 Users manage Click “users manage” and enter the interface below. It can add or delete users. 1. Password authentication When open password authentication, users need to input the user name and password . When it is closed, users can log in without user name and password.

  • Page 58: System State

    HD IP IR High-speed Dome Camera User Manual 1、Add: input the user name and password, choose the group, click “add”, the system will remain “add successfully”, and the new users will show on the user list. 2、Delete: choose the users can click “delete”, the system will remain “delete successfully”, and the users will move away from the user list.
  • Page 59 HD IP IR High-speed Dome Camera User Manual Choose the refresh interval or click auto refresh, the machine will auto refresh the system status. The system status information:  N.1: CUP using status.  N.2: clock information of CUP frequency. ...

  • Page 60: System Log

    HD IP IR High-speed Dome Camera User Manual 4.2.7 System log Click system log and enter the interface below: Choose the log type, and users can look into the system log. Choose the page number, and users can look into the system log. 4.2.8 SCM update Click “SCM update”...

  • Page 61: Network Setting

    HD IP IR High-speed Dome Camera User Manual Click “ 浏 览 ” and choose the SCM and camera program , click confirm. Do not cut off the power supply and do not have any operation when upgrading. 4.3 Network setting In this part, users can set the information like: Ethernet setting , DNS setting, FTP setting, mail server setting.

  • Page 62: Pppoe

    HD IP IR High-speed Dome Camera User Manual DHCP Setting: choose “on” and the machine will get the network data automatically from local network. This need to support by DHCP server, please conform to the network administrator. 4.3.2 PPPOE Click “PPPOE” and enter the interface below: When setting auto dialing, users need to turn on the switch, choose the type of gateway, input the user name and password, then click “save”.

  • Page 63: Net Port

    HD IP IR High-speed Dome Camera User Manual DDNS can map the dynamic IP address to a fixed domain name. Users need to turn off the switch when setting DDNS. Choose the DDNS service provider: 3322/org/9299.org. Input DDNS user name and password, and click “save”. 4.3.4 Net port Click “port”...

  • Page 64: Email Setting

    HD IP IR High-speed Dome Camera User Manual 1、WEB port: used for logging in the interface of IE. 2、FTP port: used for FTP uploading and downloading. 3、RTSP port: real time video stream to transport video. 4、Talk back port: used for talk back. 5、Update port: used for program updating.

  • Page 65: Network Setting

    HD IP IR High-speed Dome Camera User Manual FTP data: input server name, user name, password, FTP path and type of uploading, click “save”. 4.3.7 Network setting Click network setting and enter the interface below. Users can test the present network status. - 59 -...
  • Page 66 HD IP IR High-speed Dome Camera User Manual IP diagnostic parameters setting: IP address or domain name: input the address of testing server. Such as 192.168.5.155. Number of Ping package: input the number data package during testing. Input of every package. Check result: input the right parameters and click “send”, the diagnostic parameters will show after a few seconds.

  • Page 67: Audio And Video

    HD IP IR High-speed Dome Camera User Manual 4.4 Audio and video 4.4.1 Video channel Click “video channel” and enter the interface below: Users can choose different video path according to different type of network. HD IP high speed dome camera support dual code stream output. Main code stream of 720P supports: 720P/ D1.

  • Page 68: Video Parameter

    HD IP IR High-speed Dome Camera User Manual 4.4.2 Video parameter Click “video parameter” and enter the interface below. Users can set the basic subtitle,extend subtitle, video mirror. 1、basic subtitle In this interface, users can set the information of name, time and code rate.
  • Page 69 HD IP IR High-speed Dome Camera User Manual users can choose the information to show or hidden. Include : title, time, code rate. If users want to show the title, fix the information and click “save”. Attention: the title no more than 12 characters. The color of character can be set from: white/ black/ auto.
  • Page 70 HD IP IR High-speed Dome Camera User Manual The letter in the red box is the extend subtitle. 3、video mirror Click the video mirror and enter the interface like the picture below: - 64 -...

  • Page 71: Video Setting

    HD IP IR High-speed Dome Camera User Manual Users can set the video mirror in 3 modes: horizontal/ vertical/ diagonal. 4.4.3 Video setting Click “audio set, users can set the volume of audio input /audio output. After setting all the information, click “save”. If users want to recover to factory default, click “default”.

  • Page 72: Vedio Capture

    HD IP IR High-speed Dome Camera User Manual In this part, users can choose code size, code profile, code level, and click “save”. Users also can choose to open or close BNC 4.5 Vedio capture In this interface, users can set the information of front end & remote recording.
  • Page 73 HD IP IR High-speed Dome Camera User Manual 2. Video manage Set the max. Recording time. The front end recording time is from 1 minute to 15 minutes. And set the dick full strategy (stop recording or delete old file.) Set the length of alarm recording.
  • Page 74 HD IP IR High-speed Dome Camera User Manual Only when the front end space is bigger than reserve space, the camera will operate front end recording. Click “start record” and the status of recording is “manual record”, system start record. Click “stop record” to stop recording. When set timing recording, system will record automatically.

  • Page 75: Remote Record

    HD IP IR High-speed Dome Camera User Manual 4.5.2 Remote record Click “remote record” and enter the interface below: This function supports users use storage device in network as a front end device. 1. NFS setting (not support at present) Switch of remote record: open or close the function o f NFS remote recording．...

  • Page 76: Disk Status

    HD IP IR High-speed Dome Camera User Manual Remote path: input the address of SAMBA. User name: input SAMBA address. Password: input he SAMBA remote recording password. 4.5.3 Disk status Click disk status and enter the interface below: If use TF card, the information of it can be show in this part. Include dick area, total space, the used space, the remaining, and the percent of used space.
  • Page 77 HD IP IR High-speed Dome Camera User Manual of front end device. 4.6.1 alarm setting Click “motion detection”, and enter the interface below: Motion detection data: users need to click “enable motion detection”, and set the sensitivity data. The range of sensitivity is1 ～ 100.(The bigger the more sensitive).

  • Page 78: Video Loss

    HD IP IR High-speed Dome Camera User Manual  When selected San (Mon/Tues/Wens/Thur/Fri/Sat), the color will be black.  Click “all”, all the color will be orange. Clicks “save”. 4.6.2 Video loss Click “video loss” and enter the interface below: - 72 -...

  • Page 79: Link Attr

    HD IP IR High-speed Dome Camera User Manual Sensitivity of video loss: click “enable” and set the sensitivity data.( 1～100,the bigger the data is ,the more sensitive Video loss alarm schedule: set the time schedule, it can be linked to alarm when video is lost in front end device. (Include front end recording, send email, FTP upload).

  • Page 80: Alarm Linkage

    HD IP IR High-speed Dome Camera User Manual Alarm center parameter: input the center address and center port, click Alarm output data”: set the information of present output status and alarm status. Users can set the holding time o f alarms. Clicks “save”...

  • Page 81: Local Setting

    HD IP IR High-speed Dome Camera User Manual 1、Alarm time interval: the interval of alarm recording and snap. 2、FTP uploading: choose the file type of uploading: picture & video. 3、Motion detection: include alarm center, email, alarm output, front end record, FTP upload, play sound, capture,； 4、Video loss: include alarm center, email, alarm output, front end record, play sound.
  • Page 82 HD IP IR High-speed Dome Camera User Manual record/pre record/alarm linkage recording. Like the picture below: 1、Record setting: choose the recording time and choose the storage path. 2、Pre record setting: start the recording function in IE when PC start alarm recording. 3、Alarm linkage record: choose alarm linkage record, it will start record when alarming.
  • Page 83 HD IP IR High-speed Dome Camera User Manual Can Not Visit Via Browser Possible Reason(1): Internet is not connected Solution: Connect the PC to internet and check if it can normal work, get rid of cable and virus problem, till can ping to PC. Possible Reason(2): IP address is being occupied by other devices Solution ：...
  • Page 84 HD IP IR High-speed Dome Camera User Manual Solution: Check the camera protocol, bit rate and other parameters in 'Serial Port' and set them right. Possible Reason(2): Camera breakdown Solution: Return for repairing - 78 -...
