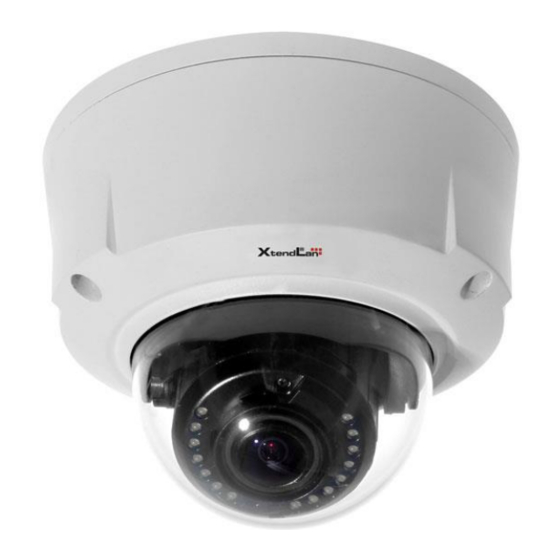

DOME IP camera
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-ICA-206M2T-M39 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XtendLan XL-ICA-206M2T-M39

Summary of Contents for XtendLan XL-ICA-206M2T-M39

  • Page 1 XL-ICA-206M2T-M39 DOME IP camera User manual...
  • Page 2 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. Please note: Do not connect these two power supplying sources to the device at the same time;...
  • Page 3 Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.

  • Page 4: Table Of Contents

    Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Specifications ........................ 2 1.3.1 Performance ......................2 1.3.2 Factory Default Setup ................... 3 Structure ........................... 11 Dimensions ........................ 11 Port Description ......................11 Bidirectional talk ......................15 2.3.1 Device Connection ....................
  • Page 5 Network Connection ....................27 Login and Main Interface ..................27 FAQ ............................30 Appendix Toxic or Hazardous Materials or Elements .............. 31...

  • Page 6: General Introduction

    1 General Introduction 1.1 Overview This series network camera integrates the traditional camera and network video technology. It adopts audio and video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series network camera uses standard H.264 video compression technology and G.711a audio compression technology, which maximally guarantee the audio and video quality.

  • Page 7: Specifications

    • Support system resource information and running status real-time display. • Day/Night mode auto switch (electromagnetic ICR switch). • Built-in IR light. Support IR night vision (For HDBW Series only). • Backlight compensation: screen auto split to realize backlight compensation to adjust the bright.

  • Page 8: Factory Default Setup

    Snapshot Max 1f/s snapshot. File extension name is JPEG. Privacy Mask Supports max 4 privacy mask zones Video Setup Support parameter setup such as bright, contrast. Video Channel title, time title, motion detect, privacy mask. Information 3~9mm@F1.2 motorized zoom focus lens Lens ¢14.
  • Page 9 Function Default setup Item Setup Type Brightness Contrast Saturation Gain mode Auto Gain limit Exposure mode Auto Auto iris Enable Scene mode Auto Day/night mode Auto Flip Disable Video Bit stream General stream type Encode H.264B mode 1080P Resolution （1920*1080） Frame rate PAL: 25 （FPS）...
  • Page 10 Default setup Function Item Setup Type Bit rate I frame interval Snap type General snap 1080P Image size （1920*1080） Snapshot Quality Better Interval Privacy mask Enable Overlay Channel title Enable Time title Enable Snapshot C:\PictureDownload path Path Record path C:\RecordDownload Enable Enable Main stream...
  • Page 11 Function Default setup Item Setup Type HTTP port RTSP port Enable Disable PPPoE User name Password Disable ，CN99 DDNS Server type Server IP none Port Domain none DDNS name User name none Password Update period IP filter Trusted sites Disable SMTP server none Port...
  • Page 12 Function Default setup Item Setup Type “Device name+SN”. Server name Depends on the device. Multicast 239.255.42.42 address Multicast Port 36666 Enable Disable Server IP 0.0.0.0 Auto register Port 7000 Sub-device none WIFI On(Enable) Enable Real-time monitor Command Event Video detect Enable Disable management...
  • Page 13 Function Default setup Item Setup Type Snapshot Disable Enable Disable Relay input Alarm1 Anti-dither Sensor type Record Enable channel Record delay Relay (Alarm) Enable Alarm setup output Relay (Alarm) delay Send email Disable Activation Address Snapshot Disable Relay (Alarm) output Abnormity Enable Disable...
  • Page 14 Function Default setup Item Setup Type Enable Disable Record Enable Record delay Relay (Alarm) Enable output Relay output delay Enable Disable Record Enable Record delay Relay Enable (Alarm) output Relay output delay FTP enable Disable Server IP Port User name anonymity Password Remote...
  • Page 15 Function Default setup Item Setup Type Video NTSC standard Date format Y-M-D Time format Time zone GMT+08:00 Current time Sync PC Disable DTS type Week 00:00:00 of the first Sunday of the Start time month 00:00:00 of the second Monday of End time the month Synchronize...

  • Page 16: Structure

    2 Structure 2.1 Dimensions You can refer to the following figures for dimension information. The Unit is mm. See Figure 2-1 and Figure 2-2. Figure 2-1 Figure 2-2 2.2 Port Description For the non-IR series product, the interface is shown as in Figure 2-3 and Figure 2-4.
  • Page 17 Figure 2-3 Figure 2-4 For the IR motorized zoom lens series product, the interface is shown as in Figure 2-5 and Figure 2-6.
  • Page 18 Figure 2-5 Figure 2-6 For the IR manual zoom lens series product, the interface is shown as in Figure 2-7 and Figure 2-8.
  • Page 19 Figure 2-7 Figure 2-8 Please refer to the following sheet for detailed information. Definition AC 24V power port. The middle pin is for GND. DC 12V power port. The left is the negative end and the right is the positive end. External cable exit.

  • Page 20: Bidirectional Talk

    I/O signal port：1—ALM_NO；2—ALM_COM；3—GND； 4—ALM_IN；5—GND；6—AUDIO_IN；7—AUDIO_OUT； 8—GND；9—VIDEO_OUT. Reset Five menu operation buttons. — — Push T button up long focus and push W button down wide angle. — — Push the F button left Near and push the N right Far. Click the middle button is to enable auto focus. Please note it is for motorized zoom lens only.
  • Page 21 Figure 2-9 Please refer to the following figure for alarm input information. See Figure 2-10. Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of the alarm input port. When the input signal is connected to the 5V or is idle, the device collects the logic “1”. When the input signal is grounded, the device collects the logic “0”.

  • Page 22: Installation

    3 Installation Important • Before you complete the installation and setup, do not remove the electrostatic attraction film on the transparent enclosure. Otherwise it may result in injury. • After remove electrostatic attraction film, do not touch dome enclosure in case it may leave stain.
  • Page 23 Step 1 Take the installation position map from the accessories bag and then paste it on the installation ceiling or the wall according to the monitor area. Please dig three bottom holes of the plastic expansion bolts according to the map. Take three expansion bolts from the accessories bag and then insert them to the holes you just dug and then fix firmly.
  • Page 24 Figure 3-4 Step 5 Please refer to the Step 3 to put the driver module back to the metal hooks of the chassis. Then use the inner hex wrench to secure the two inner hex screws to the chassis. Then connect the network cable and the power terminal.
  • Page 25 Lock Screw A Adjust lend pan rotation angle. Figure 3-6 c). Lens tilt rotation angle. Please refer to Figure 3-7 to unfasten the lock screw B and lock screw C and adjust the tilt monitor angle to the proper position. Then fix the lock screw B and lock screw C. The tilt angle ranges from -23°~+73°.

  • Page 26: Manual Zoom Lens Focus Operation

    Please note Figure 3-6 and Figure 3-7 is based on the IR motorized zoom camera. For the IR manual zoom camera and non-IR series product, the lock screw position and the lens angle adjustment are the same. Step 7 Line up the dome camera protection enclosure to the cable exit on the side panel. Put the enclosure back and then use the inner hex wrench to secure the 3 inner hex screws firmly.

  • Page 27: Cable Connection

    Dig through here Figure 3-9 For some special user, he may need the metal protection tube to protect when he pulls through the cable from the side cable. There is PG11screw thread port when you pull through the cable from the side panel.

  • Page 28: Sd Installation

    Step 2 Before you go to the Step 4 in the chapter 3.2.1 installation steps, please pull through cable with the waterproof airproof plug to the device chassis via the installation hole at the bottom of the chassis and then connect the cable pins. Step 3 Refer to Step 4 and Step 5 in the chapter 3.2.1 installation steps to install and connect the cable pin to the device and then follow the proper steps to go on the installation.

  • Page 29: Quick Configuration Tool

    4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
  • Page 30 Figure 4-2 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 4- Figure 4-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set.
  • Page 31 Figure 4-4 After you logged in, the configuration tool main interface is shown as below. See Figure 4-5. Figure 4-5 For detailed information and operation instruction of the quick configuration tool, please refer to the Quick Configuration Tool User’s Manual included in the resources CD.

  • Page 32: Web Operation

    5 Web Operation These series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. •...
  • Page 33 Figure 5-2 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too. If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control download.
  • Page 34 Figure 5-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.
  • Page 35 6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device. factory default setup. card write Do not set the SD card as the storage media to storage the times schedule record file. It may damage the SD card duration. I can not use the When disk information is shown as hibernation or capacity is 0, disk as the storage...
