XL-ICA-H660-SC110

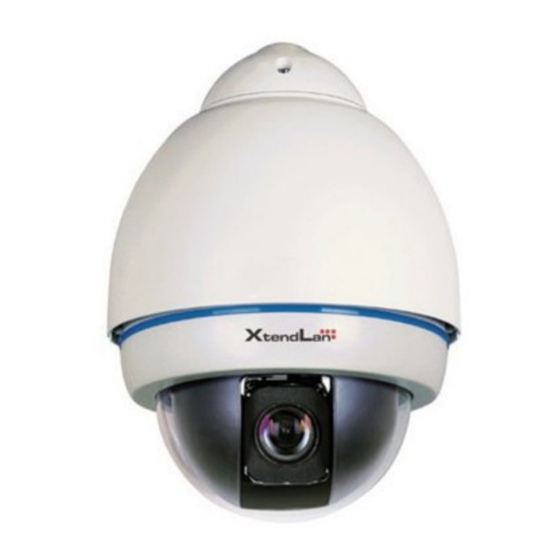

6-inch Mega Pixel IP Speed Dome User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-ICA-H660-SC110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XtendLan XL-ICA-H660-SC110

Summary of Contents for XtendLan XL-ICA-H660-SC110

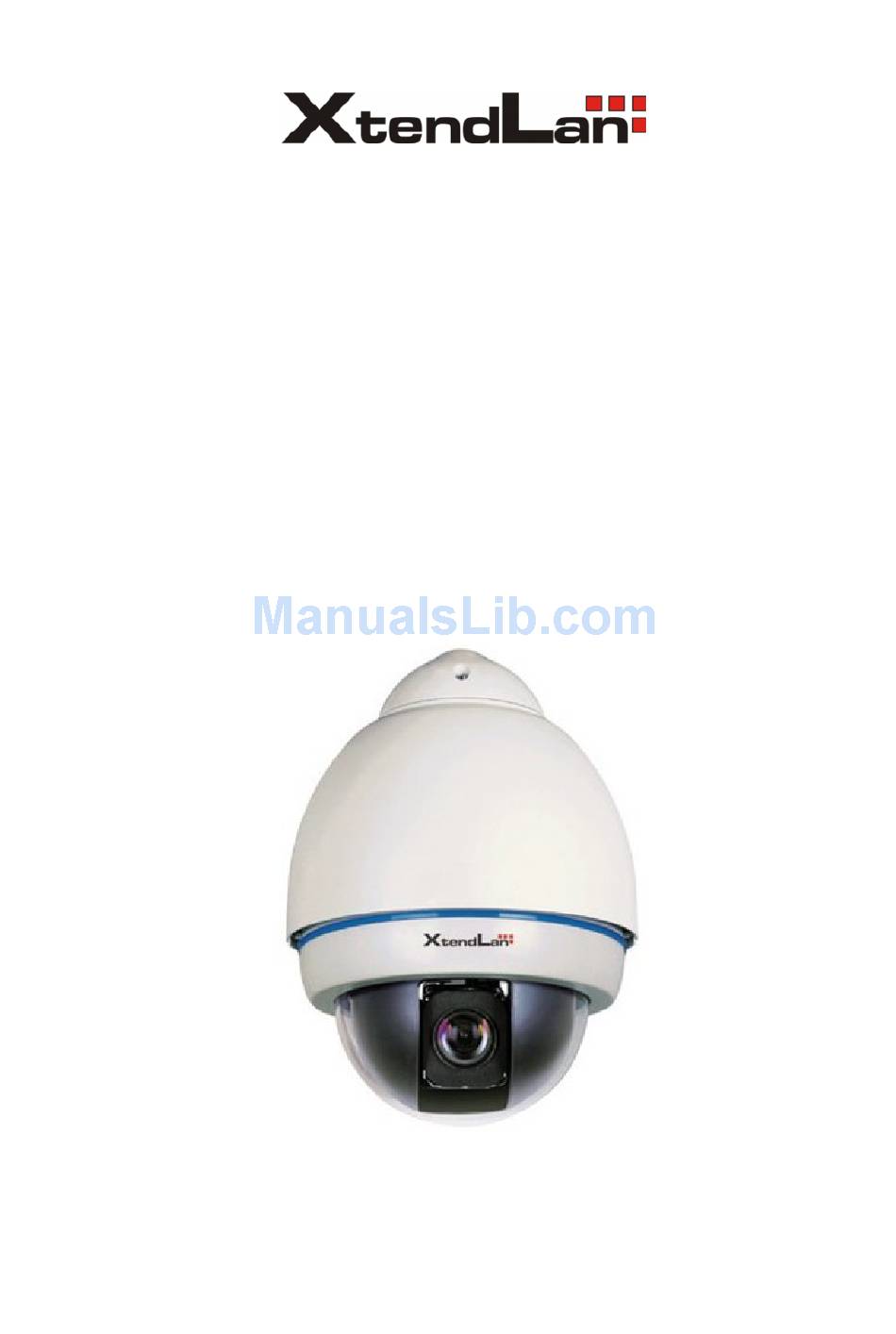

  • Page 1 XL-ICA-H660-SC110 6-inch Mega Pixel IP Speed Dome User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents FEATURES AND FUNCTIONS ..................6 General Introduction ............................6 Feature .................................6 1.2.1 Storage ................................6 1.2.2 Network Monitor .............................6 1.2.3 Support multiple protocols ..........................6 1.2.4 Proportional Pan and Tilt..........................6 1.2.5 Preset Setup and Recall ..........................6 1.2.6 Auto Scan................................6 1.2.7 Auto Cruise (Touring) ............................6 1.2.8...
  • Page 3 WEB OPERATION ..................... 15 Overview ................................15 Login ...................................15 PERFORMANCE SPECIFICATION ................18 FUNCTION SPECIFICATION..................19 FACTORY DEFAULT SETUP ..................22 FAQ ..........................26 APPENDIX I DAILY MAINTENANCE AND IP SPEED DOME FAQ ......27 Daily Maintenance ............................27 FAQ..................................27 10 APPENDIX ⅠI THUNDER PROOF AND SURGE PROTECTION........
  • Page 4 Welcome Thank you for purchasing our product! This user’s manual is designed to be a reference tool for the operation of your system. Here you can find information about this IP speed dome features and functions. Please keep it well for future reference. Before installation and operation, please read the following safeguard and warning carefully!
  • Page 5 Important Safeguard and Warning 1．Electrical Safety All installation and operation should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation 2．Transportation Security No heavy stress, violent vibration or water splash are allowed during transportation, storage and installation.

  • Page 6: Features And Functions

    1 Features and Functions 1.1 General Introduction This 6-inch mega pixel IP dome integrates the remote network monitor function and integration high intelligent speed dome together. It is easy to install and operate. This series IP speed dome has mega pixel vivid video and supports intelligent recognition, alarm activation, wide dynamic region (WDR) function and etc.

  • Page 7: Auto Pattern

    1.2.8 Auto Pattern Auto pattern is to memorize dome operation such as pan, tilt, and zoom to repeat. Focus and iris are in auto mode during auto pattern. This series IP speed dome supports 5 pattern paths. 1.2.9 Action on Alarm This series speed dome support seven alarm inputs (normal close or normal open).

  • Page 8: Cable Connection

    2 Cable Connection 2.1 RS485 and Power Cable Connection This series mega pixel IP speed dome has audio cable port, network port and power port. These ports are to input audio, output signal, network data and connect to the power source. Please connect the audio cable to the audio port of the device board, connect the network cable to the network port of the device board, and connect the power cable to the power socket of the device board respectively.

  • Page 9: Alarm Cable Connection

    Figure 2-3 Name Function AC24V 24V power port. Connect to the power cable. EARTH Ground port. AC24V 24V power port. Connect to power cable. 2.2 Alarm Cable Connection Open the dome cover and take PTZ chip core out. Turn the core upside down; you can see the alarm port.

  • Page 10: System Layout

    normal close. 2.2.1 System Layout 2.2.1.1 System Connection Please refer to the following interface for Ethernet connection information. Figure 2-5 Please refer to Figure 2-6 for alarm cable connection. Figure 2-6 2.2.2 Keyboard Connection This series speed dome protocol is open and supports multiple popular system platforms in today’s market.
  • Page 11 Figure 2-7...

  • Page 12: Quick Configuration Tool

    3 Quick Configuration Tool 3.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 3.2 Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 3-1...
  • Page 13 Figure 3-2 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 3-3 Figure 3-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set.
  • Page 14 Figure 3-5 For detailed information and operation instruction of the quick configuration tool, please refer to the Quick Configuration Tool User’s Manual included in the resources CD.

  • Page 15: Web Operation

    4 Web Operation 4.1 Overview IP speed dome support Web access via PC to manage device. Web operation consists of the following operation sections: monitor channel, record search, alarm setup, system setup, PTZ control and monitor window. 4.2 Login Before web operation, please check the following items: PC and IP speed dome connection is OK.
  • Page 16 Figure 4-2 After installation, the interface is shown as below. See Figure 4-3. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. Figure 4-3 After you logged in, you can see the main window.
  • Page 17 Section 1: Monitor channel menu tree Section 2: System menu Section3: PTZ control Section4: Color setup and other setup Section5: Preview window ② Section 6: Monitor window switch ③ ① ④ ⑤ Figure 4-4 Please refer to 6-inch mega pixel IP Speed Dome Web Operation Manual included in the resource CD for detailed information.

  • Page 18: Performance Specification

    5 Performance Specification Specification Index Sensor Type 1/3-inch CCD Video Format PAL/NTSC 1.30 mega pixle，1280（Pan） Pixel Camera *960（Tilt） Min Illumination 0.02Lux@F1.6 1/4～1/100000 Shutter Speed PAL : 1f/s-25f/s Standard Supported NTSC: 1f/s-30f/s Encode capacity One 720P+one D1 1.3M（1280*960） 720（1280*720） VGA（640*480） QVGA（320*240） D1（704*576/704*480）...

  • Page 19: Function Specification

    6 Function Specification Specification Note Zoom Adjustment Manual Focus Adjustment Auto/Manual adjust Lens Control Aperture Adjustment Auto /manual adjust （PELCOD、PELCOP 255 ( Preset protocl） Auto Tour Auto Pattern Auto Scan Auto adjusts the speed according Focus speed auto control PTZ Control to the focus distance.
  • Page 20 System automatically enables Alarm Record recording function when alarm occurred. When input video changes, Motion Detection Record system automatically enables record operation. Transparent value ranges from 0 Time Title Display to 255. O means completely transparent and 255 is opaque. Please refer to the above Channel Title Display information.
  • Page 21 management, user management, clear log. Prevent from unauthorized data Digital watermark modification. Support hardware/software/Watchdog RESET reset Watch dog max support 35 seconds. 7 alarm input ports 2 alarm output ports 1 analog audio input put and 1 Interface analog audio output port. 1 network port (RJ45 10M/100M self-adaptive Ethernet port) 1 Micro SD card port.

  • Page 22: Factory Default Setup

    7 Factory Default Setup Function Configuration Item Name Default setup Type General Setup Date format Y-M-D Disable Date separator ‘ _ ’ Time format Language Simplified Chinese When HDD is full Overwrite Record duration Device No. Video type Encode Setup Main stream Channel Channel01...
  • Page 23 Function General Data bit Stop bit Baud rate 115200 Parity None Network Setup Ethernet Port 01 DHCP Disable IP address 192.168.1.108 Subnet mask 255.255.0.0 Gateway 192.168.0.1 Device name Device factory default name TCP port 37777 HTTP port UDP port 37778 Network user connection amount Network transmission QoS Disable...
  • Page 24 Record channel Disable Record latch 10 seconds Send email Disable PTZ activation Event type: Never Address: 0 Disable Snapshot Disable PTZ Setup Channel Ch01 Protocol DH-SD1 Address Baud rate 38400 Data bit Stop bit Parity None Default and Backup Disable General Disable Encode...
  • Page 25 Auto registration Enable Disable 0.0.0.0 Port 7000 Device ID Dahua DNS Setup 202.101.172.35 Alternative DNS 202.101.172.35...

  • Page 26: Faq

    8 FAQ card write Do not set the SD card as the storage media to storage the times schedule record file. It may damage the SD card duration. I can not use the When disk information is shown as hibernation or capacity is 0, disk as the storage please format it first (Via Web).

  • Page 27: Appendix I Daily Maintenance And Ip Speed Dome Faq

    9 Appendix I Daily Maintenance and IP Speed Dome FAQ 9.1 Daily Maintenance Please clean dome cover regularly to get vivid image. Handle the cover with care. Use water to wash. Don’t use cloth to clean. Use mild detergent to clean if there is too much dust. Note: The sweat from your hand may erode plating surface, your nail may scrape dome cover result in blur image.

  • Page 28: Appendix Ⅰi Thunder Proof And Surge Protection

    10 Appendix ⅠI Thunder Proof and Surge Protection This series speed dome adopts TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 1500W, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.
  • Page 29 Note: This manual is for reference only. Slight difference may be found in the user interface. All the designs and software here are subject to change without prior written notice. If there is any uncertainty or controversy, please refer to the final explanation of ours. Please visit our website or contact your local retailer for more information.
