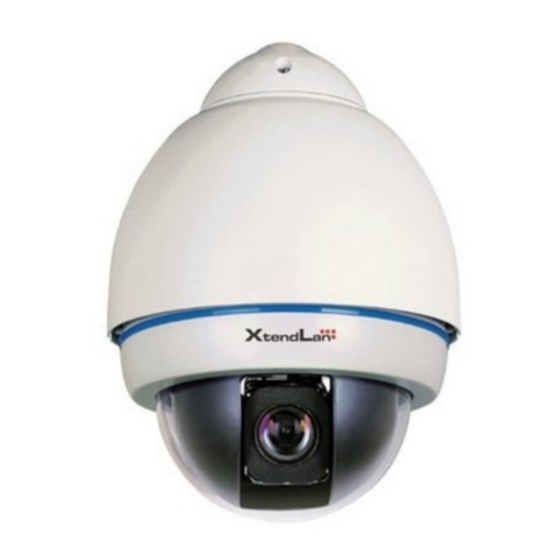

XtendLan XL-ICA-H660-SC110 Operation Manual

6-inch mega pixel ip speed dome web
Hide thumbs Also See for XL-ICA-H660-SC110:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

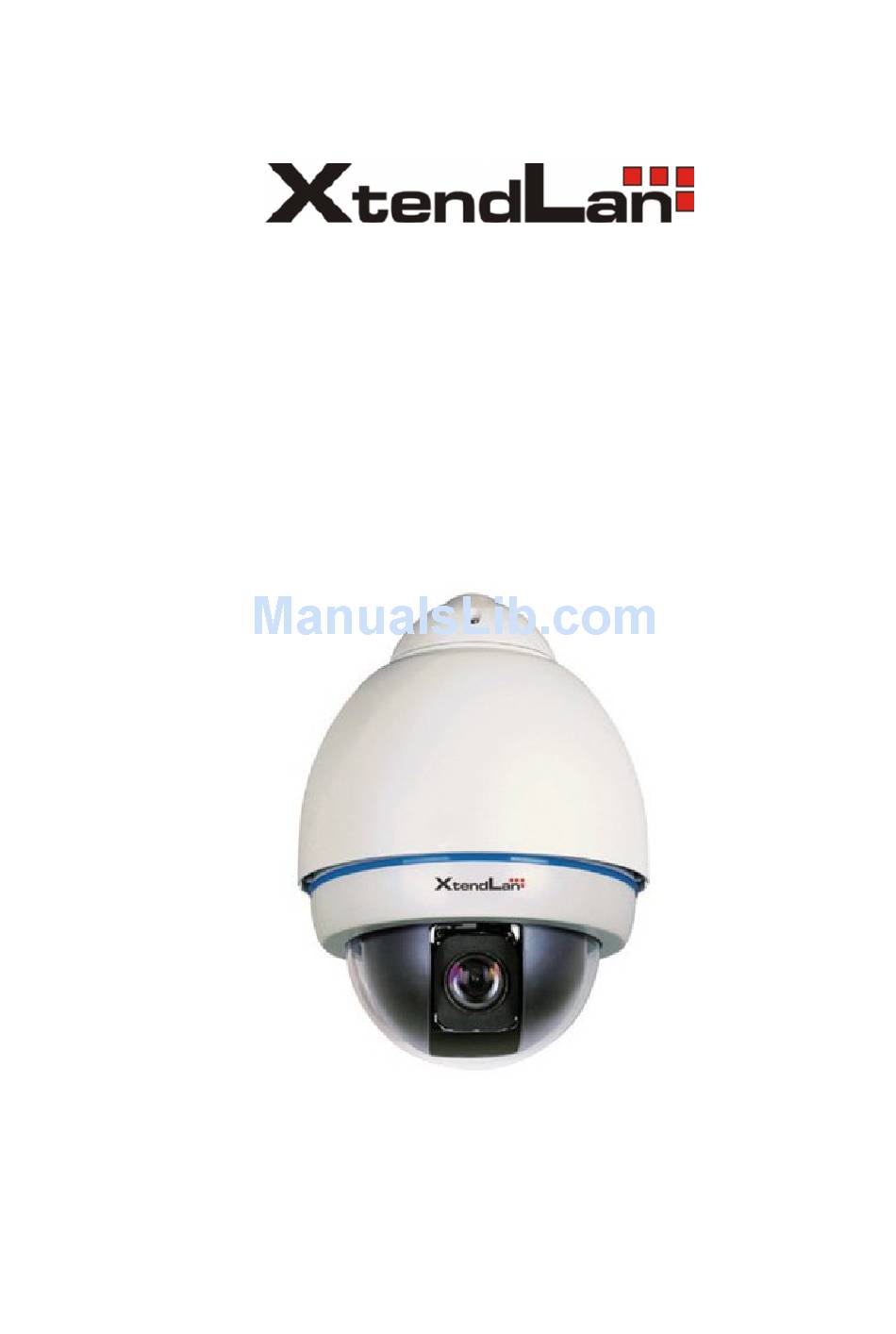

XL-ICA-H660-SC110
6-inch Mega Pixel IP Speed Dome Web Operation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-ICA-H660-SC110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XtendLan XL-ICA-H660-SC110

Summary of Contents for XtendLan XL-ICA-H660-SC110

  • Page 1 XL-ICA-H660-SC110 6-inch Mega Pixel IP Speed Dome Web Operation Manual...

  • Page 2: Table Of Contents

    Table of Contents Network Connection ........................5 Main Interface Introduction ......................6 Log in ..........................6 Monitor Channel Menu Tree ..................8 System Menu.......................11 Monitor Window Switch....................11 Preview Window Switch.....................12 PTZ Control........................12 Color and More Setup ....................15 Configure ............................ 17 System Information.....................17 3.1.1 Version Information....................
  • Page 3 Advanced ........................41 3.3.1 HDD Management ....................41 3.3.2 Alarm I/O .......................42 3.3.3 Record ........................43 3.3.4 Account........................43 3.3.5 Auto Maintenance ....................44 3.3.6 Snapshot .......................44 3.3.7 Abnormity ......................45 Additional Function ..................... 48 3.4.1 Configure ....................... 48 3.4.2 Auto Register ......................49 3.4.3 Talk Encode ......................
  • Page 4 Welcome Thank you for purchasing our product!

  • Page 5: Network Connection

    1 Network Connection This series mega pixel IP speed dome product supports the Web access and management via PC. IP speed dome factory default setup: IP address: 192.168.1.108. User name: admin Password: admin Please follow the steps listed below for network connection. Make sure the IP speed dome has connected to the network properly.

  • Page 6: Main Interface Introduction

    2 Main Interface Introduction 2.1 Log in Open IE and input IP speed dome IP address in the address column. For example, if your IP speed dome is 192.168.1.108, then please input http:// 192.168.1.108 in IE address column. See Figure 2-1 Input your IP address here.
  • Page 7 Figure 2-2 After installation, the interface is shown as below. See Figure 2-3. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. Figure 2-3...

  • Page 8: Monitor Channel Menu Tree

    After you logged in, IP speed dome web main interface is shown as in Figure ② ③ ① ④ ⑤ Figure 2-4 Web Main Interface There are six sections: Section 1: Monitor channel menu tree Section 2: System menu Section 3: PTZ control Section 4: Video setup and other setup Section 5: Preview window Section 6: Monitor window switch...
  • Page 9 Figure 2-5 Monitor Channel Menu Tree Please refer to the following sheet for detailed information. Parameter Function Channel 1 Monitor channel 1 IP speed dome supports main stream and extra stream. Main stream: In normal network width environment, main stream can record video and audio and realize network monitor.
  • Page 10 Figure 2-6 Real-time Monitor Please refer to the following sheet for monitor window parameter information. Parameter Function 1: IP speed dome IP address. Display 2: Channel number. device 3: Bit stream. information 4: Bit stream type. ¾ S1: Overlay. S2: Off stream. ¾...

  • Page 11: System Menu

    When you click local record button, the system begins Local recording. The recorded file is saved to system folder: \ Record record Download(default). You can go to chapter 2.7 to modify the local record save path. The playback bar is shown as below. 1- Playback process control 2- Play 3- Pause...

  • Page 12: Preview Window Switch

    Figure 2-8 Monitor Window Switch System supports 1/4/6/8/9/13/16/20/25/36-window real-time preview. ---- It is video quality adjustment button. It has relationship with decode via software. --Fluency button. You can use this function to adjust the priority between real-time and fluency. 2.5 Preview Window Switch The preview window switch interface is shown as in Figure 2-9.
  • Page 13 These eight buttons are null now. You can click this icon to display or hide the PTZ control platform. Figure 2-10 PTZ Interface Click PTZ set button, the interface is shown as in Figure 2-11.
  • Page 14 Figure 2-11 PTZ Setup Please refer to the following sheet for PTZ setup information. Parameter Function Move the camera to you desired location and then click left limit Scan button. Then move the camera again and then click right limit button to set a right limit.

  • Page 15: Color And More Setup

    Parameter Function Please select the matrix X, and then input the corresponding monitor Matrix output number, video input channel number, then you can click video switch button to complete the operation. 2.7 Color and More Setup Color and other setup interface are shown as in Figure 2-12. Figure 2-12 Color Please refer to the following sheet for detailed information.
  • Page 16 Please refer to the following sheet for detailed information. Parameter Function More Picture Click picture path button, system pops up an interface for you Path to modify path. Record Click record path button, system pops up an interface for you Path to modify path.

  • Page 17: Configure

    3 Configure 3.1 System Information 3.1.1 Version Information Here you can view device hardware feature and software version information. See Figure 3-1. Figure 3-1 Version Information 3.1.2 HDD information Here you can view local storage status, free capacity and total capacity. See Figure 3-2.

  • Page 18: Log

    Figure 3-2 HDD Information 3.1.3 Log Here you can view system log. See Figure 3-3. Figure 3-3 Log...

  • Page 19: System Configuration

    Click backup button, the interface is shown as in Figure 3-4. Figure 3-4 Save Log Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type management, alarm event, record operation, user management, log clear and file operation.
  • Page 20 Figure 3-5 General Setup Figure 3-6 DST Figure 3-7 DST Please refer to the following sheet for detailed information.

  • Page 21: Encode

    Parameter Function Here is for you to modify system time. Please click Save button after System your completed modification Time Sync PC You can click this button to save the system time as your PC current time. Here you can select data format from the dropdown list. Data Format Please select separator such as –...
  • Page 22 Figure 3-8 Encode Figure 3-9 Color Setting Click watermark button, you can see an interface is shown as below.
  • Page 23 Figure 3-10 Watermark Please refer to the following sheet for detailed information. Parameter Function Here is for you to select a monitor channel. Channel Here is to display current channel name. You can modify it . Channel Name Compression H.264 Main Stream It includes main stream, motion stream and alarm stream.
  • Page 24 Parameter Function Frame Rate The frame rate may vary according to the signal type you set in Additional function->Camera Property. 1.3M series： PAL：1f/s～15f/s for each channel (adjustable) NTSC：1f/s～15f/s for each channel (adjustable) 720P series： PAL：1f/s～25f/s for each channel (adjustable) NTSC：1f/s～30f/s for each channel (adjustable) There are two options: VBR and CBR.

  • Page 25: Schedule

    Parameter Function Channel Title You can enable this function so that system overlays channel information in video window. OSD transparent value ranges from 0 to 255. 0 means complete transparent. You can use the mouse to drag the channel tile position. Save You can click save button after you complete setup for one item, or you can complete the whole setups and then click save button.
  • Page 26 Figure 3-12 Storage Set Figure 3-13 Schedule Time Please refer to the following sheet for detailed information. Parameter Function Please select a channel first. Channel Pre-record Please input pre-record value here. System can record the three to five seconds video before activating the record operation into the file.

  • Page 27: Rs232

    Parameter Function Setup In Figure 3-11, click set button, you can go to the corresponding setup interface. Please set schedule period and then select corresponding record or snapshot type: motion detection/snapshot, and alarm/snapshot. Right now system does not support schedule record /snapshot function.

  • Page 28: Network

    Parameter Function RS232 There is only one option COM 01, corresponding to RS232. Console is for debug. Function Control keyboard: Switch between RS232 and control keyboard. Network keyboard: COM control protocol. You can use network keyboard to control IP speed dome via COM. Transparent COM: Network user can communicate with RS232 COM device.
  • Page 29 Figure 3-15 Network Please refer to the following sheet for detailed information. Parameter Function Ethernet Please select the network card first. If you want to use wireless network, please select port 02(wireless) and then set wireless IP address and etc(For – W series only) DHCP Dynamically get IP address.
  • Page 30 Parameter Function High-Speed Download the recorded file maximally using the network Download bandwidth. Remote Multiple Set MULCAST address and port. Host cast Enable MULCAST function. group Current series IP speed dome does not support this function right now. PPPOE Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function.
  • Page 31 Parameter Function Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. The sender email account user name. User Name The sender email account password. Password Sender email address. Sender Input email subject here.
  • Page 32 Parameter Function Server IP DDNS server IP address Server Port DDNS server port. Domain Name Your self-defined domain name. User The user name you input to log in the server. Password The password you input to log in the server. Interval Device sends out alive signal to the server regularly.
  • Page 33 Parameter Function Server IP Input remote storage server IP address. Input Remote storage server port number. Port Log in user account. User Name Password The password you need to log in the server. Remote Path Remote storage file path. Save You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button.

  • Page 34: Alarm

    Parameter Function Enable Enable NTP function or not. Server IP Server IP address Port Server port. Time Zone Device current time zone. Update Interval Time update interval value. 3.2.6 Alarm Alarm setup interface is shown as in Figure 3-20. Figure 3-20 Alarm Setup...
  • Page 35 Figure 3-21 PTZ Setup Please refer to the following sheet for detailed information. Parameter Function Event It includes local alarm/network alarm. Type Local alarm: Device detects alarm from input port. Network: Device detects alarm from network. Alarm in Select corresponding alarm channel (ch01 to ch07). Enable You need to draw a circle here so that system can detect the alarm signal.

  • Page 36: Detect

    Parameter Function System auto activates current channel to record once alarm occurs Record (working with alarm activation function). Please note current device Channel shall be in auto record mode (Chapter 3.2.3 Schedule). System can delay the record for specified time after alarm ended. Th Record value ranges from 10s to 300s.
  • Page 37 Figure 3-22 Detect Figure 3-23 Motion Detection Zone Setup Please refer to the following sheet for detailed information. Parameter Function Event There are three types: Motion detection/video loss/Camera Masking. Type Channel Select channel name from the dropdown list. Enable You need to draw a circle to enable motion detection function.
  • Page 38 Parameter Function There are six levels. The sixth level has the highest sensitivity. Sensitivity Region There are six levels. The sixth level has the highest sensitivity. Region: If you select motion detection type, you can click this button to set motion detection zone. The interface is shown as in Figure 3-23.

  • Page 39: Ptz

    Parameter Function Save You can click save button after you complete setup for one channel, or you can complete the whole setups and then click save button. Refresh Click this button to get device latest configuration information. 3.2.8 PTZ PTZ interface is shown as in Figure 3-24 Please note, before operation please make sure you have set speed dome address and the IP speed dome and speed dome connection is OK.

  • Page 40: Default & Backup

    Parameter Function Data Bit Default setup is 8. The value shall be 8 so that the Web can control the IP dome PTZ. Default setup is 1. The value shall be 1 so that the Web can control Stop bit the IP dome Parity Default setup is none.

  • Page 41: Advanced

    Parameter Function Select All Restore factory default setup. Export Export system configuration to local PC. Configuration Import Import configuration from PC to the system. Configuration Important Before you import the configuration file, please make sure the value in the imported configuration file is the same with the value in the Additional Function ->Configure-Signal Standard.

  • Page 42: Alarm I/O

    Please refer to the following sheet for detailed information. Parameter Function Format Clear data in the disk. Read/write Set current SD card as read/write Read only Set current card as read. Execute Click this button to save SD card current status. 3.3.2 Alarm I/O Here you can search alarm output status.

  • Page 43: Record

    Search alarm output status. Refresh 3.3.3 Record Record control interface is shown as in Figure 3-28. Figure 3-28 Record Please refer to the following sheet for detailed information. Parameter Function System enables auto record function as you set in record schedule Auto setup.

  • Page 44: Auto Maintenance

    Figure 3-29 Account 3.3.5 Auto Maintenance Here you can select auto reboot and auto delete old files interval from the dropdown list. See Figure 3-30. Figure 3-30 Auto Maintenance 3.3.6 Snapshot Snapshot interface is shown as in Figure 3-31.

  • Page 45: Abnormity

    Figure 3-31 Snapshot Please refer to the following sheet for detailed information. Parameter Function Channel It is the monitor channel. There are two modes: Timing and activation. Snapshot mode Frame rate You can select from the dropdown list. The value ranges from 1f/s to 8f/s.
  • Page 46 Figure 3-32 Abnormity-1 Net error interface is shown as below. See Figure 3-33.
  • Page 47 Figure 3-33 Abnormity-2 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: no disk, no space, disk error, net error Type (Figure 3-33). Capacity is not sufficient: HDD capacity has reached the threshold. You need to draw a circle to enable this function.

  • Page 48: Additional Function

    Parameter Function Send If you enable this function, system can send out email to alarm the email specified user. This function is invalid when network offline alarm occurs. 3.4 Additional Function 3.4.1 Configure Here you can set camera property parameter. See Figure 3-34. Figure 3-34 Configure Please refer to the following sheet for detailed information.

  • Page 49: Auto Register

    Backlight compensation level This series product does not support this function now. White Balance White balance is auto by default. You can not modify. Signal Standard Video input mode: BT656/720P/1080i/1080p/1080sF/1.3M. Right now system supports 720P/1.3M only. Important Before you modify the signal standard, please make sure you have stopped the camera control operation and disabled camera auto run movement.

  • Page 50: Talk Encode

    Parameter Function Enable Enable auto register function. Device management server number. Device management server IP address. Port Server port number. Device ID Device ID in the device management server. 3.4.3 Talk Encode Here you can set AMR audio compression bit rate. It ranges from AMR59～AMR475.See Figure 3-36. Figure 3-36 Talk Encode 3.4.4 IP Filter You can enable IP filter function so that some specified IP user can access the IP speed dome.

  • Page 51: Dns

    Figure 3-37 IP Filter 3.4.5 DNS Here you can set server or local operator DNS address. See Figure 3-38. When the corresponding input item is domain name, system can parse it. Figure 3-38 DNS...

  • Page 52: Search

    4 Search Click search button, you can see an interface is shown as in Figure 4-1. Please select record playback mode, and then select start time, end time and channel. Then please click search button, you can see the corresponding files in the list. Select the file(s) you want to download and then click download button, system pops up a dialogue box shown as in Figure 4-2 , then you can specify file name and path to download the file(s) to your local pc.
  • Page 53 Figure 4-2 Save as Figure 4-3 Watermark Please refer to the following sheet for detailed information. Type Parameter Function Type Record Search general record, alarm record and motion detection record. Alarm Search alarm record. Motion Search motion detection record. Detection Local Search local record.
  • Page 54 Type Parameter Function Operation Search Click this button you can view the recorded file matched your requirements. Playback Select the file first and then click playback button to view the video. Download Download by file: Select the file(s) and then click type download button.

  • Page 55: Alarm

    5 Alarm Click alarm function, you can see an interface is shown as in Figure 5-1. Here you can set device alarm type and alarm sound setup. Figure 5-1 Alarm Please refer to the following sheet for detailed information. Type Parameter Function Video loss...
  • Page 56 Type Parameter Function Prompt Automatically pops up alarm dialogue box. Sound pop up System sends out alarm sound when alarm occurs. You can specify as you wish. Path Here you can specify alarm sound file.

  • Page 57: About

    6 About Click about button, you can view current web client information. See Figure 6-1. Figure 6-1...

  • Page 58: Log Out

    7 Log out Click log out button, system goes back to log in interface. See Figure 7-1. Figure 7-1...

  • Page 59: Appendix No-Ip Ddns

    8 Appendix No-IP DDNS Please double click DDNS to go to the configuration interface. You can see an interface is shown as in Figure 8-1. Figure 8-1 DDNS Type: You can select from the dropdown list. There are five options: No-IP, DynDNS, CN99, Private and Oray.
  • Page 60 It’s a system of dynamic DNS service. If you do not have a Static IP address on the Internet, you need to have a dynamic IP. It is to say your IP address changes after a certain period of time. You can follow the steps listed below to display image on your device even your IP is dynamic.
  • Page 61 Figure 8-3 Fill in the requested fields and click I Accept button. Then you can get an email containing username and password. You can use this account to access the service. Open the e-mail sent by trusted rmação No-IP and double-click the link that is below the phrase "To activate your account please click the following URL:"...
  • Page 62 Now you can see an interface is shown as in Figure 8-5. You have successfully created an account. Figure 8-5 In Figure 8-5, click to sign and enter the email address and password you get earlier. Click “login” to sign up, you can see the welcome interface and configuration option of account.
  • Page 63 Figure 8-7 In Figure 8-8, input corresponding host name in the filed. You can use this name to access device from an external network. In the field to the right of the name, select the desired area. This is your domain name for access to the device.
  • Page 64 Figure 8-9 10. Now you need to define the definition of the server's IP in IP-device able to access this service DDNS. To get DDNS service, you need to have a computer connected to the Internet on the same network with device. Then please type the command dynupdate.
  • Page 65 1. Enter the address into your browser: http://nome the field created in step 8. For example: http://vd16s480st.no- ip.biz 2. If the device HTTP port is 80, just type the domain name. Otherwise, enter in the browser address as: http://nome the field created in Step 8: port number of HTTP. For example: http://vd16s480st.no-ip.biz:9090 3.
