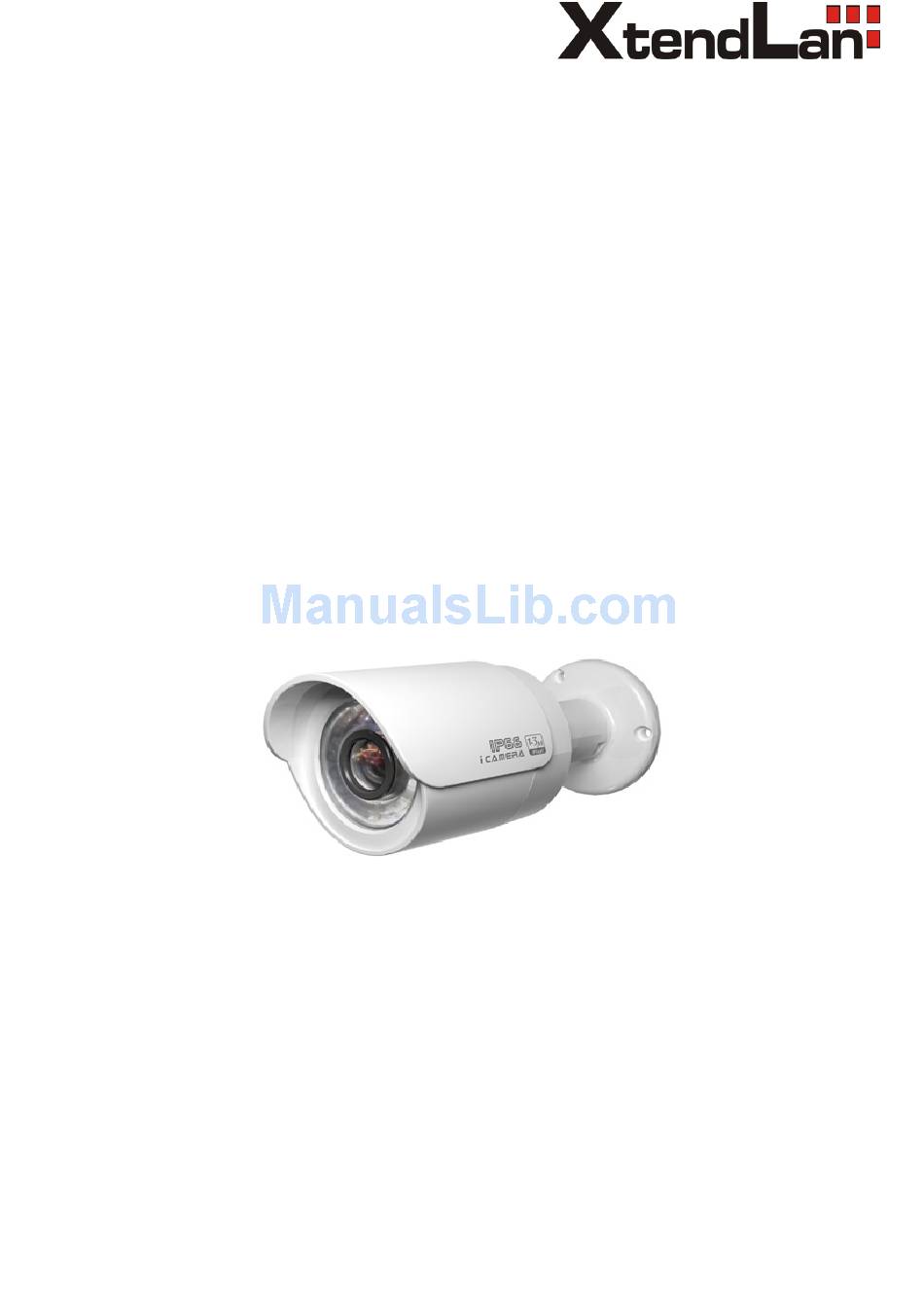

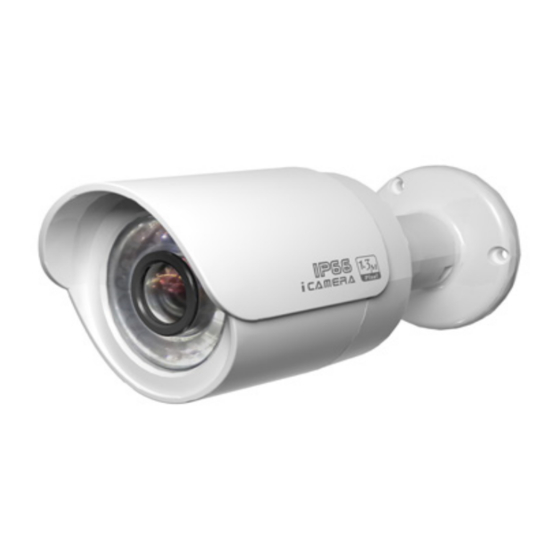

  • Page 1 XL-ICA-306M1 User's manual Version 3.0.0...

  • Page 2: Table Of Contents

    Table of Contents Network Connection ........................1 Main Interface Introduction ......................2 Log in ..........................2 Live Interface .........................4 Encode Setup ........................4 System Menu.........................5 Video Window Function Option ..................5 Video Window Setup ....................6 PTZ Control..........................8 Setup............................11 Camera .........................11 4.1.1 Conditions ......................11 4.1.2 Video ........................14 4.1.3 Audio ........................18 Network.........................19 4.2.1 TCP/IP ........................19...
  • Page 3 4.2.11 WIFI.........................30 4.2.12 Qos........................32 Event ..........................33 4.3.1 Video detect ......................33 4.3.2 Alarm........................38 4.3.3 Abnormity ......................40 Storage .........................42 4.4.1 Record schedule and snapshot schedule ............42 4.4.2 Destination ......................43 4.4.3 Record control ......................45 System ..........................46 4.5.1 General ........................46 4.5.2 Account........................49 4.5.3 PTZ.........................53 4.5.4 Default........................53 4.5.5 Import/Export ......................54 4.5.6 Auto maintenance ....................54...

  • Page 4: Network Connection

    1 Network Connection This series IPC product support the Web access and management via PC. Web includes several modules includes monitor channel preview, PTZ control, system configuration, alarm and etc. Please follow the steps listed below for network connection. Make sure the IPC has connected to the network properly. IPC IP address and PC IP address shall be in the same network segment.

  • Page 5: Main Interface Introduction

    2 Main Interface Introduction 2.1 Log in Open IE and input IP camera address in the address bar. For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address bar. See Figure 2-1. Input your IP address here Figure 2-1 IE The login interface is shown as below.
  • Page 6 Figure 2-2 Login Interface If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too.

  • Page 7: Live Interface

    2.2 Live Interface After you logged in, you can see the live monitor window. See Figure 2-4. ② ① ③ ④ Figure 2-4 Live Interface There are four sections: Section 1: Encode setup bar Section 2: System menu Section 3: Window function option bar Section 4: Window adjust bar 2.3 Encode Setup The encode setup interface is shown as in Figure 2-5.

  • Page 8: System Menu

    Figure 2-5 Encode setup Please refer to the following sheet for detailed information. Parameter Function In normal network width environment, main stream can record Main stream audio/video file and realize network monitor. You can set the main stream resolution if your device supports. If network width is not sufficient, you can use sub stream to Sub (Extra) realize network monitor.

  • Page 9: Video Window Setup

    You can snapshoot important video. All images are Snapshot memorized in system folder: \ picture download (default). You can go to Setup->Camera->Video->Path to modify the local record save path. When you click local record button, the system begins Record recording. The recorded file is saved to system folder: \ RecordDownload(default).
  • Page 10 Figure 2-9 Please refer to the following sheet for detailed information. Parameter Function Video It is to adjust monitor video Note: setup brightness. All the operations here apply to WEB end It is to adjust monitor video contrast only. ness. Please go to Setup- >Camera->Conditions It is to adjust monitor video...

  • Page 11: Ptz Control

    3 PTZ Control Before PTZ operation, please make sure you have properly set PTZ protocol. (Please go to Setup- >System->PTZ to set.). Here you can view direction keys, speed, zoom, focus, iris, preset, tour, pan, scan, pattern, aux close, and PTZ setup button. See Figure 3-1. PTZ direction: PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom left/bottom right.
  • Page 12 Figure 3-2 PTZ Setup Please refer to the following sheet for PTZ setup information. Parameter Function Move the camera to you desired location and then click left limit Scan button. Then move the camera again and then click right limit button to set a right limit.
  • Page 13 Parameter Function You can input pattern value and then click start record button to Pattern begin PTZ movement. Please go back to Figure 3-1 to implement camera operation. Then you can click stop record button in Figure 3-2. Now you have set one pattern. The assistant items include: BLC, Digital zoom, night vision, camera Assistant brightness, flip.

  • Page 14: Setup

    4 Setup 4.1 Camera 4.1.1 Conditions Here you can view device property information. Slight differences may be found due to different IPC series. The setups become valid immediately after you set. See Figure 4-1. Figure 4-1 Please refer to the following sheet for detailed information. Parameter Function Brightness...
  • Page 15 Contrast It is to adjust monitor window contrast. The value ranges from 0 to 100. The default value is 50. The larger the number, the higher the contrast is. You can use this function when the whole video bright is OK but the contrast is not proper.
  • Page 16 Auto Iris Before the setup, please make sure you have installed the auto iris. You can check the box before ON to enable this function. The auto iris may change if the light becomes different. When you disable this function, the iris is at the max. System does not add the auto iris function in the exposure control.

  • Page 17: Video

    4.1.2 Video 4.1.2.1 Video bit stream The video bit stream interface is shown as below. See Figure 4-2. Figure 4-2 Please refer to the following sheet for detailed information. Parameter Function It includes general stream, motion stream and alarm Main Bit stream type stream.
  • Page 18 Parameter Function There are three options: H.264(main profile standard, Encode mode H.264B(baseline standard）encode and MJPG encode. The H.264 and H.264B both are H264 bit stream. H.264 is the Main Profile encode and the H.264B is the Baseline Profile encode mode. H.264B is for Blackberry cell phone to realize the monitor.
  • Page 19 Parameter Function There are three options: H.264(main profile standard, Encode mode H.264B(baseline standard）encode and MJPG encode. The H.264 and H.264B both are H264 bit stream. H.264 is the Main Profile encode and the H.264B is the Baseline Profile encode mode. H.264B is for Blackberry cell phone to realize the monitor.
  • Page 20 Figure 4-3 Please refer to the following sheet for detailed information. Parameter Function There are two modes: general (schedule) and Event Snapshot type (activation). Image size It is the same with the resolution of the main stream. It is to set the image quality. There are six levels. Quality It is to set snapshot frequency.

  • Page 21: Audio

    Parameter Function Privacy mask Here you can privacy mask the specified video in the monitor video. System max supports 4 privacy mask zones. Time Title You can enable this function so that system overlays time information in video window. You can use the mouse to drag the time tile position. Channel Title You can enable this function so that system overlays channel information in video window.

  • Page 22: Network

    Figure 4-6 Please refer to the following sheet for detailed information. Parameter Function Audio enable Main stream: Recorded file only contains video by default. You need to check the audio box here to enable audio function. Sub (Extra) stream: Recorded file only contains video by default.
  • Page 23 Figure 4-7 Please refer to the following sheet for detailed information. Parameter Function Host Name It is to set current host device name. It max supports 32-digit character. Ethernet Card Please select the Ethernet port. It is for the wire LAN by default. Please note for the -W series product, it has the wireless network card, and you can modify the default Ethernet port setup.

  • Page 24: Connection

    IP Version It is to select IP version. IPV4 or IPV6. You can access the IP address of these two version. IP Address Please use the keyboard to input the corresponding number to modify the IP address and then set the corresponding subnet mask and the default gateway.
  • Page 25 Figure 4-8 Please refer to the following sheet for detailed information. Parameter Function It is the max Web connection for the same device. The value ranges from 1 connection to 20. The max connection amount is 20. TCP port The default value is 37777. You can input the actual port number if necessary.

  • Page 26: Pppoe

    4.2.3 PPPoE The PPPoE interface is shown as in Figure 4-9. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated. Device connects to the internet via PPPoE after reboot.

  • Page 27: Ip Filter

    Figure 4-10 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. The private DDNS protocol means you use your self-defined private protocol to realize DDNS function. Server IP DDNS server IP address Server Port...

  • Page 28: Smtp （E-Mail

    Figure 4-11 4.2.6 SMTP （e-mail） The SMTP interface is shown as in Figure 4-12. Figure 4-12...

  • Page 29: Upnp

    Please refer to the following sheet for detailed information. Parameter Function Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function. You can auto login anonymously.

  • Page 30: Snmp

    Here you can also add, modify or remove UPnP item. See Figure 4-13. In the Windows OS, From Start->Control Panel->Add or remove programs. Click the “Add/Remove Windows Components” and then select the “Network Services” from the Windows Components Wizard. Click the Details button and then check the “Internet Gateway Device Discovery and Control client” and “UPnP User Interface”.
  • Page 31 Figure 4-14 Please refer to the following sheet for detailed information. Parameter Function System only processes the information of V1. SNMP V1 SNMP V2 System only processes the information of V2. SNMP Port The listening port of the proxy program of the device. It is a UDP port not a TCP port.

  • Page 32: Bonjour

    Parameter Function The destination port of the Trap information from the proxy Trap port program of the device. It is for the gateway device and the client-end PC in the LAN to exchange the information. It is a non-protocol connection port. It has no effect on the network applications.

  • Page 33: Wifi

    can just send out one data to transit. This function also depends on the relationship of the group member and group of the outer. Here you can set multicast address and port. You also need to go to Live interface to set the protocol as Multicast.
  • Page 34 Figure 4-17 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list. Double click a name to connect to it. See Figure 4-18.

  • Page 35: Qos

    Figure 4-18 4.2.12 Qos The QoS interface is shown as below. See Figure 4-19. Qos (Quality of Service) is network security mechanism. It is a technology to fix the network delay and jam problem and etc. For the network service, the quality of service includes the transmission bandwidth, delay, the packet loss and etc.

  • Page 36: Event

    Figure 4-19 Please refer to the following sheet for detailed information. Parameter Function Real-time The value ranges from 0 to 63. The router or the switcher can monitor provide different service for various data packets. Command The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets.
  • Page 37 Figure 4-20 Figure 4-21...
  • Page 38 Figure 4-22 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Region There are six levels. The sixth level has the highest sensitivity. Region: If you select motion detection type, you can click this button to set motion detection zone.
  • Page 39 Parameter Function System only memorizes one event during the anti-dither period. Anti-dither The value ranges from 0s to 100s. Relay out Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs.
  • Page 40 Figure 4-24 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Area There are six levels. The sixth level has the highest sensitivity. Region: you can click this button to set Video masking zone.

  • Page 41: Alarm

    Parameter Function Relay out Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs. System can delay the alarm output for specified time after alarm Alarm Delay ended. The value ranges from 10s to 300s. Record System auto activates motion detection channel to record once channel...
  • Page 42 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. Working This function becomes activated in the specified periods. Period There are six periods in one day. Please draw a circle to enable corresponding period.

  • Page 43: Abnormity

    Figure 4-26 Please refer to the following sheet for detailed information. Parameter Function Alarm output There is only one output channel. Please click the button 1. If you want to enable the alarm activation output function, please press the corresponding button and then trigger. Search alarm output status.
  • Page 44 Figure 4-28 Figure 4-29 Figure 4-30...

  • Page 45: Storage

    Figure 4-31 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: no disk, no space, disk error, net error, Type offline, IP conflict. Threshold: You can set the minimum percentage value here. The device can alarm when capacity is not sufficient.

  • Page 46: Destination

    There are three record modes: general (auto), motion detect and alarm. There are six periods in one day. Please make sure you have enabled the corresponding record mode in the Setup->Storage- >Conditions. You can view the current time period setup from the color bar. Green color stands for the general record/snapshot.
  • Page 47 Parameter Function Event It includes: general, motion detect and alarm. Type Local It saved in the SD card. It saved in the FTP server. Network It can save according to the corresponding network protocol. The local interface is shown as in Figure 4-34. Here you can view local SD card or disk information. You can also operate the read-only, write-only, hot swap and format operation.

  • Page 48: Record Control

    Figure 4-35 The network interface is shown as in Figure 4-36. You need to check the box to enable the network. Please select the mode from the dropdown list. It includes: NFS, ISCSI and etc. You can select according to your actual requirements. Figure 4-36 4.4.3 Record control The record control interface is shown as in Figure 4-37.

  • Page 49: System

    Figure 4-37 Please refer to the following sheet for detailed information. Parameter Function Here you can select file size. Default setup is 8 minutes. Pack Duration Pre-record Please input pre-record value here. For example, system can record the four seconds video in the buffer. The record begins from the fifth second.
  • Page 50 Figure 4-38 Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device No Video This is to display video standard such as PAL. Standard Language You can select the language from the dropdown list. Please note the device needs to reboot to get the modification activated.
  • Page 51 Figure 4-39 Please refer to the following sheet for detailed information. Parameter Function Here you can select date format from the dropdown list. Date format There are two options: 24-H and 12-H. Time Format The time zone of the device. Time zone It is to set system time.

  • Page 52: Account

    4.5.2 Account Note: For the character in the following user name or the user group name, system max supports 6-digits. The space in the front or at the end of the string is null. The valid string includes: character, number, and underline.
  • Page 53 Figure 4-41 Modify user It is to modify the user property, belonging group, password and rights. See Figure 4-42. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup.
  • Page 54 Figure 4-42 4.5.2.2 Group The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 4-43. Figure 4-43 Add group: It is to add group and set its corresponding rights. See Figure 4-45.
  • Page 55 Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 4-44 Modify group Click the modify group button, you can see an interface is shown as in Figure 4-45. Here you can modify group information such as remarks and rights.

  • Page 56: Ptz

    4.5.3 PTZ The PTZ interface is shown as in Figure 4-46. Figure 4-46 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol Set corresponding dome address. Default value is 1. Please note your Address setup here shall comply with your dome address;...

  • Page 57: Import/Export

    Figure 4-47 4.5.5 Import/Export The interface is shown as in Figure 4-48. Figure 4-48 Please refer to the following sheet for detailed information. Parameter Function It is to import the local setup files to the system. Import It is to export the corresponding system setup to your local PC. Export 4.5.6 Auto maintenance The auto maintenance interface is shown as in Figure 4-49.

  • Page 58: Firmware Update

    Figure 4-49 4.5.7 Firmware update The firmware interface is shown as in Figure 4-50. Please select the upgrade file and then click the update button to begin firmware update. Important Update improper program may result in device malfunction! Figure 4-50 4.6 Information 4.6.1 Version The version interface is shown as in Figure 4-51.

  • Page 59: Log

    Figure 4-51 4.6.2 Log Here you can view system log. See Figure 4-52. Figure 4-52 Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear.
  • Page 60 Parameter Function Set the end time of the requested log. End time You can select log type from the drop down list and then click search Search button to view the list. You can click the stop button to terminate current search operation. You can select one item to view the detailed information.

  • Page 61: Alarm

    5 Alarm Click alarm function, you can see an interface is shown as in Figure 5-1. Here you can set device alarm type and alarm sound setup. Figure 5-1 Alarm Please refer to the following sheet for detailed information. Type Parameter Function Alarm...

  • Page 62: Log Out

    6 Log out Click log out button, system goes back to log in interface. See Figure 6-1. Figure 6-1 Note Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. If there is any uncertainty or controversy, please refer to the final explanation of us.
