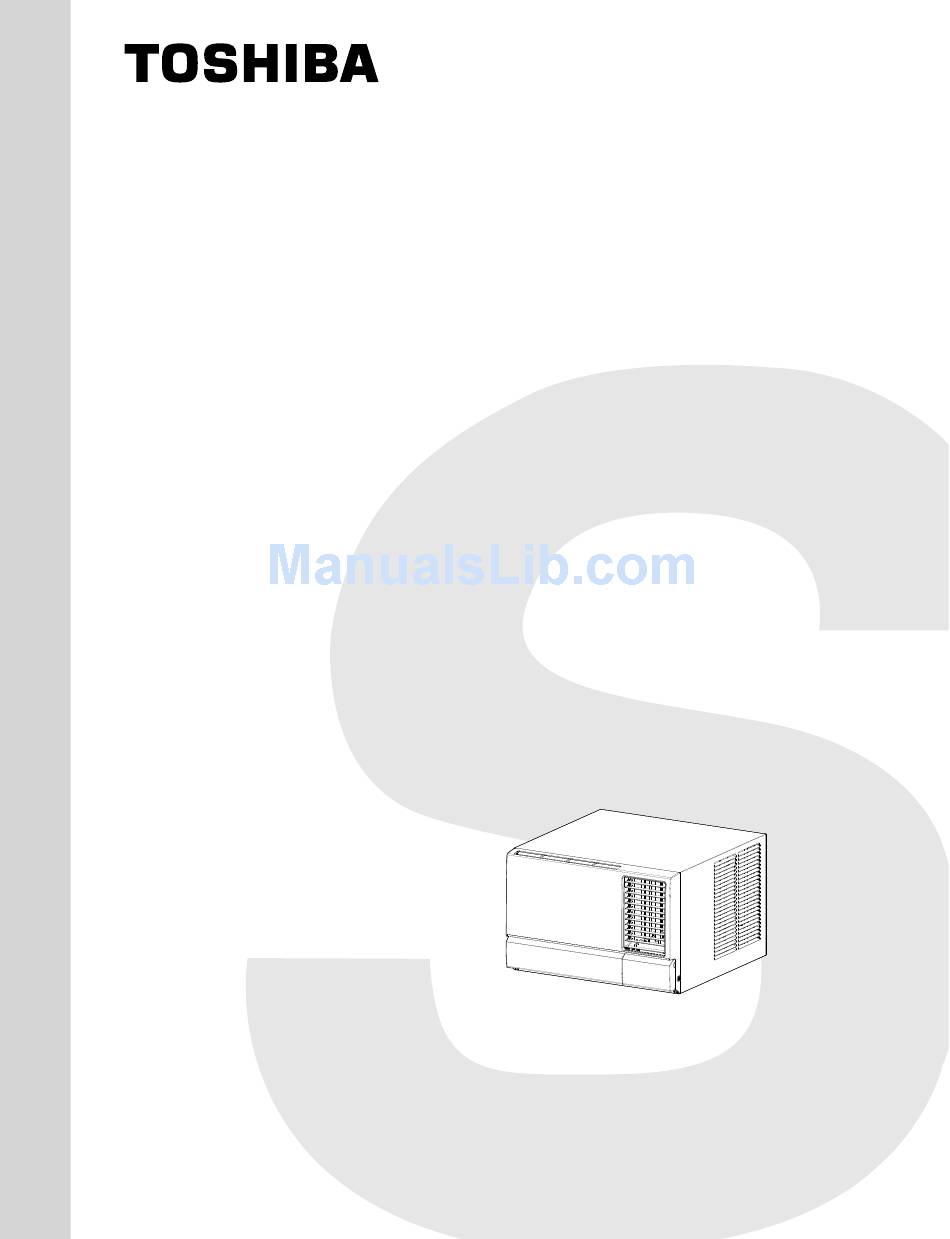

- Page 1 FILE NO. SVM-06051-2 SERVICE MANUAL AIR-CONDITIONER WINDOW TYPE RAC-24G-AR RAC-24G2B RAC-24GE2B RAC-24G2L Revised Jul, 2007...
-
Page 2: Table Of Contents
FILE NO. SVM-06051 CONTENTS 1. SPECIFICATIONS 2. CONSTRUCTION VIEWS 3. SPECIFICATIONS OF ELECTRICAL PARTS 4. WIRING DIAGRAM 5. REFRIGERATING CYCLE DIAGRAM 6. PERFORMANCE CHARACTER 7. EXPLODED VIEWS AND PARTS LIST – 2 –... -
Page 3: Specifications
FILE NO. SVM-06051 1. SPECIFICATIONS MODEL RAC-24GE2B RAC-24G2B RAC-24G-AR RAC-24G2L ITEM COOLING (SSA) HEATING COOLING (SSA) COOLING (JIS) COOLING (JIS) k cal/h 4,800 3,440 4,800 — — Capacity* Btu/h 5,600 (W) 4,000 (W) 5,600 (W) 6,500 (W) 6,500 (W) Phase... -
Page 4: Construction Views
FILE NO. SVM-06051 2. CONSTRUCTION VIEWS 1300 mm Power source Single phase 60Hz 220V For RAC-24G2B,GE2B,G2L Single phase 50Hz 220-240V For RAC-24G-AR... -
Page 5: Specifications Of Electrical Parts
Heater 4.0kW (at 220V), Thermal relay 60°C OFF, HG-2240 (RAC-24GE2B) Thermal fuse 95°C OFF 3-2. RAC-24G-AR Different points from above model show below and another specifications are the same as above. Parts name Model Specifications Output (Rated) 2,200W, 2 poles, Single phase, 220-240V, 50Hz... -
Page 6: Wiring Diagram
FILE NO. SVM-06051 4. WIRING DIAGRAM 4-1. RAC-24GE2B SELECTOR SWITCH AUTO LOUVER RED YEL FAN MOTOR SWITCH HEATER FUSE GRN&YEL THERMOSTAT CUTOFF RUNNING THERMOSTAT CN01 CN02 CN03 CAPACITOR AUTO LOUVER SURGE MOTOR PROTECTOR SG01 CN01 CN02 CN03 RUNNING CAPACITOR BLU GRN&YEL COMPRESSOR SINGLE PHASE... - Page 7 FILE NO. SVM-06051 4-3. RAC-24G-AR FAN MOTOR SELECTOR SWITCH GRN&YEL RUNNING CAPACITOR LOW FAN LOW COOL HIGH COOL HIGH FAN AUTO LOUVER AUTO LOUVER SWITCH MOTOR GRN&YEL THERMOSTAT CN01 CN02 CN03 RUNNING SURGE CAPACITOR R01 R02 PROTECTOR SG01 CN01 CN02...
-
Page 8: Refrigerating Cycle Diagram
* When servicing the cycle, be sure to change the strainer for the dryer. Surface temp. of heat exchanger Ambient temp. conditions interchanging pipe (°C) DB/WB (°C) Conditions Indoor Outdoor Standard 27/19.5 35/24 RAC-24G-AR High temperature 32/22.5 52/24 Low temperature 21/15.5 21/15.5 Standard 29/19 46/24 RAC-24G2B, 24GE2B, 24G2L High temperature 32/22.5... -
Page 9: Performance Character
FILE NO. SVM-06051 6. PERFORMANCE CHARACTER 6-1. RAC-24G-AR – 9 –... - Page 10 FILE NO. SVM-06051 6-2. RAC-24G2B,24GE2B – 10 –...
- Page 11 FILE NO. SVM-06051 6-3. RAC-24G2L – 11 –...
-
Page 12: Exploded Views And Parts List
FILE NO. SVM-06051 7. EXPLODED VIEWS AND PARTS LIST 7-1. Cabinet Assy Location Part Location Part Description Description 43T00467 CABINET ASSY 43T80316 AIR FILTER 43T00465 FRONT PANEL ASSY 43T79005 ASM-D-ELBOW – 12 –... - Page 13 FILE NO. SVM-06051 7-2. Main Assy Location Part Location Part Description Description 43T21382 FAN MOTOR (FG-240-145C) 43T72004 DRAIN-PAN (24G-AR,G2B,G2L) (24G-AR) 43T72306 DRAIN PAN ASSY (24GE2B) 43T21383 FAN MOTOR (FG-230-150D) 43T63003 C-THERMO-HOLDER 43020242 SIROCCO FAN ASSY (24G-AR,G2B,G2L) (24G-AR,G2B,G2L) 43T63009 HOLDER;THERMOSAT (24GE2B) 43020245 SIROCCO FAN ASSY 43T07007...
- Page 14 FILE NO. SVM-06051-1 7-3. E-Parts Assy Location Part Location Part Description Description 43T67304 GEAR-MOTOR-ASSY 43T55343 Capacitor, (24G2B, 43051320 ROTARY SWICH G2B, G2L) (24G-AR,G2B,G2L) 43T60368 Power Cord ASSY(24G-AR,G2B,G2L) 43051321 ROTARY SWITCH (24GE2B) 43T60369 Power Cord ASSY(24GE2B) 43T50319 THERMOSTAT (24G-AR,G2B,G2L) 43T08415 SWITCH PANEL (24G-AR,G2B) 43T50011 THERMOSTAT (24GE2B) 43T08416...
- Page 15 FILE NO. SVM-06051 7-4. Refrigerator Assy (RAC-24G-AR) Location Part Location Part Description Description 43T44005 EVAPORATOR-ASSY 43T89006 BOX-SPANNER 43T43378 ASM-COND 43T47368 INJ CAPI ASSY 43T47362 STRAINER ASSY 43T47365 AUX PIPE C ASSY 43T49011 SPRING BASE(UPPER) 43T47366 AUX PIPE D ASSY 43T49012...
- Page 16 FILE NO. SVM-06051 7-4. Refrigerator Assy (RAC-24G2B, 24G2L, 24GE2B) Location Part Location Part Description Description 43T44005 EVAPORATOR-ASSY 43T41392 COMPRESSOR (PH370X3CJ-3MTS) 43T43378 ASM-COND 43T89006 BOX-SPANNER 43T47361 PIPE CAPI ASSY (24G2B) 43T47368 INJ CAPI ASSY 43047362 PIPE CAPI ASSY (24G2L,GE2B) 43T47363 AUX PIPE A ASSY 43T49011 SPRING BASE (UPPER) 43T47364...
- Page 17 FILE NO. SVM-06051 7-5. Heater Assy (RAC-24GE2B) Location Part Location Part Description Description 43T57301 HEATER 43T11005 INSU-SPACER-B 43T11003 INSULATOR (A) 43T96002 BUSHING – 17 –...
- Page 18 TOSHIBA CARRIER (THAILAND) CO., LTD. 144/9 MOO 5, BANGKADI INDUSTRIAL PARK, TIVANON ROAD, TAMBOL BANGKADI, AMPHUR MUANG, PATHUMTHANI 12000, THAILAND.
