USER MANUAL
Portable Type
Room Air Conditioner
RAC-PD0811CRU
RAC-PD1011CRU
RAC-PD1211CRU
RAC-PD1411CRU
RAC-PD1411CWU
RAC-PD1411HRU
version B - 10 - 2017
Operating Ins
C
C
are
and
Clea
Troubleshoot
Remote Control Operating
Instructions
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference.
The design and specifications are subject to
change without prior notice for product
improvement. Consult with your dealer or
manufacturer for details.
us.toshiba-lifestyle.com
Advertisement
Table of Contents
Related Manuals for Toshiba RAC-PD0811CRU
Summary of Contents for Toshiba RAC-PD0811CRU
-
Page 1: User Manual
Troubleshooting Tips Troubleshoot Remote Control Operating Instructions USER MANUAL Portable Type Room Air Conditioner RAC-PD0811CRU RAC-PD1011CRU Warning notices: Before using this product, RAC-PD1211CRU please read this manual carefully and keep it for future reference. RAC-PD1411CRU The design and specifications are subject to... - Page 2 User Manual Safety Precautions ...................... 3 Operating Instructions ....................Installation Instructions ..................Care and Cleaning ....................Troubleshooting Tips ....................Remote Control Operating Instructions ............Read This Manual Inside you’ll find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.
- Page 3 SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classifi ed by the following indications. WARNING: This symbol indicates the possibility of death or serious injury.
- Page 4 WARNING • DO NOT allow children to play with the air conditioner. Children must be supervised around the unit at all times. • If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage.
- Page 5 OPERATING INSTRUCTIONS Preparation control panel horizontal louver blade upper air filter (automatic swing) (behind the grille) handle (both sides) upper air intake drain outlet air outlet Panel lower air filter lower air intake drain outlet (only for pump heating mode) power cord outlet power cord buckle Caster...
- Page 6 Control Panel Features LED Display Wi-Fi Indicator Light (Wi-Fi models only) Swing Timer Mode Up ( ) and Down ( ) Sleep/Eco Power Button Button Button Buttons Button Button Button Swing Button Mode button Used to initiate the Auto Swing feature. When the Selects the desired operating mode.
- Page 7 Control Panel Features (cont.) LED Display Wi-Fi Indicator Light (Wi-Fi models only) Swing Timer Mode Up ( ) and Down ( ) Sleep/Eco Power Button Button Button Buttons Button Button Button WI-FI Function LED display (Available on Wi-Fi models only) Shows the set temperature in °C (Degrees Celsius) or °F (Degrees Fahrenheit) and the Auto-timer With the unit ON, press the VENT ANGLE/...
- Page 8 Operating Instructions COOL operation • Press the “FAN SPEED” button to choose the fan speed. The temperature cannot be adjusted. • Press the “MODE” button until the “COOL” • Do not connect the duct to a window. indicator light comes on. •...
- Page 9 Other Features AUTO-RESTART If the unit shuts off unexpectedly due to a power outage, it will restart with the previously set function automatically when the power resumes. WAIT 3 MINUTES BEFORE RESUMING OPERATION After the unit has stopped, it cannot be restarted until 3 minutes time has elapsed. This is to protect the unit.
- Page 10 NOTE Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will impede water fl ow. Place the end of the hose into the drain and make sure the end of the hose is directed downward to let the water fl ow smoothly.
- Page 11 INSTALLATION INSTRUCTIONS Choosing the Right Location Your installation location should meet the following requirements: • Make sure that you install your unit on an even surface to minimize noise and vibration. • The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.
- Page 12 Tools Needed • Medium Phillips screwdriver • Tape measure or ruler • Knife or scissors • Saw (optional, to shorten window adaptor for narrow windows). Accessories Your Window Installation Kit fi ts windows 67.5-123 cm (26.5”-48”) and can be shortened for smaller windows. Part Description Quantity...

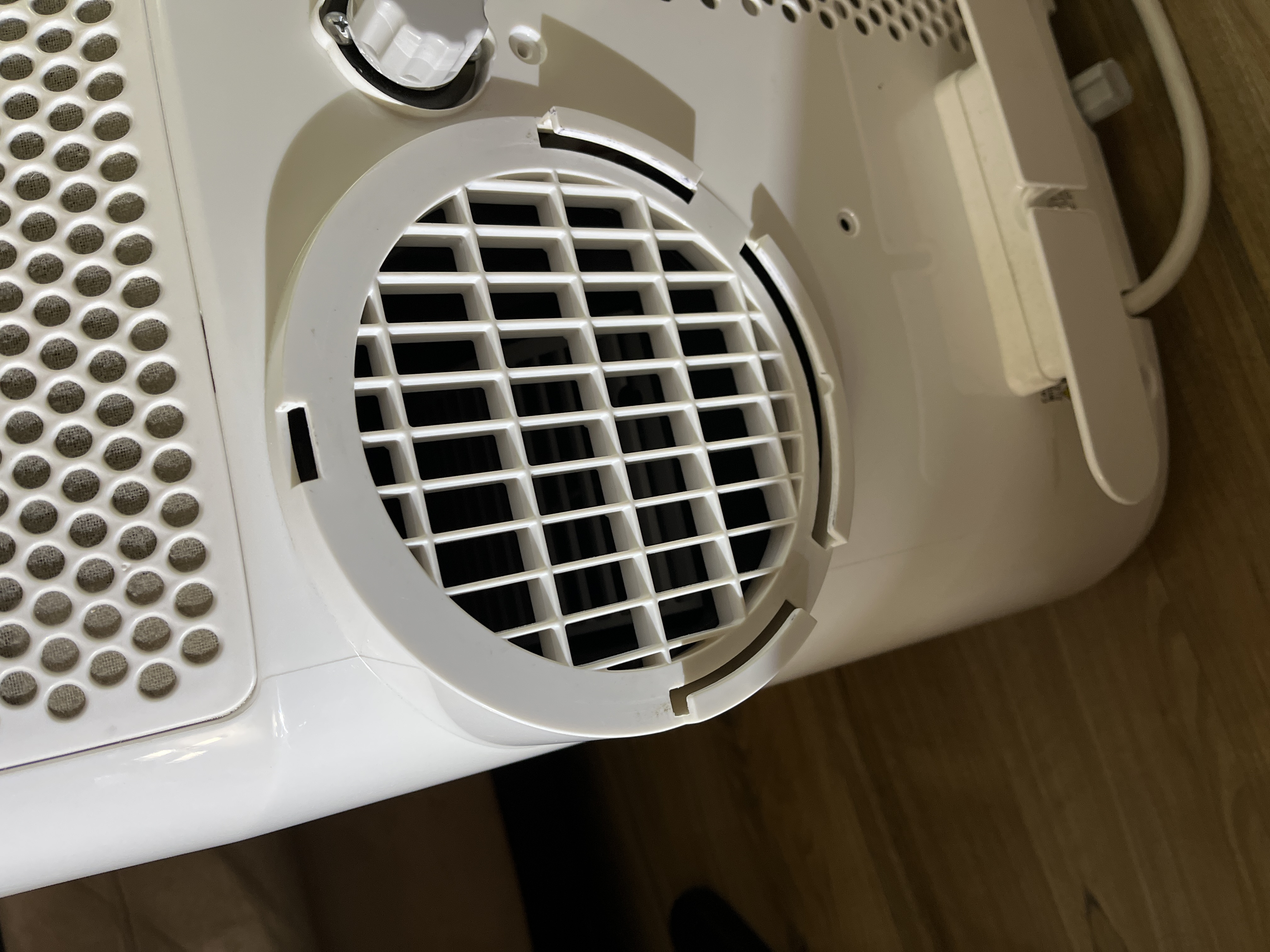

- Page 13 Window Installation Kit Step One: Preparing the exhaust hose Exhaust hose Exhaust hose assembly assembly Press the exhaust hose into the window slider adaptor and unit adaptor, clamp automatically by elastic buckles of the adaptors. Unit Window slider adaptor adaptor Step Two: Install the exhaust hose Hook assembly to the unit...
- Page 14 NOTE Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods. Type 1: Hung window installation Foam seal B (Adhesive type-shorter) Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.
- Page 15 Type 2: Sliding window installation Foam seal B (Adhesive Cut the adhesive foam seal A and B strips to the proper lengths, type-shorter) and attach them to the window sash and frame as shown. Foam seal A (Adhesive type) Insert the window slider assembly into the window opening. Window slider B (if required) Window slider A...
- Page 16 CARE AND CLEANING Safety Precautions • Always unplug the unit before cleaning or servicing. • DO NOT use fl ammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. •...
- Page 17 TROUBLESHOOTING TIPS Malfunction Diagnosis Please check the machine according to the following table before calling for service: Problem Possible Cause Troubleshooting P1 Error Code. The water collection tray is full. Turn off the unit, drain the water from Unit does not turn the water collection tray and restart on when pressing the unit.
- Page 18 REMOTE CONTROL OPERATING INSTRUCTIONS Remote Control Specifi cations Model RG57H(B)/BGCEU1 RG57H(B)/BGEU1 Rated voltage 3.0V (Dry batteries R03/LR03x2) Signal receiving range 8 m (approx. 26 ft.) Environment -5°C ~ 60°C (23°F ~ 140°F) Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control.
- Page 19 Handling the Remote Control NOT SURE WHAT A FUNCTION DOES? Refer to the Operating Instructions section of this manual for a detailed description of how to use your air conditioner. SPECIAL NOTE Button designs on your unit may differ slightly from the example shown. If the unit does not have a particular function, pressing that function’s button on the remote control will have no effect.
- Page 20 Remote LED Screen Indicators Transmission Indicator Lights up when remote sends signal to unit ON/OFF display MODE display Appears when the unit is turned on and disappears when it is turned off Displays the current mode, including: AUTO TIMER ON display TIMER OFF display COOL Displays when...
- Page 21 Basic Functions SETTING THE DESIRED TEMPERATURE The operating temperature range for this unit is 17-30°C (62°F-86°F). You can increase or decrease the set temperature in 1°C (1°F) increments. AUTO operation In AUTO mode, the unit will automatically select the COOL, FAN, HEAT or DRY mode based on the set temperature.
- Page 22 FAN operation 1. Press the MODE button to select FAN mode. 2. Press FAN button to select the fan speed: AUTO, LOW, MED or HIGH. 3. Press the ON/OFF button to start the unit. NOTE You cannot set temperature in FAN mode. As a result, your remote control’s LCD screen will not display temperature.
- Page 23 Timer Functions Your air conditioning unit has two timer-related functions: TIMER ON - sets the amount of time after which the unit will automatically turn on. TIMER ON TIMER ON TIMER OFF - sets the amount of time after which the unit will automatically turn off.
- Page 24 3. Wait 2 seconds, then the TIMER OFF function will be activated. The digital display on your remote control will then return to the temperature display. T imer on NOTE Continue When setting the TIMER ON or TIMER OFF functions, up to 10 to press hours, the time will increase in 30 minute increments with each TIMER ON...
- Page 25 How to Use the Advanced Functions SLEEP Function The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. Note: The SLEEP function is not available in FAN or DRY mode.
- Page 26 NOTES • The device may comply with local national regulations. In Canada, it should comply with CAN ICES-3(B)/NMB-3(B). In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 WARNING: Chemical Burn Hazard. Keep batteries away from children. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment.
