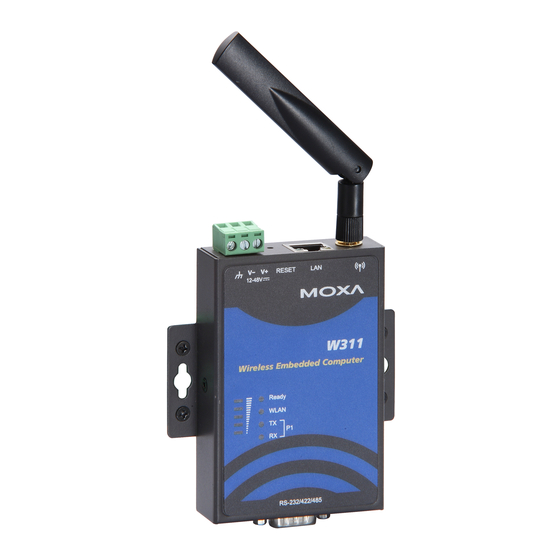

Moxa Technologies ThinkCore W311 User Manual
Wireless risc-based embedded computers
Hide thumbs
Also See for ThinkCore W311:
- User manual (104 pages) ,
- Hardware user manual (26 pages) ,
- Quick installation manual (2 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Moxa Technologies ThinkCore W311
Summary of Contents for Moxa Technologies ThinkCore W311
- Page 1 ThinkCore W311/321/341 Hardware User’s Manual Second Edition, March 2007 www.moxa.com/product Moxa Systems Co., Ltd. Tel: +886-2-2910-1230 Fax: +886-2-2910-1231 Web: www.moxa.com MOXA Technical Support Worldwide: support@moxa.com The Americas support@usa.moxa.com...
-
Page 2: Copyright Notice
ThinkCore W311/321/341 Hardware User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2007 Moxa Systems Co., Ltd. All rights reserved. Reproduction without permission is prohibited. -
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ....................1-1 Overview..........................1-2 Package Checklist ........................1-2 Product Features ........................1-3 Product Hardware Specifications..................... 1-3 Hardware Block Diagram ......................1-6 ThinkCore W311 ......................1-6 ThinkCore W321 ......................1-6 ThinkCore W341 ......................1-7 Chapter 2 Hardware Introduction.................2-1 Appearance .......................... -
Page 4: Chapter 1 Introduction
Introduction Chapter 1 The ThinkCore W300 Series is a line of wireless RISC-based embedded computers that feature 802.11a/b/g WLAN, RS-232/422/485 serial ports, and an Ethernet port in a small, rugged chassis. In addition, the W321 and W341 models feature an SD slot, and the W341 features two USB 2.0 hosts and one relay output channel. -
Page 5: Overview
ThinkCore W311/321/341 Hardware User’s Manual Introduction Overview The ThinkCore W300 Series wireless embedded computer is designed around the MOXA ART ARM9 32-bit RISC processor. Unlike the X86 CPU, which uses a CISC design, the MOXA ART ARM9 uses RISC architecture and modern semiconductor technology to provide a powerful computing engine without generating significant heat. -
Page 6: Product Features
ThinkCore W311/321/341 Hardware User’s Manual Introduction Product Features ThinkCore W300 Series computers have the following features: MOXAART 32-bit ARM9 industrial communication processor 32 MB on-board RAM (64 MB for W341) 16 MB built-in flash memory 802.11a/b/g Wireless LAN WEP, WPA and WPA2 encryption Infrastructure mode and Ad-Hoc mode RS-232/422/485 serial ports with software selectable interface Baudrates between 50 and 921.6 Kbps;... - Page 7 ThinkCore W311/321/341 Hardware User’s Manual Introduction WLAN Communication Standard Compliance 802.11a/b/g Radio Frequency Type DSSS, CCK, OFDM Radio Frequency Band 802.11a: 5.15 to 5.25 GHz, 5.25 to 5.35 GHz, 5.725 to 5.825 GHz 802.11b/g: U.S., Europe and Japan product covering 2.4 to 2.484 GHz Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) Modulation...
- Page 8 ThinkCore W311/321/341 Hardware User’s Manual Introduction LEDs System Ready, SD activity (for W321 and W341 only) WLAN Enable, signal strength 10 M/Link, 100 M/Link (RJ45 connector) Serial TxD, RxD Power Requirements Power Input 12 to 48 V Power Consumption W311: 400 mA @ 12 VDC W321: 400 mA @ 12 VDC W341: 600 mA @ 12 VDC with no USB devices attached 1.2A @ 12 VDC with USB devices on each port at max spec...
-
Page 9: Hardware Block Diagram
ThinkCore W311/321/341 Hardware User’s Manual Introduction Hardware Block Diagram ThinkCore W311 802.11a/b/g Ethernet WLAN Power Circuit 64MB MOXA ART CPU 32-bit ARM9 16MB 192 MHz Flash Watchdog UART UART Serial Console Port Port RS-232/422/485 RS-232 ThinkCore W321 Ethernet 802.11a/b/g WLAN Power 16MB Circuit... -
Page 10: Thinkcore W341
ThinkCore W311/321/341 Hardware User’s Manual Introduction ThinkCore W341 802.11a/b/g Ethernet USB 2.0 Relay WLAN Host x 2 Output Power 16MB Circuit MOXA ART CPU 32-bit ARM9 Flash 192 MHz Watchdog Function UART UART UART UART UART Serial Serial Serial Serial Console Port 1 Port 2... -
Page 11: Chapter 2 Hardware Introduction
Hardware Introduction Chapter 2 ThinkCore W300 Series hardware is compact, well-designed, and built rugged for industrial applications. LED indicators help you monitor the performance and identify trouble spots. Multiple ports allow the connection of different devices for wireless operation. With the reliable and stable hardware platform that is provided, you may devote your attention to the development of your application. -
Page 12: Appearance
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction Appearance ThinkCore W311 Wireless LAN antenna Ethernet (10/100BaseTx) 12 to 48 VDC Serial console port Serial Port (RS-232/422/485) ThinkCore W321 Wireless LAN antenna Ethernet (10/100BaseTx) 12 to 48 VDC Serial console port Internal SD Slot for Storage Expansion (remove cover to access) Serial Port 1... -
Page 13: Thinkcore W341
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction ThinkCore W341 Top View Reset Button Relay Output USB 2.0 Host Internal SD Slot for Storage Expansion (remove cover to access) RELAY Reset 12-48V Ethernet Wireless LAN 12 to 48 VDC 10/100BaseTX antenna Front View Wireless LAN antenna... -
Page 14: Dimensions
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction Dimensions ThinkCore W311 22 mm (0.87 in) 67 mm (2.64 in) 78 mm (3.07 in) 90 mm (3.54 in) -
Page 15: Thinkcore W321
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction ThinkCore W321 26 mm (1.02 in) 77 mm (3.03 in) 88 mm (3.46 in) 100 mm (3.94 in) -
Page 16: Thinkcore W341
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction ThinkCore W341 RELAY Reset 12-48V 38 mm (1.50 in) 40.5 mm (1.59 in) 150 mm (5.91 in) 161 mm (6.34 in) 173 mm (6.81 in) -
Page 17: Led Indicators
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction LED Indicators Please note that the W311 does not include an SD slot, so it will not have an SD LED. LED Name LED Color LED Function Green Power is on and functioning normally Ready Power is off or there is another power error Green... -
Page 18: Real Time Clock
ThinkCore W311/321/341 Hardware User’s Manual Hardware Introduction Real Time Clock The embedded computer’s real-time clock is powered by a lithium battery. We strongly recommend that you NOT replace the lithium battery on your own. If the battery needs to be changed, please contact the MOXA RMA service team. -
Page 19: Chapter 3 Hardware Connection Description
Har ware Connection Description Chapter 3 ThinkCore W300 Series wireless embedded computers are equipped for multiple types of connections. WLAN, Ethernet, and multiple serial interfaces are built into every model, including a serial console port for monitoring of bootup messages. Select models also include an SD sl ot for storage expansion, USB ports for additional device and storage options, and relay output connections. -
Page 20: Wiring Requirements
ThinkCore W311/321/341 Hardware User’s Manual Hardware Connection Description Wiring Requirements This section describes how to connect serial devices to the embedded computer. You should heed the following common safety precautions before proceeding with the installation of any electronic device: Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. -
Page 21: Connecting Data Transmission Cables
ThinkCore W311/321/341 Hardware User’s Manual Hardware Connection Description ATTENTION This product should be mounted to a well-grounded mounting surface such as a metal panel. SG: The Shielded Ground (sometimes called Protected Ground) contact is the left most contact of the 3-pin power terminal block connector, as viewed from the angle shown here. -
Page 22: Connecting To A Serial Device
ThinkCore W311/321/341 Hardware User’s Manual Hardware Connection Description Connecting to a Serial Device Your serial device can plug into the embedded computer’s serial port using a serial cable. Serial ports P1 to P4 have male DB9 connectors and can be configured for RS-232, RS-422, or RS-485 communication through software. -
Page 23: Usb (W341 Only)
ThinkCore W311/321/341 Hardware User’s Manual Hardware Connection Description SD Slot SD Slot USB (W341 only) The ThinkCore W341 includes two USB 2.0 hosts. These hosts can be used for an external flash disk or hard drive in order to store large amounts of data. Relay Output (W341 only) The ThinkCore W341 includes a relay output channel. -
Page 24: Appendix A Fcc Warning Statement
FCC Warning Statement Appendix A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. -
Page 25: Appendix B Service Information
Service Information Appendix B This appendix shows you how to contact MOXA for information about this and other products, and how to report problems. The following topics are covered in this appendix: MOXA Internet Services Problem Report Form Product Return Procedure... -
Page 26: Moxa Internet Services
ThinkCore W311/321/341 Hardware User’s Manual Service Information MOXA Internet Services Customer satisfaction is our number one concern, and to ensure that customers receive the full benefit of our products, MOXA Internet Services has been set up to provide technical support, driver updates, product information, and user’s manual updates. -
Page 27: Problem Report Form
ThinkCore W311/321/341 Hardware User’s Manual Service Information Problem Report Form MOXA ThinkCore W311/321/341 Series Customer name: Company: Tel: Fax: Email: Date: 1. MOXA Product: ThinkCore W311 ThinkCore W321 ThinkCore W341 2. Serial Number: _________________ Problem Description: Please describe the problem clearly. Include as many details as you can. This will help us reproduce the problem, and expedite the repair of your product. -
Page 28: Product Return Procedure
ThinkCore W311/321/341 Hardware User’s Manual Service Information Product Return Procedure For product repair, exchange, or refund, the customer must: Provide evidence of original purchase. Obtain a Product Return Agreement (PRA) from the sales representative or dealer. Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter product repair time.
