WaterLogic WL3000 Technical Manual page 6

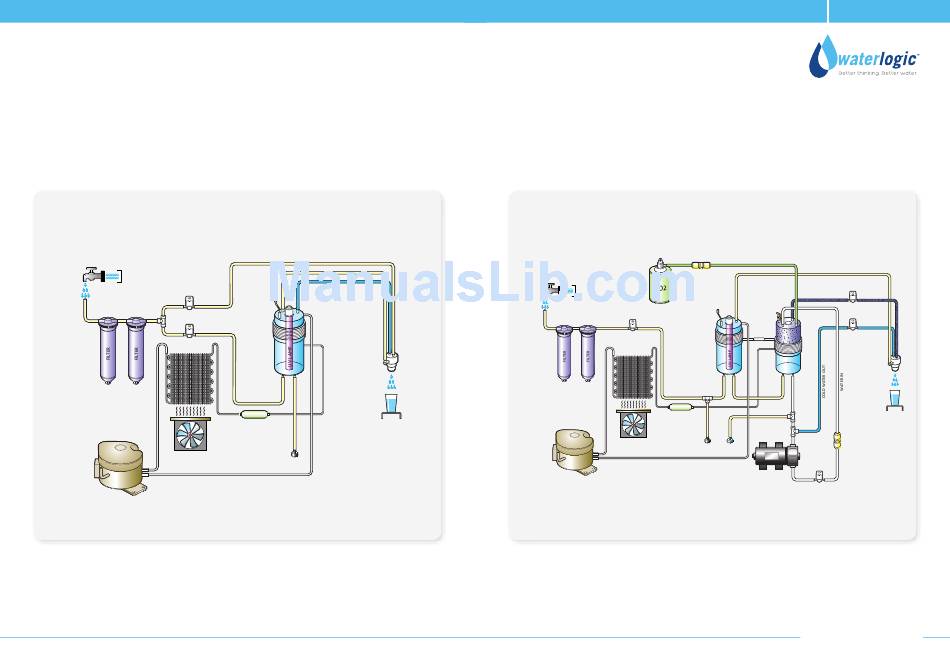

Main Parts Layout
Cold & Ambient Models
IN (Water)
SOLENOID
VALVE 1
SOLENOID
VALVE 2
CONDENSER
COMPRESSOR
FAN MOTOR
AMBIENT WATER OUT
AIR VENT
COLD WATER OUT
COLD
SENSOR
COLD
TANK
FAUCET
OUT
FILTER
(Water)
DRYER
DRAIN
VALVE
10
Main Parts Layout
Cold & Sparkling Models
CHECK VALVE
IN (Water)
COLD
SOLENOID
SENSOR
VALVE 1
CONDENSER
COLD
TANK
FILTER
DRYER
COMPRESSOR
FAN MOTOR
DRAIN AIR HOLE
VALVE FOR DRAIN
CO In
2
AIR VENT
SOLENOID
VALVE 4
SPARKLING WATER OUT
SAFETY SOLENOID
VALVE VALVE 3
SPARKLING
WATER
COLD
TANK
FAUCET
OUT
(Water)
CHECK
PUMP
VALVE
SOLENOID
VALVE 2
WL3000 Technical Manual - May 2014
11
