Know Your Maxx

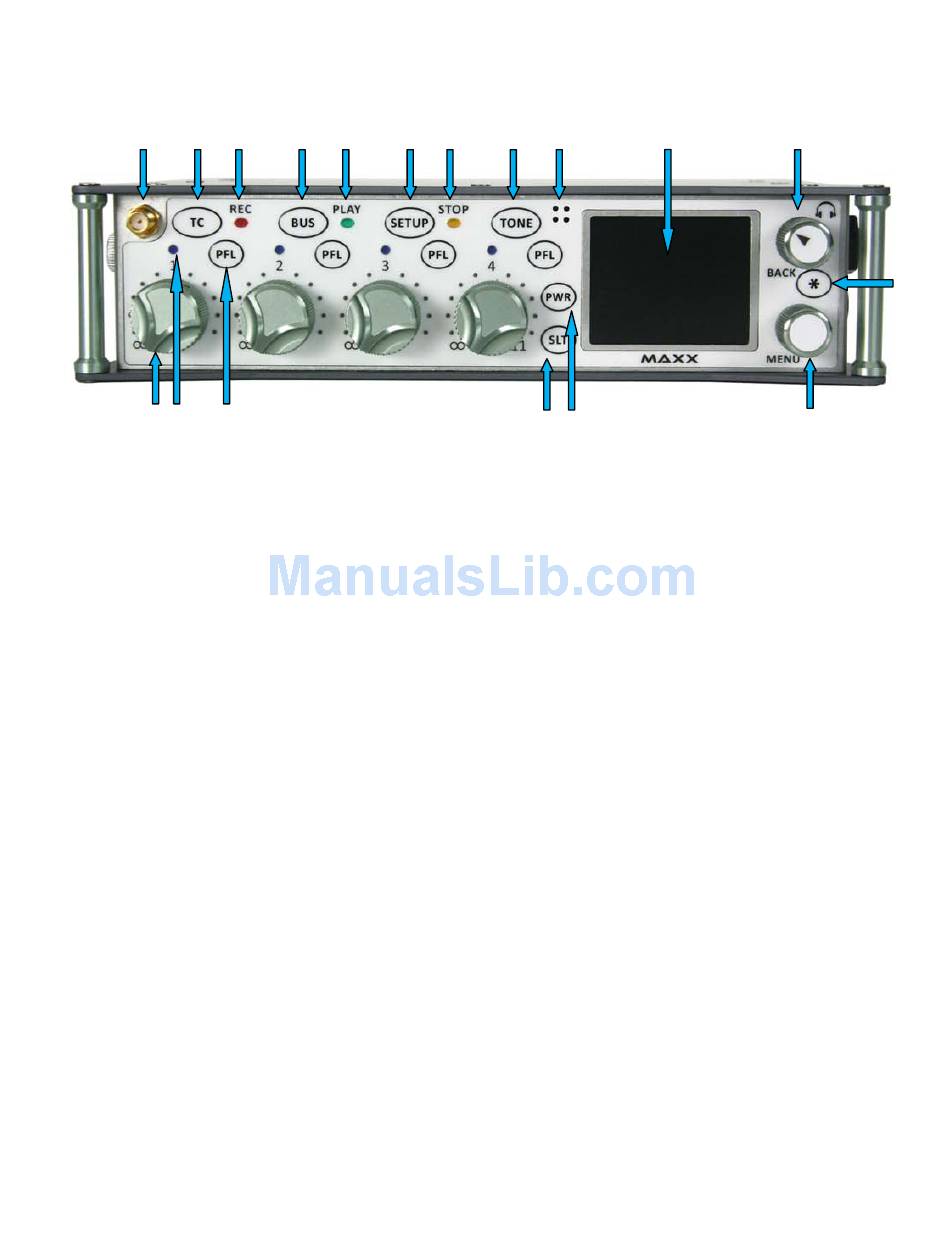

Front Panel

1
13 14
1. Wireless Camera Link Antenna -SMA
2. TC / REC Key
• A single short press once opens the Visual Time Code Slate.
• Additional presses accesses the Time Code menus.
• Press and hold for one second, puts the Maxx into Record.
• When in setup menu press it to access the analog input 1 setup menu.
3. Record LED
Indicates Maxx is in Record mode.
In the Warning Setup Menu Maxx can be set up that if you are recording just to the primary folder the LED will
flash red, and when Maxx is mirroring the LED will go to solid red. This is to warn the user that Maxx is not in
Continuous Mirror Mode.
4. BUS /PLAY key
• When in the ENG Home Page a single short press allows you to adjust the Quick Pan Matrix.
• A second press or a press from any other Home page takes you into the Bus Routing menu.
• Pressed and hold for one second, puts Maxx into Playback mode.
• When in setup menu press it to access the analog input 2 setup menu.
5. Play LED
Indicates Maxx is in Playback mode.
6. SETUP / STOP Key
• A single short press opens the Analog Input Setup menu.
• Press and hold for one second while in record mode, or playback mode, stops Maxx.
• When in setup menu press it to access the analog input 3 setup menu.
7. STOP LED
Indicates Maxx is in Stop mode.
8. TONE Key
• Press to toggle Tone on and off.
• When in setup menu press it to access the analog input 4 setup menu.
9. Internal Slate Microphone
10. Color LCD Screen
Daylight-readable color LCD screen.
2 3 4 5
15
6 7 8 9
16 17
5
10 11
18
12
