5.2 Connections

At the bottom of the Vectron POS ColorTouch are numerous connec-
tions, via which external devices can be connected.
The Vectron POS ColorTouch offers six RS-232 interfaces. Via one of
these interfaces, your cash register system can be connected to a
PC. This connection would allow for instance, to update the software
of your cash register system, or to read and process registrations.
Furthermore, the cash register system is equipped with a Centron-
ics interface for parallel connection of a printer. Additionally, the
Vectron POS ColorTouch has an Ethernet interface, giving the op-
tion of networking several cash register systems, and two additional
sockets for the connection of an external keyboard and several (up
to four) cash drawers. All connections a directly located on the main-
board (on-board) of the Vectron POS ColorTouch.
Power-in
Power switch

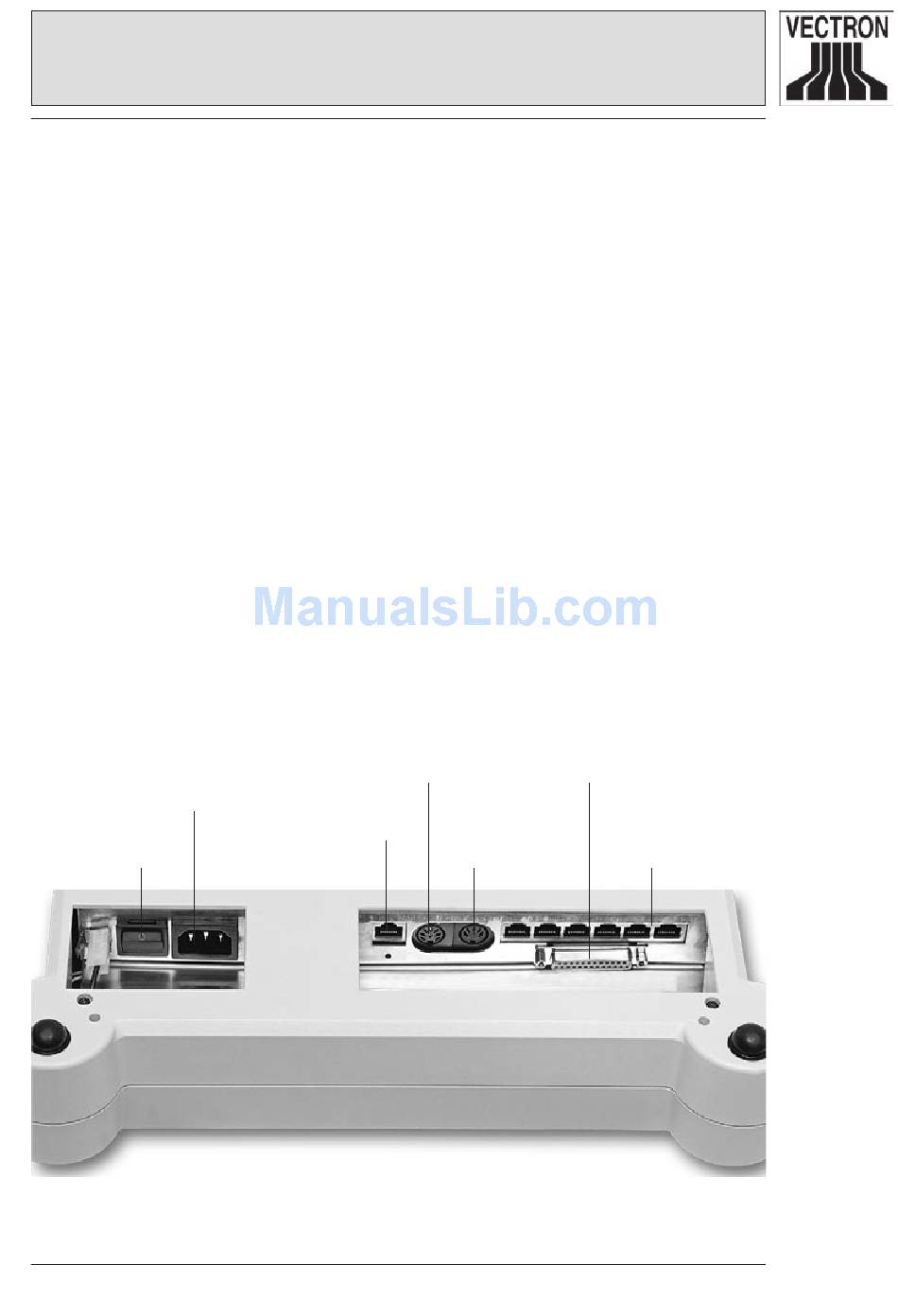

Fig. 3: Connector block of the Vectron POS ColorTouch
Vectron POS ColorTouch
Diode plug for con-
nection of drawer
Network connection
for ECR network
Port for parallel Centro-
nics printer
Connection for Serial ports for peri-
ext. keyboard pheral devices
