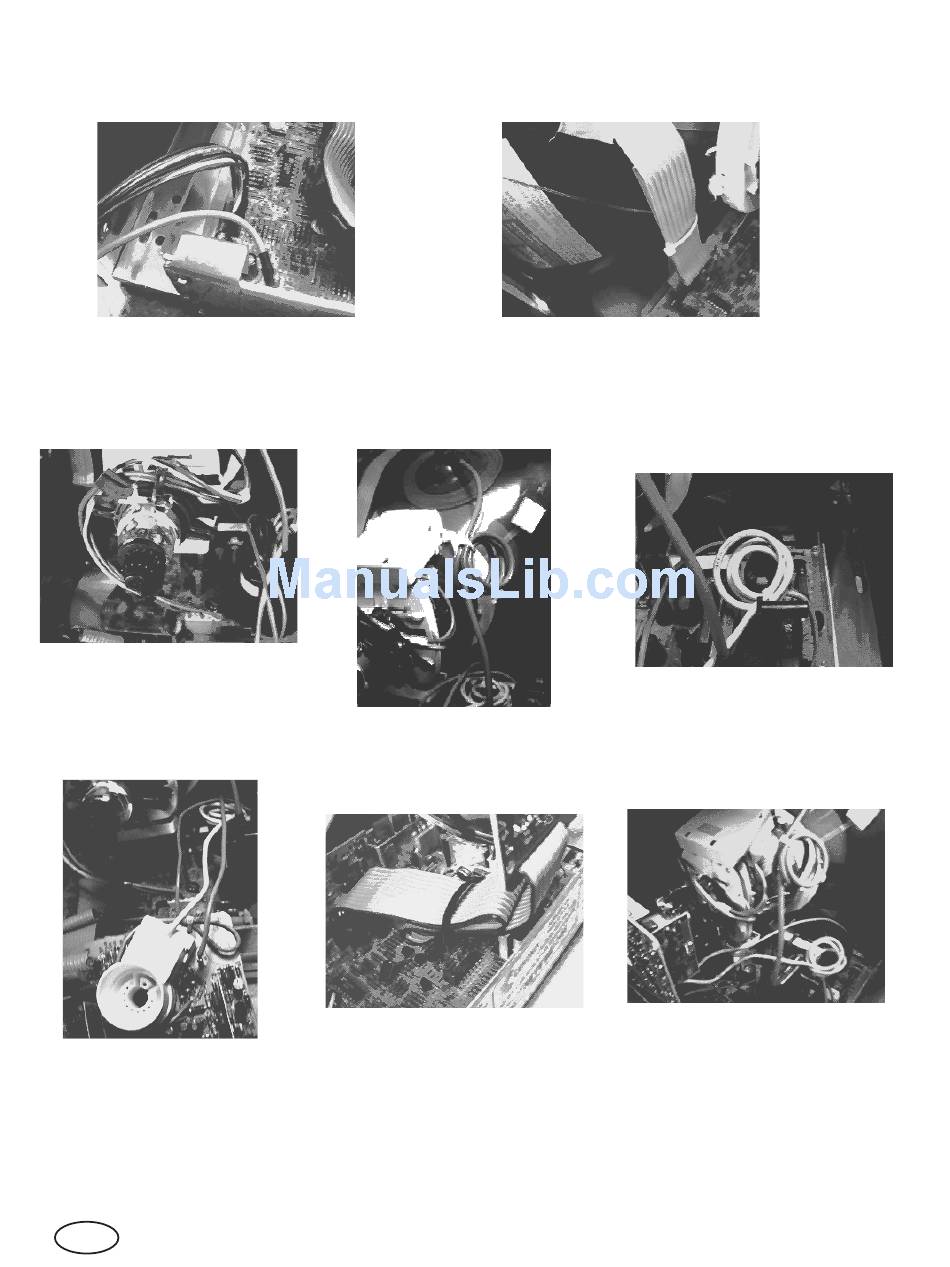

Wire Routing Instructions - Ceronix 1493 Service Manual

Attach the protective earth,
green / yellow, ground wire.
Rout yoke wires
over CRT neck.
Rout G2 wire around
CRT socket, shorten
with loop, and add
wire tie.
108

Wire Routing Instructions.

Shorten EHT wire
and add wire tie.
Plug in video board.
Fold video flat cable to
avoid contacting the
metal frame. Secure
fold with a wire tie.
Fold remote cable to clear
CRT and add wire tie.
Shorten focus wire
and add wire tie.
Finished assembly with the
different voltage type wires
not touching each other.
