The vertical sync comes from the
synchronized vertical sync interface
circuit for monitors without interlace.
For monitors with interlace the vertical
sync comes from the sync comparator
via a coupling capacitor and bypasses
the synchronizing circuit. Pin 19 of the
LA7851 is the vertical sync input and will
start the next oscillator cycle on either the
positive or negative sync pulse. The vertical
oscillator capacitor
410 410
on the leading edge of the vertical sync by the
action of an internal transistor and resistor.
Capacitor is then charged by resistor
410
410
until the next sync pulse or to
362 362
8 volts, which ever comes first. The V. osc.
frequency is set low such that the adjustment
resistor can be used to act as a vertical
363
363
hold adjustment. Solder connection
used to make this adjustment.
The vertical oscillator triggers the vertical
oscillator one shot, which outputs a pulse to
trigger the vertical sync input, pin 2, of the
LA7838. This one shot is also used to
synchronize the CRT auto bias IC.
Resistor & capacitor
361 361
timeout which must be longer than the CRT
auto bias Vs delay and shorter than the
vertical blanking. Resistors
supply the pullup for this one shot.
80

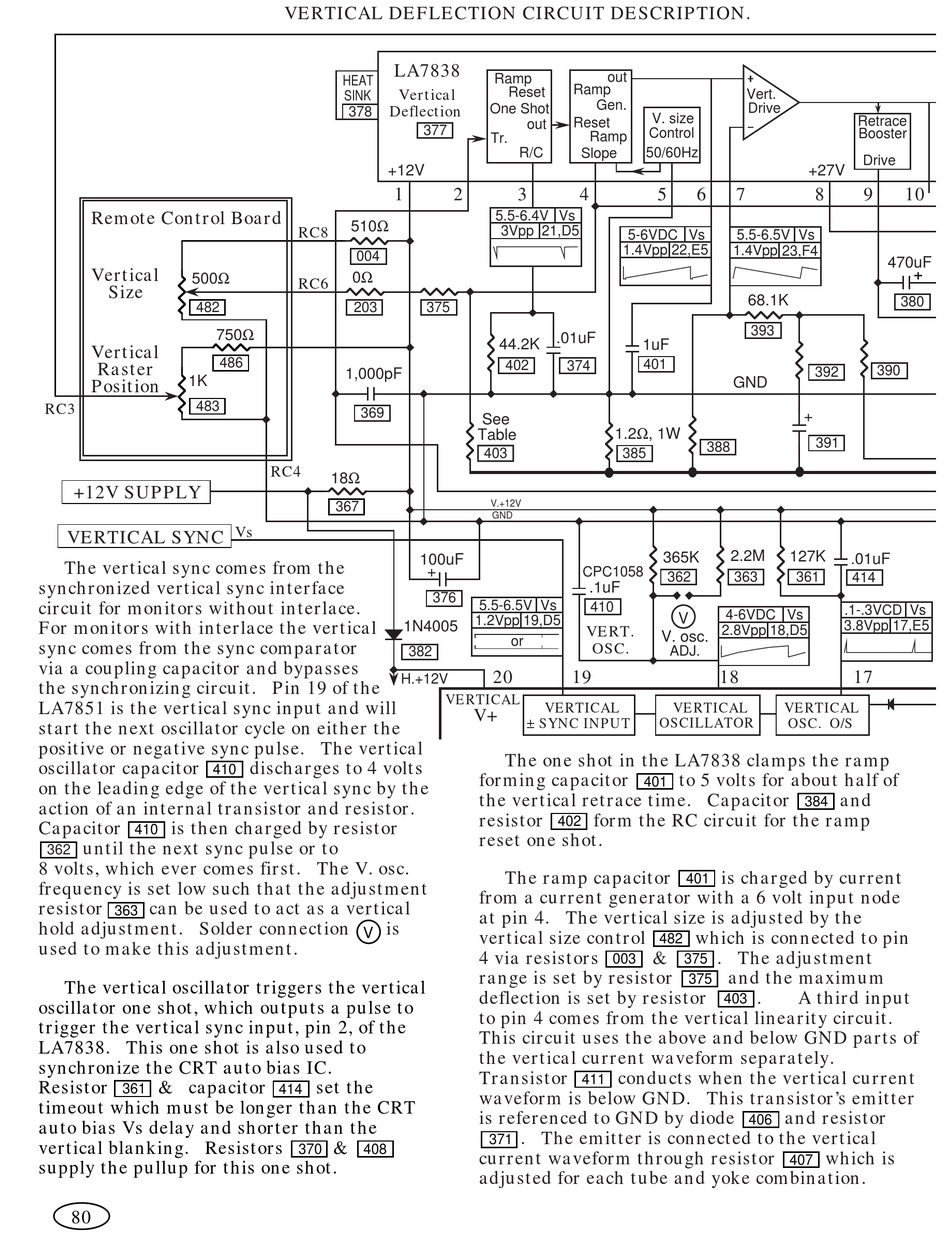

VERTICAL DEFLECTION CIRCUIT DESCRIPTION.
