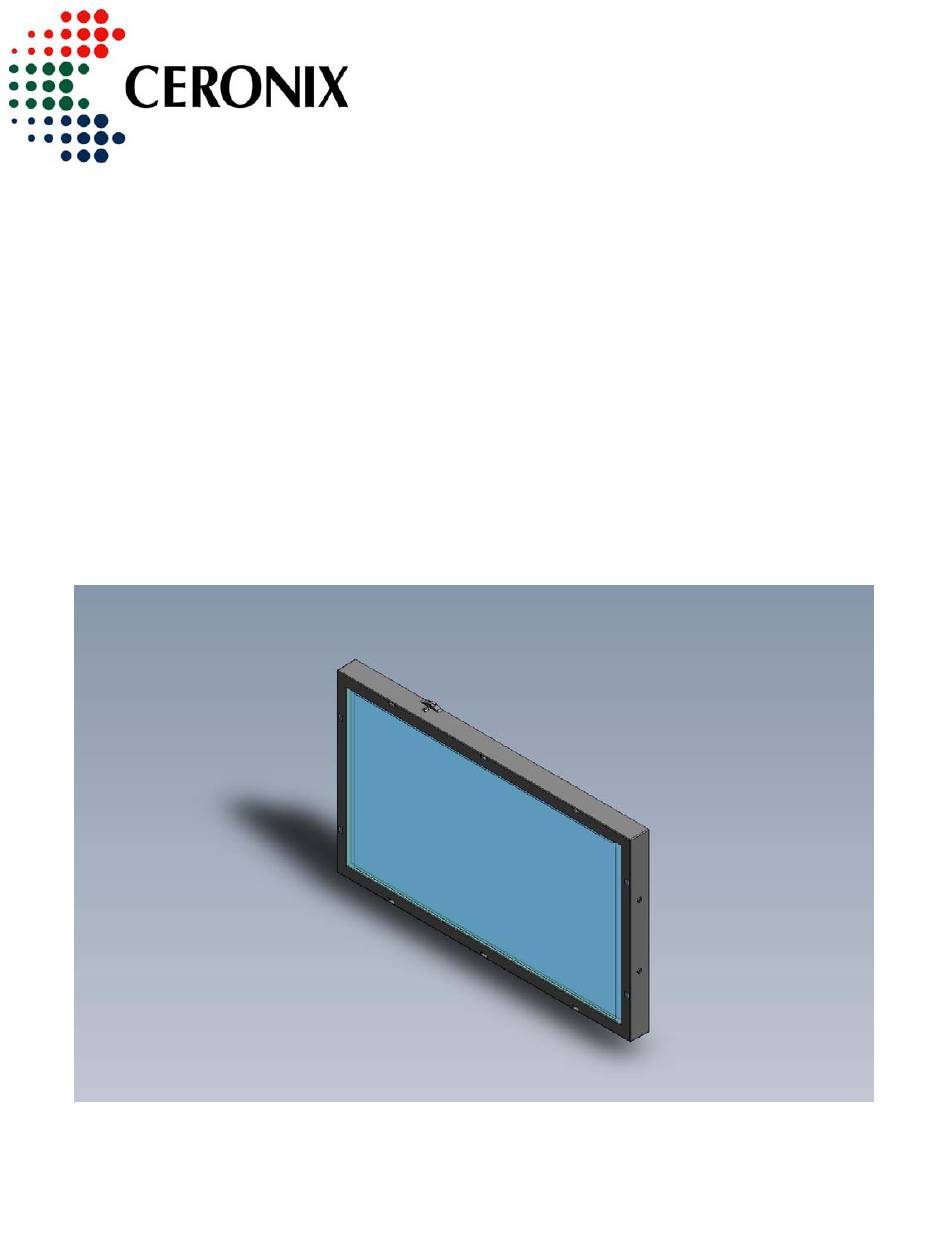

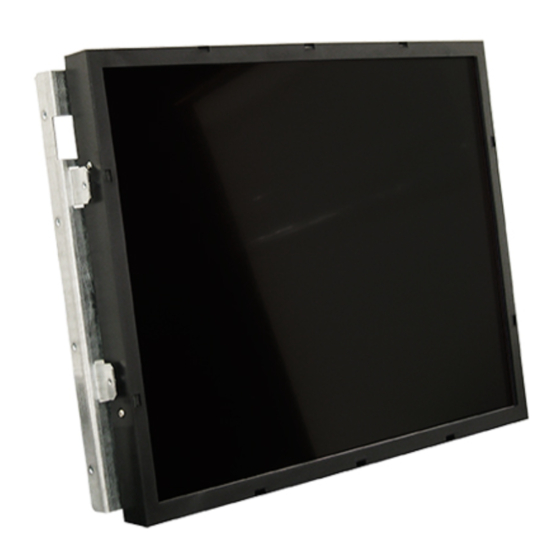

  • Page 1 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION and OPERATION MANUAL ODELS 15/17/19/20/2205-LCD 15/17/19/20/2207-LCD 15/17/19/20/2208-LCD 15/17/19/20/2209-LCD 13350 N ● A , CA 95602 ● T 530.886.6400 ● F 530.888.1065 IRPORT UBURN CERONIX CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 2 4 YEAR LIMITED WARRANTY This product is warranted by CERONIX to be free of defects in material and workmanship for a period of two years from the date of purchase. All parts and labor are free of charge during the warranty period. This warranty does not cover mechanical breakage due to physical abuse or LCD panel image retention.
  • Page 3 être identifiées par le symbole suivant dans la liste de parties. S'il est nécessaire de remplacer ces parties sont sûr d'utiliser les parties spécifiées dans la liste de parties. CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 4: Table Of Contents

    19. A/C to DC Power Supply, CPM2201A P33-34 20. 24V 2-Lamp Inverter, CPM2236A P35-36 21. 24V 4-Lamp Inverter, CPM2253A P37-38 22. 24V 6-Lamp Inverter, CMP2469 P39-40 23. 12V 4-Lamp Inverter, CPM2237A P41-42 CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 5: General Description

    4. General Description This specification and operation manual defines the characteristics and performance of the Ceronix 15, 17, 19, 20, 22 Inch LCD Monitors. This product is capable of displaying resolutions from VGA to SXGA. The built in A/D controller is capable of displaying up to 16,777,216 colors based on its red, green, and blue analog video input.

  • Page 6: Electrical And Panel Specifications

    Input Connectors 15.5-80KHz Horizontal, 56-75Hz Vertical Signal Frequency 25-35W, 90 - 264VAC, 50/60Hz Power/Voltage (XX05-LCD) 12Vdc, 24Vdc Voltage (XX07-LCD) 24Vdc Voltage (XX08-LCD) 5Vdc, 12Vdc, 24Vdc Voltage (XX09-LCD) CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 7: Application Timing

    If the image is centered and fills the screen, try recycling the power to the display. If the image appears centered and fills the screen, then the auto- detect functioned properly. CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 8 GAMING MACHINE MANUFACTURER MODEL NUMBER DATE OF MANUFACTURE NAME OF GAME RESOLUTION HORIZONTAL FREQUENCY H-SYNC PULSE WIDTH H-SYNC PULSE DELAY VERTICAL FREQUENCY V-SYNC PULSE WIDTH V-SYNC PULSE DELAY CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 9: Mechanical And Environmental Specifications P9-13

    8. Mechanical & Environmental Specifications 10.394” x 13.228” x 2.696” (150X-LCD) Dimensions (W x H x D) Operational 0° to 70°C, Humidity 5% to 90% Non-Condensing Environment CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 10 8. Mechanical & Environmental Specifications 14.344” x 11.841” x 2.639” (170X-LCD) TN Dimensions (W x H x D) Operational 0° to 70°C, Humidity 5% to 90% Non-Condensing Environment CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 11 8. Mechanical & Environmental Specifications 15.968” x 13.173” x 2.805” (190X-LCD) Dimensions (W x H x D) Operational 0° to 70°C, Humidity 5% to 90% Non-Condensing Environment CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 12 8. Mechanical & Environmental Specifications 18.597” x 11.123” x 2.787” (200X-LCD) Dimensions (W x H x D) Operational 0° to 70°C, Humidity 5% to 90% Non-Condensing Environment CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 13 8. Mechanical & Environmental Specifications 19.815” x 13.020” x 2.806” (2200X-LCD) Dimensions (W x H x D) Operational 0° to 70°C, Humidity 5% to 90% Non-Condensing Environment CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 14: Mechanical Rendering

    9. Mechanical Rendering CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 15: Osd Navigation

    10. OSD Navigation CONTRAST ADJUSTS RGB GAIN BRIGHTNESS ADJUSTS BACKLIGHT CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 16 ADJUSTS IMAGE POSITION UP OR DOWN HORIZONTAL SIZE ADJUSTS HORIZONTAL SIZE FINE ADJUSTS CLOCK FOR FINE HORIZONTAL SIZE CHANGE SOURCE TO VGA CONNECTOR CHANGE SOURCE TO DVI CONNECTOR CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 17 OSD DOWN UP ADJUSTS OSD POSITION UP OR DOWN OSD TIMEOUT ADJUSTS OSD DISPLAY TIME OSD COLOR ADJUSTS COLOR OF OSD IMAGE FACTORY RESET RECALLS FACTORY ADJUSTMENT DATA CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 18 SELECT OSD FOR SPANISH LANGUAGE JAPANESE SELECT OSD FOR JAPANESE LANGUAGE CHINESE TRADITIONAL SELECT OSD FOR CHINESE TRADITIONAL LANGUAGE CHINESE SIMPLE SELECT OSD FOR CHINESE SIMPLE LANGUAGE CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 19 SELECT FOR USER ADJUST COLOR TEMPERATURE USER RED SELECT FOR USER ADJUST RED USER GREEN SELECT FOR USER ADJUST GREEN USER BLUE SELECT FOR USER ADJUST BLUE CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 20: Burn-In Mode P20

    This is accomplished by pressing the “MENU” button and “POWER” button at the same time. It is possible to escape from this mode by reapplying a valid input signal. CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 21: A/D Controller Board P21

    Ceronix Part Number CPM2376 CONNECTOR DESCRIPTION PIN COUNT TOUCH POWER DC INPUT OSD KEY PAD INVERTER CONTROL IR BOARD LCD LVDS DVI INPUT CN11 VGA ANALOG INPUT CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...

  • Page 22: A/D Controller Board Pin Description P22-27

    CONNECTOR DESCRIPTION PIN COUNT 24VDC INPUT TOUCH POWER GPIO, UART VIDEO ITU656, LIGHT SENSOR LCD LVDS INVERTER AUDIO CN10 DVI-D CN12 CN13 OSD KEY CN15 IR RECEIVER CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 23 CN2 24VDC INPUT FUNCTION +24 VDC +24 VDC +24 VDC GROUND GROUND GROUND CN3 TOUCH POWER FUNCTION +12VDC +5VDC GROUND CN5 GPIO, UART FUNCTION +5VDC GROUND GPIO GPIO CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 24 13. A/D Controller Board Pin Description CN6 VIDEO ITU656, LIGHT SENSOR FUNCTION DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7 GROUND GROUND CN8 INVERTER FUNCTION +5/+12/+24 +5/+12/+24 +5/+12/+24 ADJUST ON/OFF GROUND GROUND CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 25 RXOCKIN- OPTION GROUND OPTION RXO1N3+ OPTION RXO1N3- RXE1N3+ RXOCKIN+ RXE1N3- RXOCKIN- RXECKIN+ RXO1N2+ RXECKIN- RXO1N2- RXE1N2+ RXO1N1+ RXE1N2- RXO1N1- RXE1N1+ RXO1N0+ RXE1N1- RXO1N0- RXE1N0+ GROUND RXE1N0- GROUND CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 26 CN10 LCD DVI-D FUNCTION FUNCTION RX2-_IN HOT PLUG DETECT RX2+_IN RX0-_IN GROUND RX0+_IN GROUND DDC-SCL DDC-SDA GROUND RXC+_IN RX1-_IN RXC-_IN RX1+_IN GROUND DVI +5V GROUND GROUND GROUND CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 27 DDC-SCL BLUE VIDEO GROUND CN13 OSD KEY FUNCTION POWER GREEN LED RED LED AUTO/SEL DOWN MENU RESERVED GROUND CN15 IR RECEIVER FUNCTION +5VDC GROUND +3.3VDC IR DATA CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 28 14. A/D Controller Schematics Power CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 29 15. A/D Controller Schematics Scaler CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 30 16. A/D Controller Schematics Interface CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 31 17. A/D Controller Schematics DSUB DVI INPUT CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 32 18. A/D Controller Schematics KEY BUTTON, IR RECEIVER CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 33 19. A/C TO DC POWER SUPPLY CERONIX PART NUMBER CPM2201A INPUT: 100-240VAC, 50-60Hz, 1.3A OUTPUT: 24VDC, 2.5A CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 34 19. A/C TO DC POWER SUPPLY CERONIX PART NUMBER CPM2201A SCHEMATIC CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 35 OUTPUT: CCFL LAMP CURRENT RANGE 3.5-8.0mA @ 50kHz CN1 DC SUPPLY AND CONTROL FUNCTION +24VDC +24VDC GROUND GROUND BRIGHT ADJUST GROUND ON/OFF CONTROL CN2, CN3 CCFL LAMP CONNECTION FUNCTION CCFL HIGH VOLTAGE CCFL RETURN CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 36 20. 24V 2-LAMP INVERTER SCHEMATIC CERONIX PART NUMBER CPM2236A CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 37 CN1 DC SUPPLY AND CONTROL FUNCTION +24VDC +24VDC GROUND GROUND BRIGHT ADJUST GROUND ON/OFF CONTROL J2, J3, J4, J5 CCFL LAMP CONNECTION FUNCTION CCFL HIGH VOLTAGE CCFL RETURN CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 38 21. 24V 4-LAMP INVERTER SCHEMATIC CERONIX PART NUMBER CPM2253A CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 39 CN1 DC SUPPLY AND CONTROL FUNCTION +24VDC +24VDC ON/OFF CONTROL BRIGHT ADJUST GROUND GROUND CN2, CN3, CN4, CN6, CN7, CN8 CCFL LAMP CONNECTION FUNCTION CCFL HIGH VOLTAGE CCFL RETURN CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 40 22. 24V 6-LAMP INVERTER SCHEMATIC CERONIX PART NUMBER CPM2469 CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 41 10, 11, 12 2, 4 GROUND 1, 3, 5, 6, 8, 9 BRIGHT ADJUST ON/OFF CONTROL J2, J3, J4, J5 CCFL LAMP CONNECTION FUNCTION CCFL HIGH VOLTAGE CCFL RETURN CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
  • Page 42 23. 12V 4-LAMP INVERTER SCHEMATIC CERONIX PART NUMBER CPM2237A CERONIX 15, 17, 19, 20, 22 INCH LCD MONITOR SPECIFICATION AND SERVICE MANUAL...
