5.6V to 1.1V, NEGATIVE ANALOG, DC COUPLED, VIDEO INTERFACE CIRCUIT DESCRIPTION.
Red Video Amp.
Green Video Amp.
Blue Video Amp.
FIL.
H
Sync
CRT Auto Bias
V
Sync
TC7 Red
TC5 Green
TC 3 Blue
Blanking & Beam Current Limit
FDH400
084
FDH400
086
FDH400
213
4.7K
239
16 13 9 6
R G B
o o o
B
BL
R R
IN R
2 1
1N4148
340Ω
271
236
301Ω
278
R
GND
Connecter
VC
VC
RED
4
3
INPUT

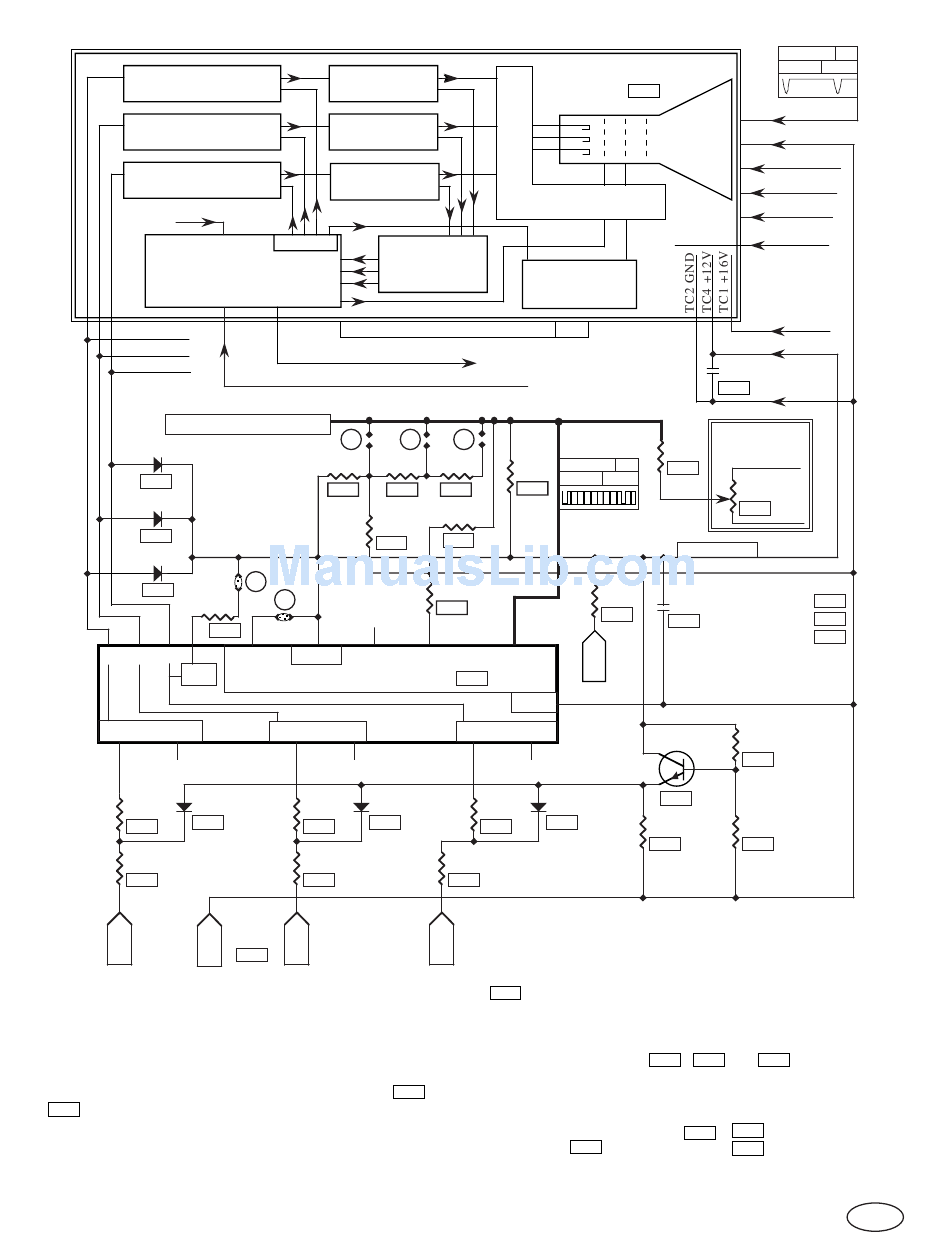

In each of the video interface circuit configurations,
current from the interface circuit is converted to a
voltage at the CRT cathodes. The simplest current
path is accomplished by the negative analog video
interface configuration.
The voltage drop across the input resistors
, for the red channel, is the current which drives
236
236
the video amplifiers when the video gain line is at
8.2 volts. For a lower gain line voltage, part of the
current is directed to the +12 volt line. During blanking
all the input current flows to the +12 volt line.
Beam current
Feedback
Beam current
Feedback
Beam current
Feedback
B+G+R=∑
