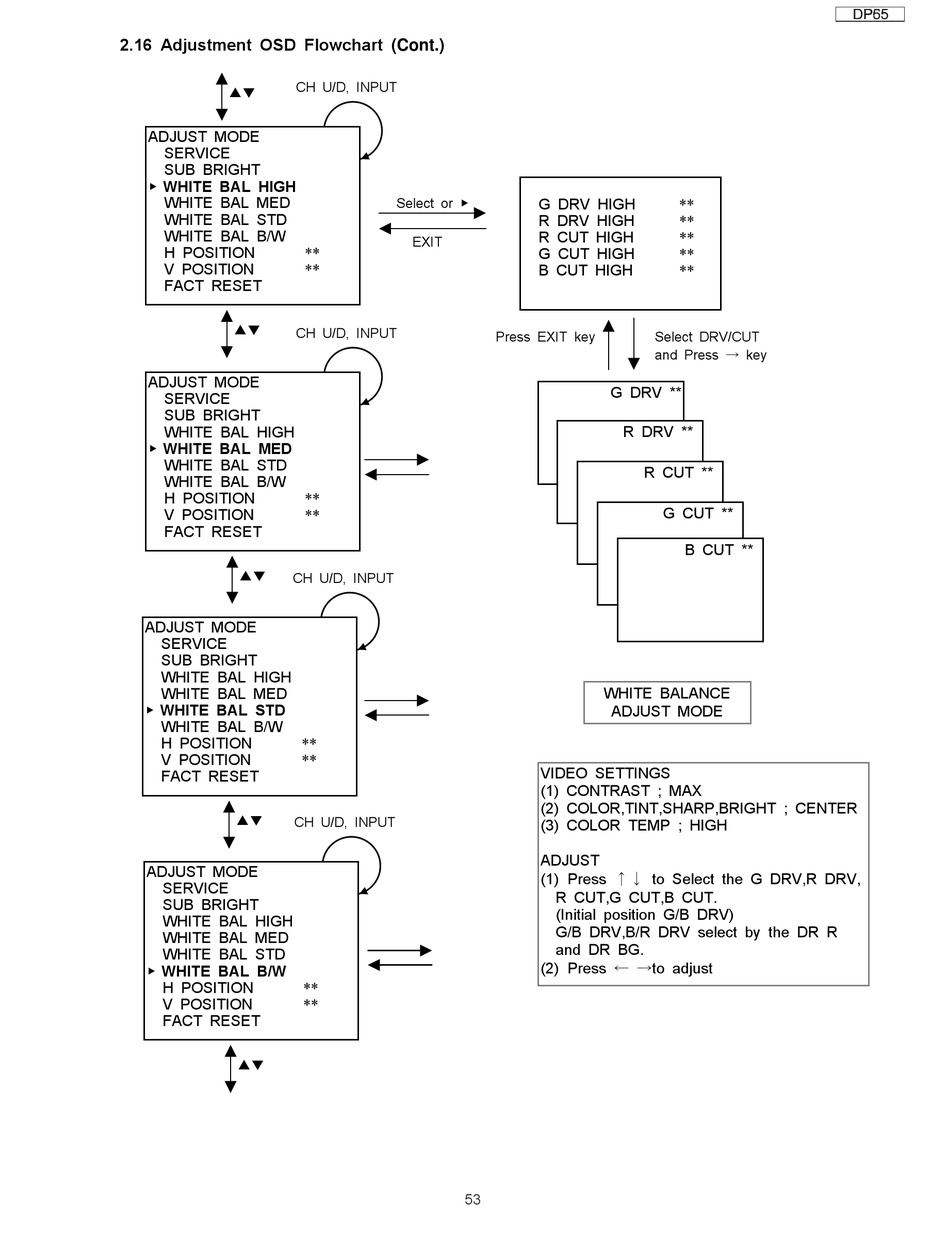

2.16 Adjustment OSD Flowchart (Cont.)
CH U/D, INPUT
▲▼
ADJUST MODE
SERVICE
SUB BRIGHT
▶ WHITE BAL HIGH
WHITE BAL MED
WHITE BAL STD
WHITE BAL B/W
H POSITION
V POSITION
FACT RESET
▲▼
CH U/D, INPUT
ADJUST MODE
SERVICE
SUB BRIGHT
WHITE BAL HIGH
▶ WHITE BAL MED
WHITE BAL STD
WHITE BAL B/W
H POSITION
V POSITION
FACT RESET
▲▼
CH U/D, INPUT
ADJUST MODE
SERVICE
SUB BRIGHT
WHITE BAL HIGH
WHITE BAL MED
▶ WHITE BAL STD
WHITE BAL B/W
H POSITION
V POSITION
FACT RESET
▲▼
CH U/D, INPUT
ADJUST MODE
SERVICE
SUB BRIGHT
WHITE BAL HIGH
WHITE BAL MED
WHITE BAL STD
▶ WHITE BAL B/W
H POSITION
V POSITION
FACT RESET
▲▼
▶
Select or
EXIT
**
**
**
**
**
**
**
**
53
G DRV HIGH
R DRV HIGH
R CUT HIGH
G CUT HIGH
B CUT HIGH
Press EXIT key Select DRV/CUT
and Press → key
G DRV **
R DRV **
R CUT **
G CUT **
WHITE BALANCE
ADJUST MODE
VIDEO SETTINGS
(1) CONTRAST ; MAX
(2) COLOR,TINT,SHARP,BRIGHT ; CENTER
(3) COLOR TEMP ; HIGH
ADJUST
(1) Press ↑↓ to Select the G DRV,R DRV,
R CUT,G CUT,B CUT.
(Initial position G/B DRV)
G/B DRV,B/R DRV select by the DR R
and DR BG.
(2) Press ← →to adjust
DP65
DP55
**
**
**
**
**
B CUT **
