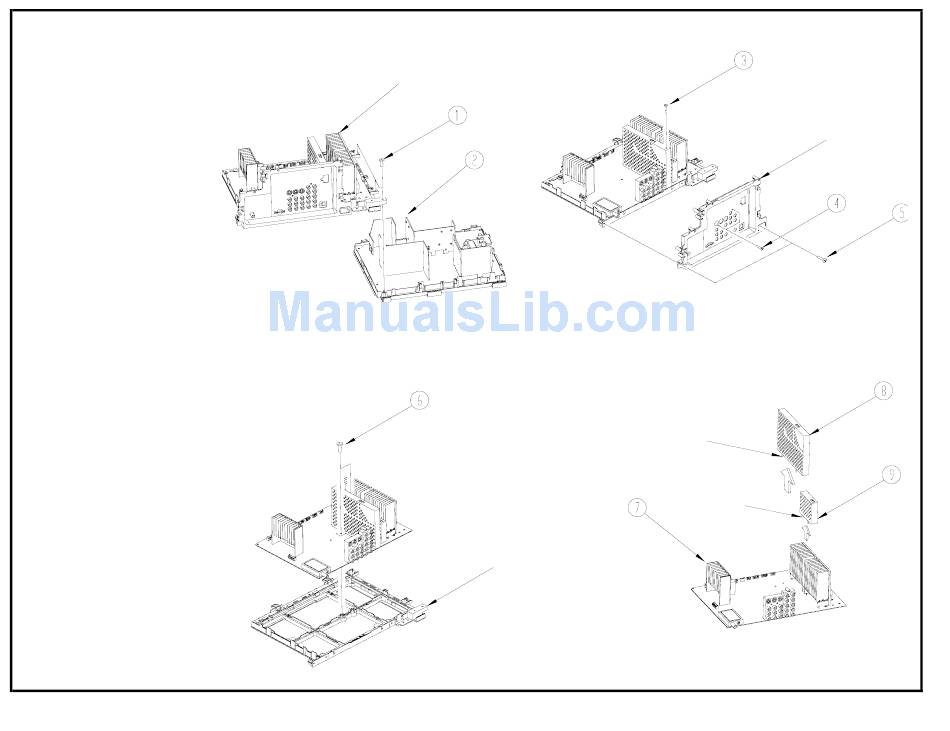

CHASSIS ASSY
① Screw T2B 3*16 P#MJ03459(3 Pcs.)
② Deflection PWB Assy P# TBD (DP65)
P# TBD (DP65G)
SIGNAL BLOCK ASSY
③ Screw M3E 3*10 P#MJ03466
④ Screw T2B 3*12 P#MJ03551(2 Pcs.)
TERMINAL HOLDER
⑤ Screw T2B 3*12 P#MJ03551(2 Pcs.)
⑥ Screw T2B 3*12 P#MJ03551(2 Pcs.)
⑦ Signal PWB Assy P# TBD
⑧ Digital PWB Assy P# TBD
⑨ DCU PWB Assy P# JT25571
DESOLDER AND
UNTWIST(4 POINTS)
DESOLDER AND
UNTWIST(4 POINTS)
PLASTIC FRAME
112
