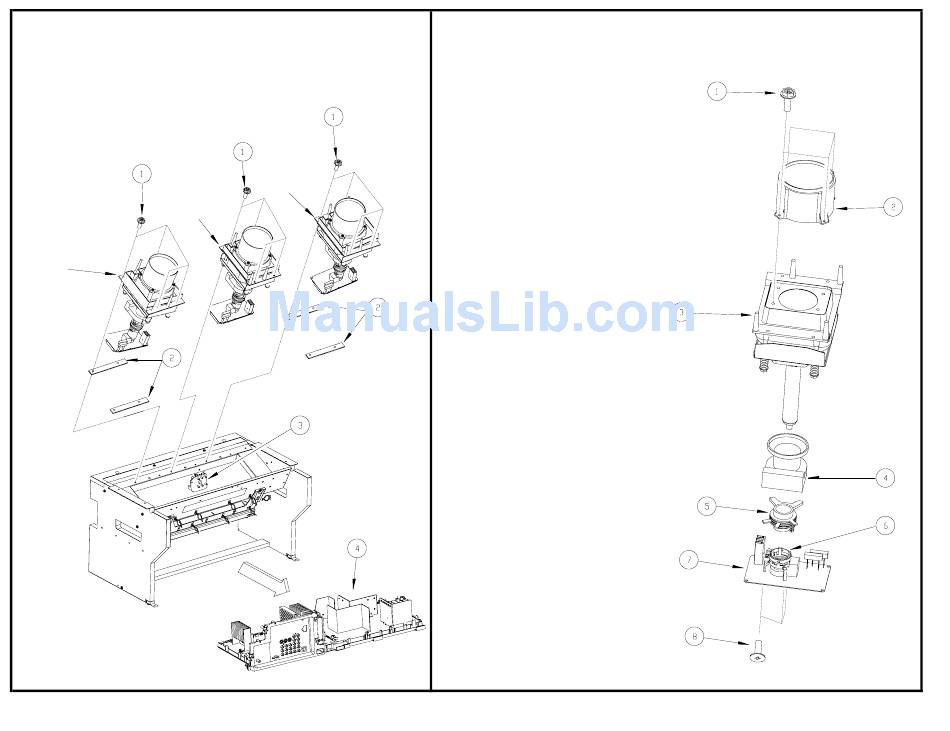

CORE ASSY 3
① Screws T2B 4*12 P#MJ03634(12 Pcs.)(51/57F59/A/J)
T2B 4*20 P#MJ03638(12 Pcs.)(65F59/A/J)
② Bracket Spacer P#ND00594(4 Pcs.)(65F59/A/J Only)
Focus Pack P#AZ00726 or P#AZ00165(Compatibles)
③
④ Main Chassis P#UE25921 (DP65) 51/57/65F59
P#UE25922 (DP65G) 51/57/65F59A/J
LCB ASSY(G)
LCB ASSY(B)
① Screw T2B 4*12 P#MJ03634(12 Pcs.)
② Lens
③ PRT Assy
LCB ASSY(R)
④ DY P#BY01555/BY01664/BY01794(Compatibles)
⑤ VM Coil P#GX00516(3 Pcs.)
⑥ CPT Holder P# TBD
⑦ CONT / CPT PWB ASSY P#JT25591
⑧ Screw T2B 3*12 P#MJ03458(9 Pcs.)
111
LCB ASSY
51F59/A/J R,G,B P#KQ04451
57F59/A/J R,G,B P#KQ04451
65F59 R,G,B P#KQ02332
65F59A/J R,G,B P#KQ04453
51/65F59 R P# TBD
G P# TBD
B P# TBD
R P# TBD
57F59
G P# TBD
B P# TBD
51/65F59A/J R P# TBD
G P# TBD
B P# TBD
R P# TBD
57F59A/J
G P# TBD
B P# TBD
Band P#MK00733
